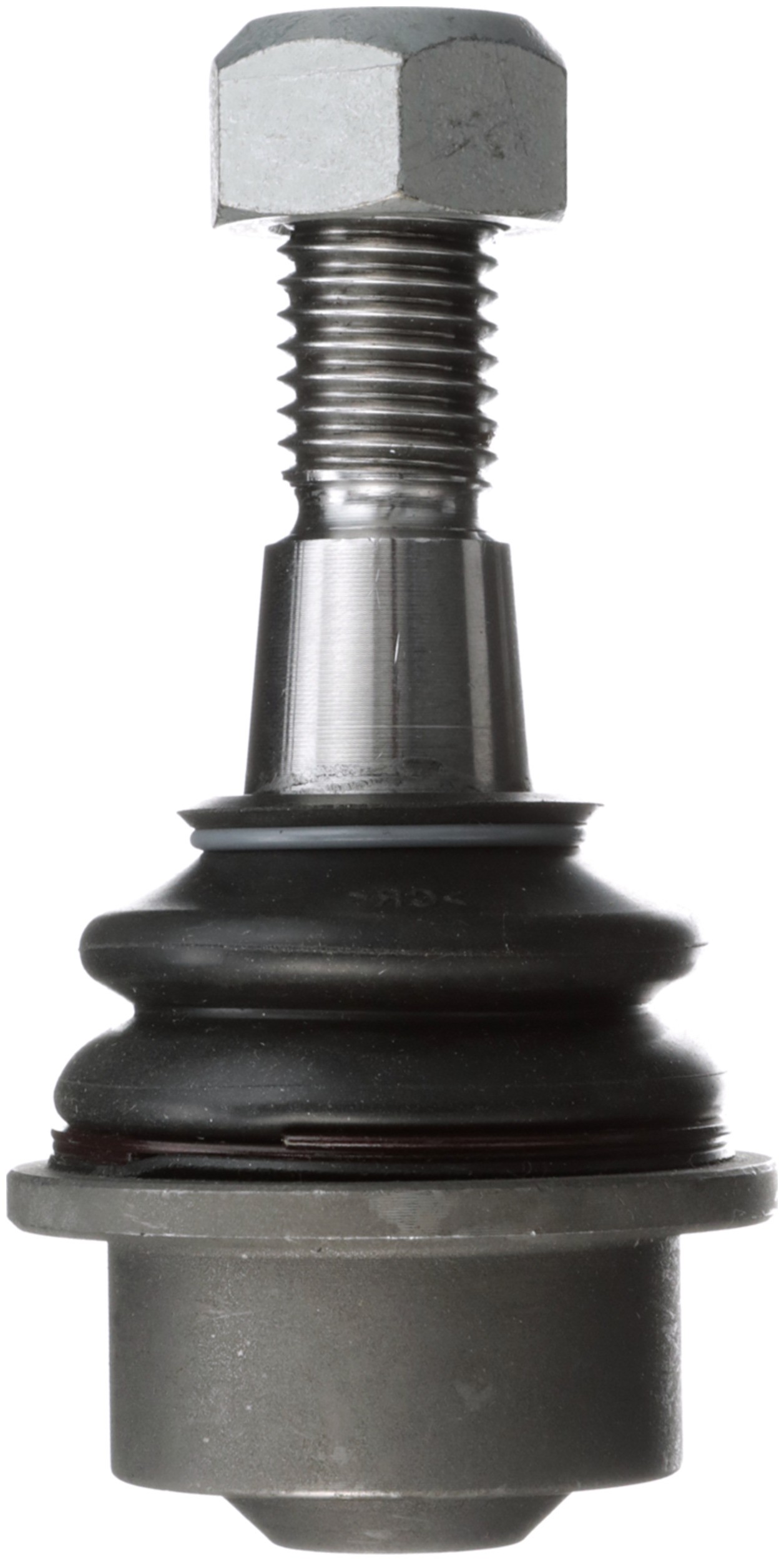

Delphi TC5794 Suspension Ball Joint

Delphi TC5794 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2334	No
Greaseable	No
Mounting Type	Press-In
Washers Included	Yes
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Height	111.00 MM
Height	4.370 IN
2381	Yes
Width	60 MM
Length	4.370 IN
Length	111.00 MM
Maximum Outside Diameter	60.00 MM
Maximum Outside Diameter	2.362 IN
2827	No
881	Threaded
9213	24.3 MM
9213	0.957 IN
9090	Rubber
9204	No
9209	No
9210	Yes
9212	19.8 MM
9212	0.78 IN
9211	0.167 IN
4966	32.79 MM
4966	1.291 IN
Color	Gray
Material	Steel
Position(s)	Front Lower
Adjustable	No
Grease Fitting Included	No
Suspension Grade Type	Standard Replacement
Bushings Included	No
Dust Boot Included	Yes
