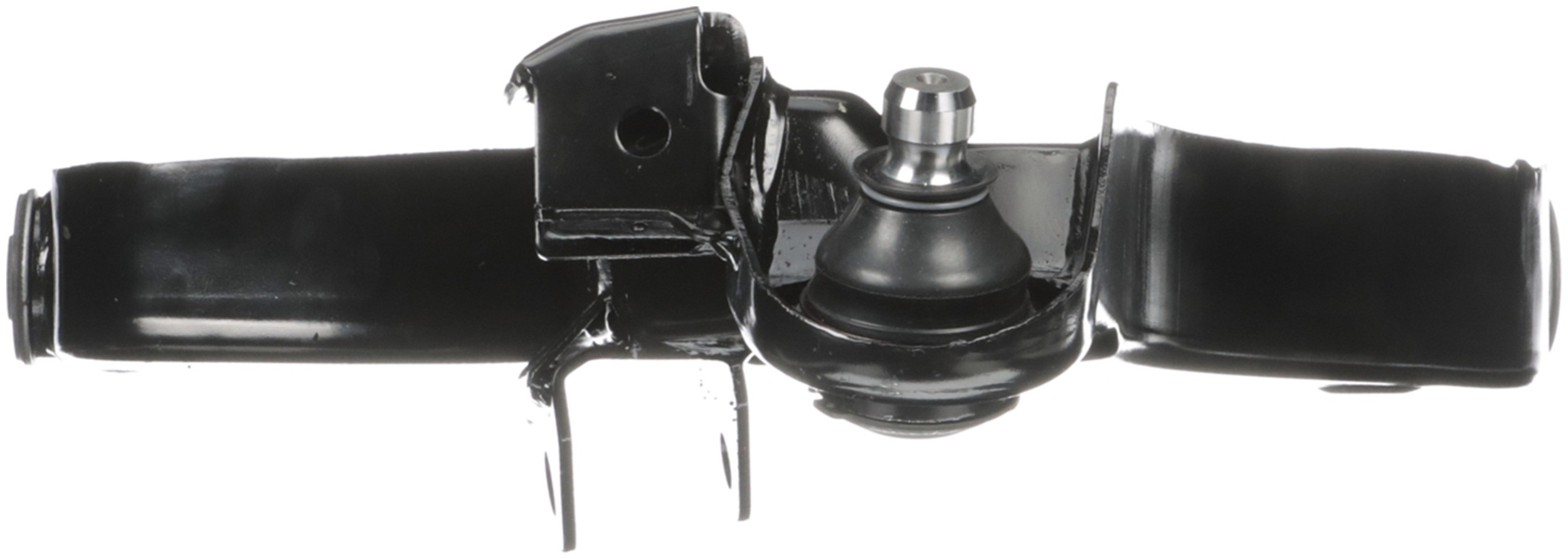

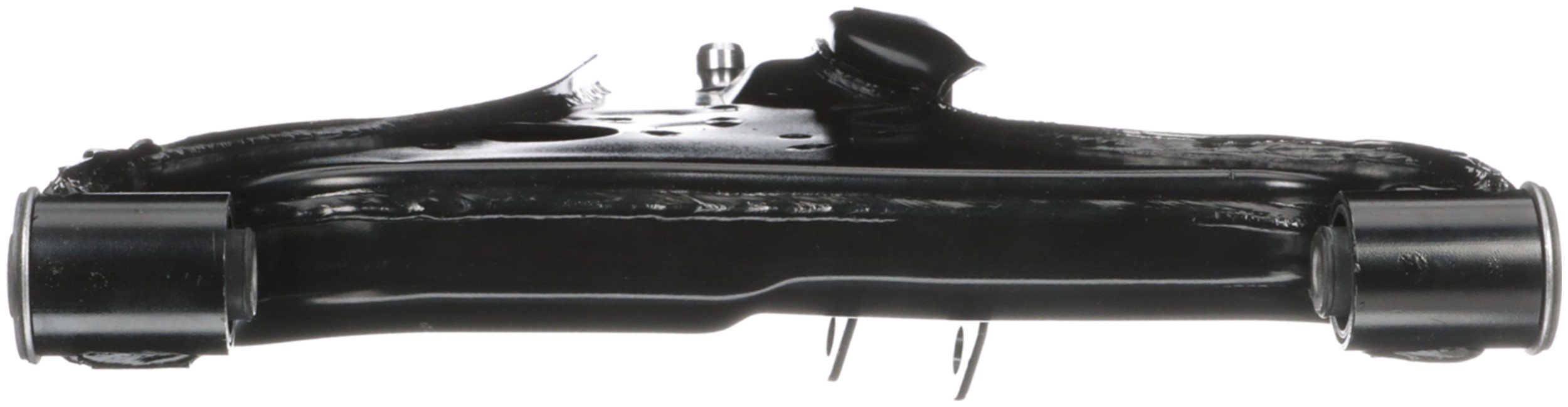

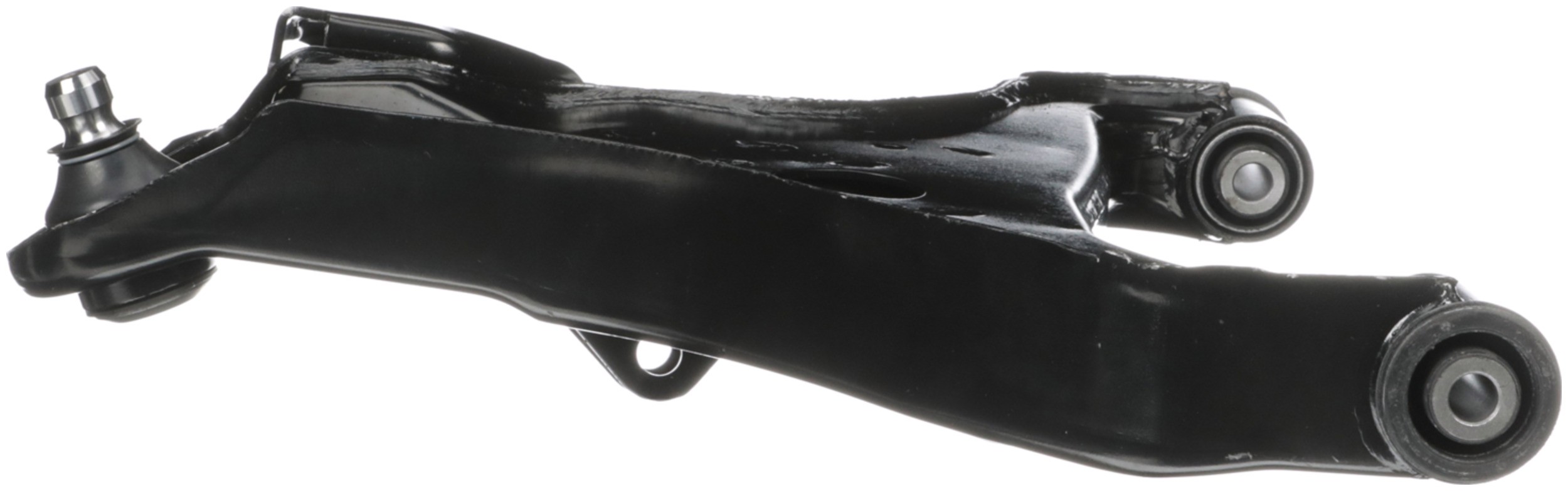

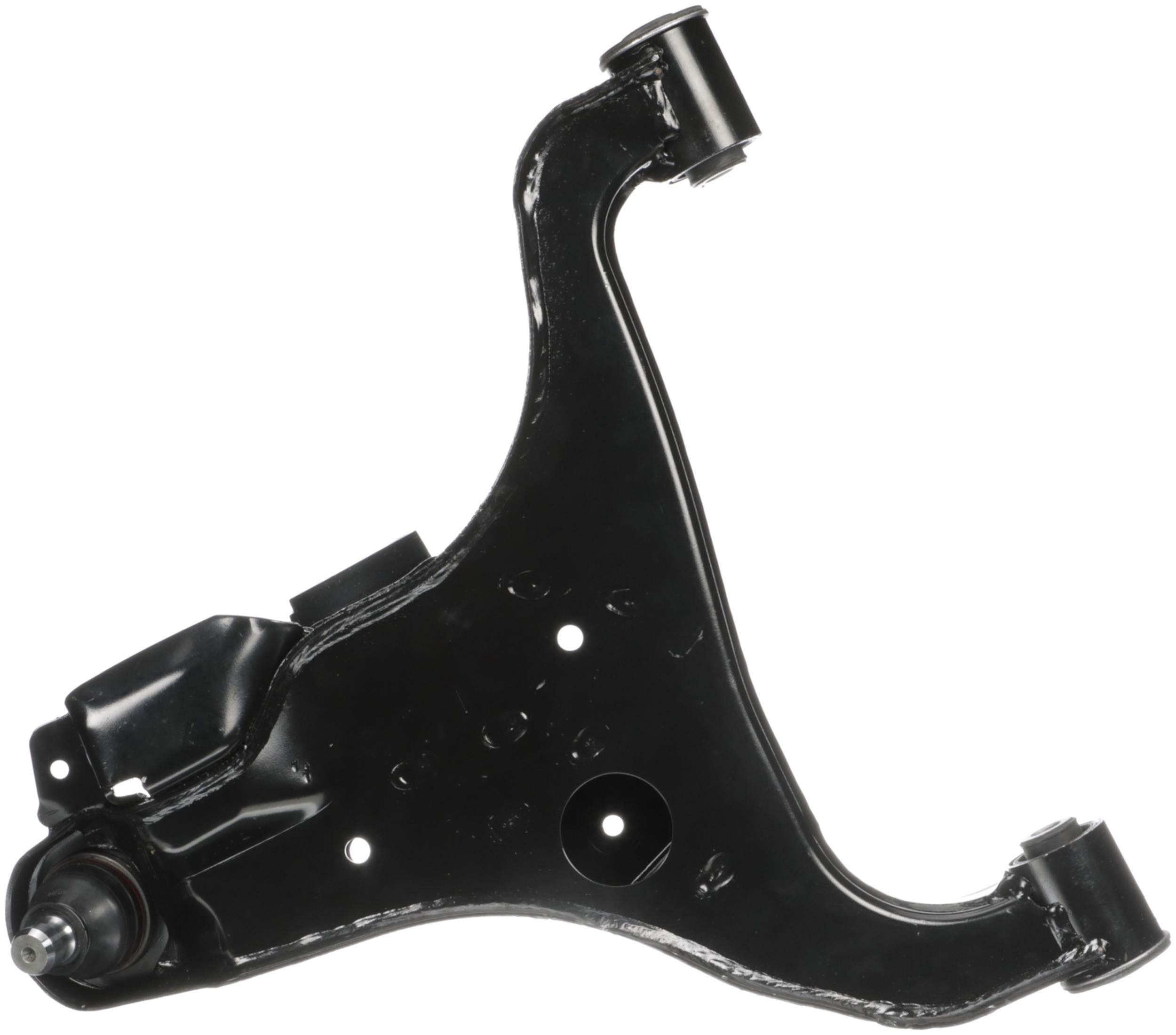

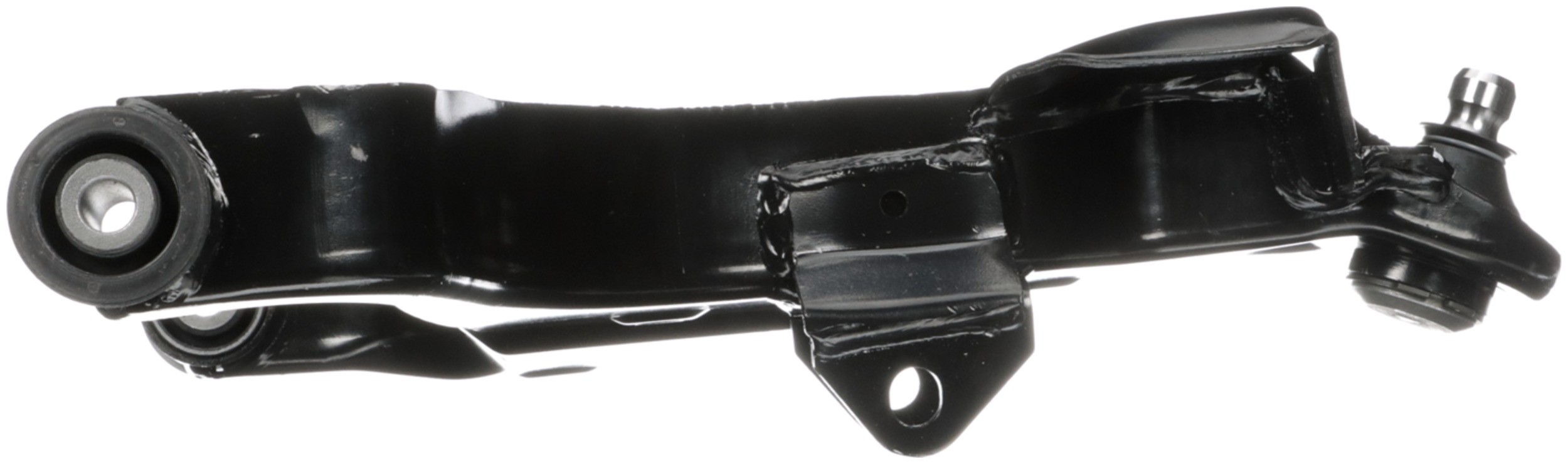

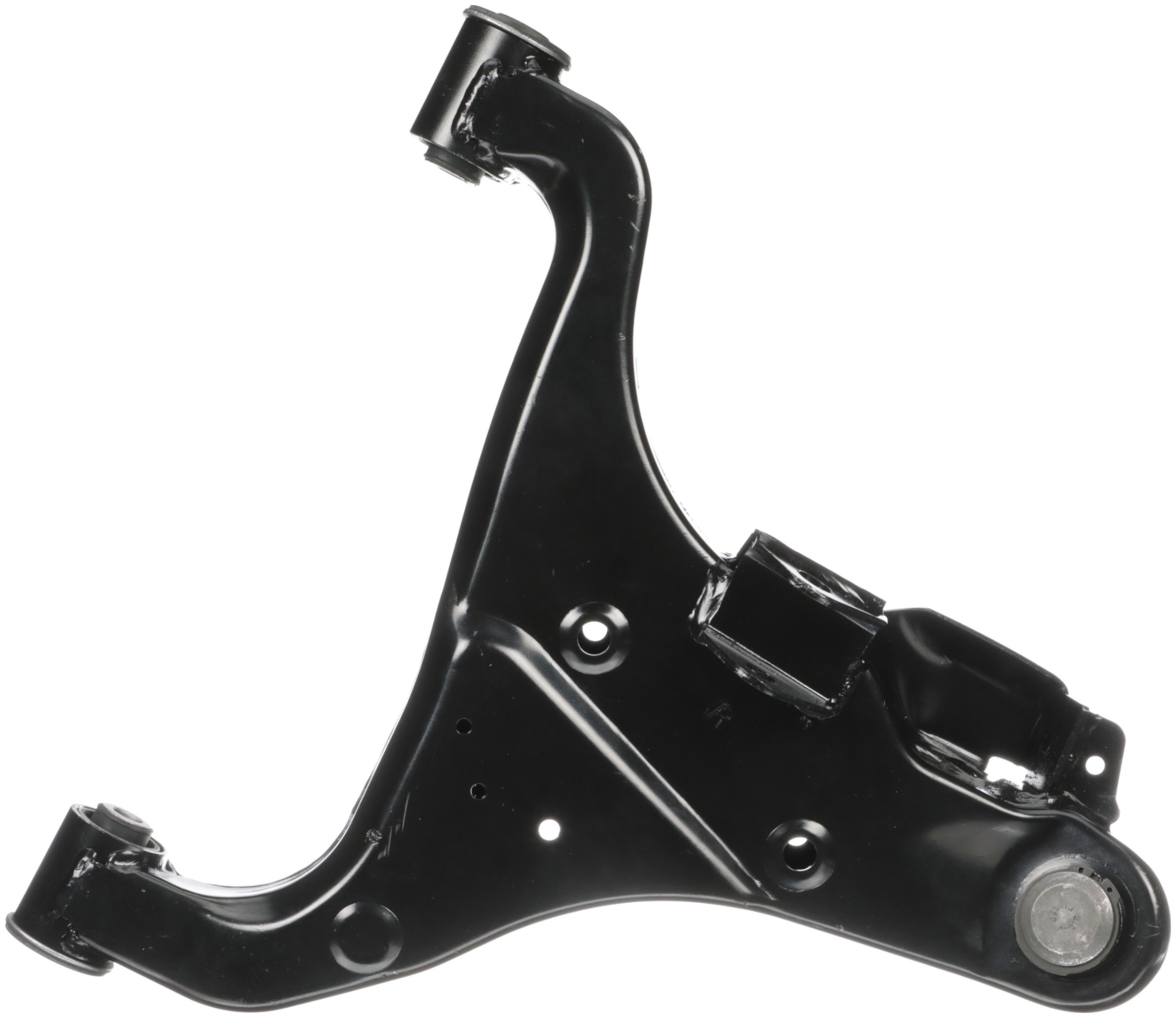

Delphi TC5810 Suspension Control Arm and Ball Joint Assembly

Delphi TC5810 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
4887	126.90 MM
4887	4.996 IN
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Position(s)	Front Right Lower
2384	Yes
Bushing Type	Rubber
Mounting Hole Diameter	0.598 IN
Mounting Hole Diameter	15.20 MM
Length	18.701 IN
Length	475.00 MM
2386	Stamped
6529	Power
9090	Chloroprene Rubber (CR)
Greaseable	No
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
