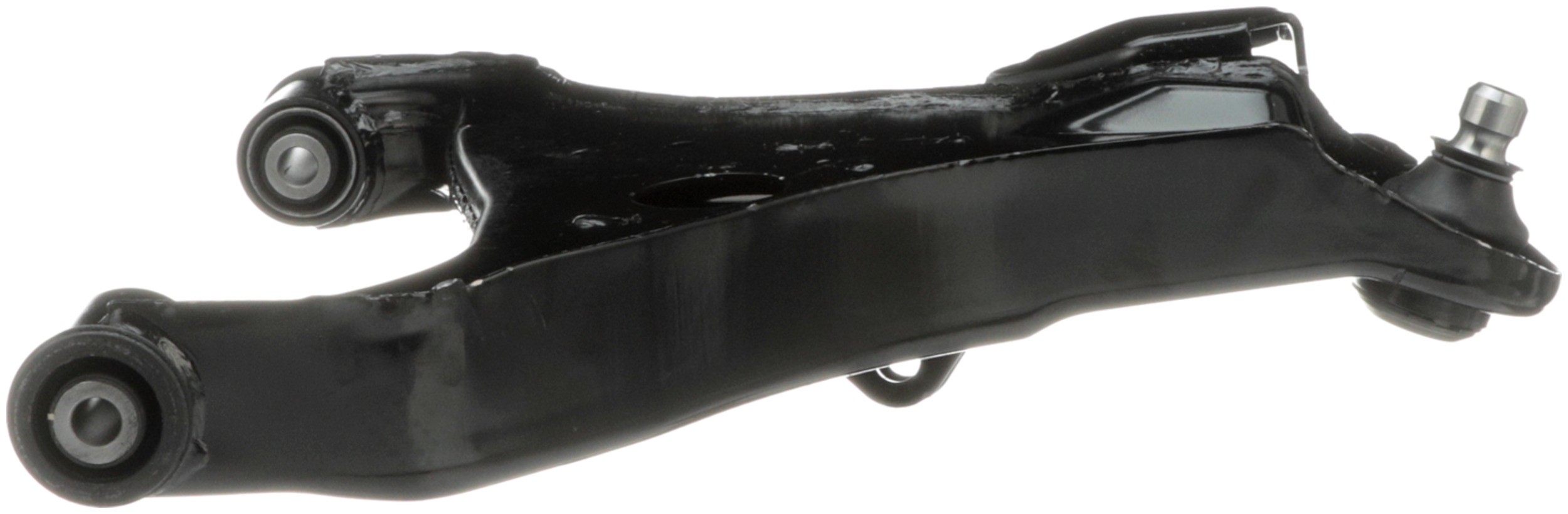

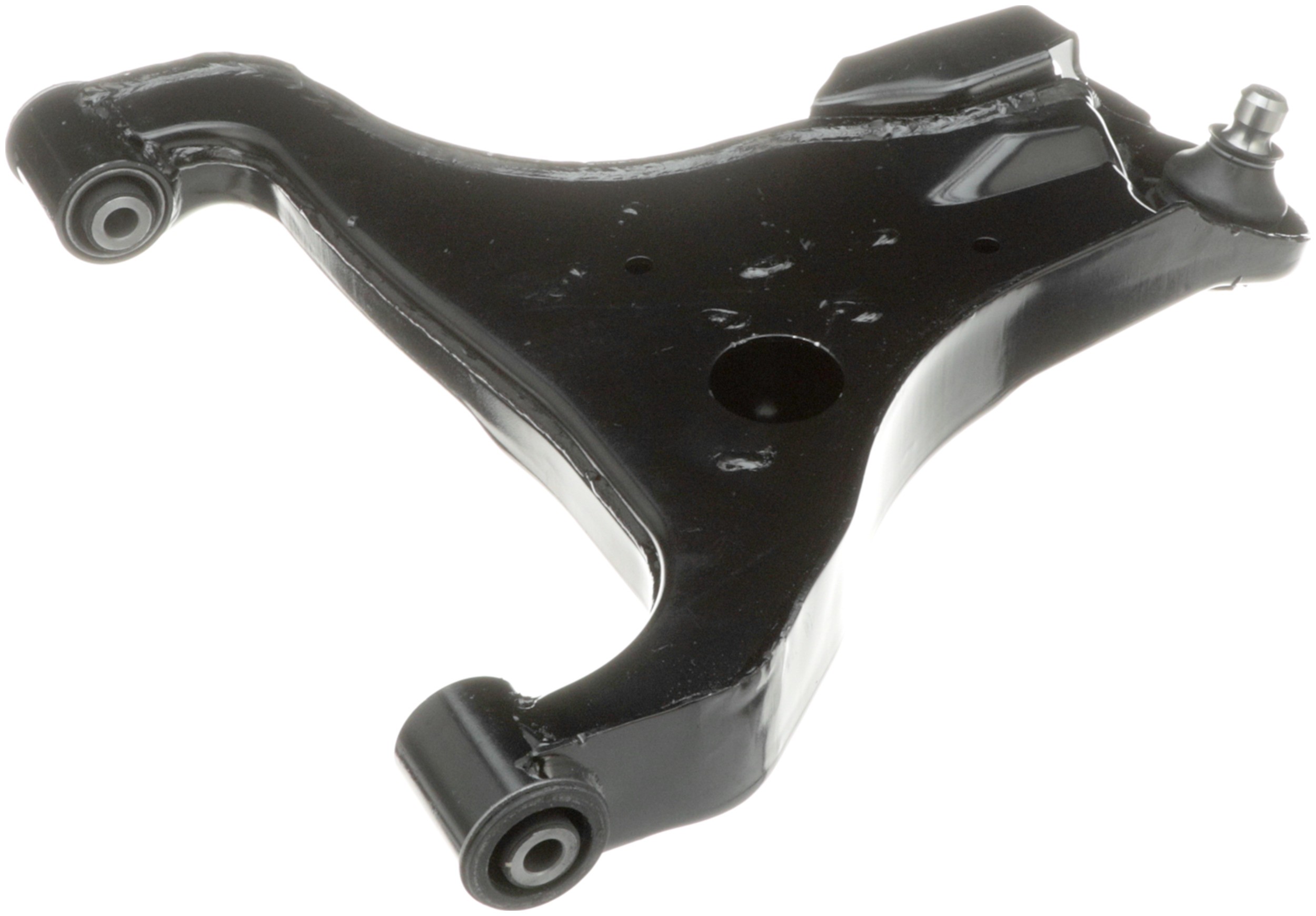

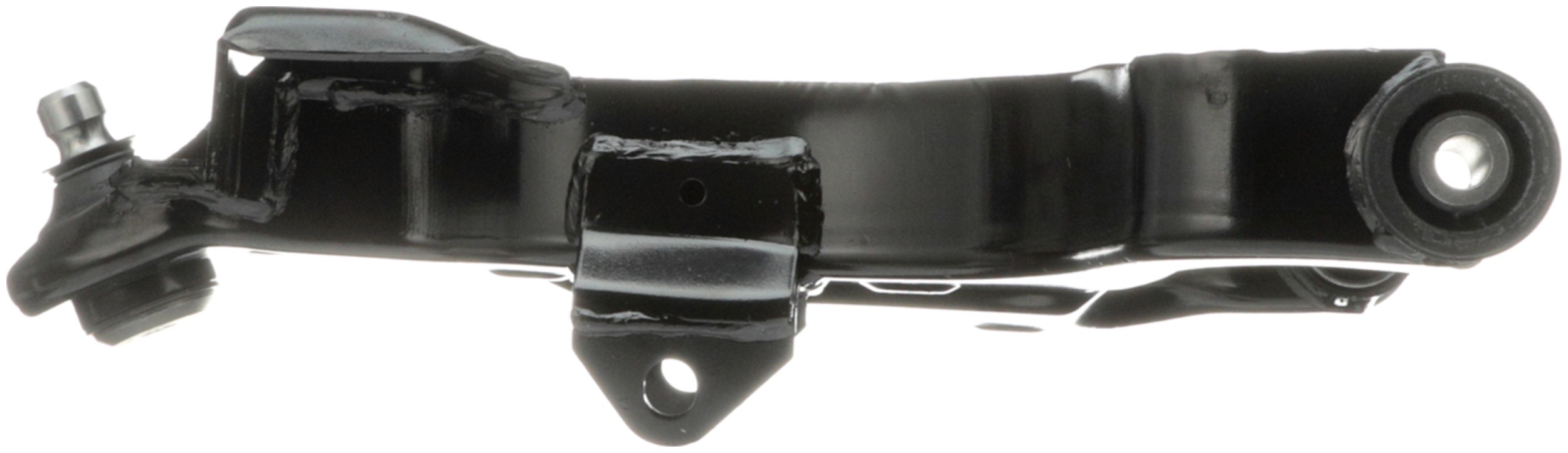

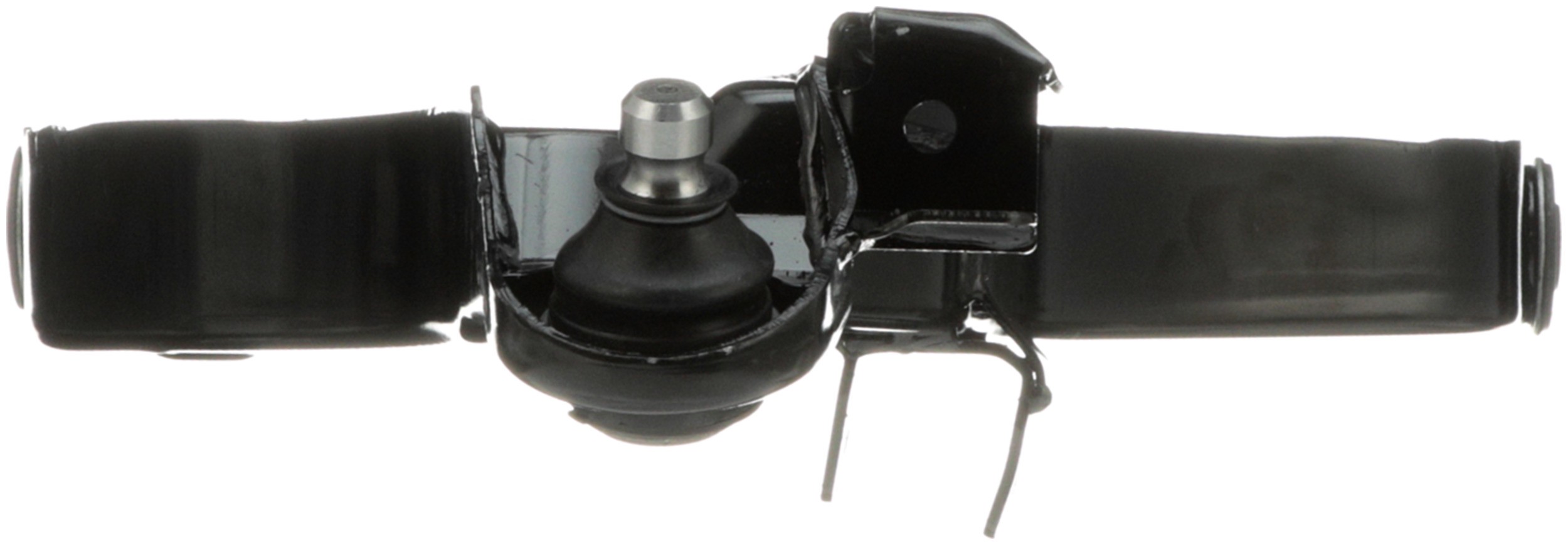

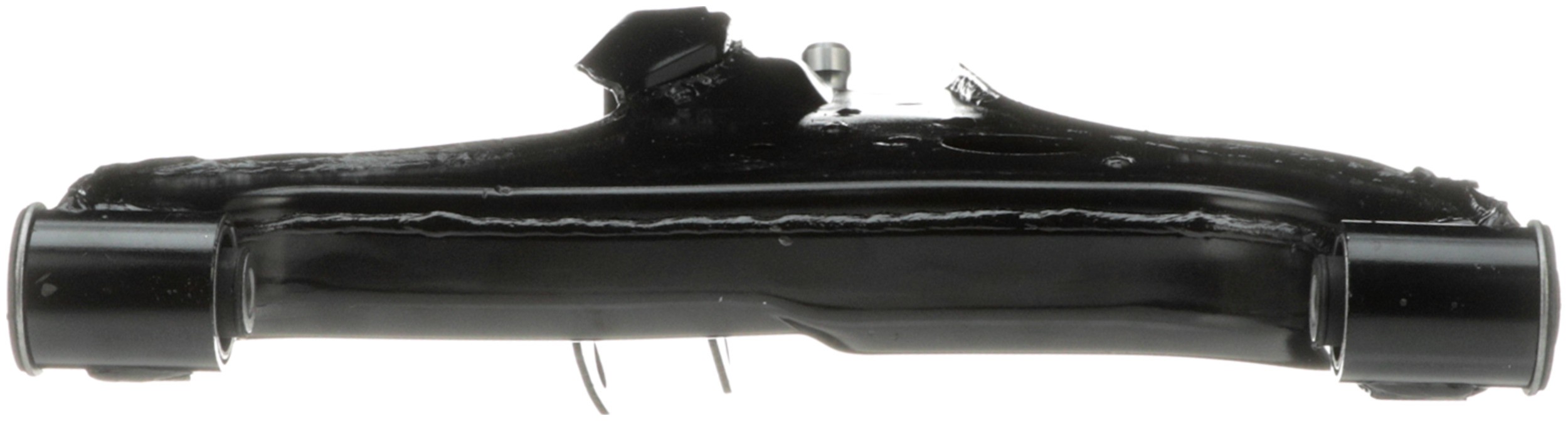

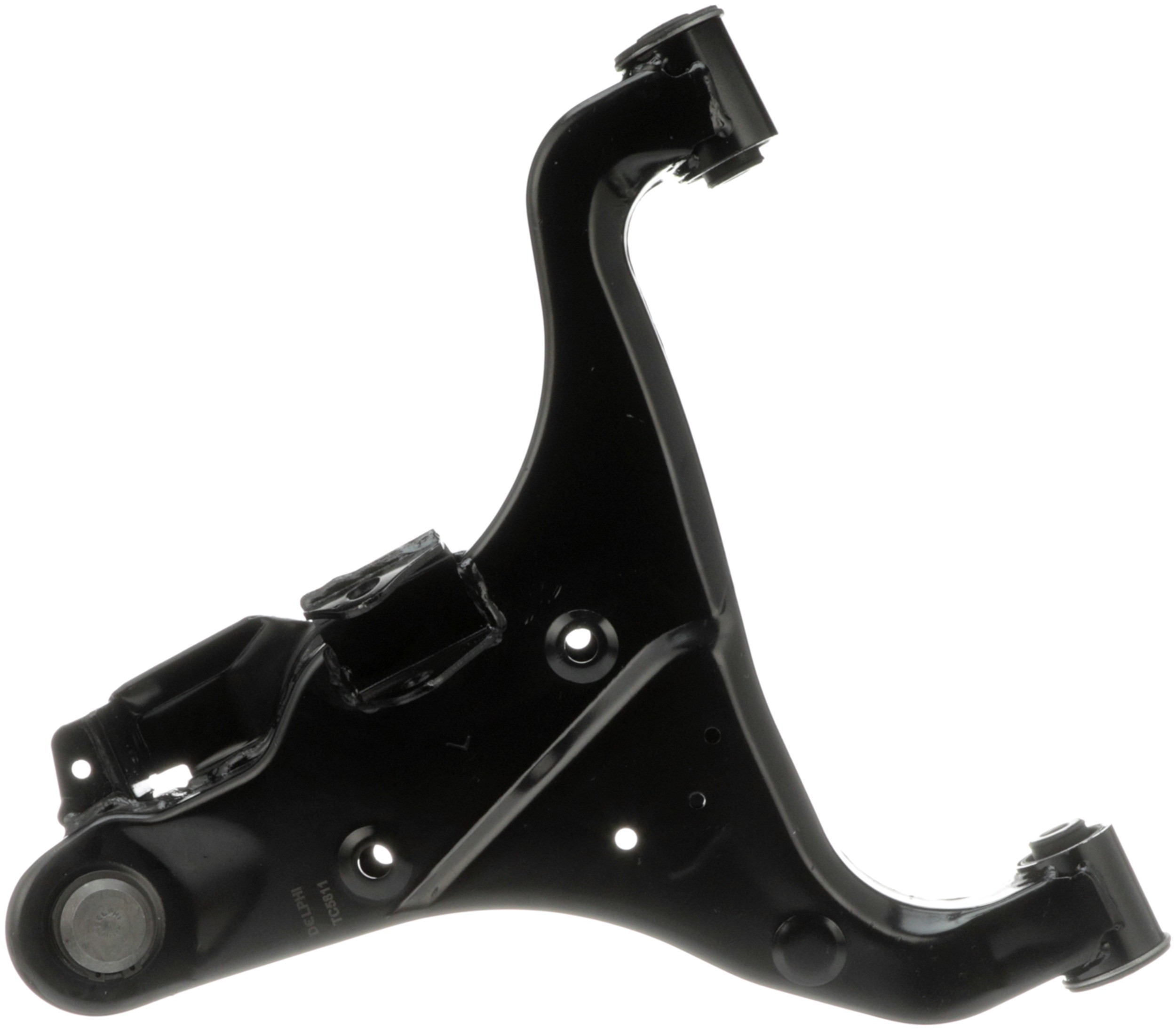

Delphi TC5811 Suspension Control Arm and Ball Joint Assembly

Delphi TC5811 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushings Included	Yes
6529	Power
Boot Material	Chloroprene Rubber (CR)
Bearing Material	Plastic
2384	Yes
Position(s)	Front Left Lower
Material	Steel
2386	Stamped
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Bushing Type	Rubber
4887	4.996 IN
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Attachment Type	Press In
Dust Boot Included	Yes
9090	Chloroprene Rubber (CR)
4887	126.90 MM
Mounting Hole Diameter	0.598 IN
Mounting Hole Diameter	15.20 MM
Length	18.701 IN
Length	475.00 MM
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
