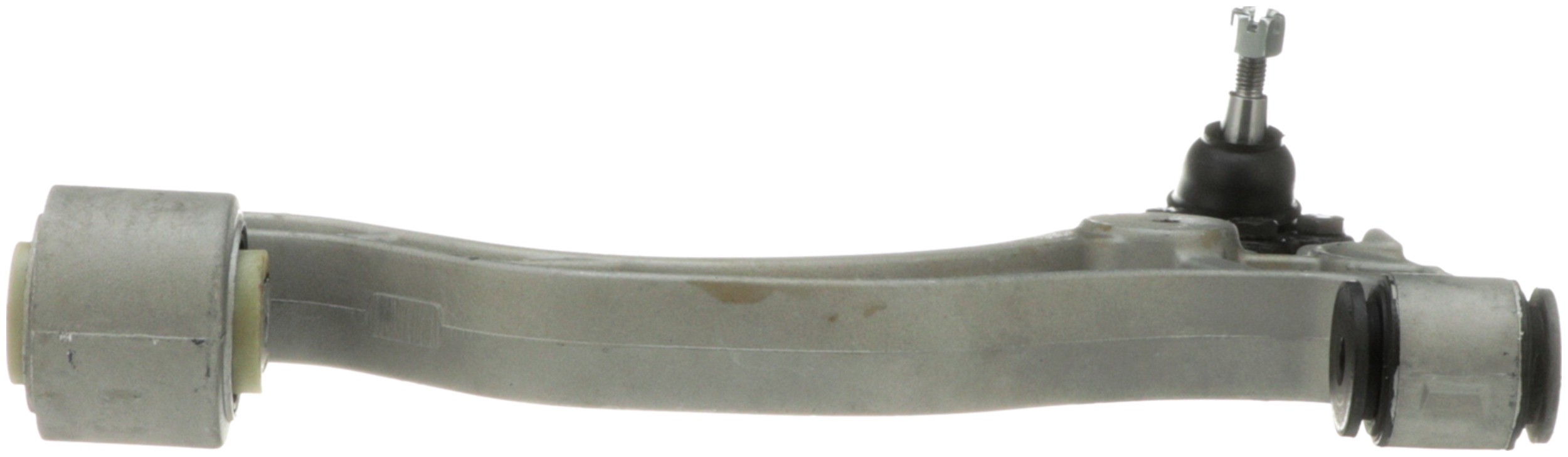

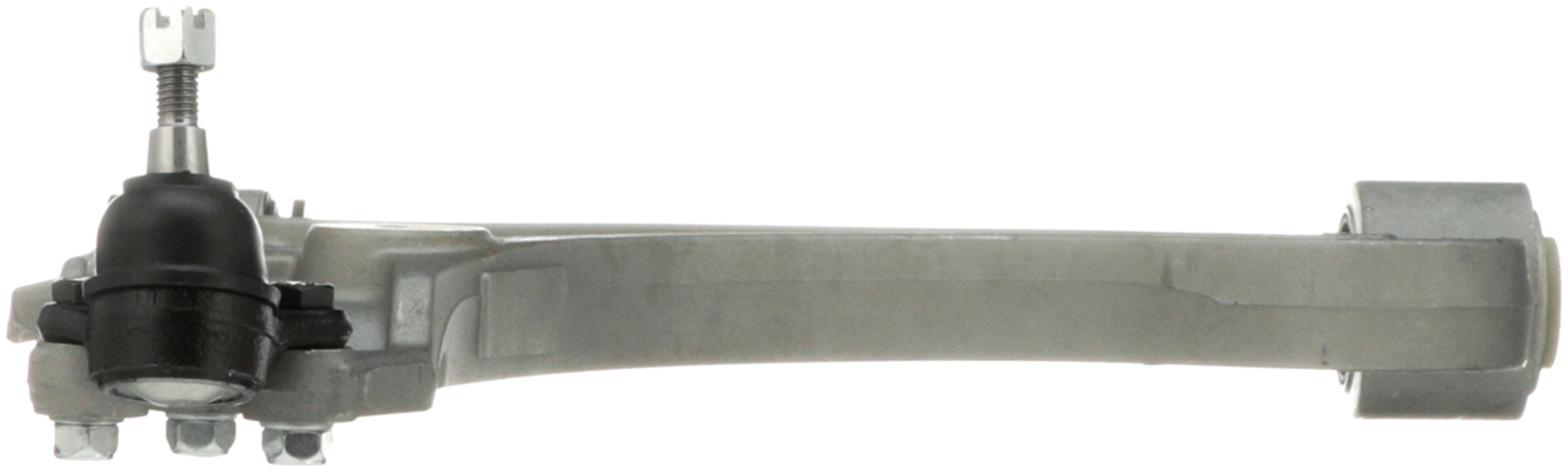

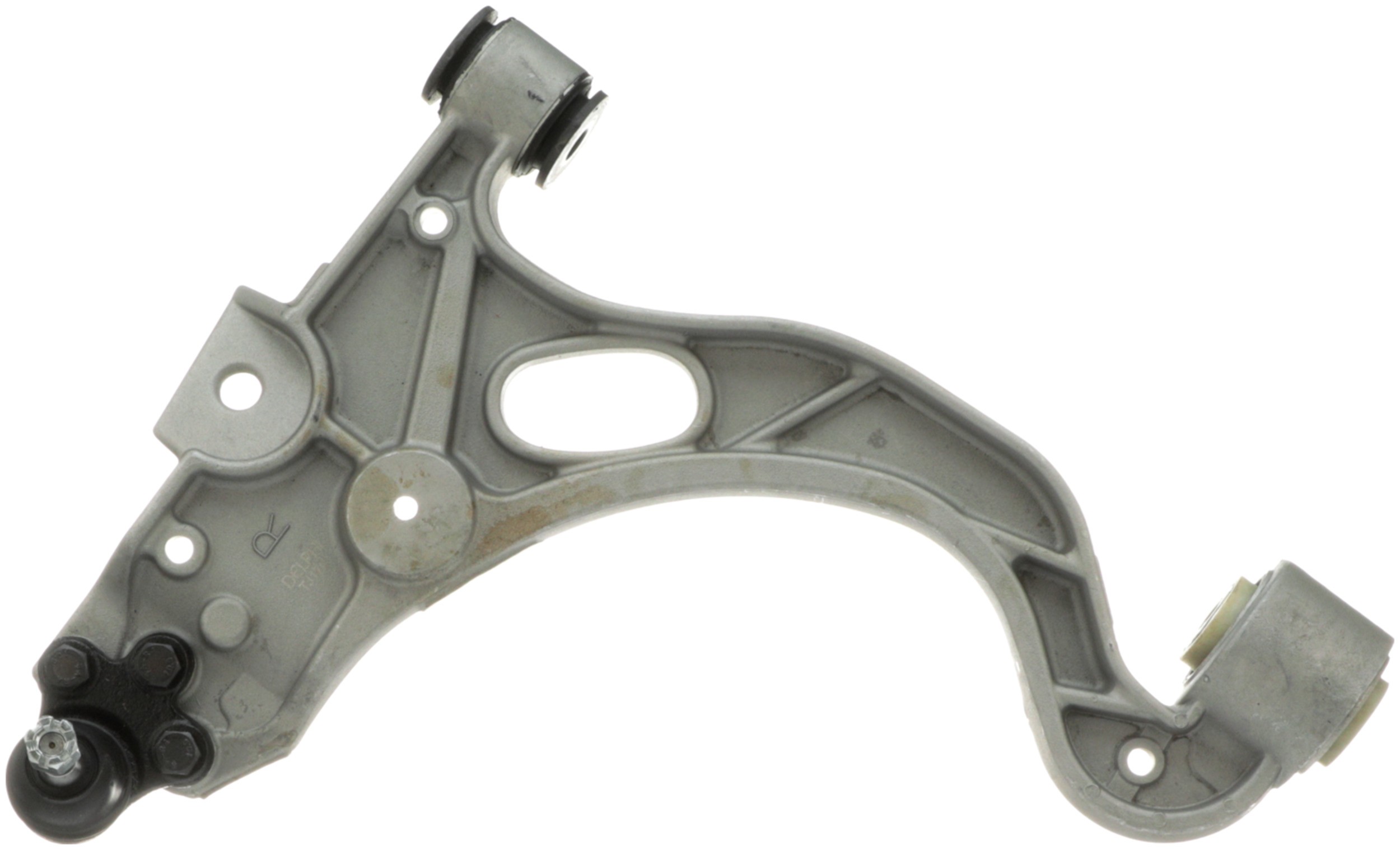

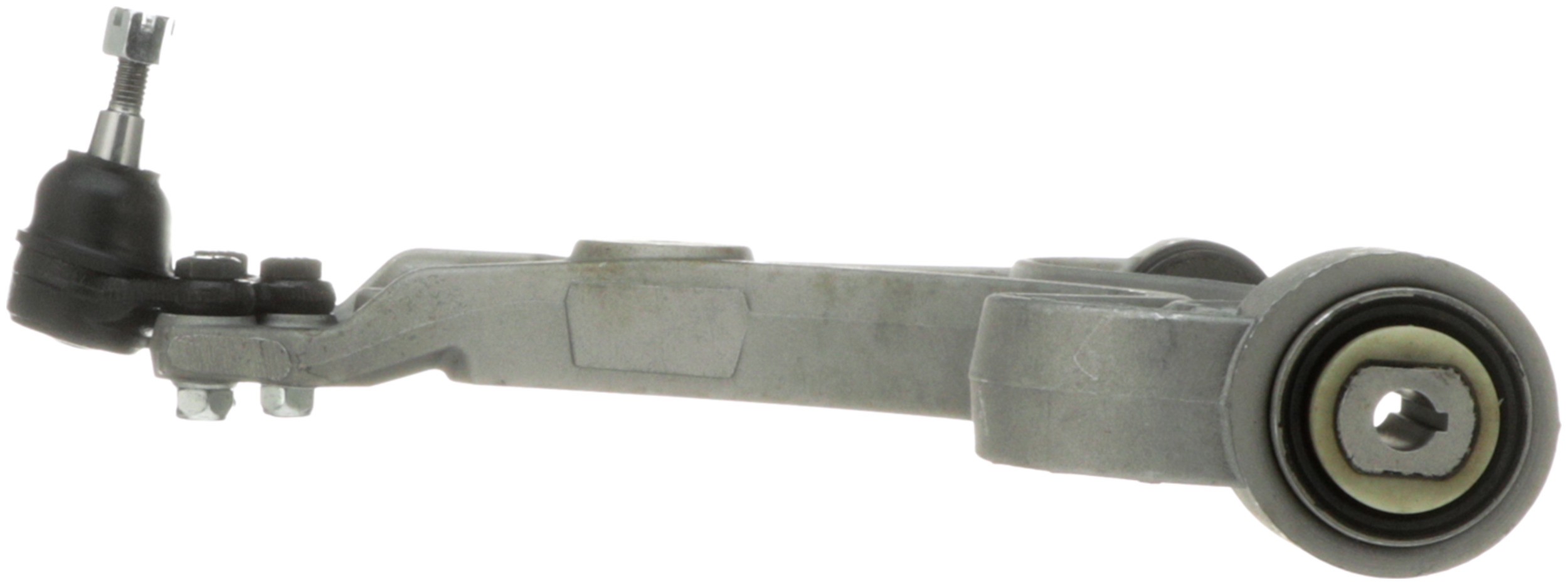

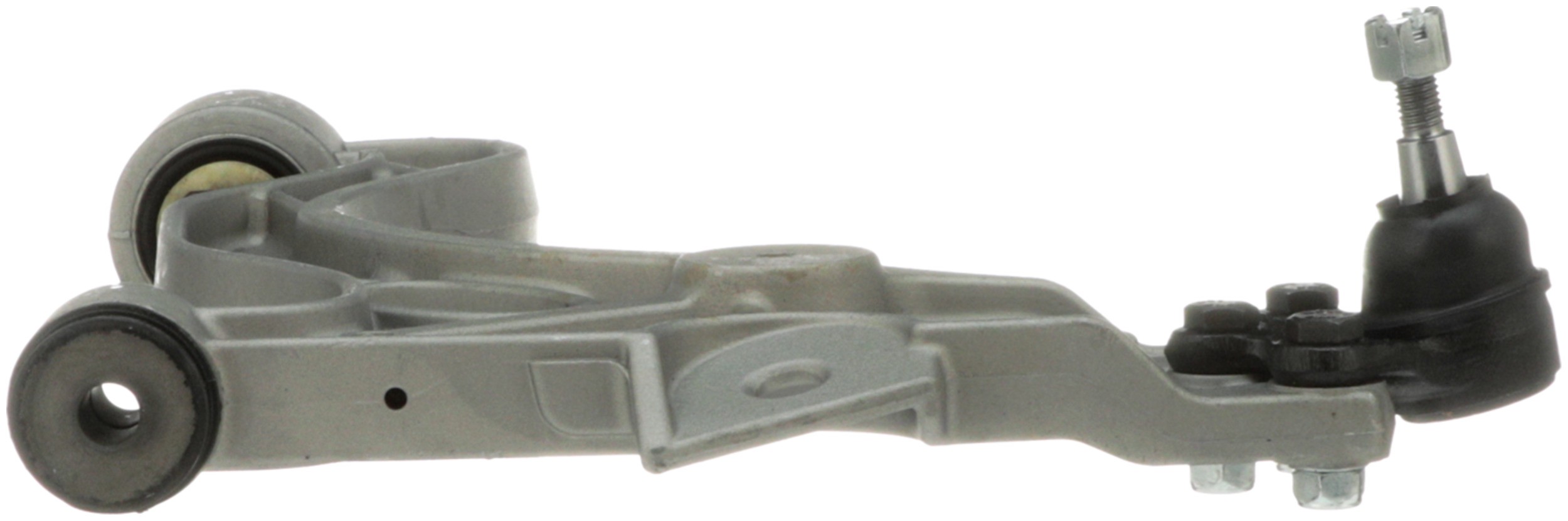

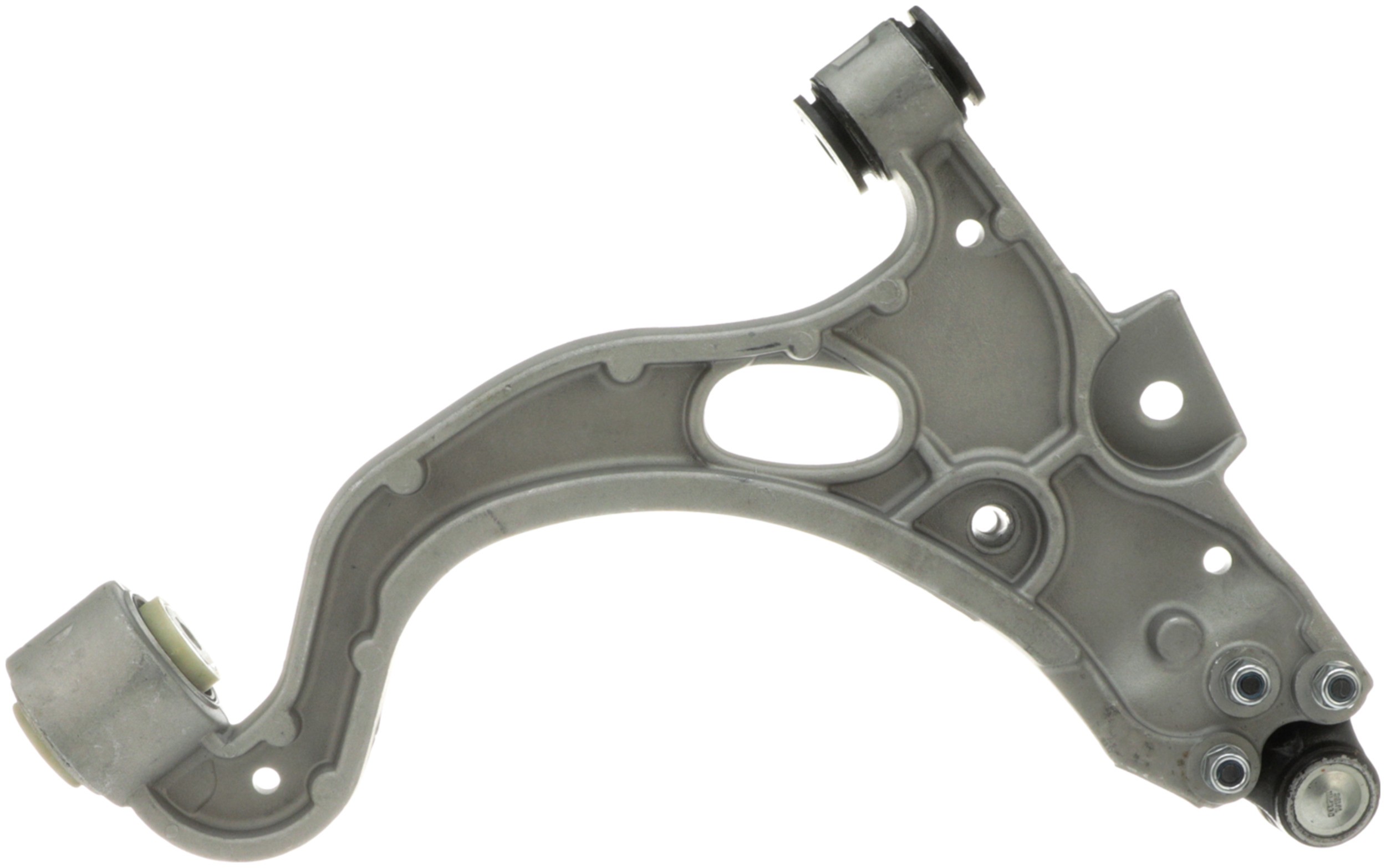

Delphi TC5818 Suspension Control Arm and Ball Joint Assembly

Delphi TC5818 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4887	100.00 MM
6529	Power
4241	Yes
2386	Stamped
2384	Yes
Position(s)	Front Right Lower
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Grade Type	Premium
9090	Chloroprene Rubber (CR)
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Bolt In
Dust Boot Included	Yes
Bushings Included	Yes
Length	462.00 MM
Length	18.189 IN
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	0.559 IN
Mounting Hole Diameter	0.559 IN
4890	3.425 IN
4890	87.00 MM
4887	3.937 IN

Vehicle Applications:

Make	Model	Years
Buick	LeSabre	2000 to 2005
Buick	Park Avenue	1998 to 2005
Buick	Riviera	1998 to 1999
Cadillac	DeVille	2000 to 2005
Cadillac	Seville	1998 to 2004
Oldsmobile	Aurora	1998 to 2003
Pontiac	Bonneville	2000 to 2005
