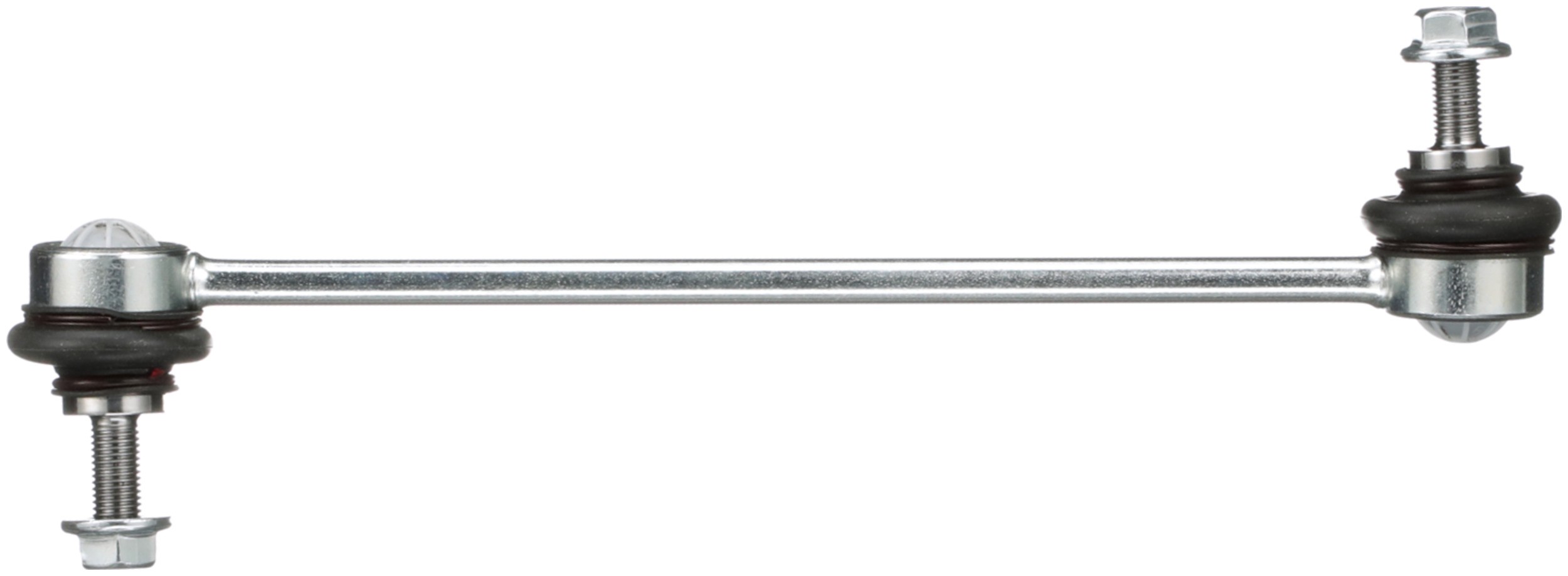

Delphi TC5861 Suspension Stabilizer Bar Link

Delphi TC5861 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

627	0.25 LB
9296	Yes
Position(s)	Front
4504	10.00 MM
4504	0.390 IN
Bearing Material	Plastic
Greaseable	No
Bolt Length	1.004 IN
Housing Material	Steel
Bolt Length	25.50 MM
Bolts Included	No
Washers Included	No
Width	40 MM
Width	1.575 IN
Length	10.177 IN
Length	258.50 MM
Height	100.00 MM
Height	3.937 IN
Dust Boot Included	Yes
Grade Type	Standard Replacement
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
