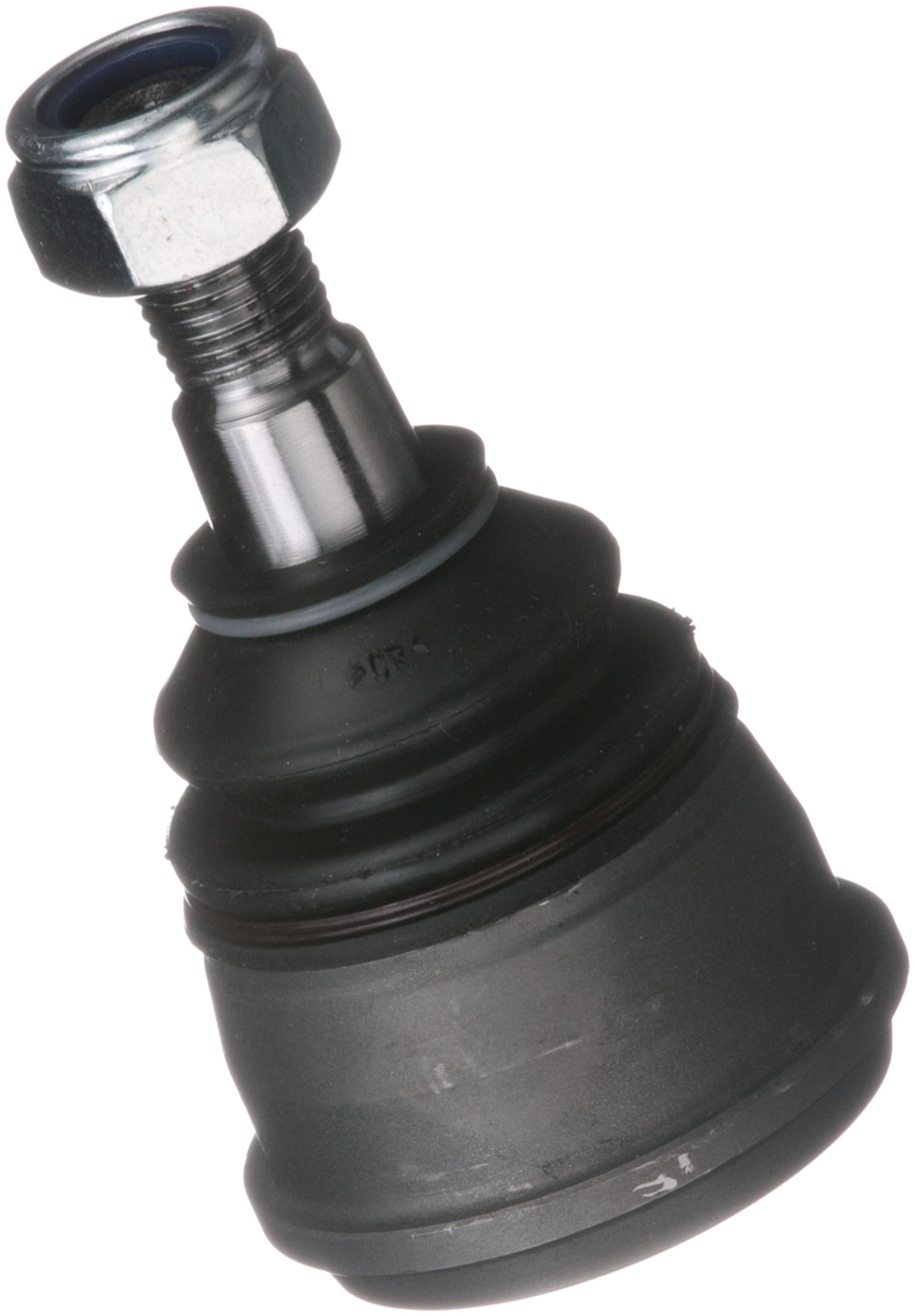

Delphi TC5874 Suspension Ball Joint

Delphi TC5874 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Height	95.00 MM
Height	3.740 IN
Width	54 MM
Length	3.740 IN
Length	95.00 MM
Maximum Outside Diameter	54.00 MM
Maximum Outside Diameter	2.126 IN
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
4966	0.925 IN
4966	23.5 MM
9211	0.1 IN
9212	0.638 IN
9212	16.2 MM
9213	0.728 IN
9213	18.5 MM
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	No

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	220	1968 to 1973
Mercedes-Benz	220D	1968 to 1973
Mercedes-Benz	230	1974 to 1976
Mercedes-Benz	240D	1974 to 1976
Mercedes-Benz	250	1968 to 1972
Mercedes-Benz	250C	1969 to 1972
Mercedes-Benz	280	1973 to 1976
Mercedes-Benz	280C	1973 to 1976
Mercedes-Benz	280SEL	1973 to 1973
Mercedes-Benz	300D	1975 to 1976
Mercedes-Benz	350SL	1972 to 1972
Mercedes-Benz	380SL	1981 to 1985
Mercedes-Benz	380SLC	1981 to 1981
Mercedes-Benz	450SL	1973 to 1980
Mercedes-Benz	450SLC	1973 to 1980
