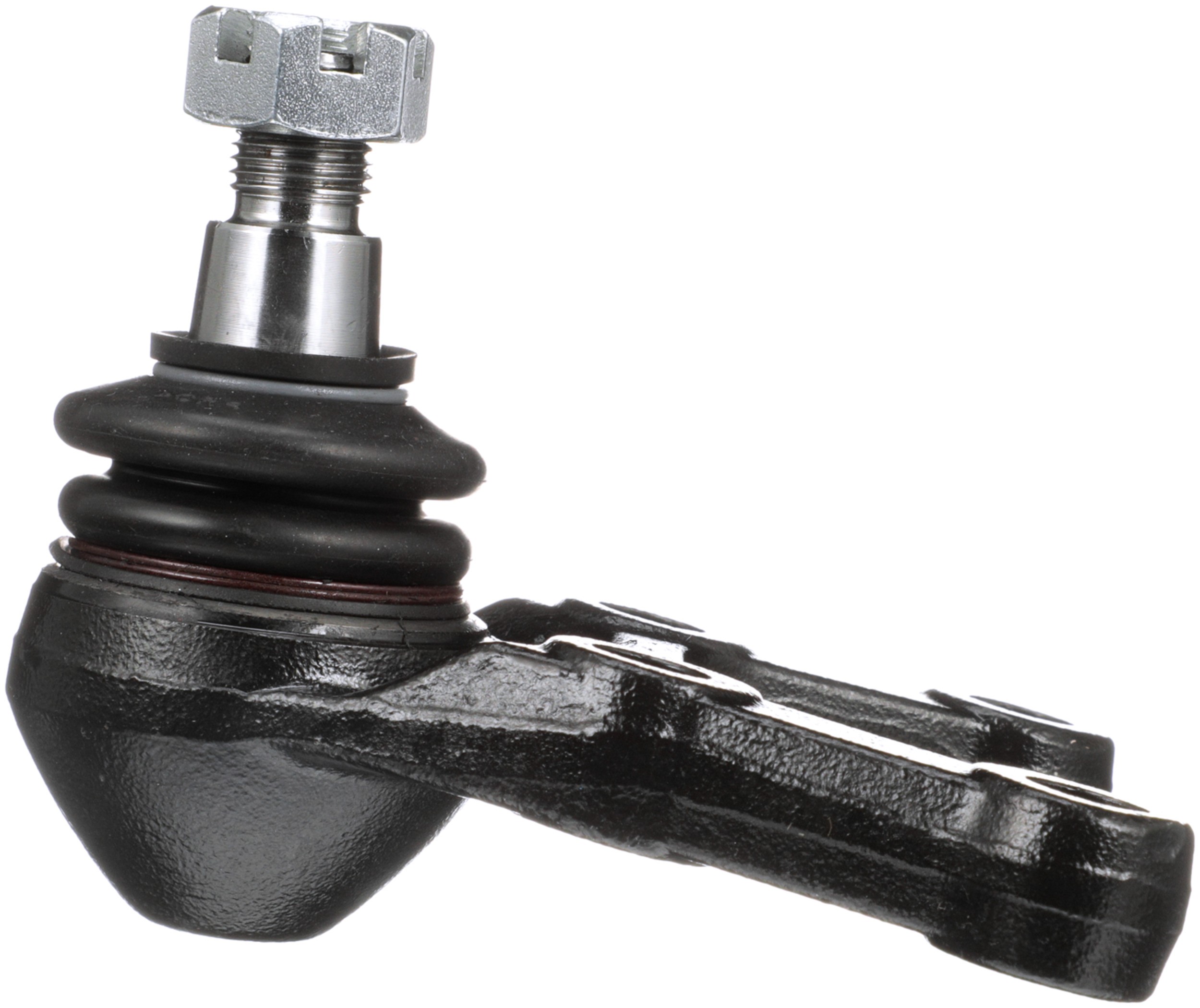

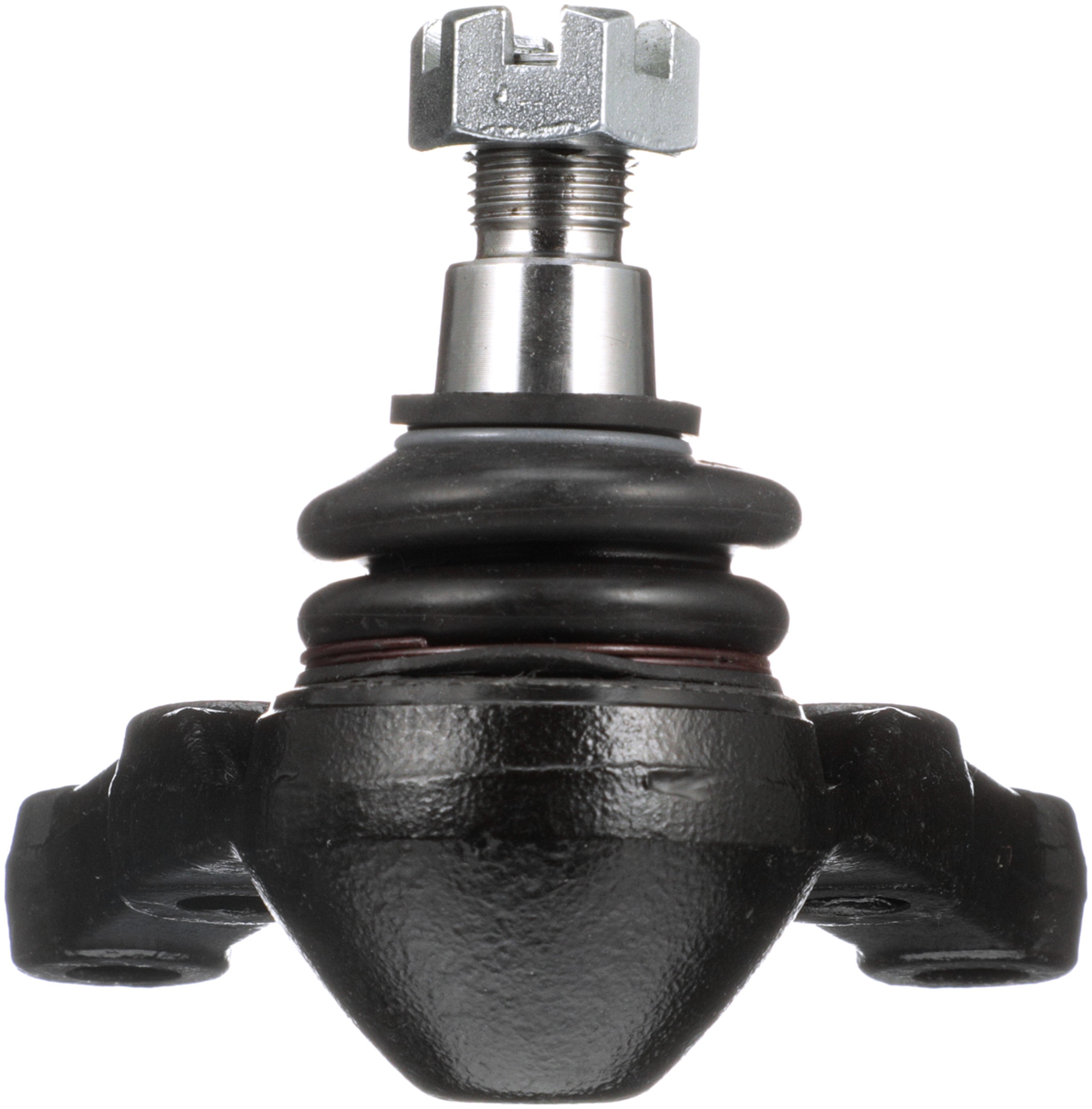

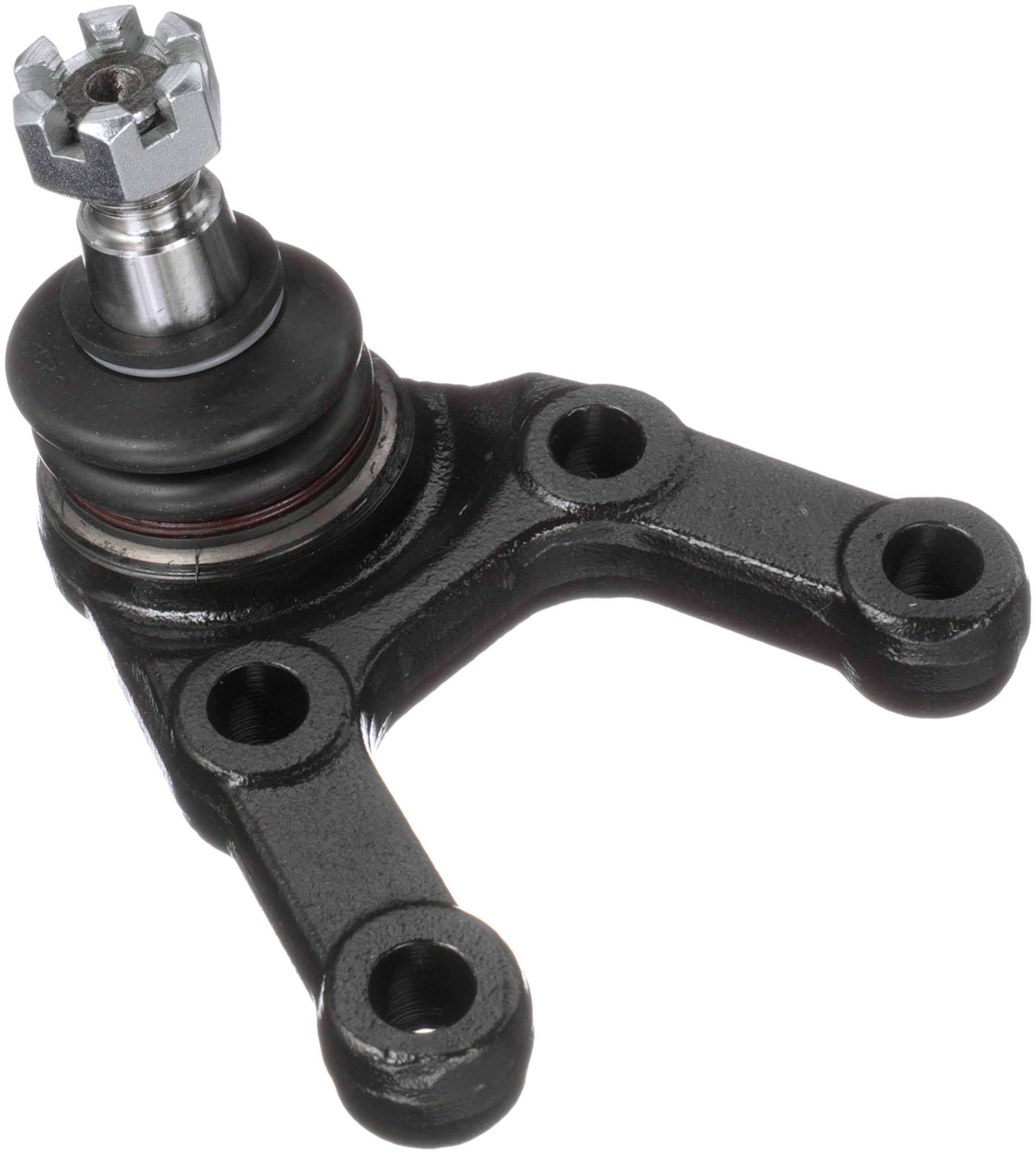

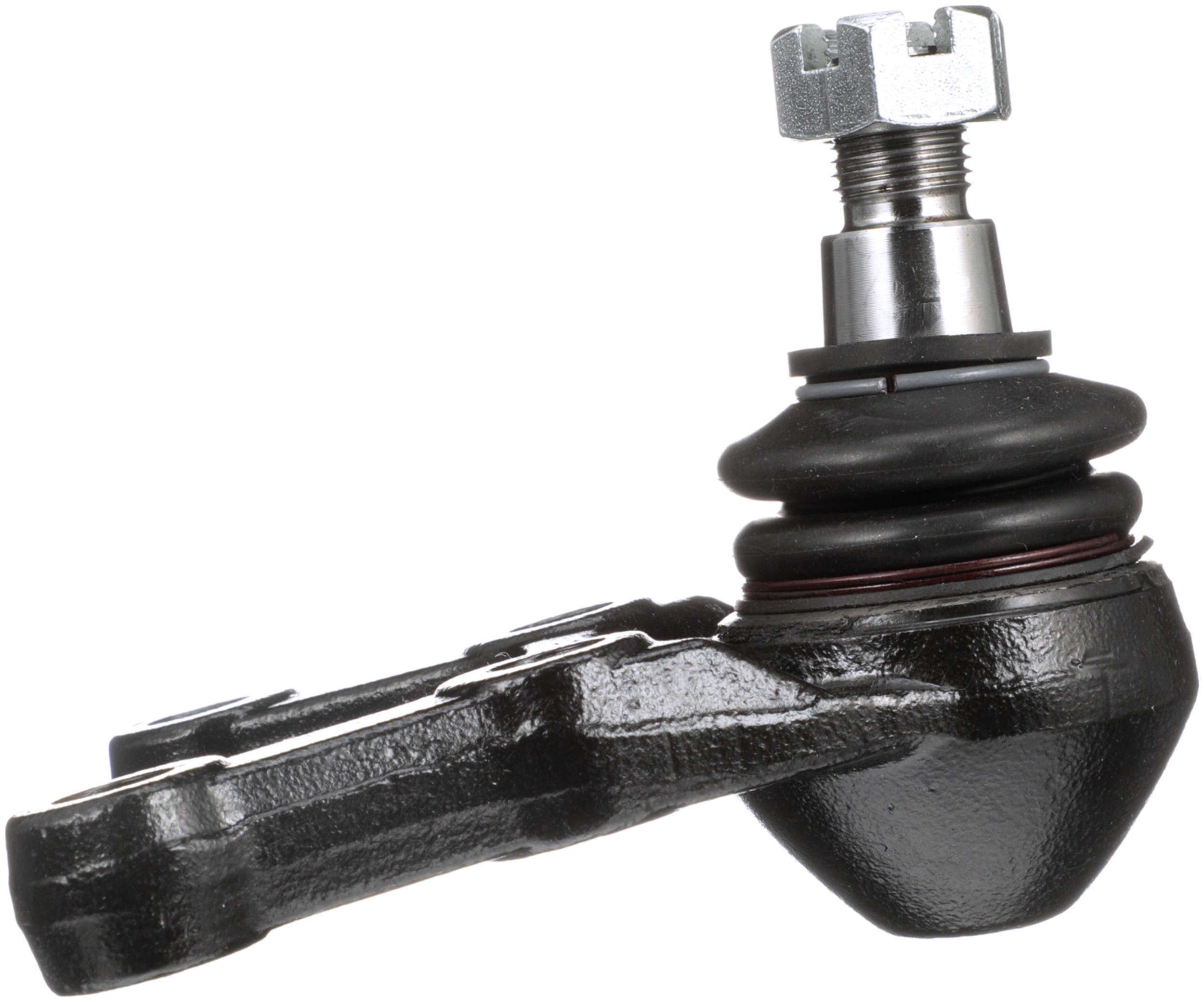

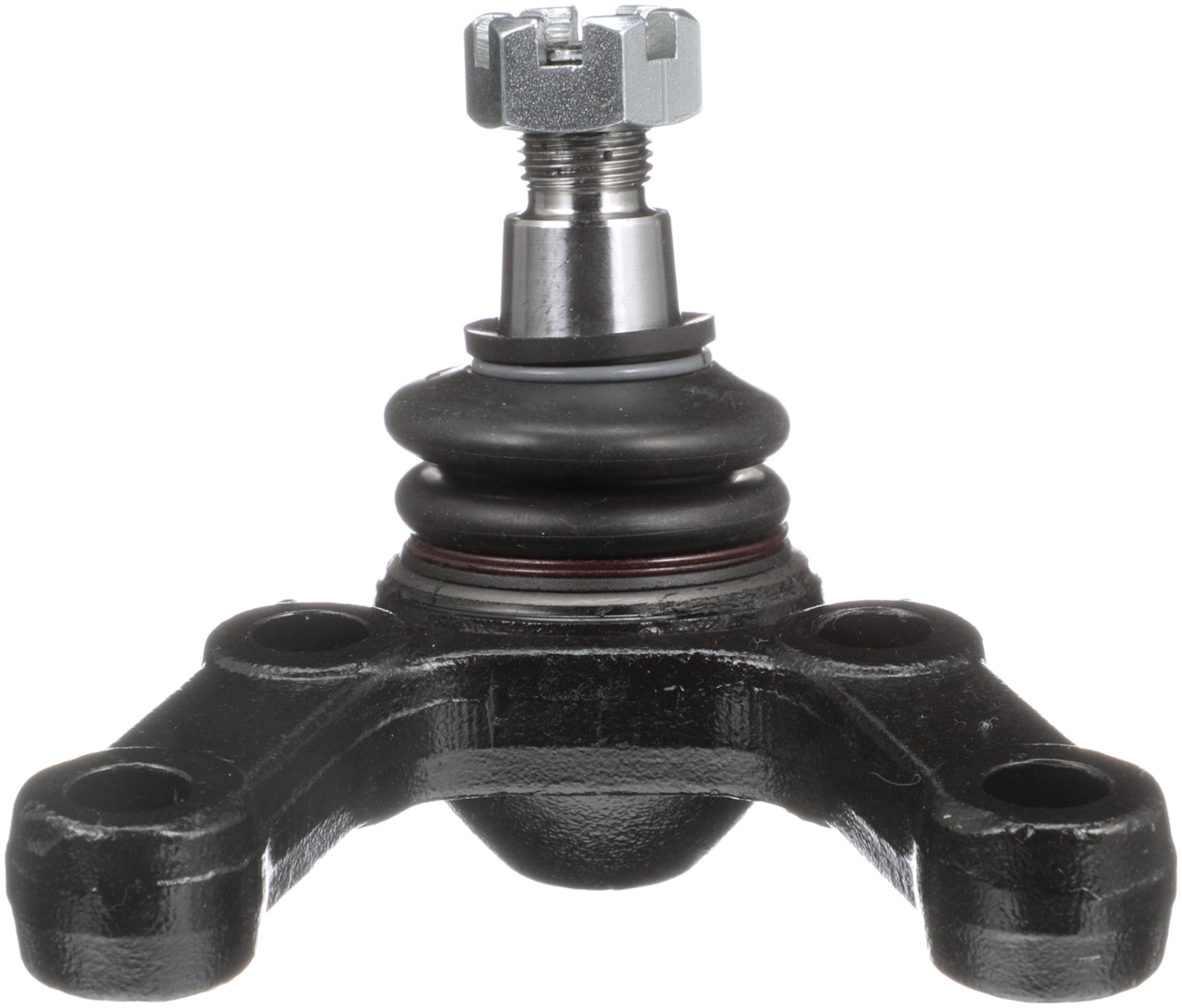

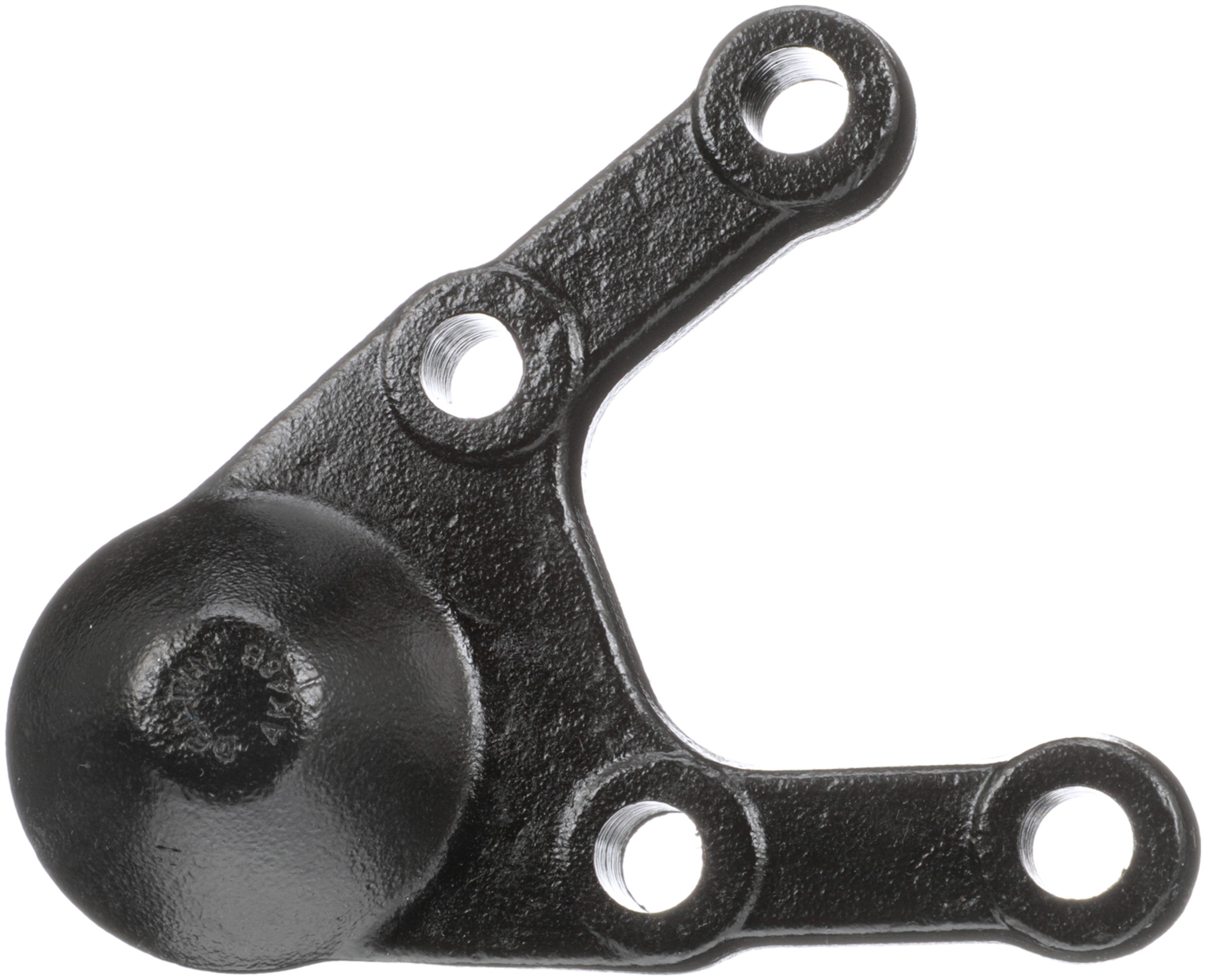

Delphi TC597 Suspension Ball Joint

Delphi TC597 Suspension Ball Joint

Features:

Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2827	No
839	19mm
881	Threaded
Washers Included	Yes
Mounting Hole Quantity	4
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Greaseable	No
Adjustable	No
9090	Rubber
9204	Yes
9209	No
3068	1.575 IN
3068	40.00 MM
4966	0.689 IN
4966	17.5 MM
9058	90.00 MM
9202	0.472 IN
9202	12.00 MM
9203	0.866 IN
9203	22.00 MM
9207	1.181 IN
9207	30.00 MM
Maximum Outside Diameter	4.587 IN
Maximum Outside Diameter	116.50 MM
Length	125.00 MM
Length	4.920 IN
Width	116.5 MM
Height	4.587 IN
Height	116.50 MM
Material	Steel
Color	Black
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	Yes

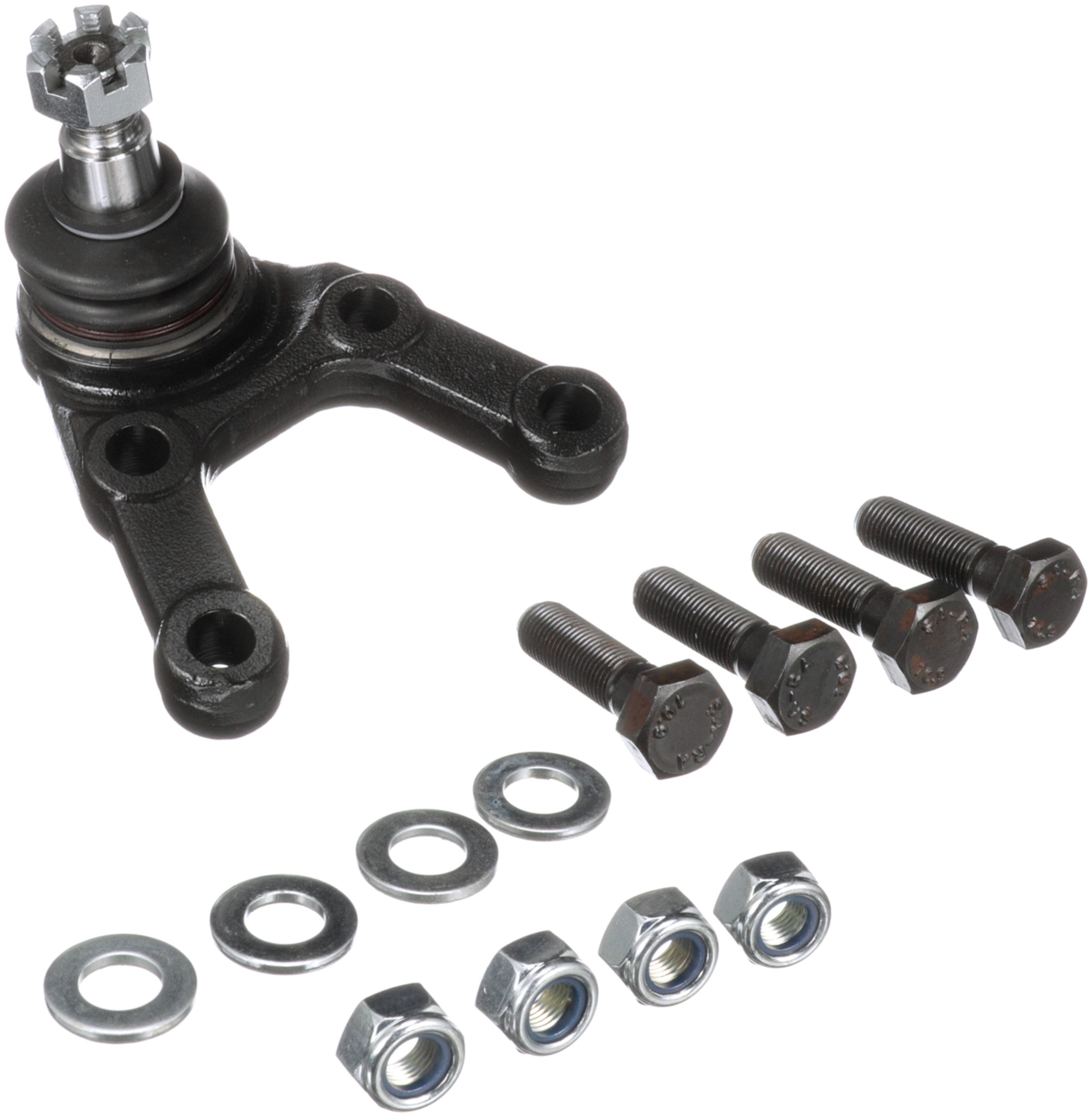

Mounting Hardware Included	Yes
Position(s)	Front Lower
2334	Yes
2381	Yes

Vehicle Applications:

Make	Model	Years
Dodge	D50	1982 to 1982
Dodge	Power Ram 50	1983 to 1986
Dodge	Raider	1987 to 1989
Dodge	Ram 50	1987 to 1993
Mitsubishi	Mighty Max	1983 to 1994
Mitsubishi	Montero	1983 to 1991
