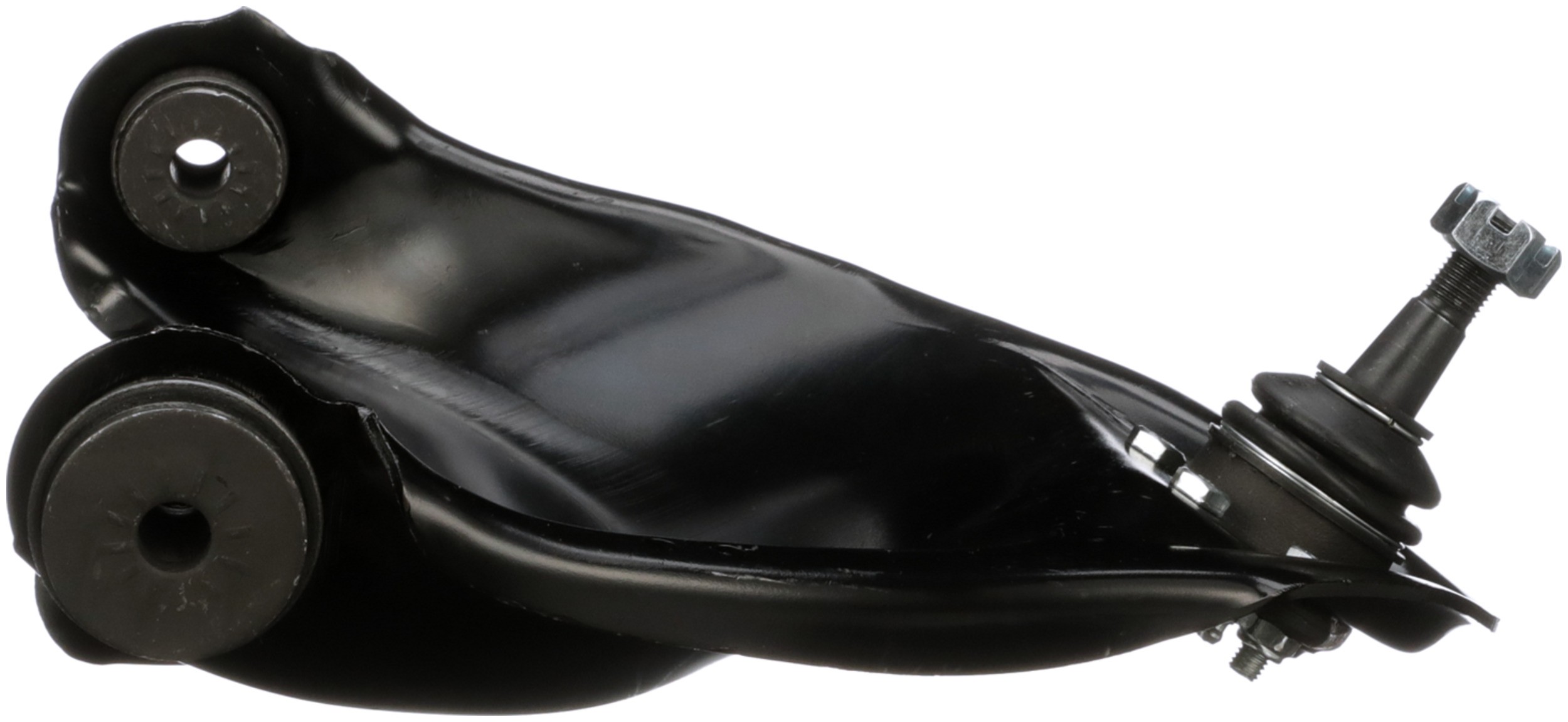

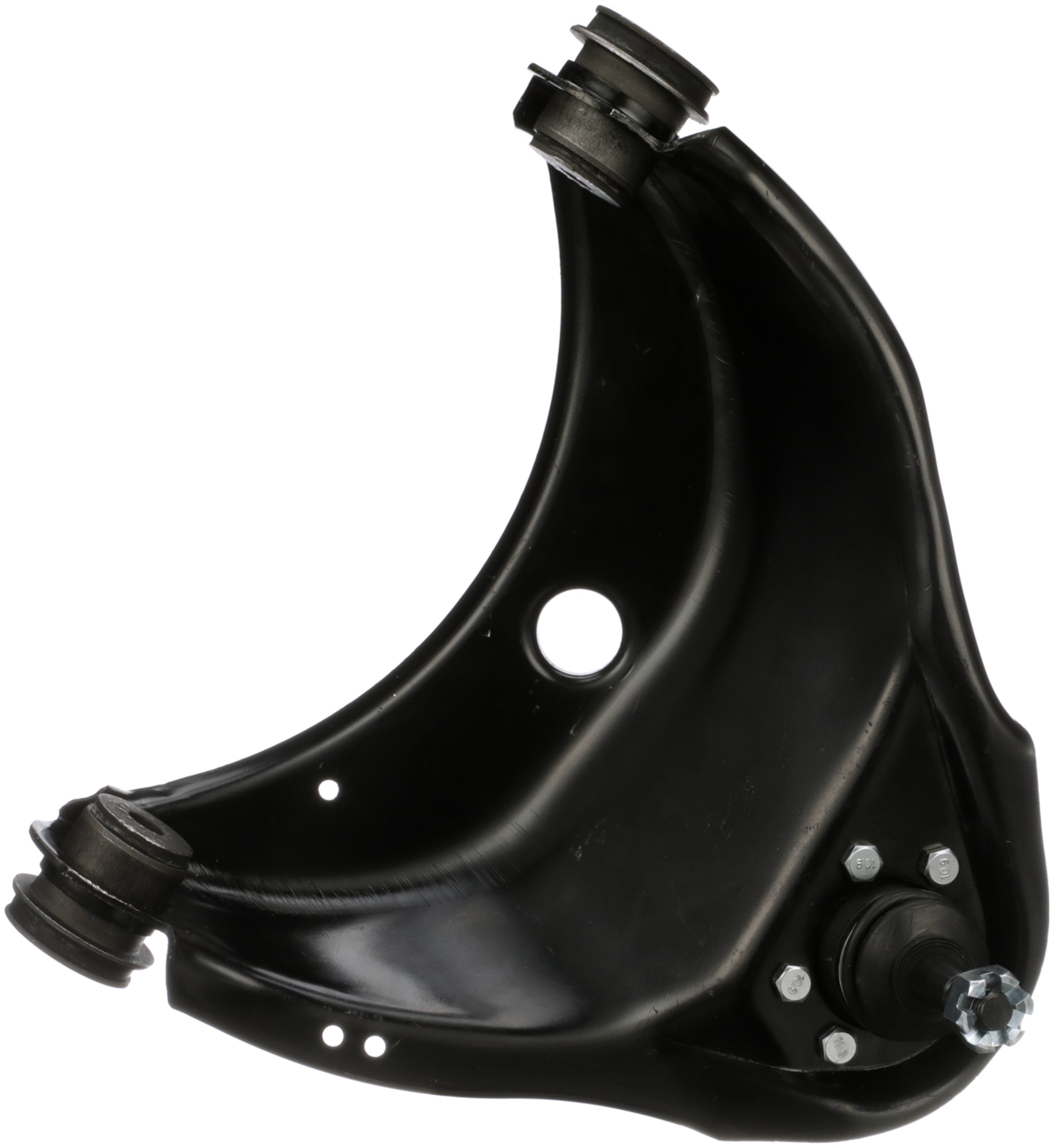

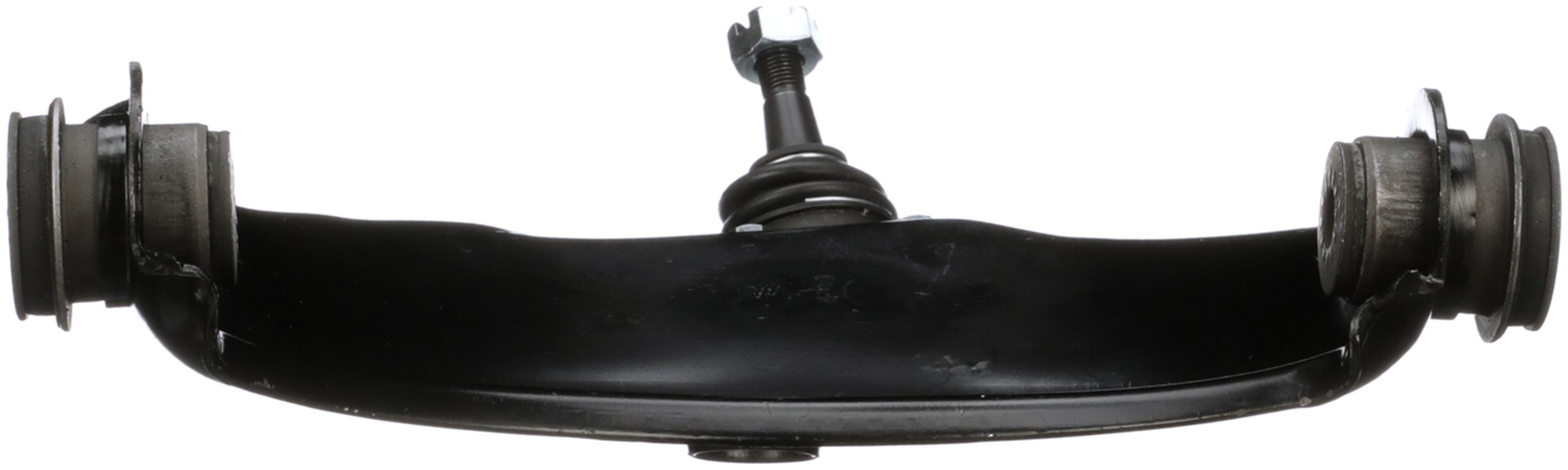

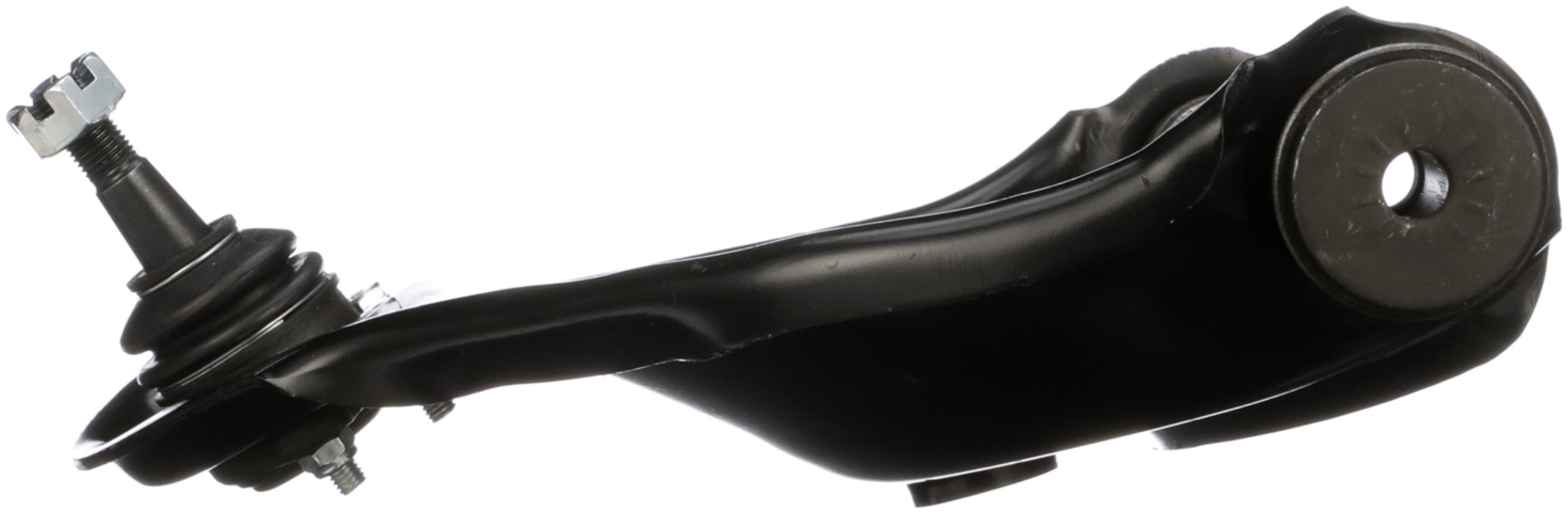

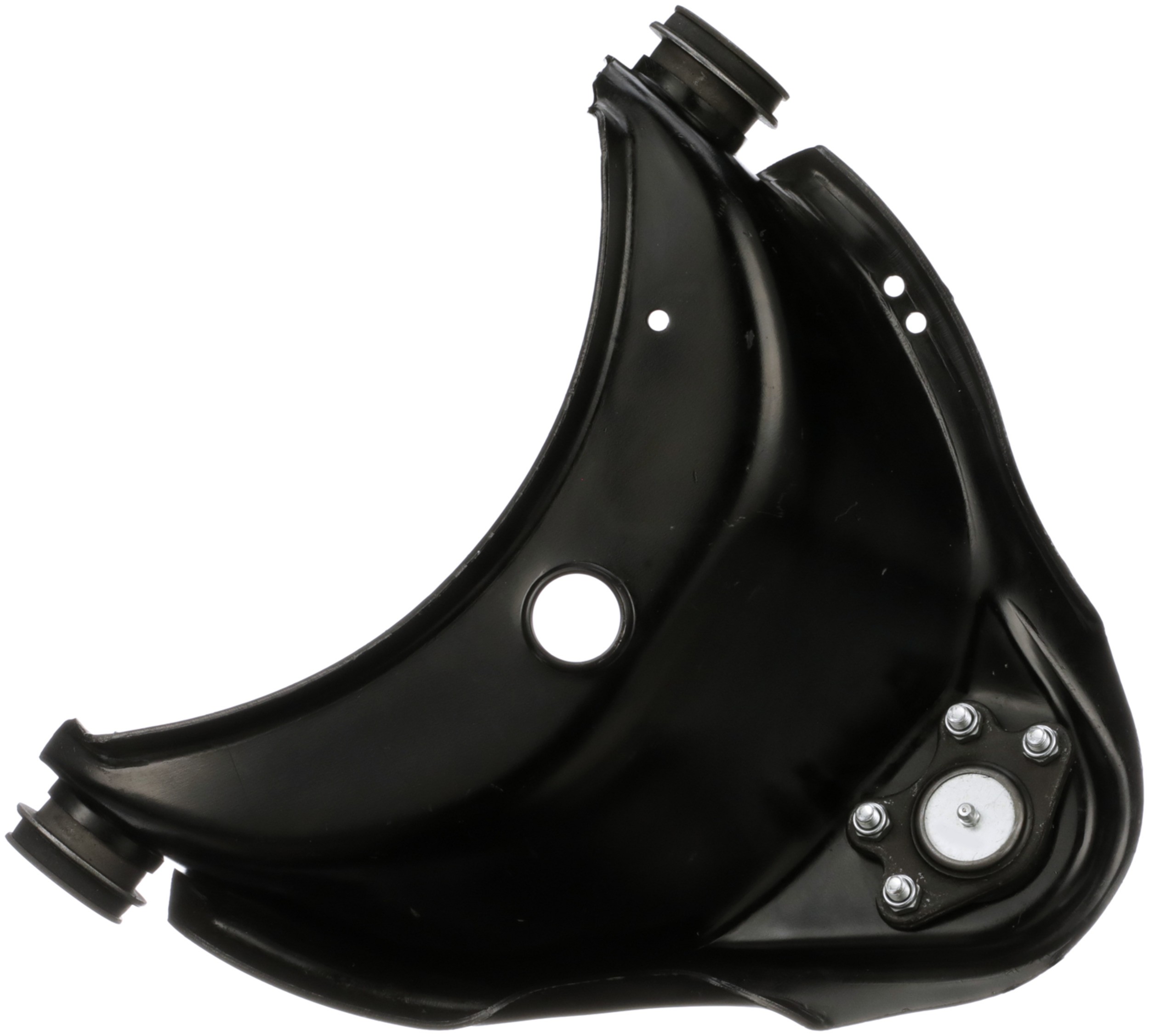

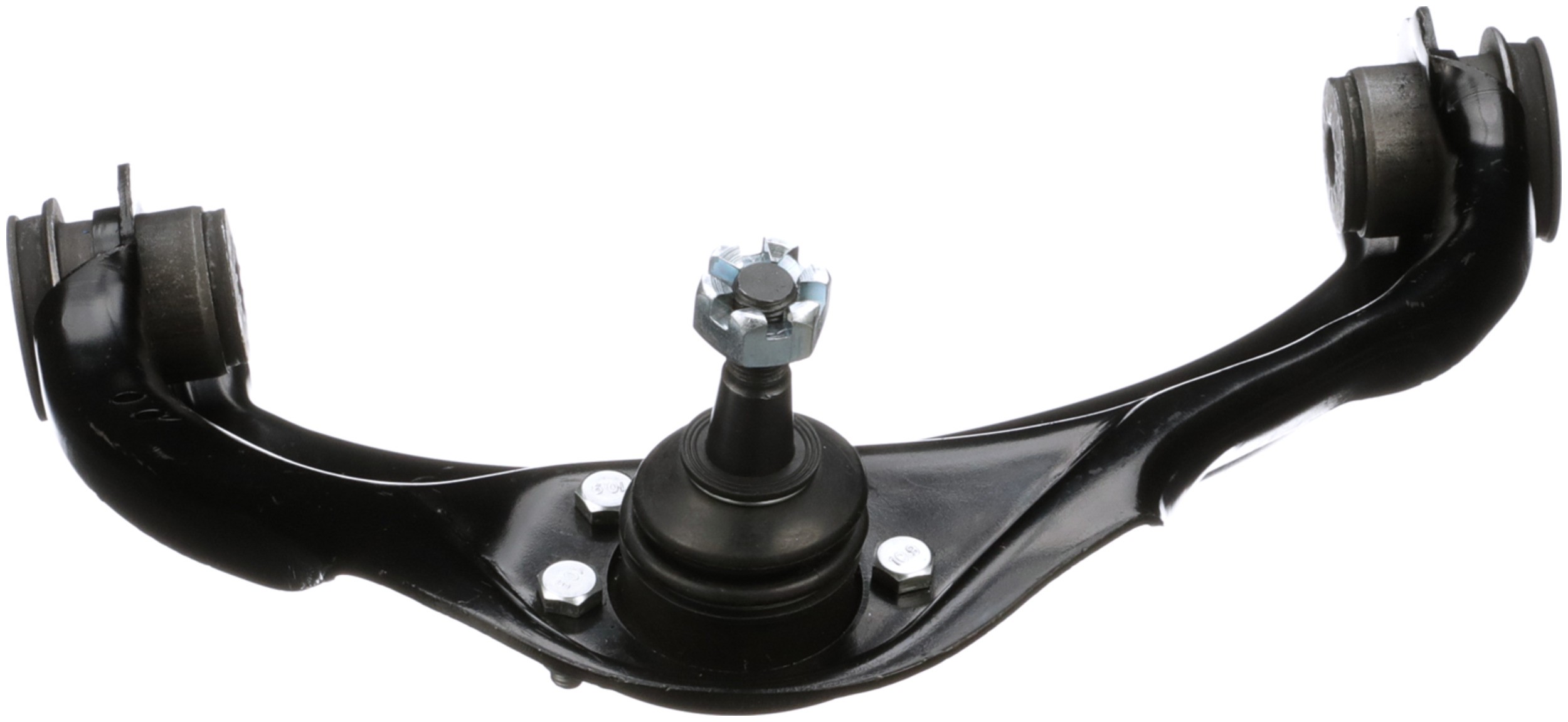

Delphi TC6022 Suspension Control Arm and Ball Joint Assembly

Delphi TC6022 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
2384	Yes
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Position(s)	Front Left Upper
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	C1500 Suburban	1992 to 1999
Chevrolet	C1500	1988 to 1999
Chevrolet	C2500	1988 to 2000
Chevrolet	Express 1500	1996 to 2002
Chevrolet	Express 2500	1996 to 2002
Chevrolet	Tahoe	1995 to 2000
GMC	C1500 Suburban	1992 to 1999
GMC	C1500	1988 to 1999
GMC	C2500	1988 to 2000
GMC	Savana 1500	1996 to 2002
GMC	Savana 2500	1996 to 2002
GMC	Yukon	1995 to 1997
