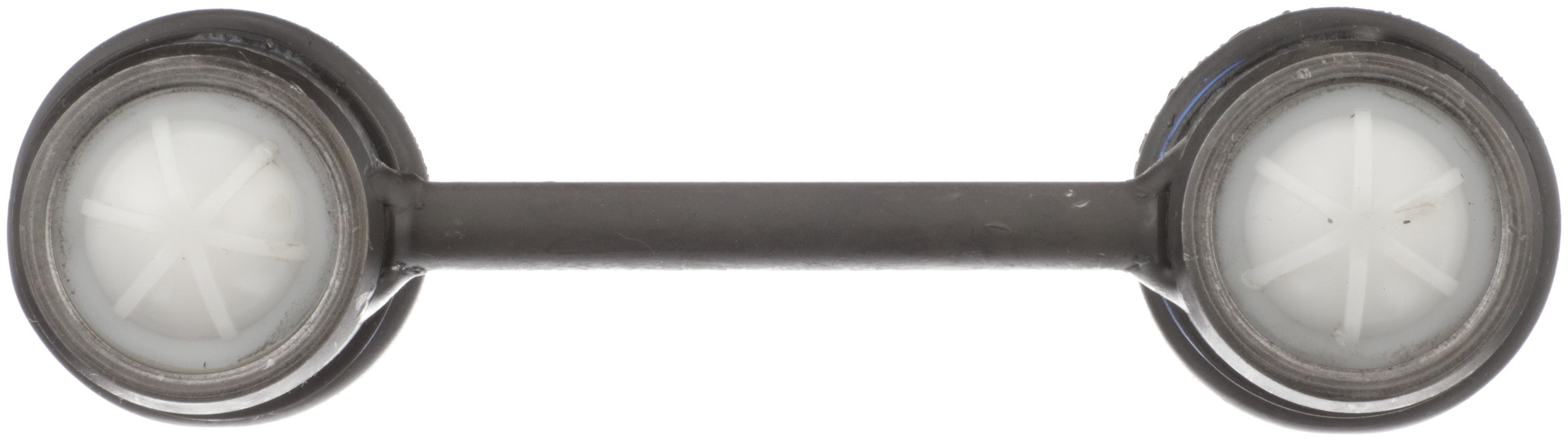

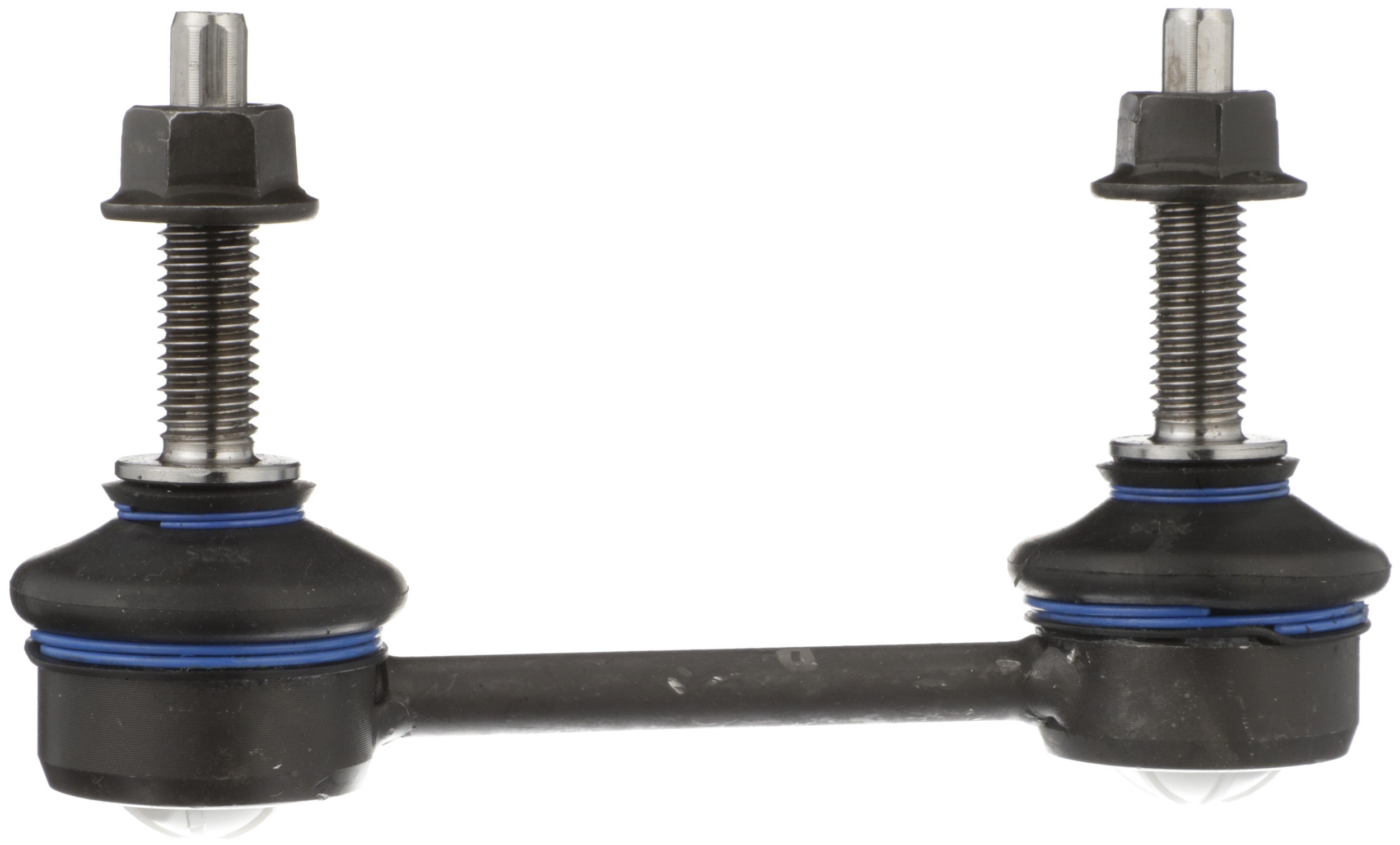

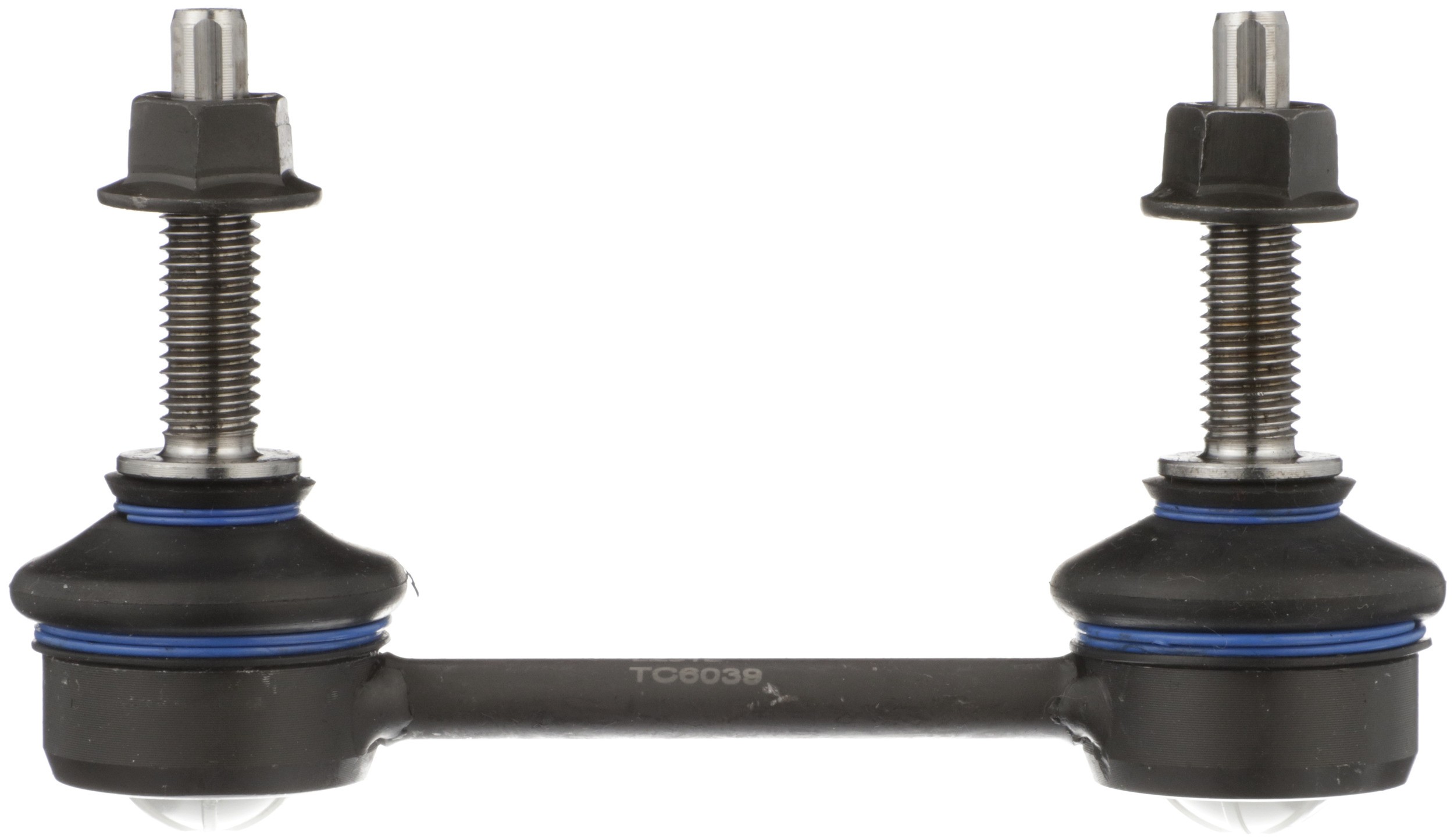

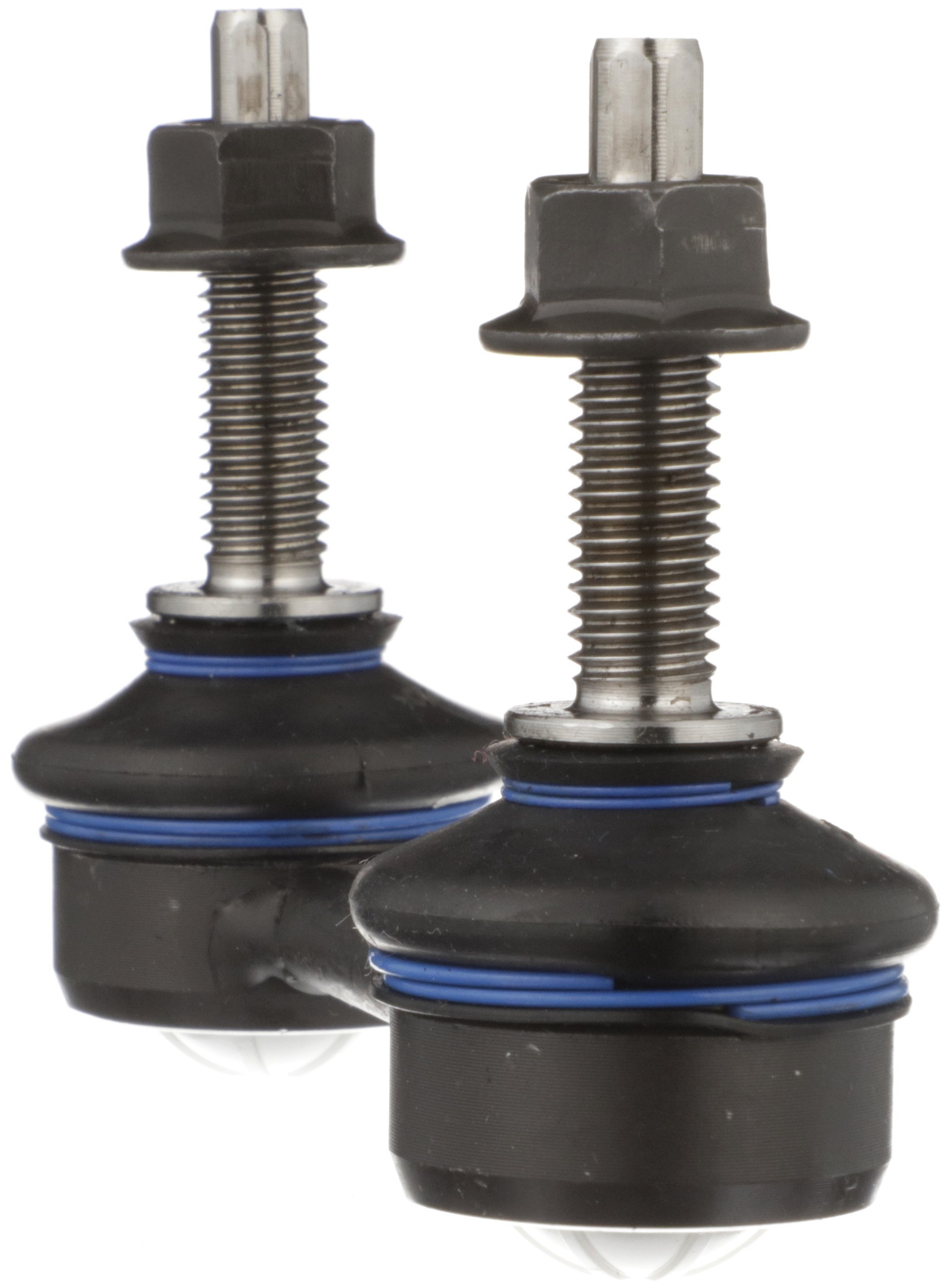

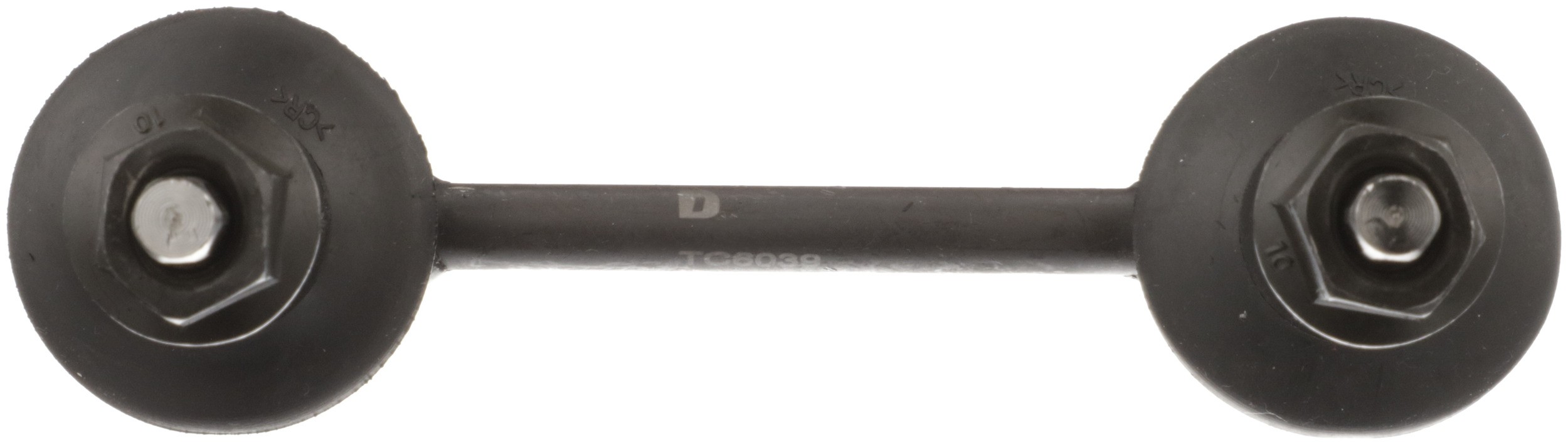

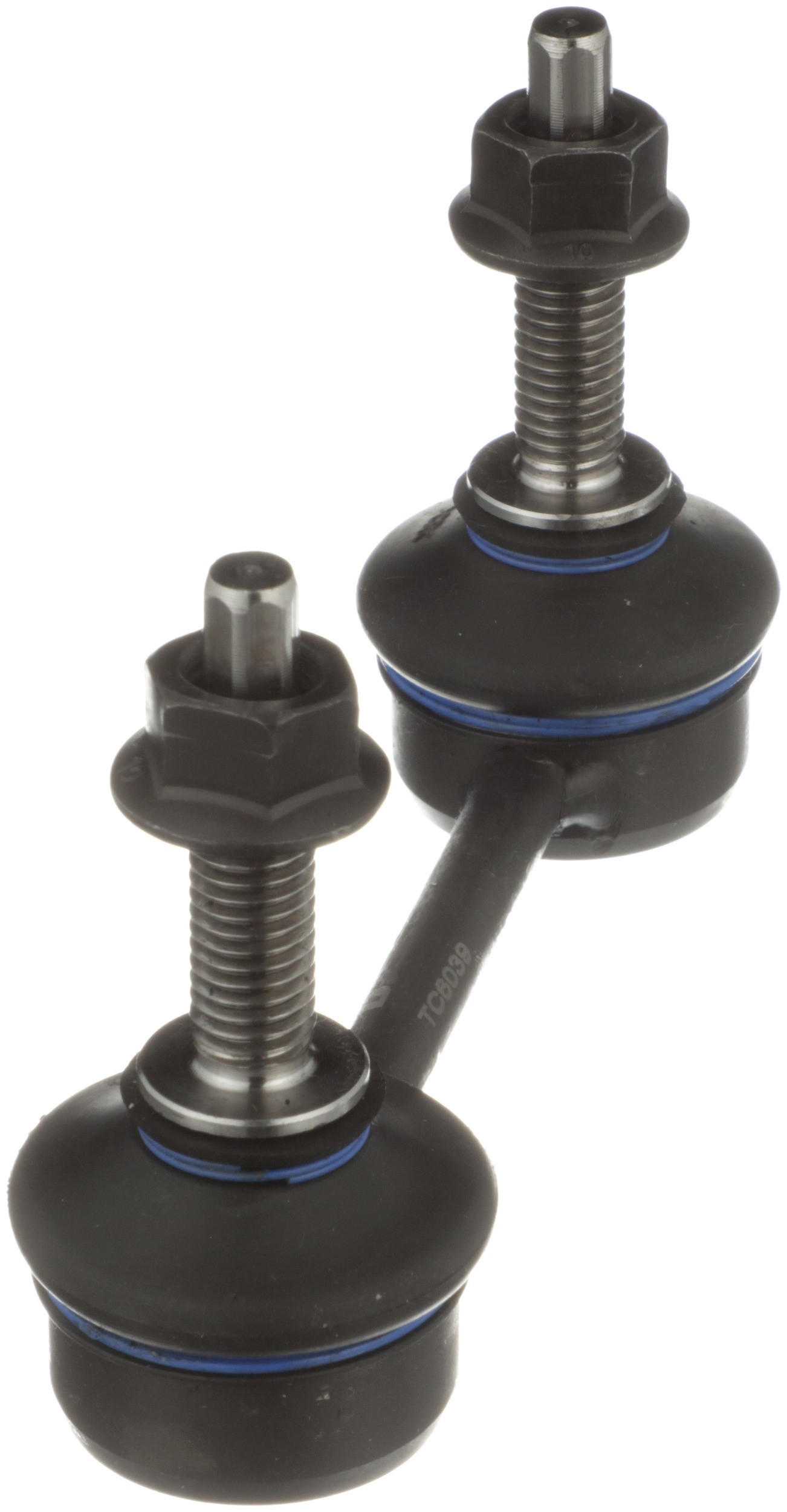

Delphi TC6039 Suspension Stabilizer Bar Link

Delphi TC6039 Suspension Stabilizer Bar Link

Features:

Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Rear
Grade Type	Standard Replacement
Bearing Material	Polyoxymethylene (POM)
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	No
Dust Boot Included	Yes
Bushings Included	No
End 2 Type	Ball Joint
End 1 Type	Ball Joint
9058	101.60 MM
627	0.66 LB
4504	10.00 MM
4504	0.390 IN
Width	32.5 MM
839	7mm
Bolt Length	77.00 MM
Bolt Length	3.030 IN
Height	3.150 IN
Height	80.00 MM
9296	Yes
Length	5.280 IN
Length	134.00 MM
Width	1.29 IN
