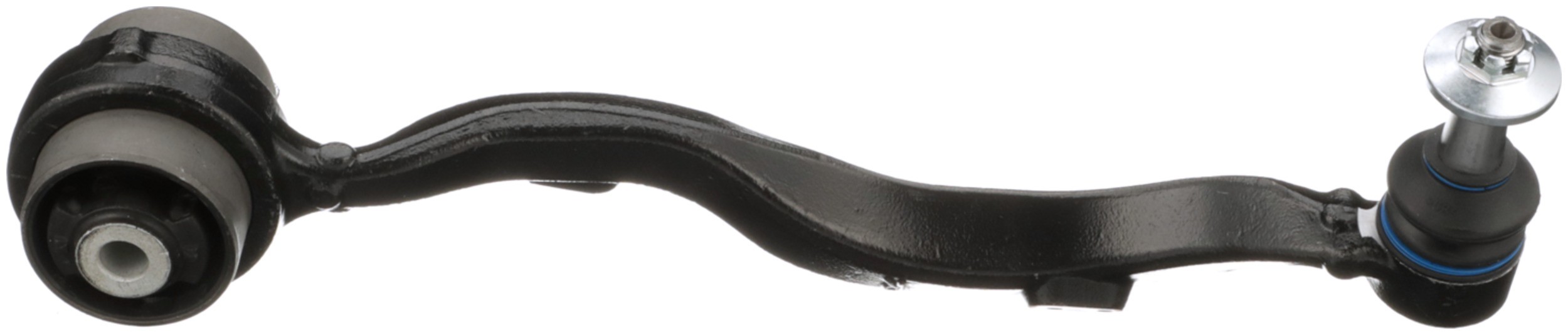

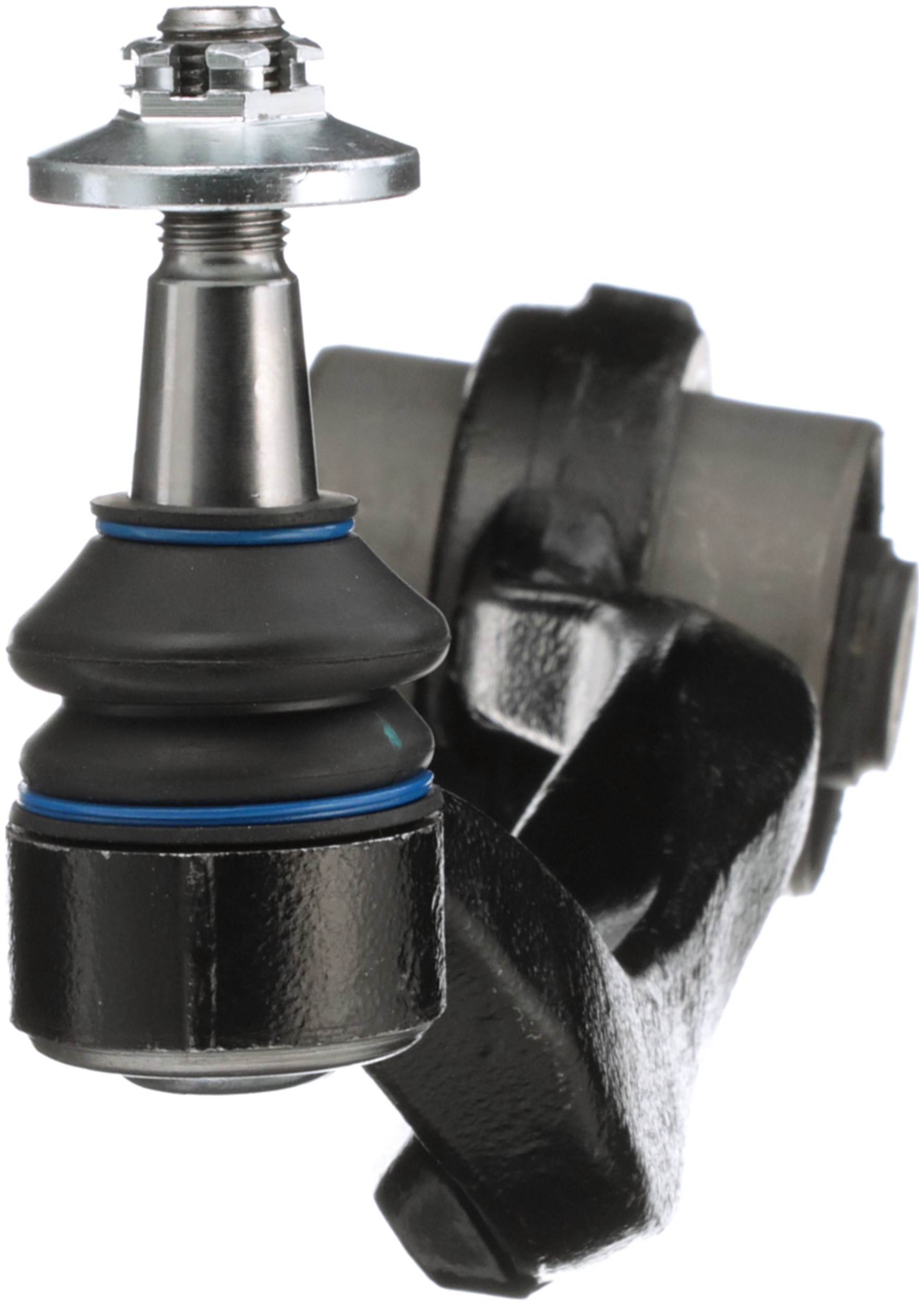

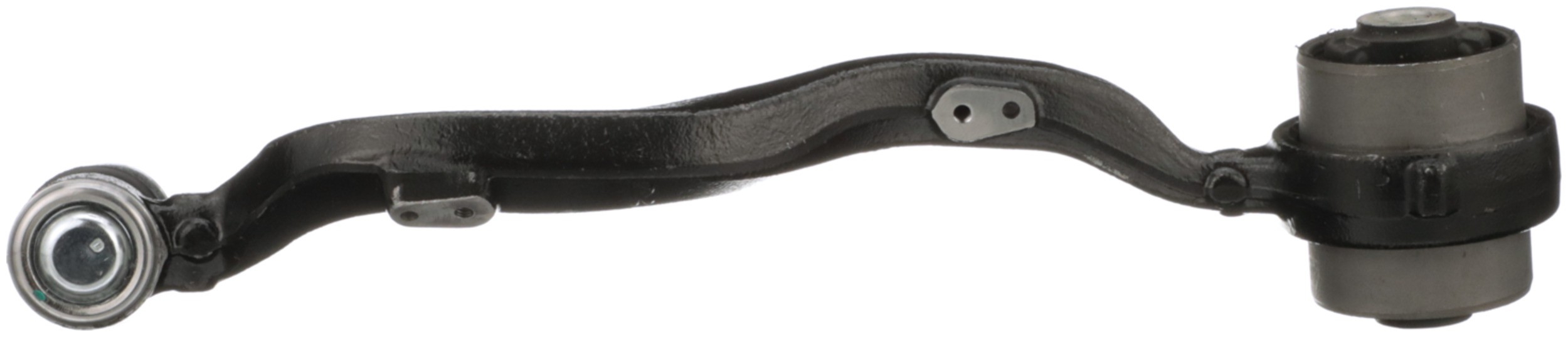

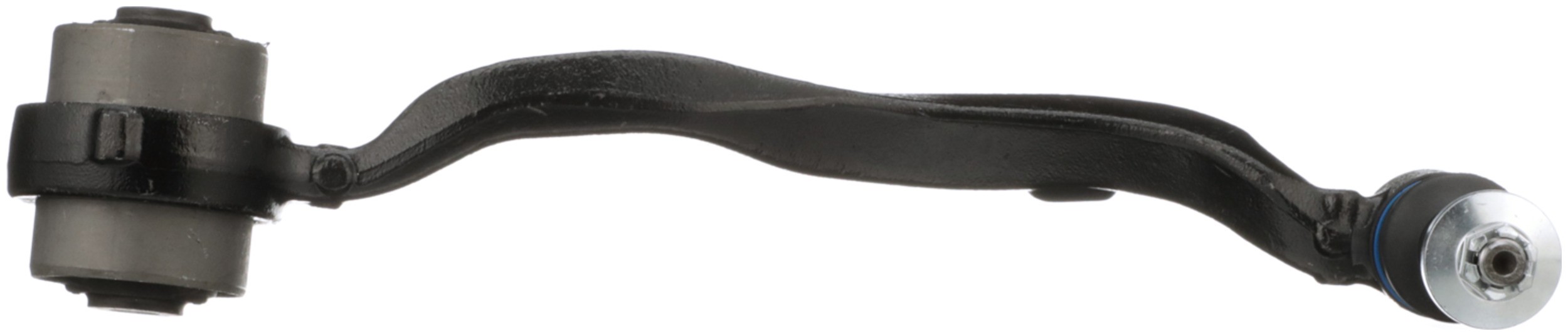

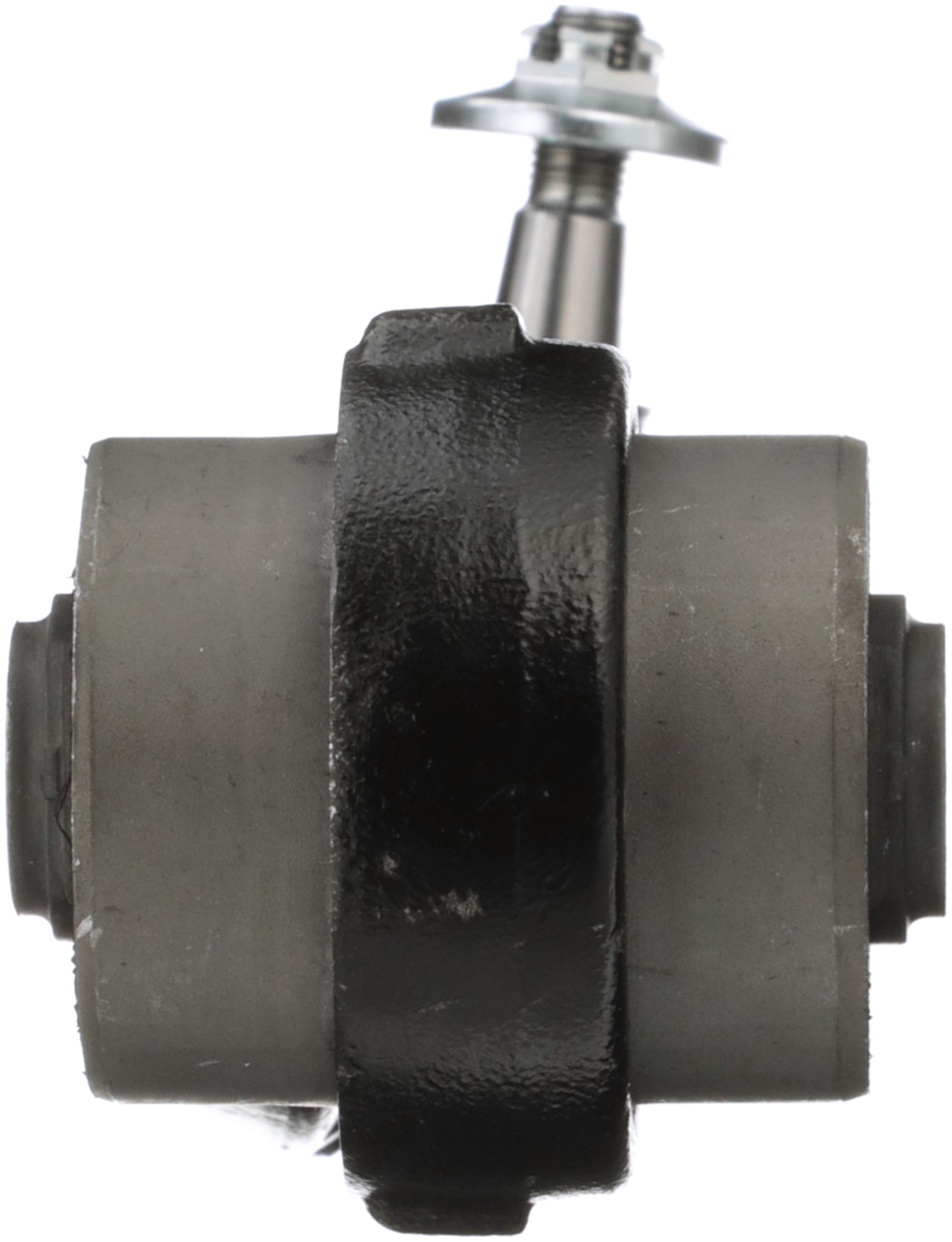

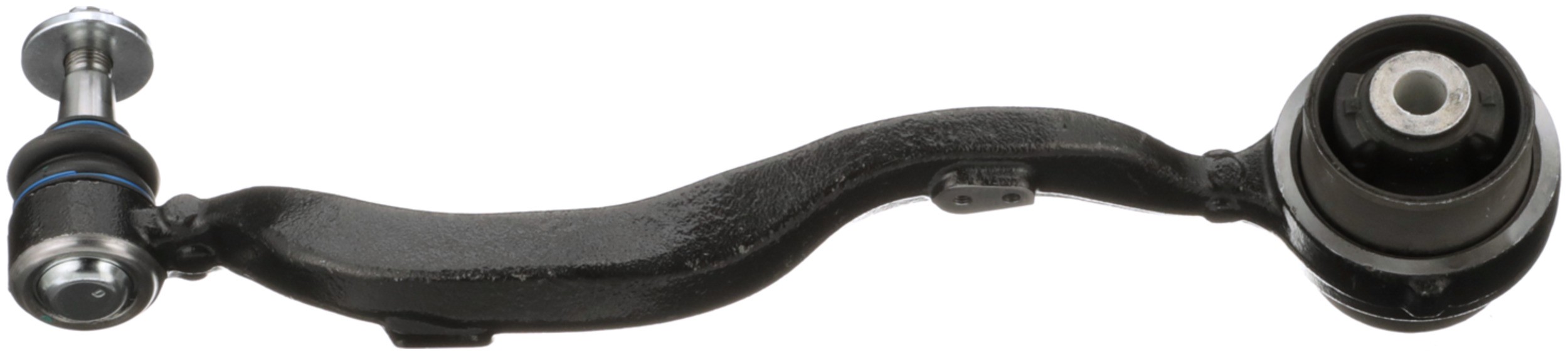

Delphi TC6049 Suspension Control Arm and Ball Joint Assembly

Delphi TC6049 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Premium
6529	Power
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Lower Forward
Finish	Painted
Pre-greased	Yes
Boot Colour	Black
Bearing Material	Plastic
Mounting Hardware Included	Yes
4887	90.00 MM
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
9090	Chloroprene Rubber (CR)
Bushing Length	3.543 IN
Bushing Length	90.00 MM
Bushing Inside Diameter	0.559 IN
Bushing Inside Diameter	14.20 MM
Mounting Hole Diameter	0.563 IN
Mounting Hole Diameter	14.30 MM
Length	17.480 IN
Length	444.00 MM
4887	3.543 IN
4890	86.50 MM
4890	3.406 IN
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Material	Cast Iron
Greaseable	No
Finish	Black
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
Bushing Colour	Black
