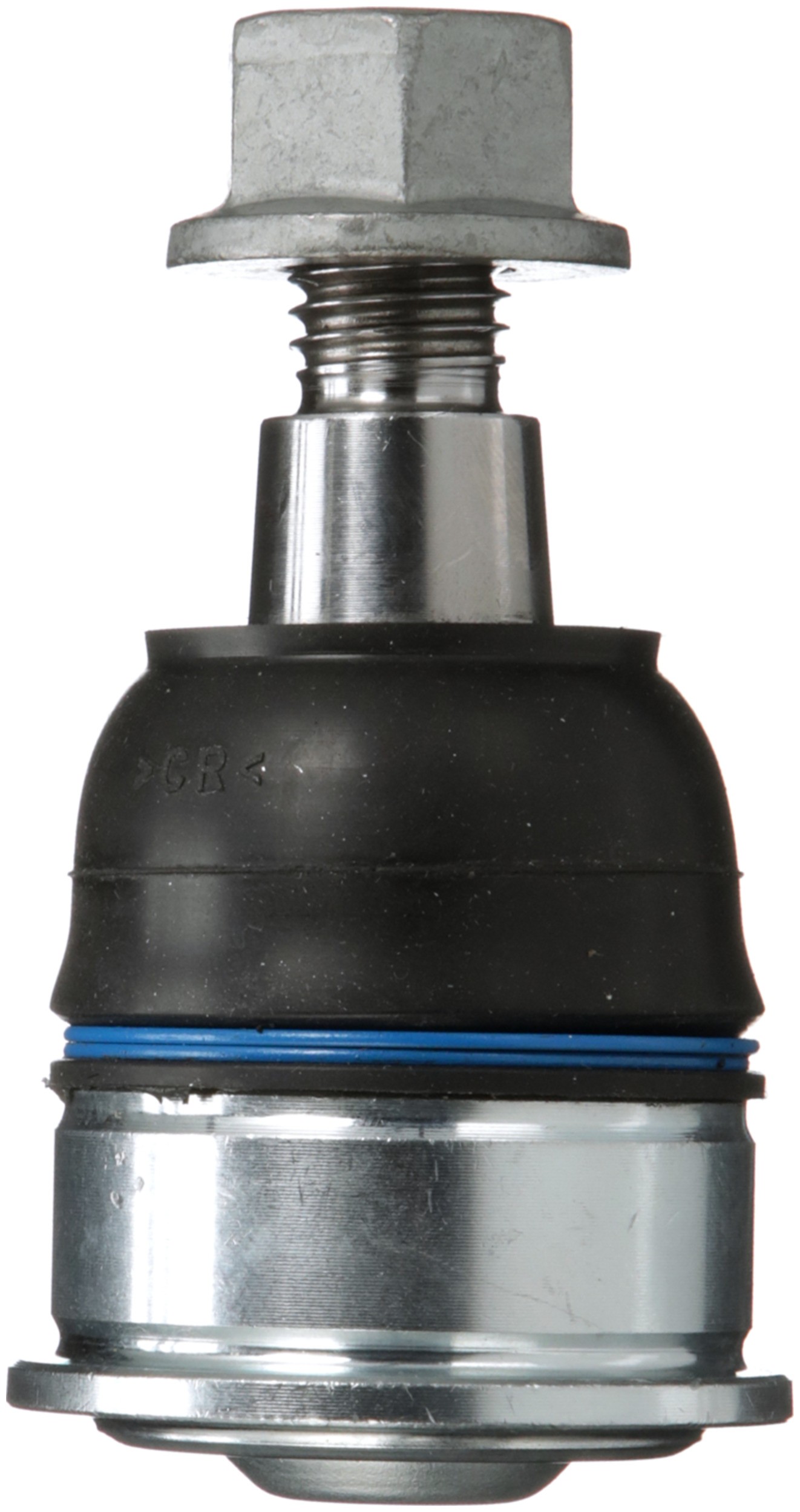

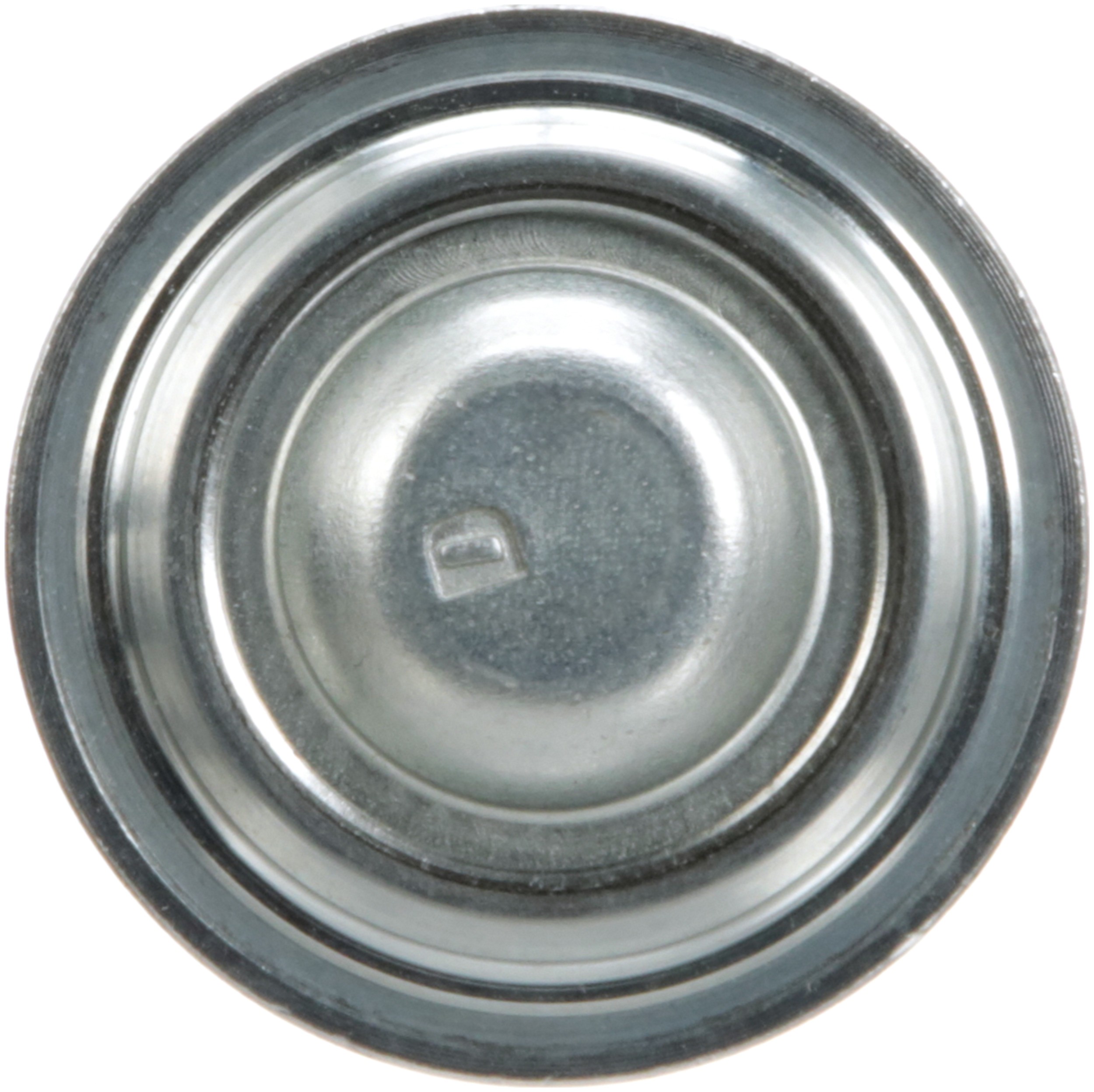

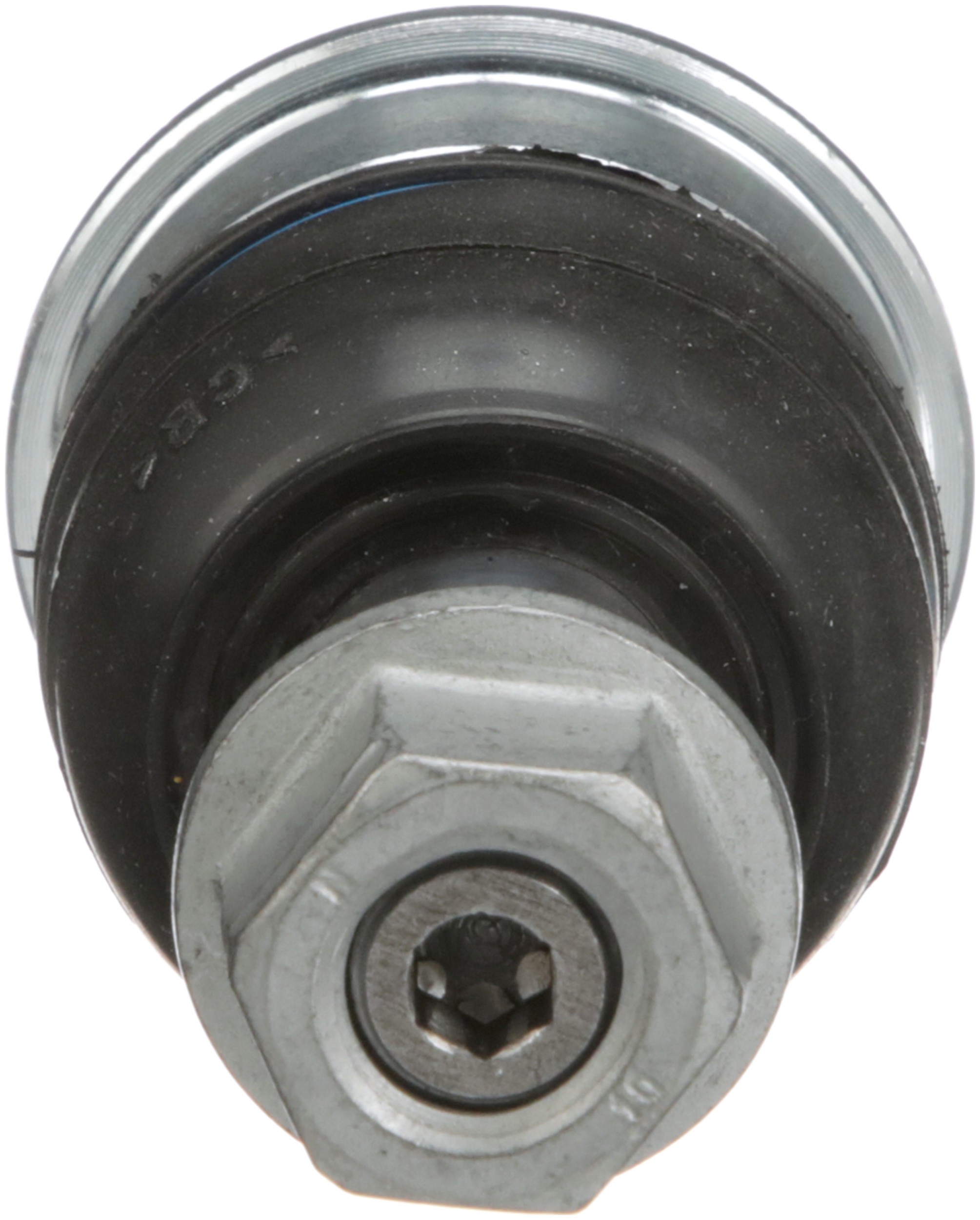

Delphi TC6086 Suspension Ball Joint

Delphi TC6086 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	2.736 IN
Height	69.50 MM
Width	48 MM
Length	1.890 IN
Length	48.00 MM
Maximum Outside Diameter	48.00 MM
Maximum Outside Diameter	1.890 IN
Material	Steel
Color	Silver
Grease Fitting Included	No
Bushings Included	No
Dust Boot Included	Yes
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Mounting Hole Quantity	0
Adjustable	No
Greaseable	No
Mounting Type	Press-In
9213	0.87 IN
9213	22 MM
9212	1.06 IN
9212	27 MM
9209	No
9090	Rubber
881	Non-Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
