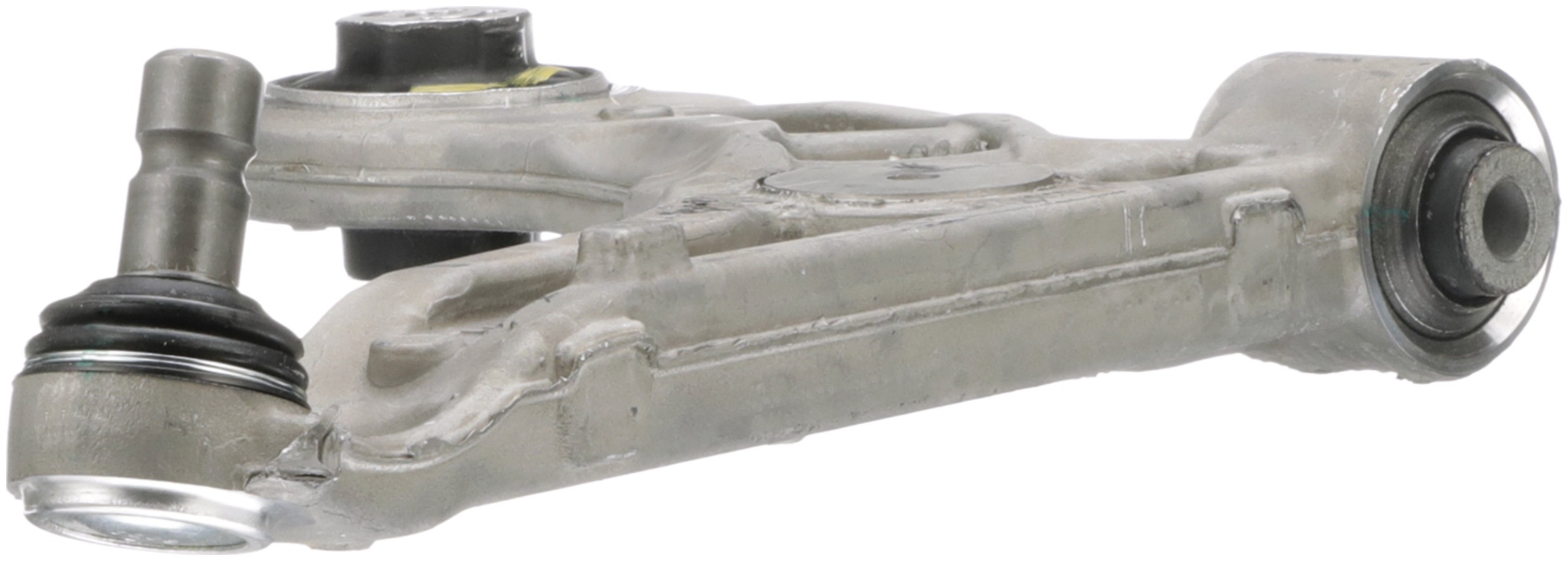

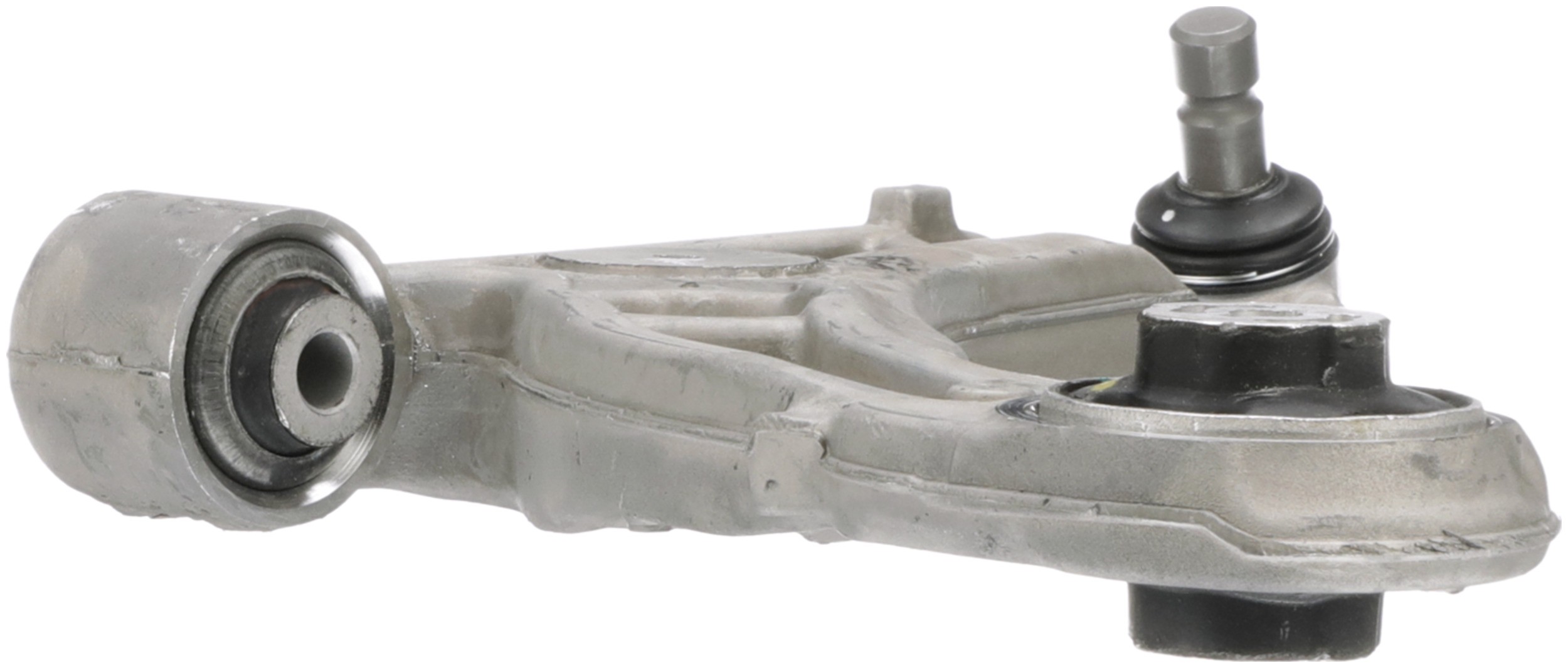

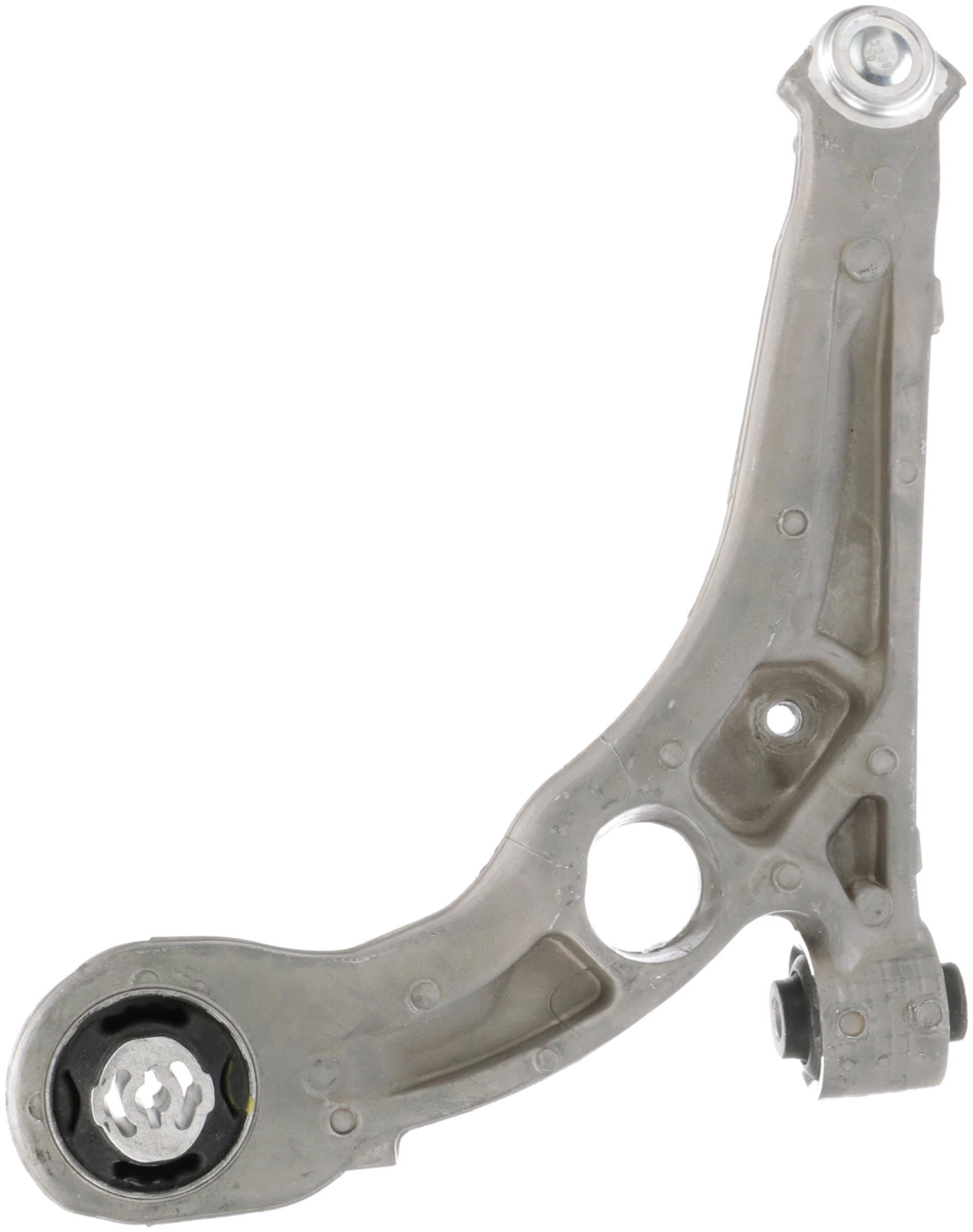

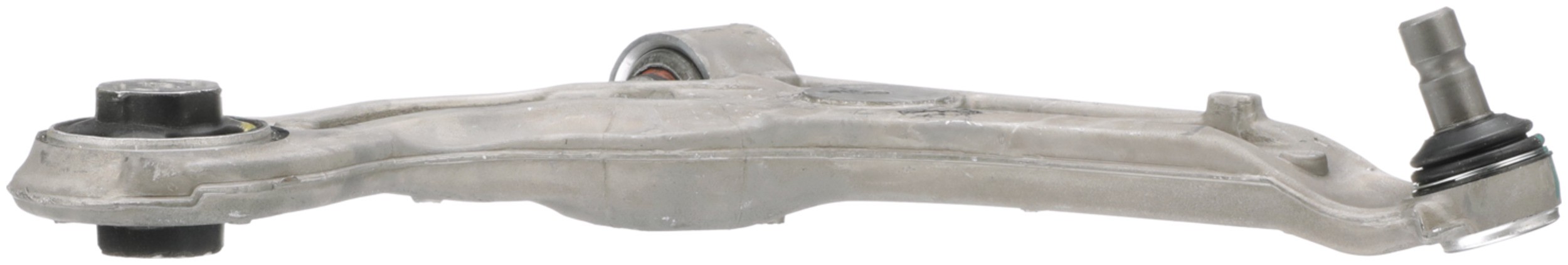

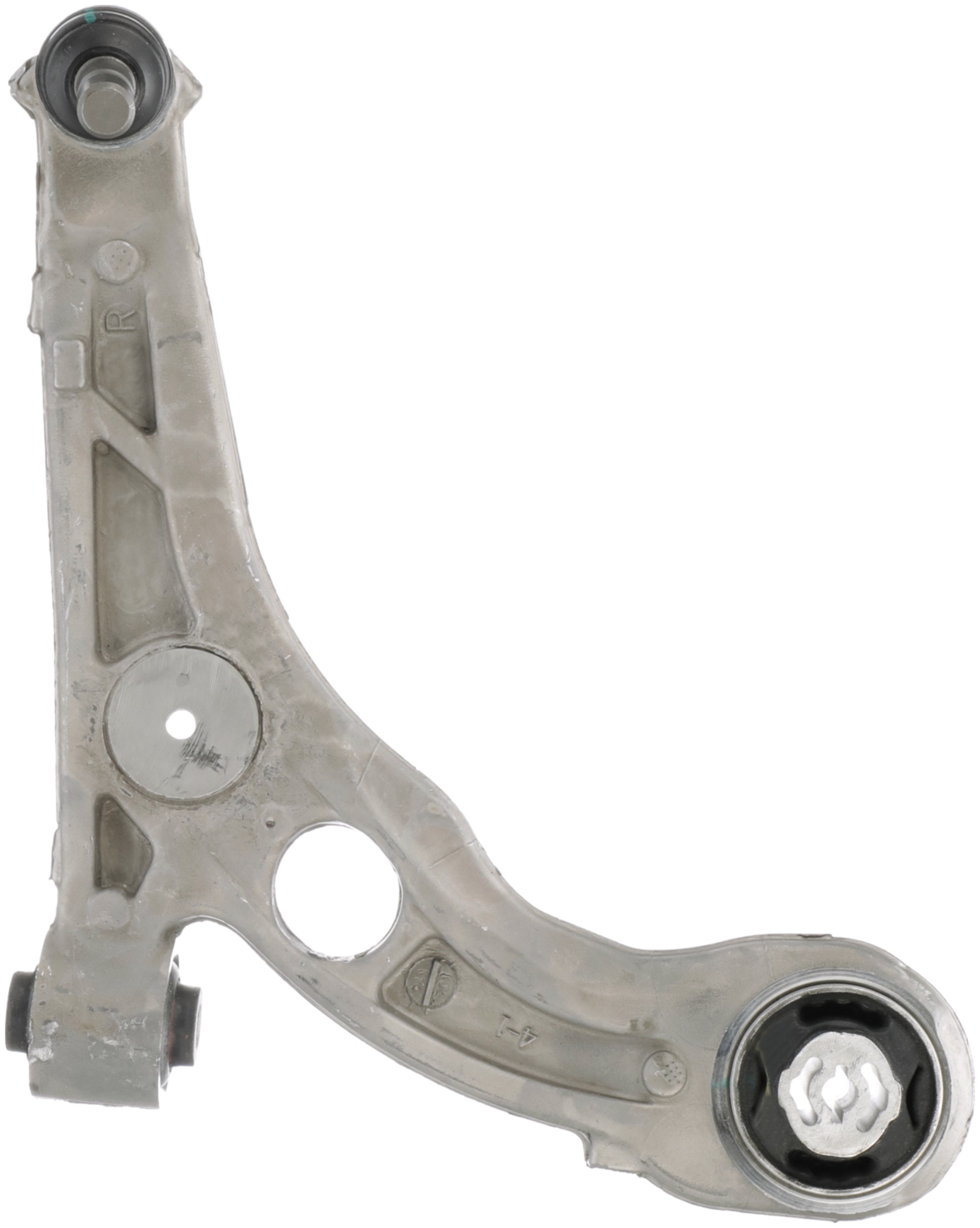

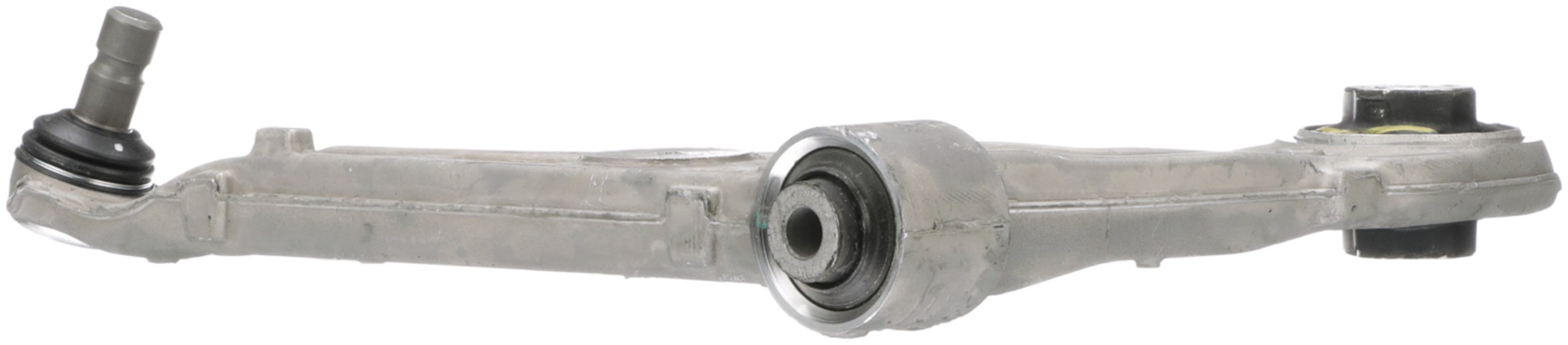

Delphi TC6113 Suspension Control Arm and Ball Joint Assembly

Delphi TC6113 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

6529	Power
Bushing Length	2.197 IN
Bushing Length	2.657 IN
Bushing Length	55.80 MM
Bushing Length	67.50 MM
Bushing Inside Diameter	0.559 IN
Bushing Inside Diameter	0.484 IN
Bushing Inside Diameter	14.20 MM
Bushing Inside Diameter	12.30 MM
Mounting Hole Diameter	0.484 IN
Mounting Hole Diameter	12.30 MM
Length	9.331 IN
Length	237.00 MM
Bushing Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Grooved
Material	Aluminum
Mounting Hardware Included	No
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Gray
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
4887	288.50 MM
4887	11.358 IN
9532	10.209 IN
9532	259.30 MM
Position(s)	Front Left Lower, Front Right Lower. For the position specific to your vehicle, refer to the Applications.
2384	Yes
2386	Casting/Forged
9090	Chloroprene Rubber (CR)
