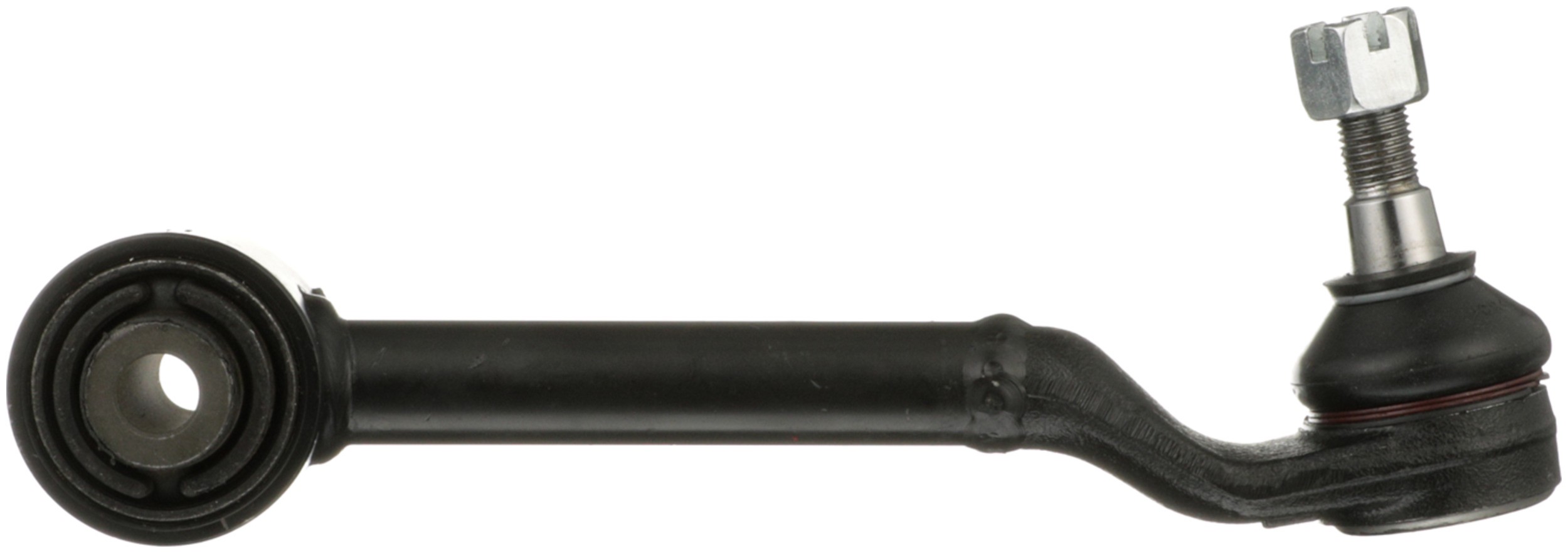

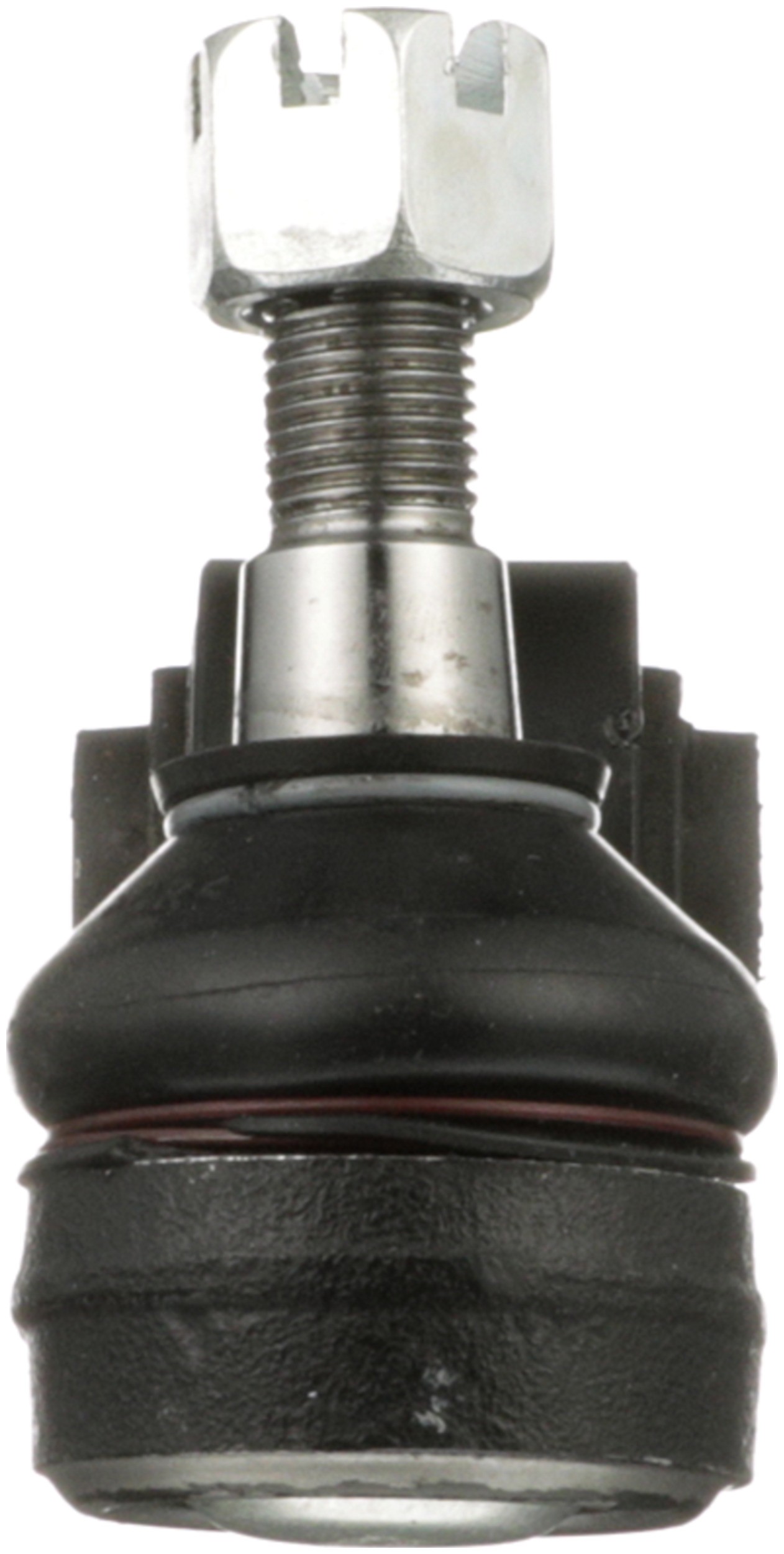

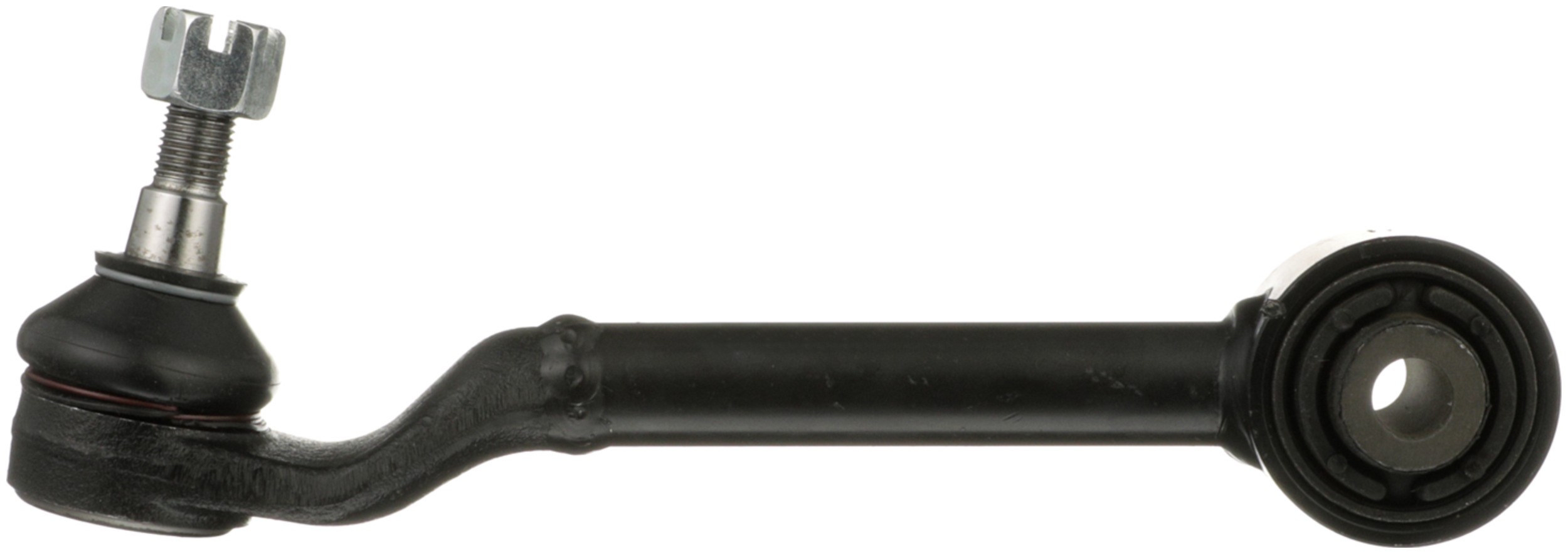

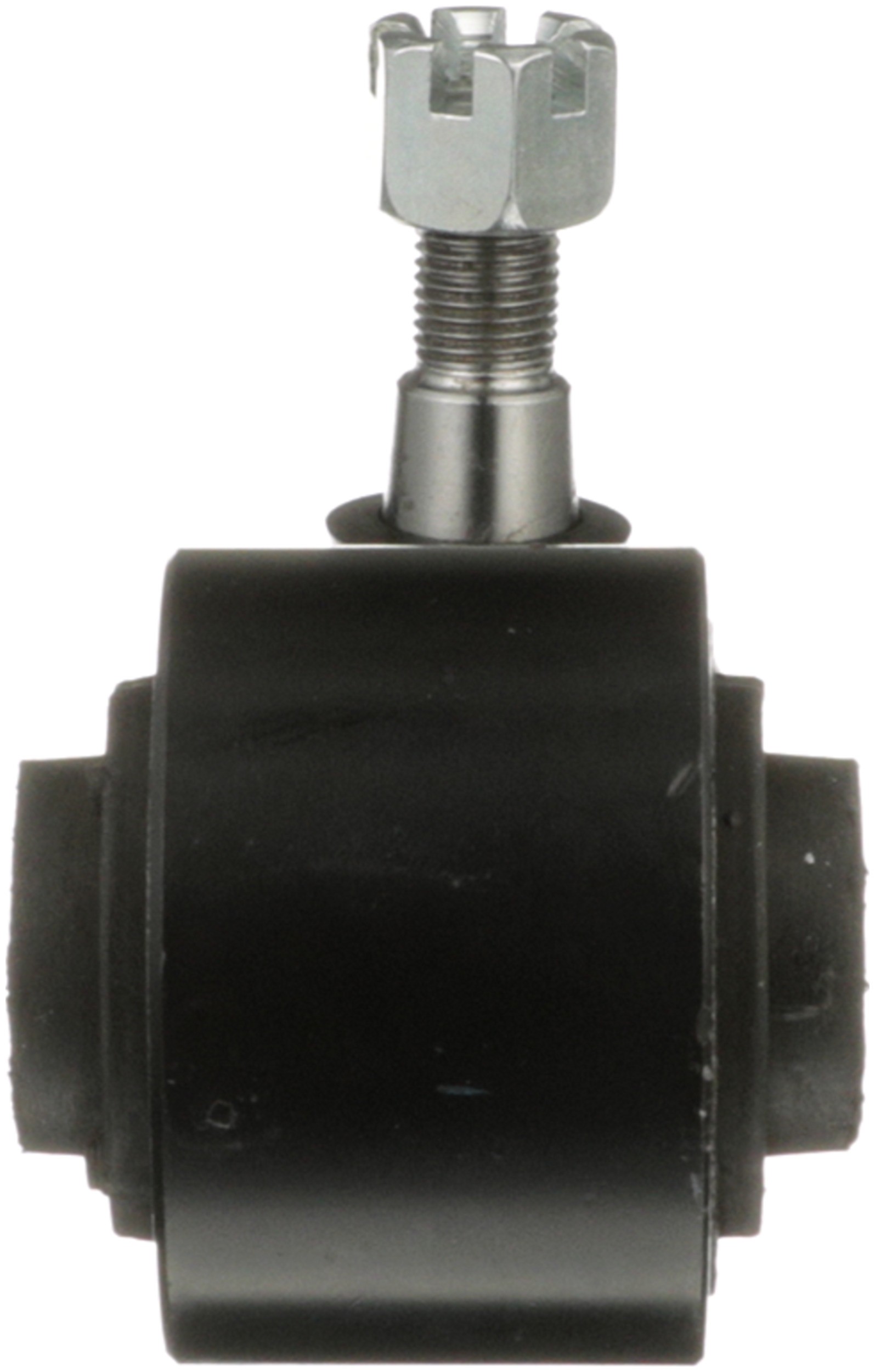

Delphi TC6131 Suspension Control Arm and Ball Joint Assembly

Delphi TC6131 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Colour	Black
6529	Power
Mounting Hole Quantity	1
Material	Steel
Mounting Hole Diameter	0.476 IN
Adjustable	No
Ball Joint Stud Type	Threaded
Thread Direction	Clockwise (Right)
Boot Material	Chloroprene Rubber (CR)
9090	Chloroprene Rubber (CR)
Bushings Included	Yes
Bushing Type	Rubber
Pre-greased	Yes
Boot Colour	Black
Finish	Black
Greaseable	No
Dust Boot Included	Yes
Bearing Material	Plastic
4890	2.638 IN
4241	Yes
2386	Casting/Forged
Length	245.00 MM
2384	Yes
Position(s)	Rear Right Upper
4890	67.00 MM
4887	2.953 IN
4887	75.00 MM
Grade Type	Premium
Mounting Hole Diameter	12.10 MM
Mounting Hardware Included	Yes
Finish	Painted
Attachment Type	Machined
Length	9.646 IN
