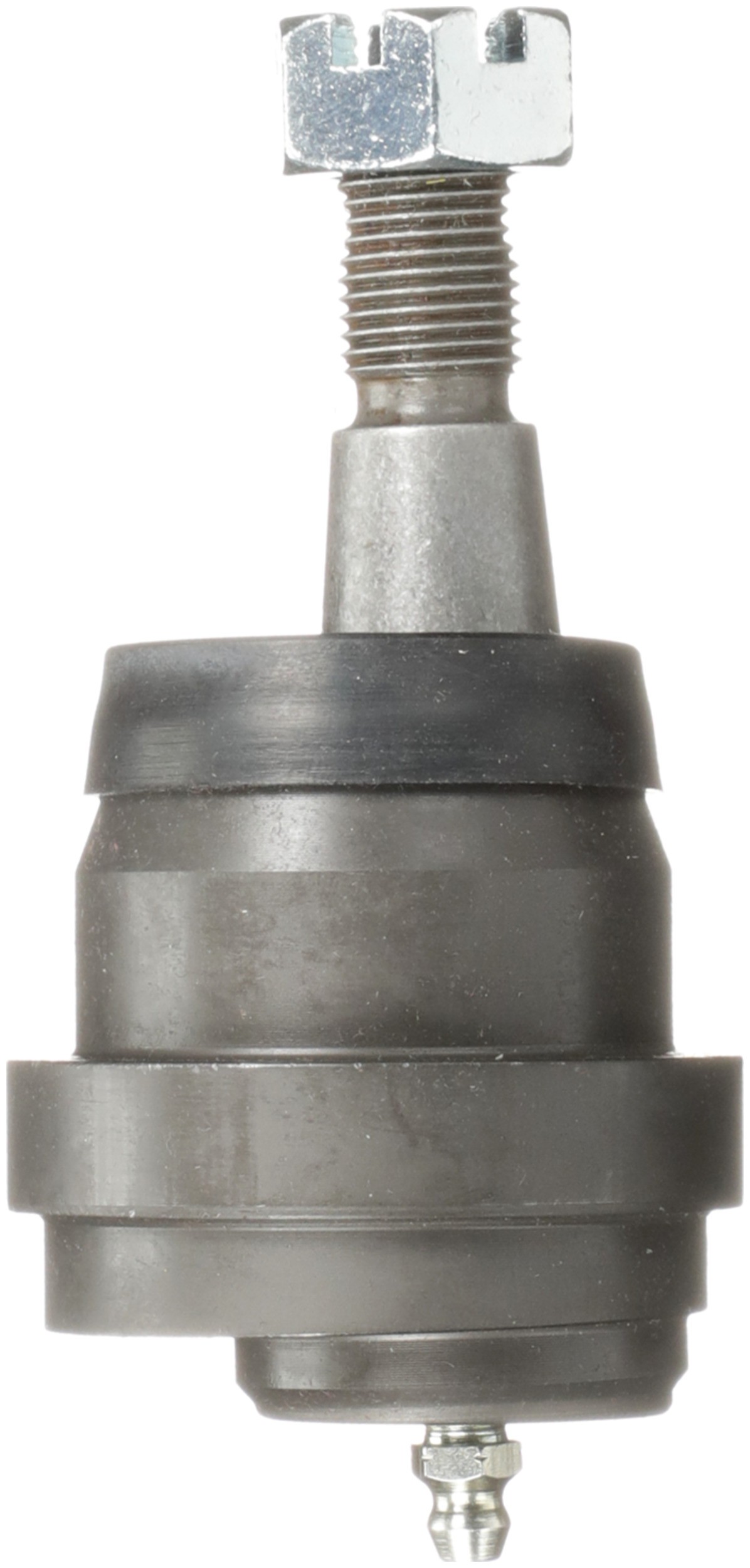

Delphi TC6134 Suspension Ball Joint

Delphi TC6134 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Maximum Outside Diameter	2.210 IN
Width	56.1 MM
Height	96.60 MM
Height	3.800 IN
Suspension Grade Type	Standard Replacement
Position(s)	Front Upper
2334	Yes
2381	Yes
2827	Yes
881	Ball Pin
9090	Rubber
9210	Yes
4966	17.7 MM
Material	Steel
Color	Black
Grease Fitting Included	Yes
Bushings Included	No
Mounting Type	Press-In
Dust Boot Included	Yes
Cotter Pin Hole	Yes
9213	0.62 IN
9213	15.8 MM
9212	0.75 IN
9212	19.08 MM
9211	0.046 IN
4966	0.7 IN
Mounting Hardware Included	No
Washers Included	No
Adjustable	No
Greaseable	Yes
Maximum Outside Diameter	56.10 MM

Vehicle Applications:

Make	Model	Years
Dodge	Ram 1500	1994 to 2001
Dodge	Ram 2500	1994 to 1996
Jeep	Cherokee	1984 to 2001
Jeep	Comanche	1986 to 1992
Jeep	Grand Cherokee	1993 to 2004
Jeep	Grand Wagoneer	1993 to 1993
Jeep	TJ	1997 to 2006
Jeep	Wagoneer	1984 to 1990
Jeep	Wrangler JK	2018 to 2018
Jeep	Wrangler	1987 to 2017
