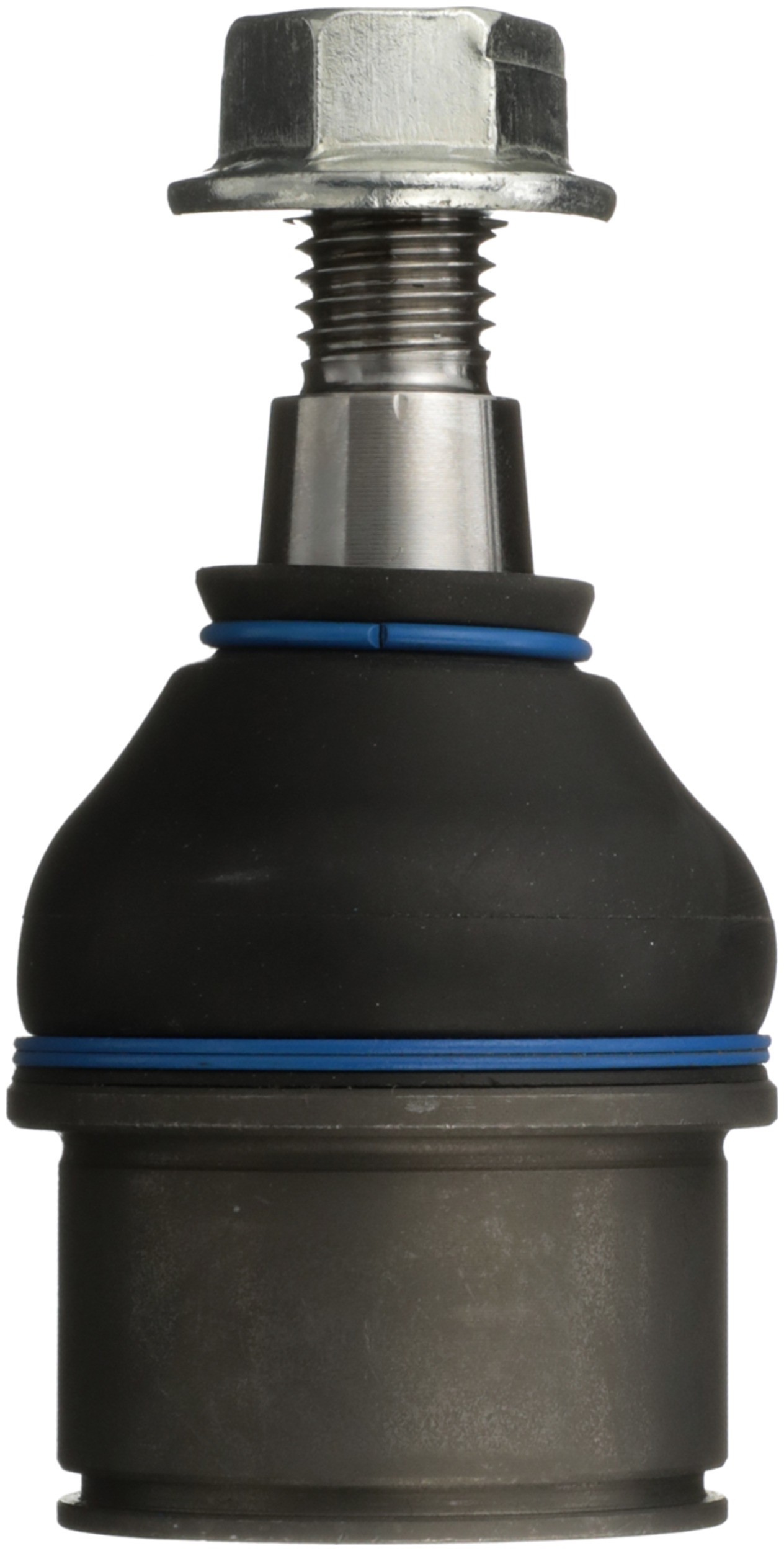

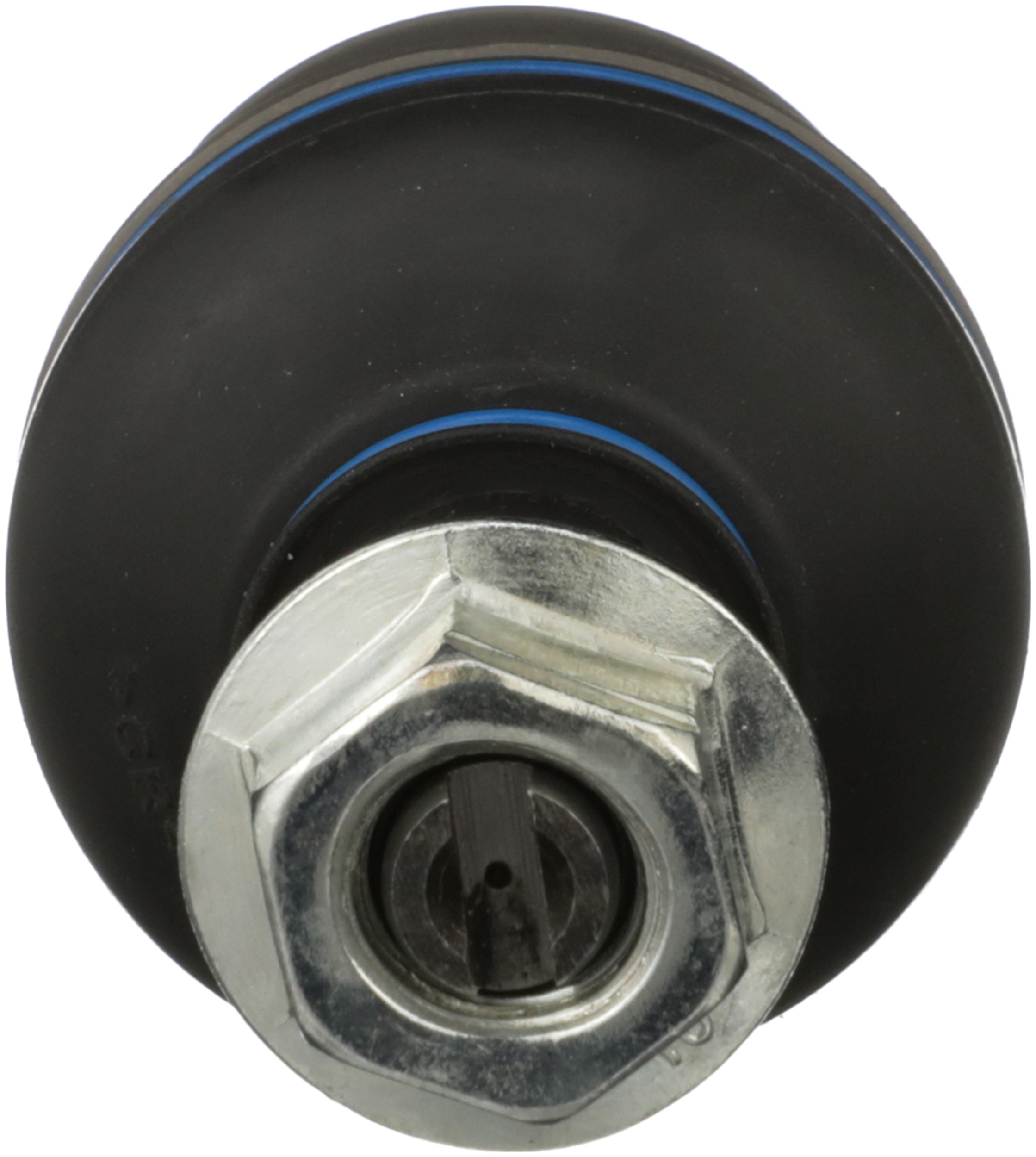

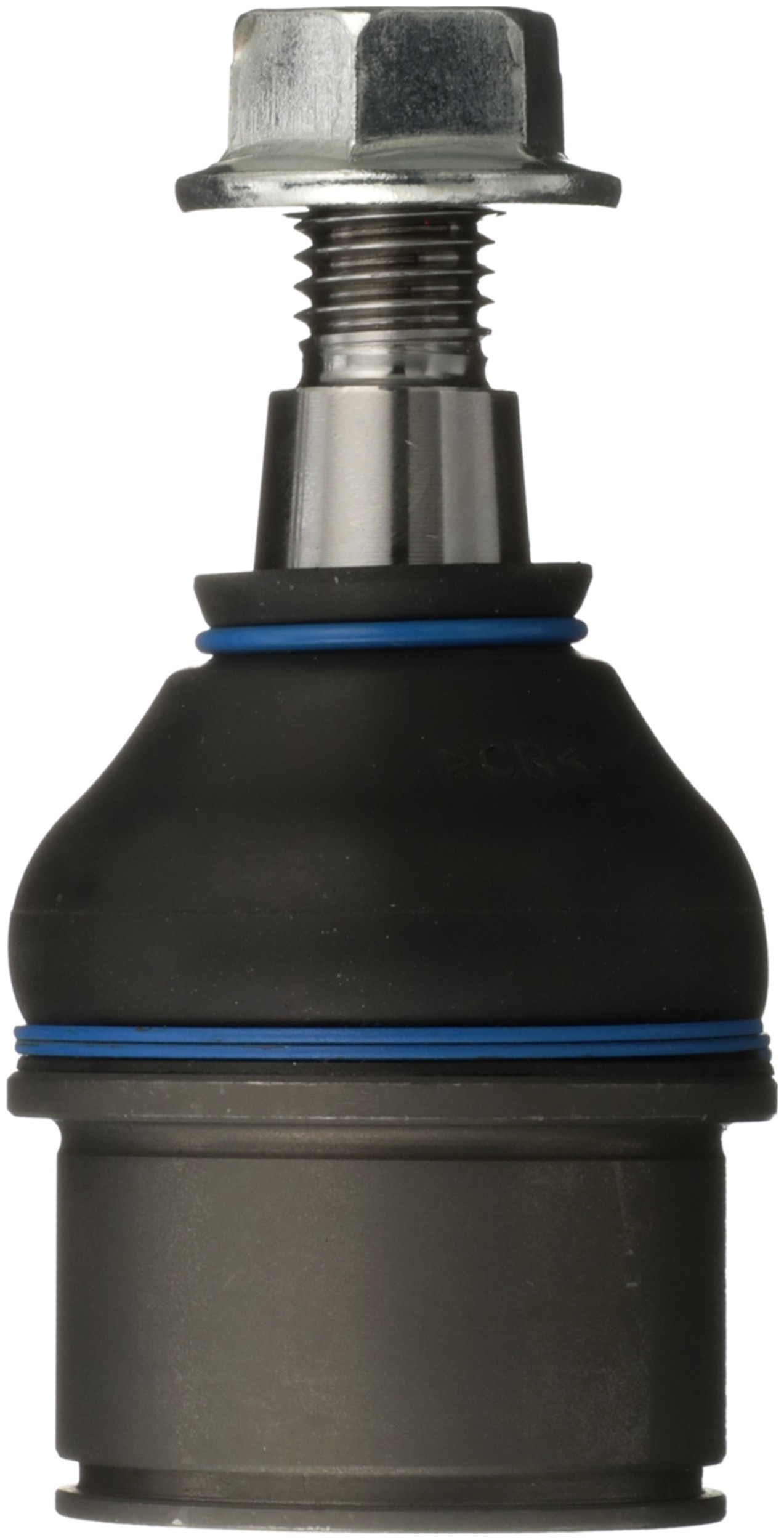

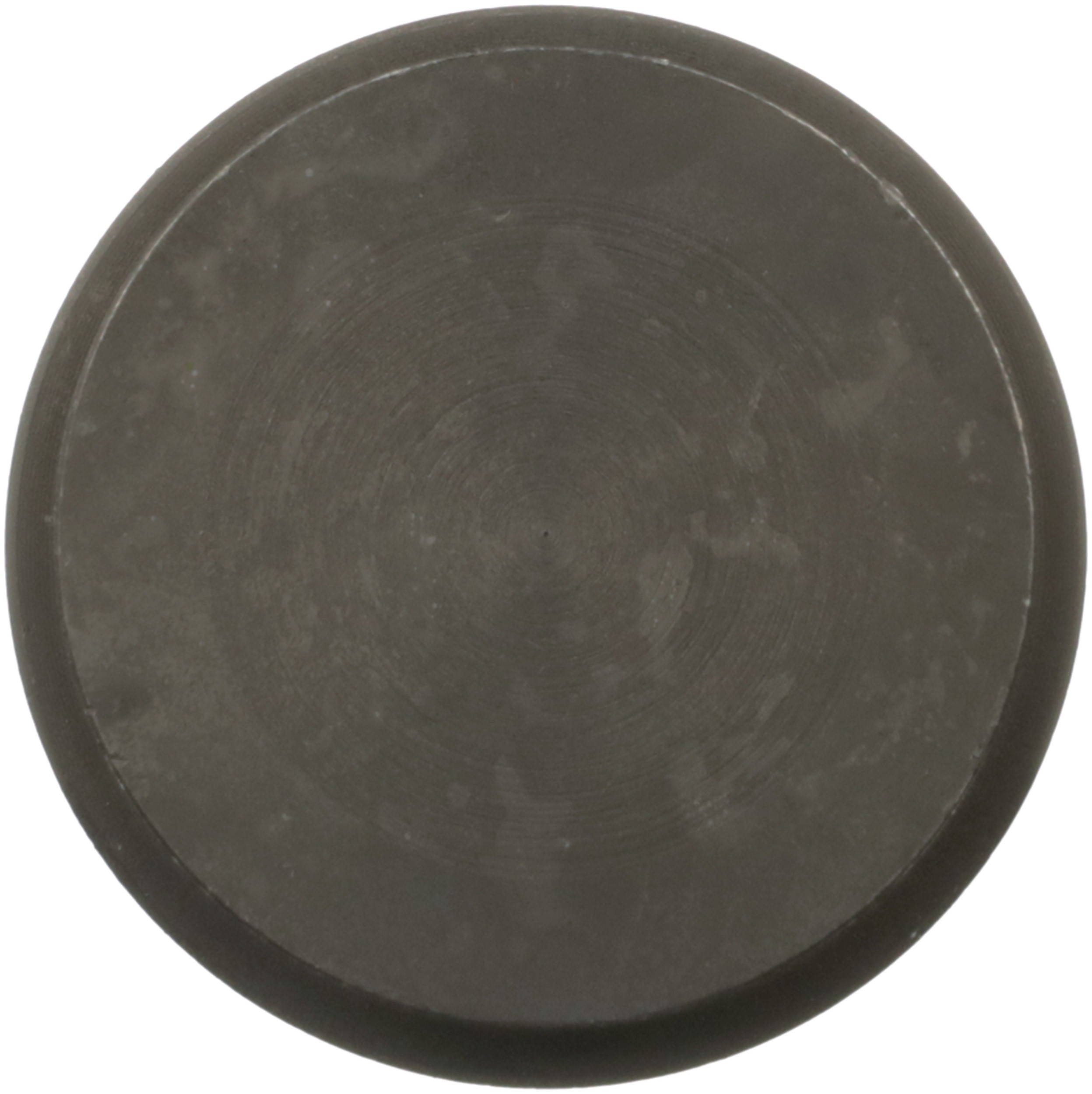

Delphi TC6162 Suspension Ball Joint

Delphi TC6162 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
9213	21.7 MM
9213	0.854 IN
9212	17 MM
9212	0.669 IN
9211	0.167 IN
4966	24.51 MM
4966	0.965 IN
Dust Boot Included	Yes
Material	Steel
Color	Gray
Grease Fitting Included	No
Bushings Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Maximum Outside Diameter	2.047 IN
Maximum Outside Diameter	52.00 MM
Width	52 MM
Height	3.760 IN
Height	95.50 MM
Washers Included	Yes
Adjustable	No
Greaseable	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
9210	Yes
9209	No
9204	No
881	Threaded
2827	No
2381	Yes
2334	No
Position(s)	Front Lower
