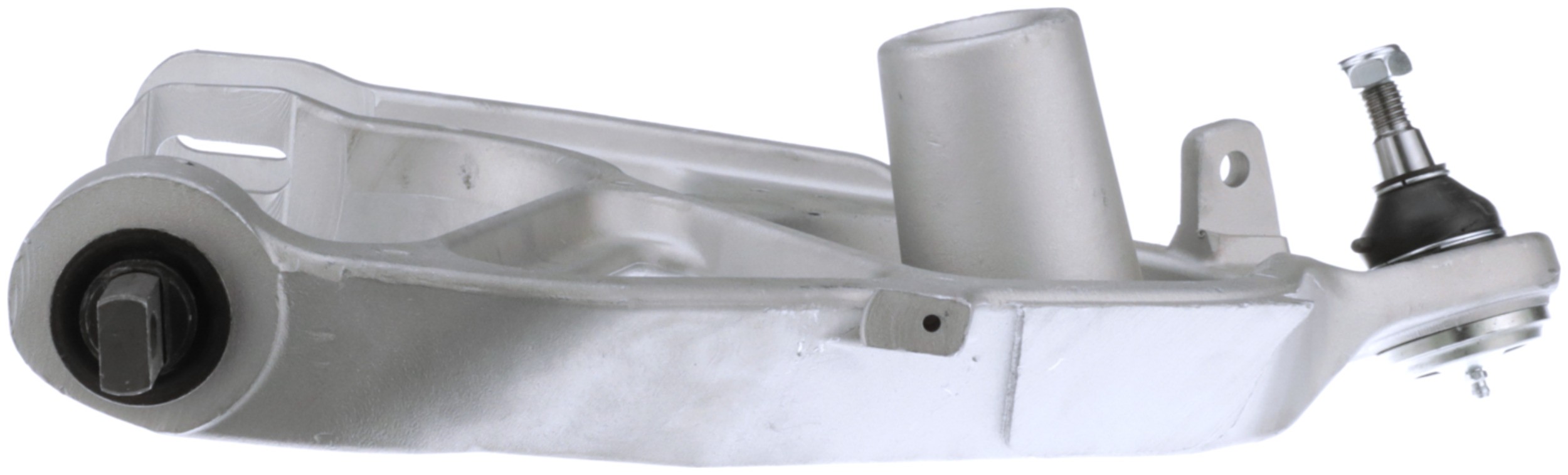

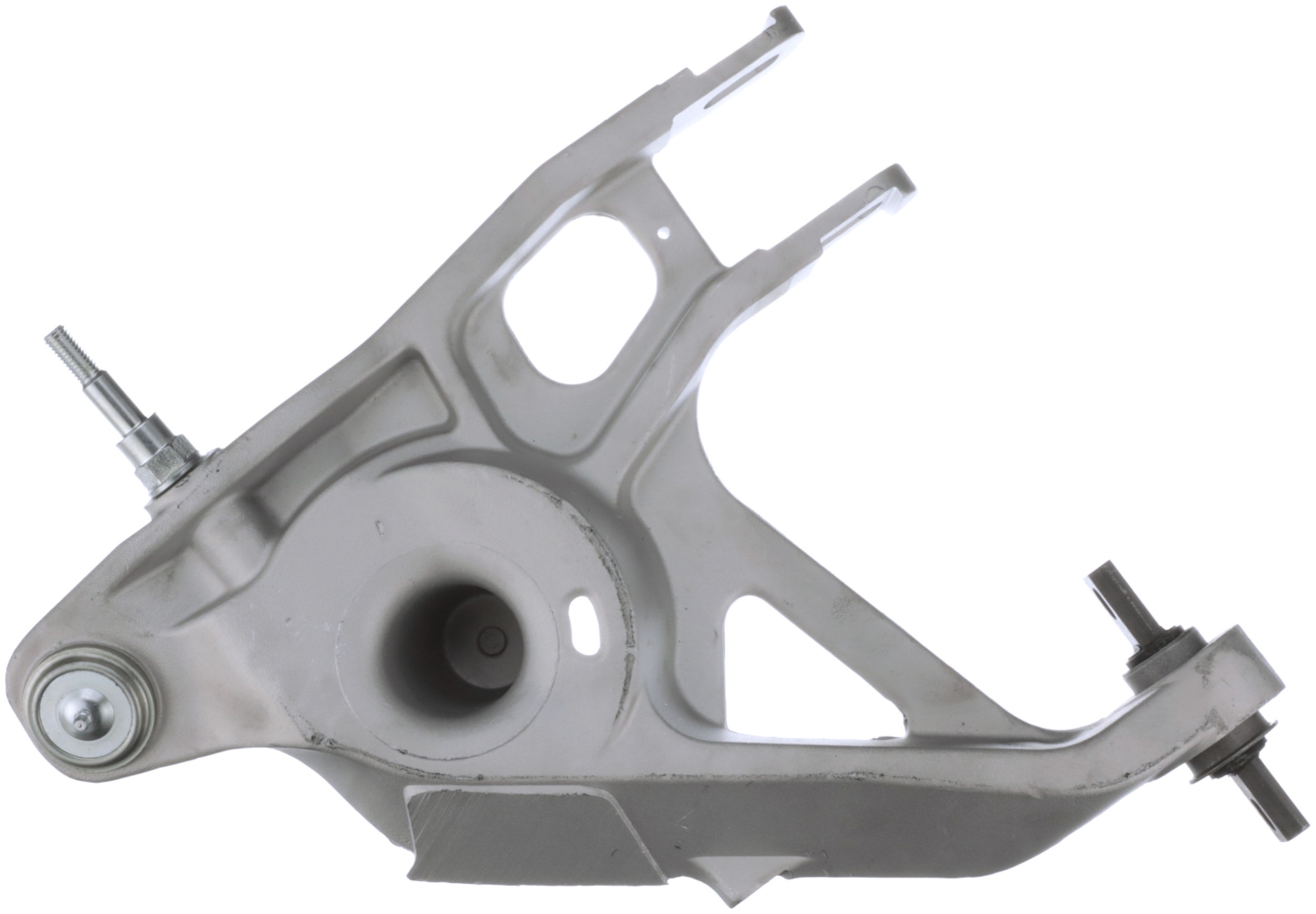

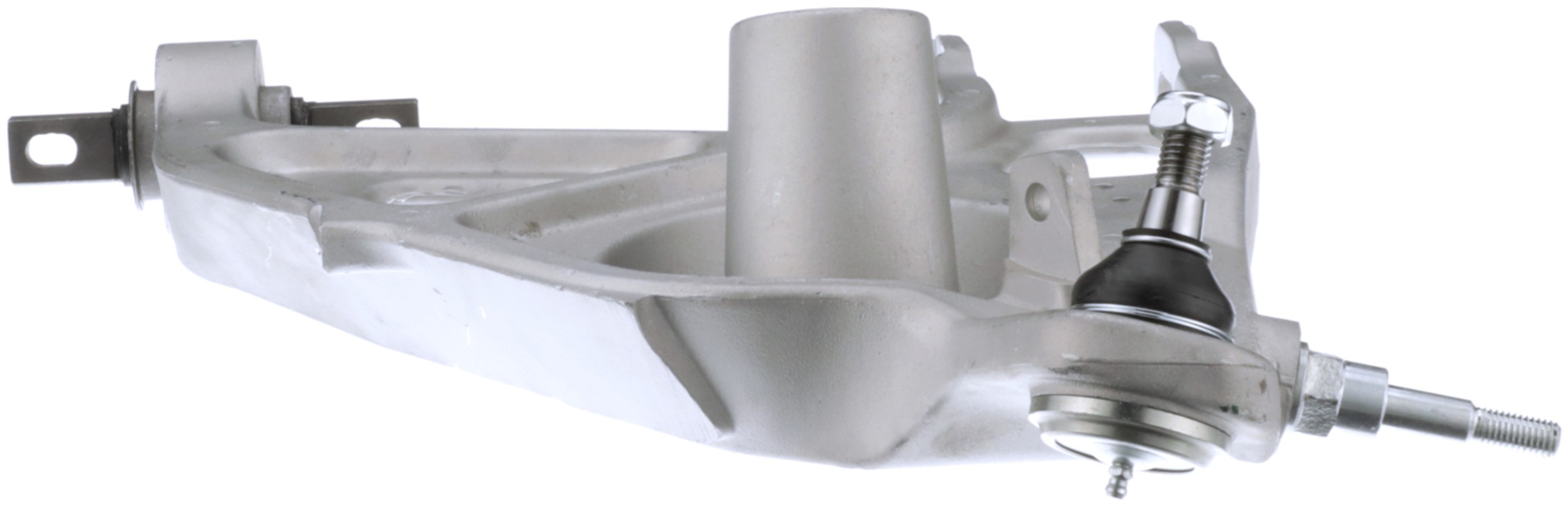

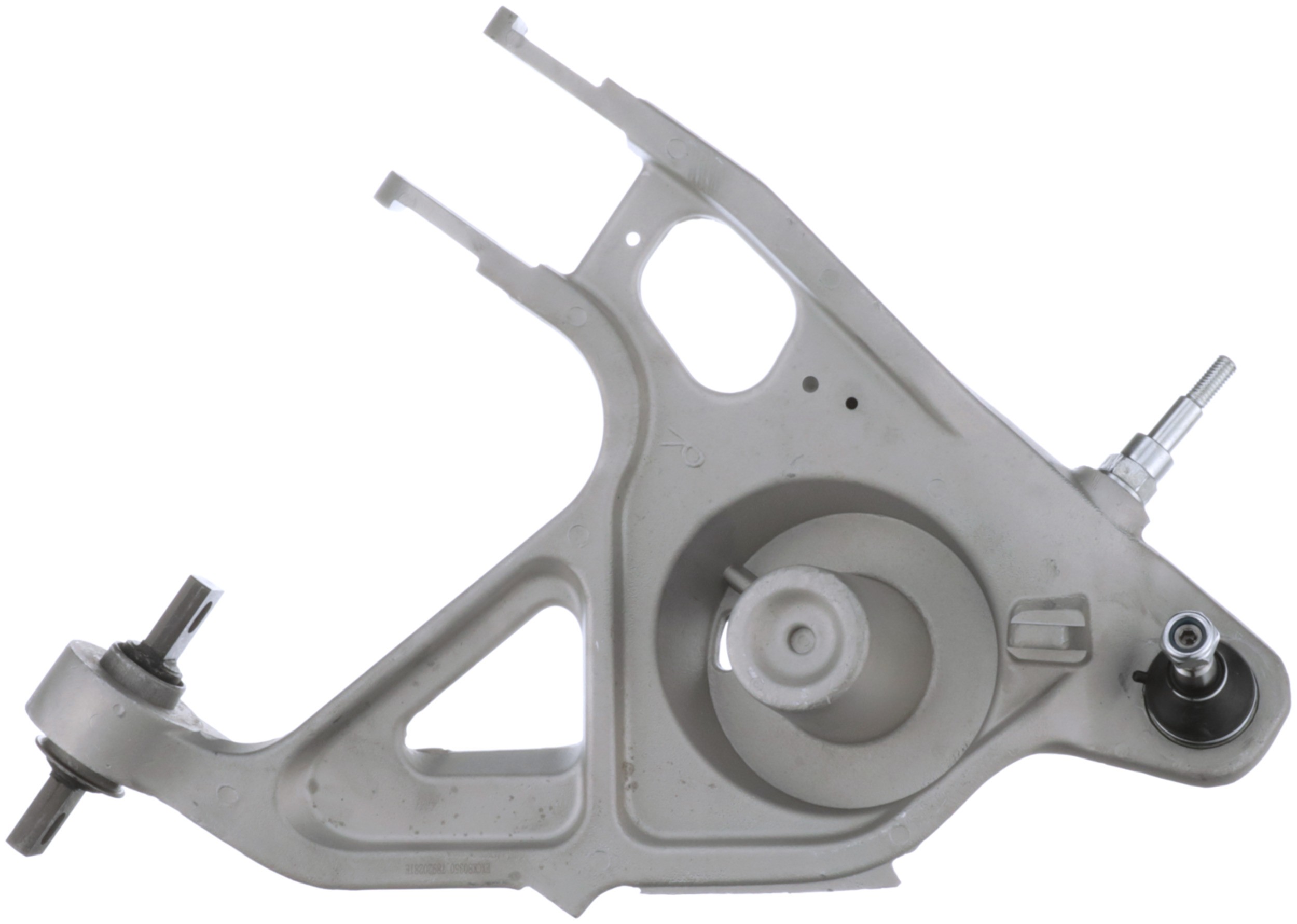

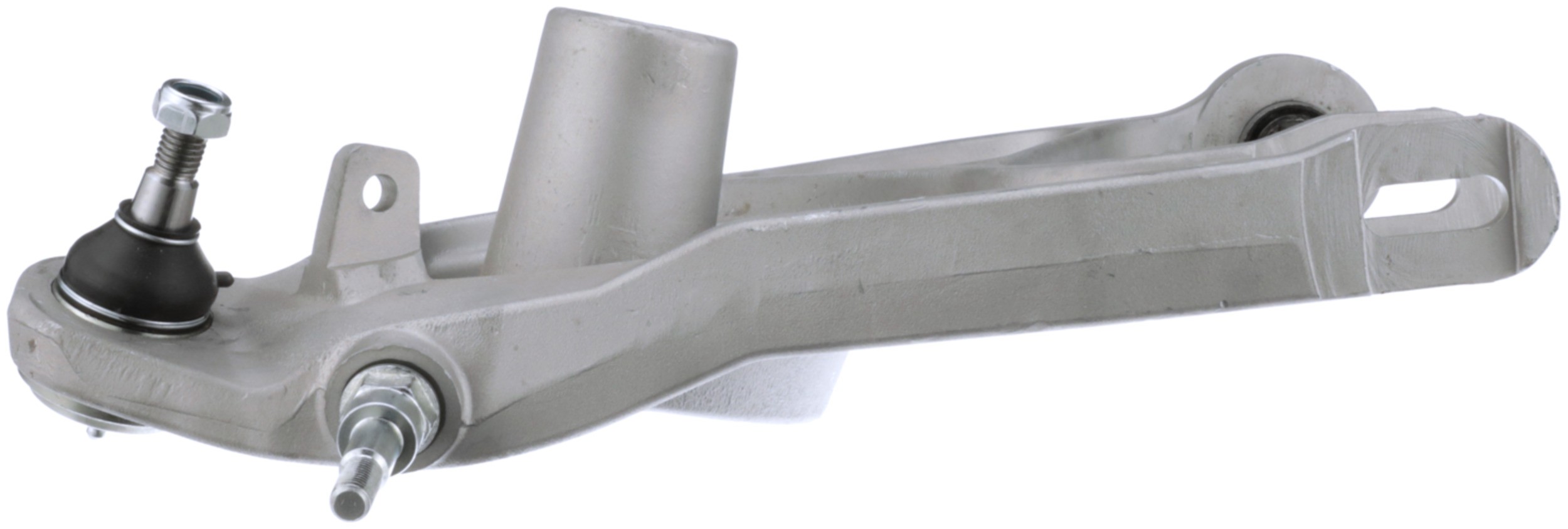

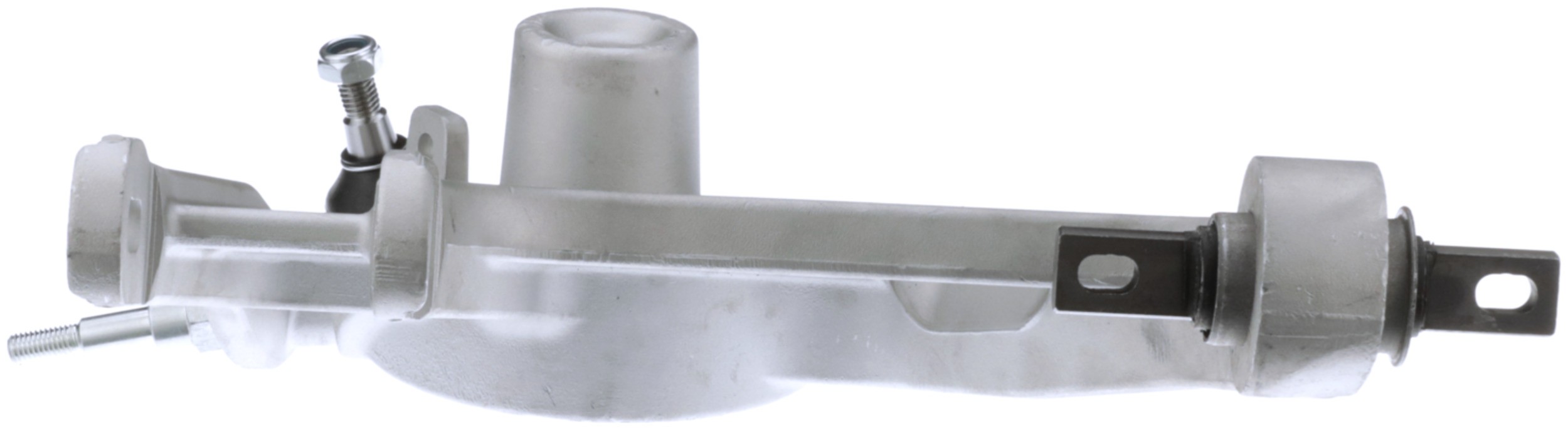

Delphi TC6249 Suspension Control Arm and Ball Joint Assembly

Delphi TC6249 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
6529	Power
9090	Chloroprene Rubber (CR)
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Length	361.50 MM
Length	14.232 IN
Mounting Hole Diameter	14.80 MM
Mounting Hole Diameter	17.00 MM
Mounting Hole Diameter	17.00 MM
Mounting Hole Diameter	0.583 IN
Mounting Hole Diameter	0.669 IN
Mounting Hole Diameter	0.669 IN
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	3
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Position(s)	Rear Right Lower
2384	Yes
2386	Casting/Forged
4241	Yes

Vehicle Applications:

Make	Model	Years
Buick	Rendezvous	2002 to 2007
Buick	Terraza	2005 to 2006
Chevrolet	Uplander	2005 to 2006
Chevrolet	Venture	2002 to 2004
Oldsmobile	Silhouette	2002 to 2004
Pontiac	Aztek	2001 to 2005
Pontiac	Montana	2002 to 2006
Saturn	Relay	2005 to 2006
