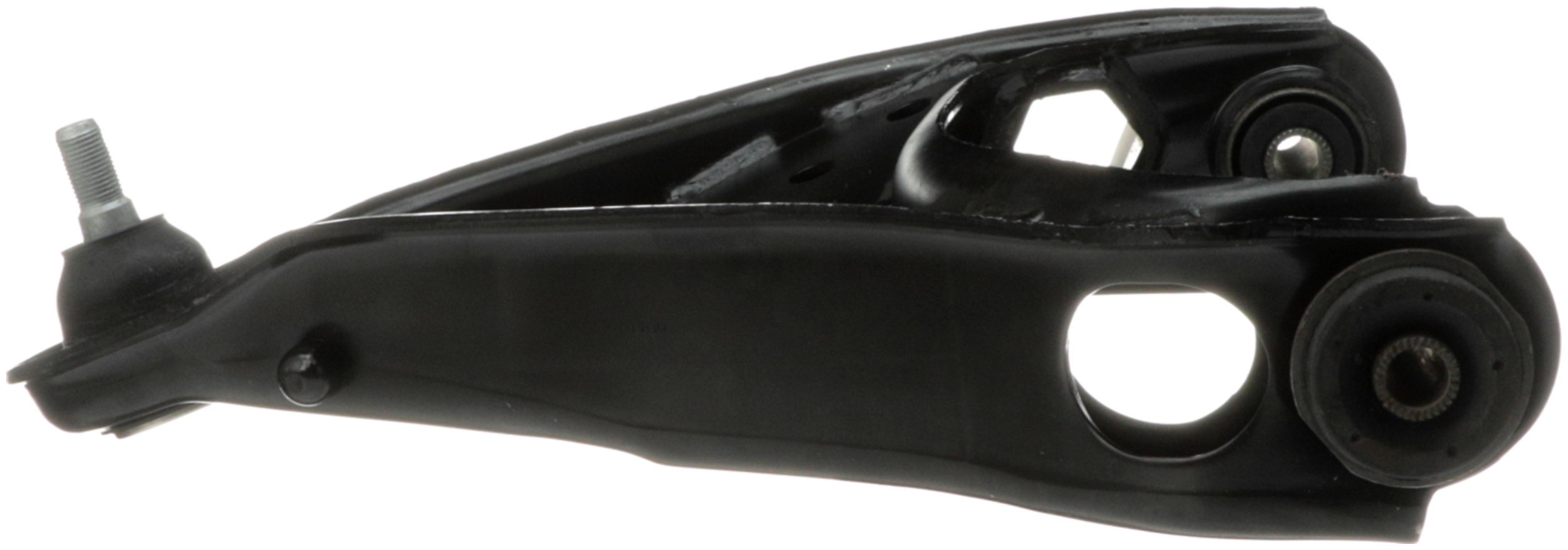

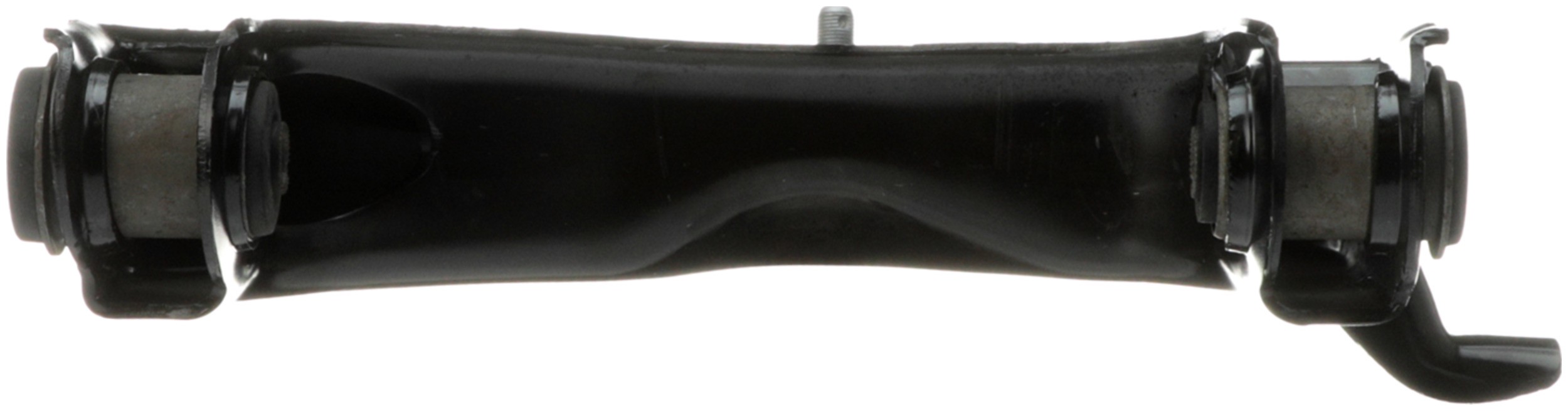

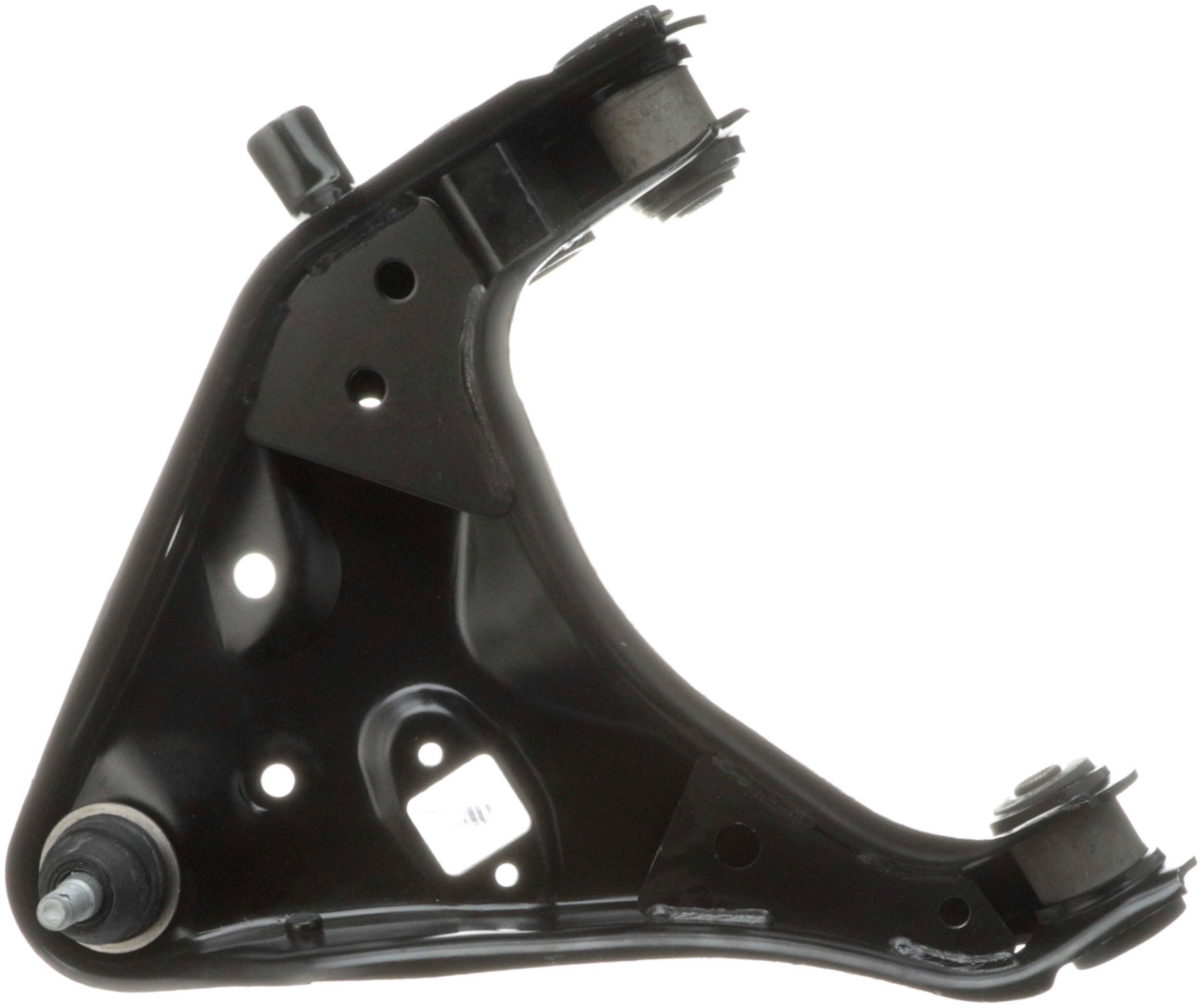

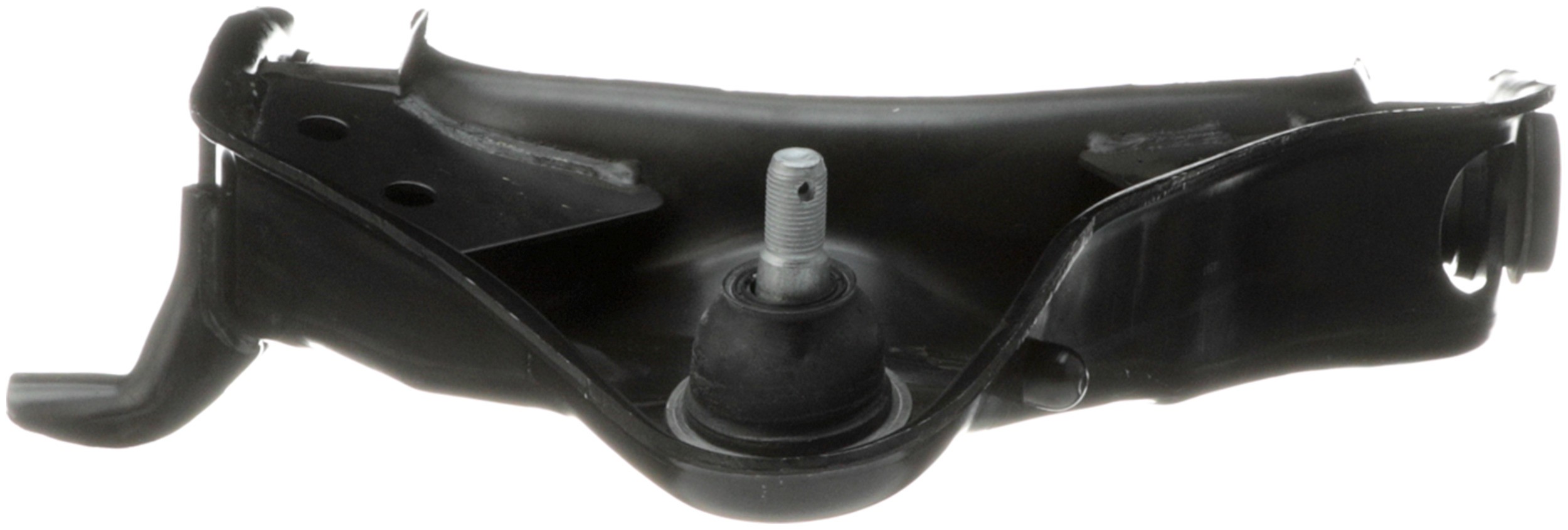

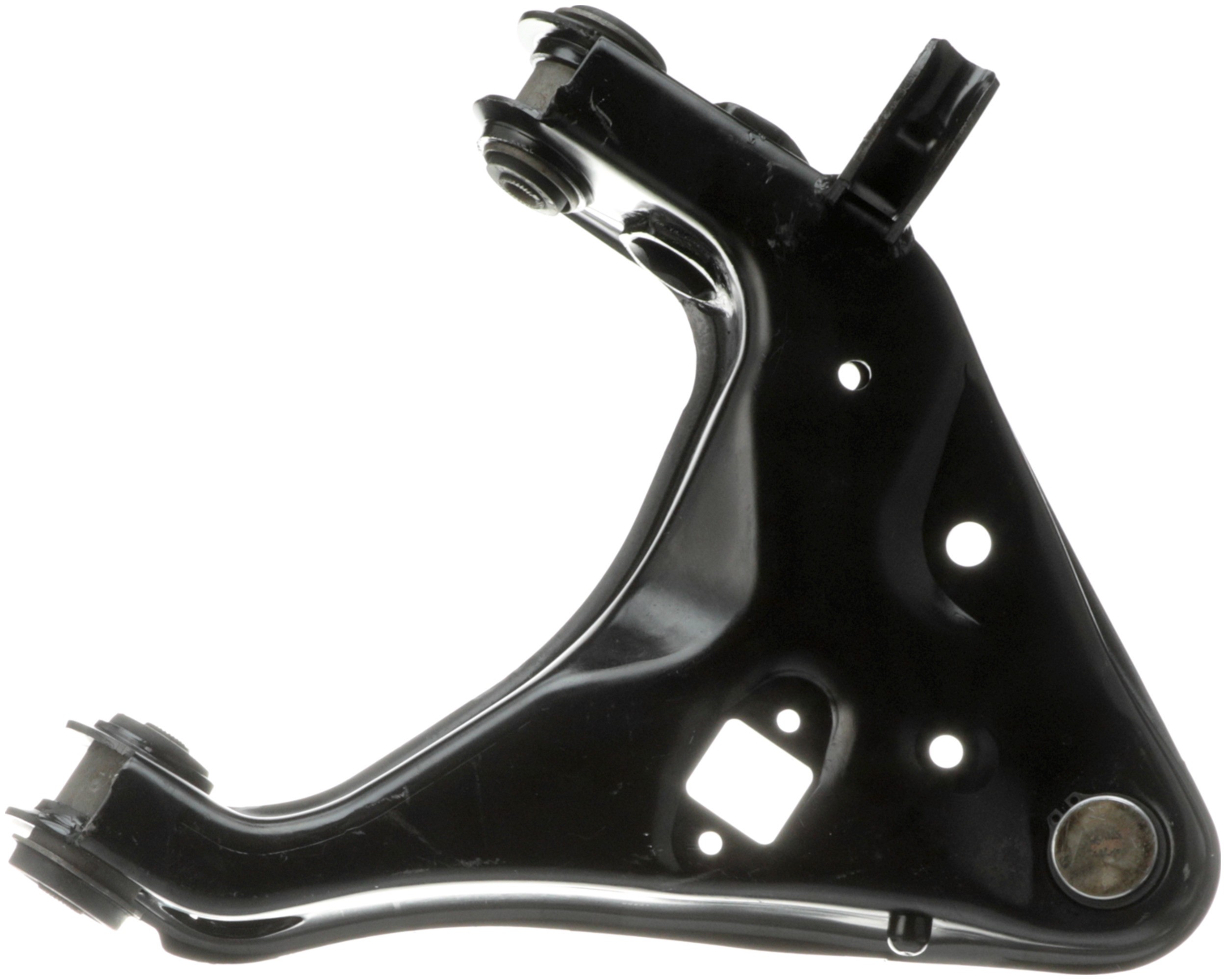

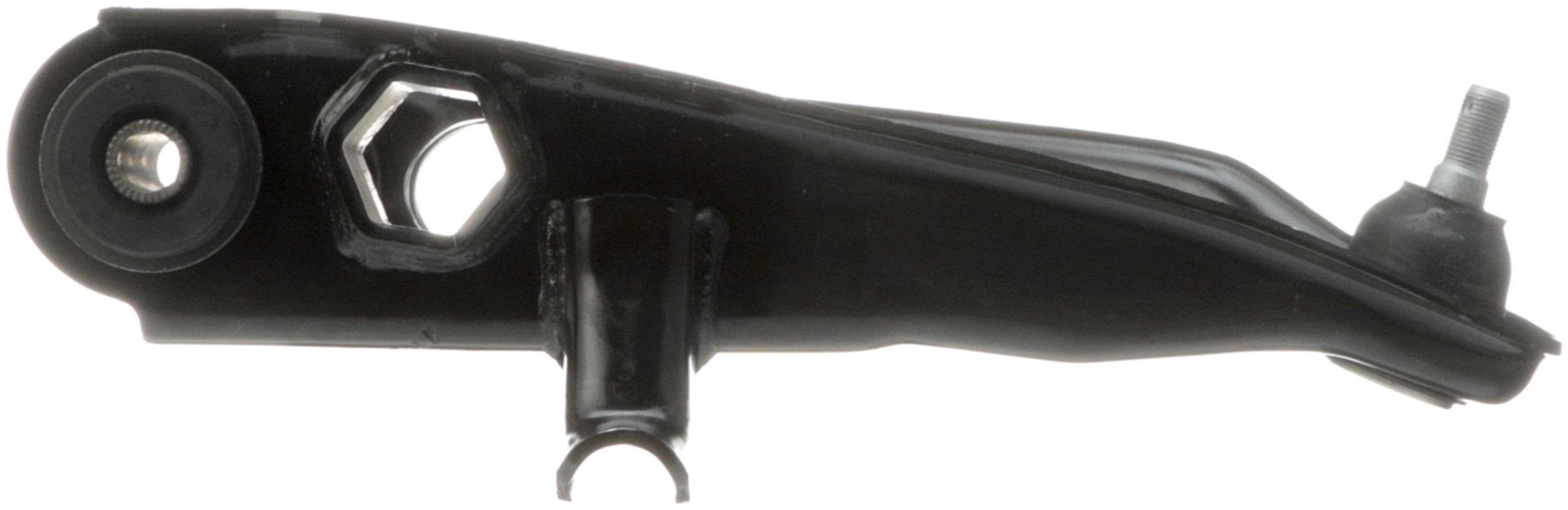

Delphi TC6296 Suspension Control Arm and Ball Joint Assembly

Delphi TC6296 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Colour	Black
Pre-greased	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	Yes
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
Length	348.10 MM
Length	13.705 IN
Mounting Hole Diameter	16.30 MM
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	16.30 MM
Mounting Hole Diameter	0.642 IN
Mounting Hole Diameter	0.642 IN
6529	Power
4241	Yes
2386	Stamped
2384	Yes
4887	442.50 MM
4887	17.421 IN
Position(s)	Front Right Lower
Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Years
Ford	Explorer Sport Trac	2001 to 2005
Ford	Explorer Sport	2001 to 2003
Ford	Explorer	1995 to 2001
Ford	Ranger	1998 to 2011
Mazda	B2500	1999 to 1999
Mazda	B3000	1998 to 2008
Mazda	B4000	1998 to 2010
Mercury	Mountaineer	1997 to 2001
