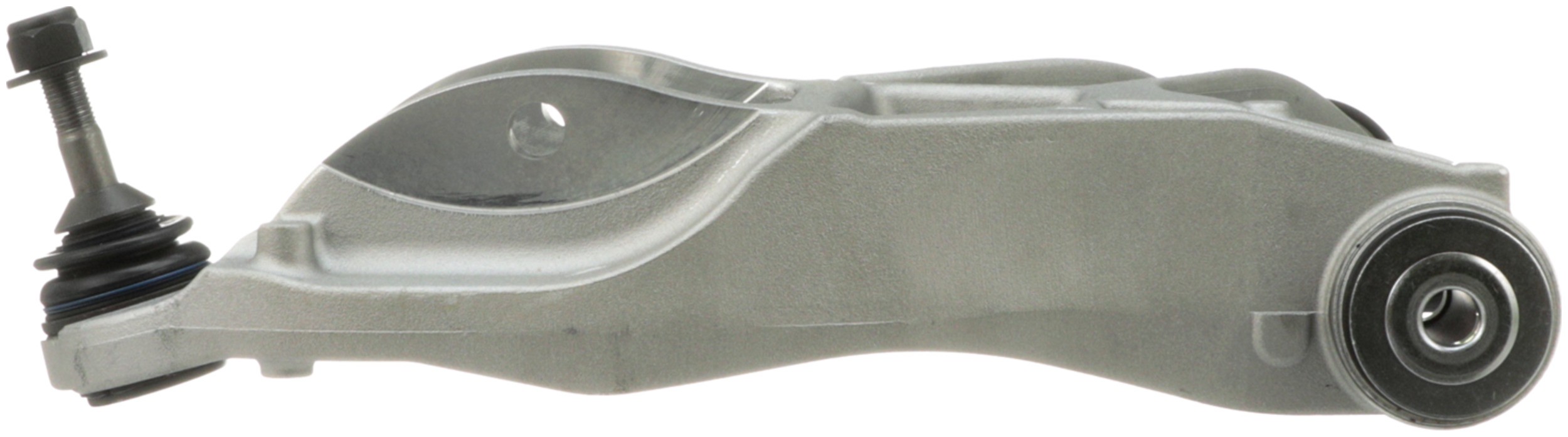

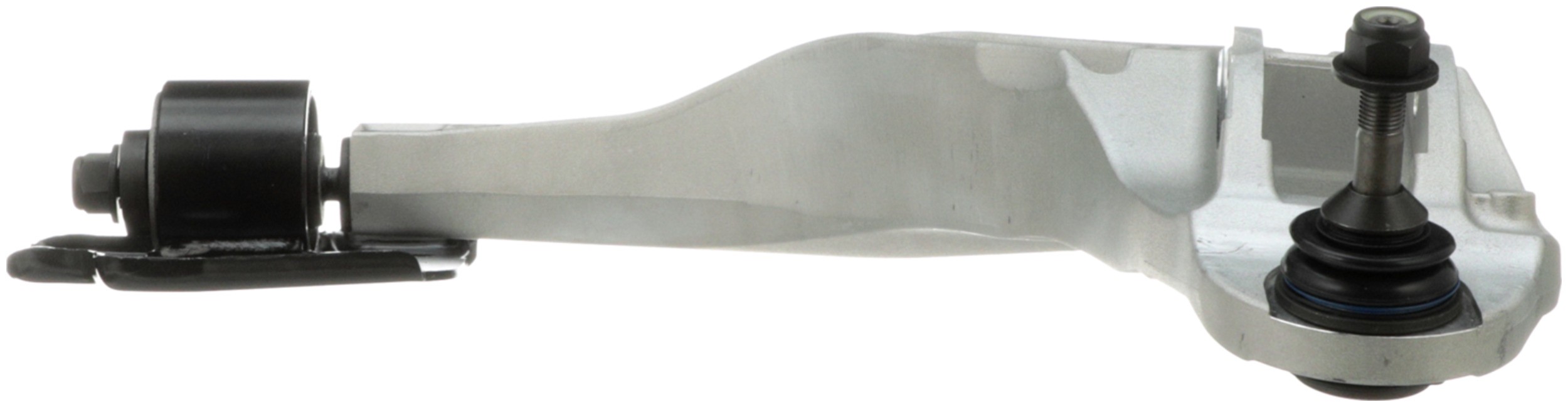

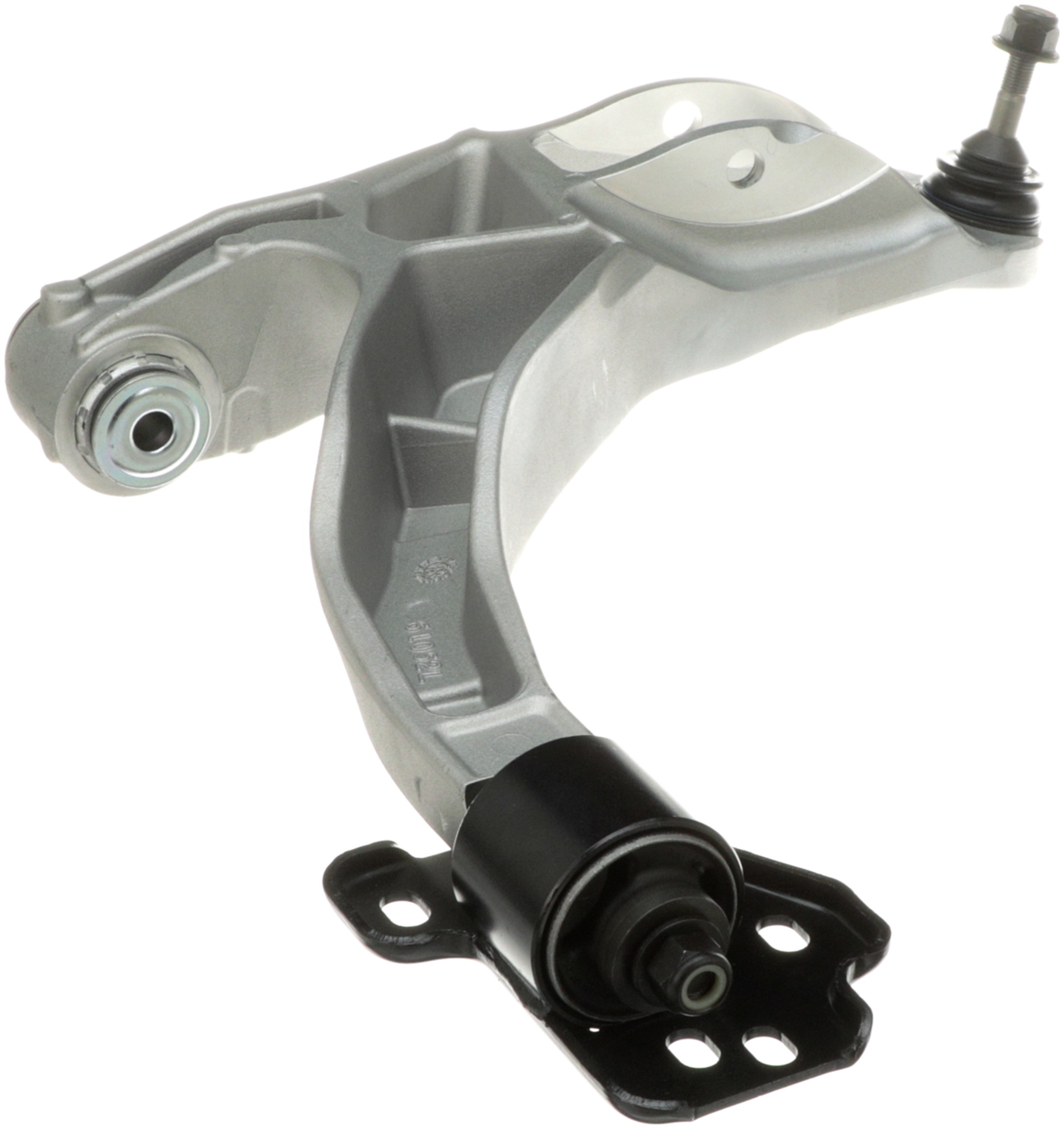

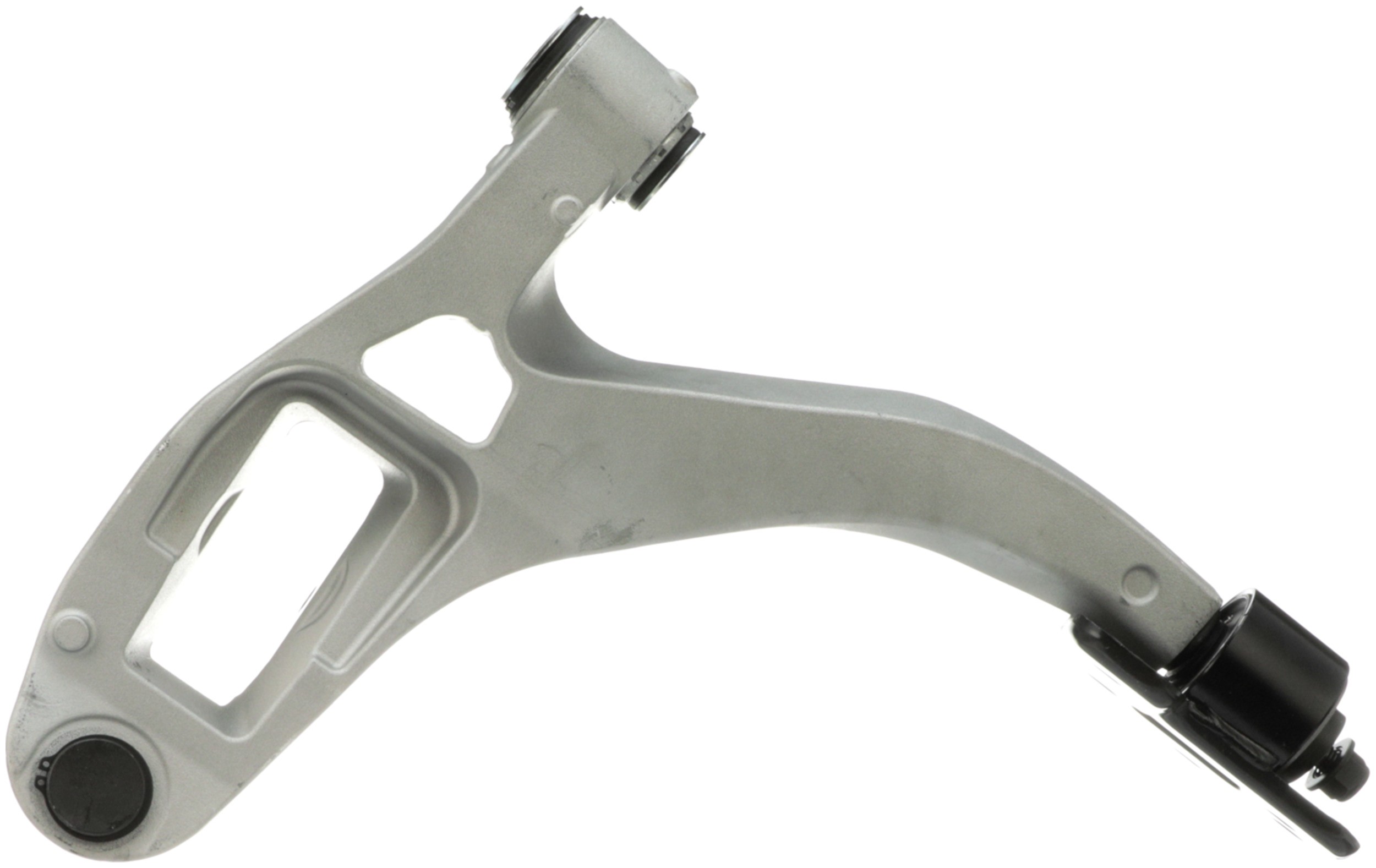

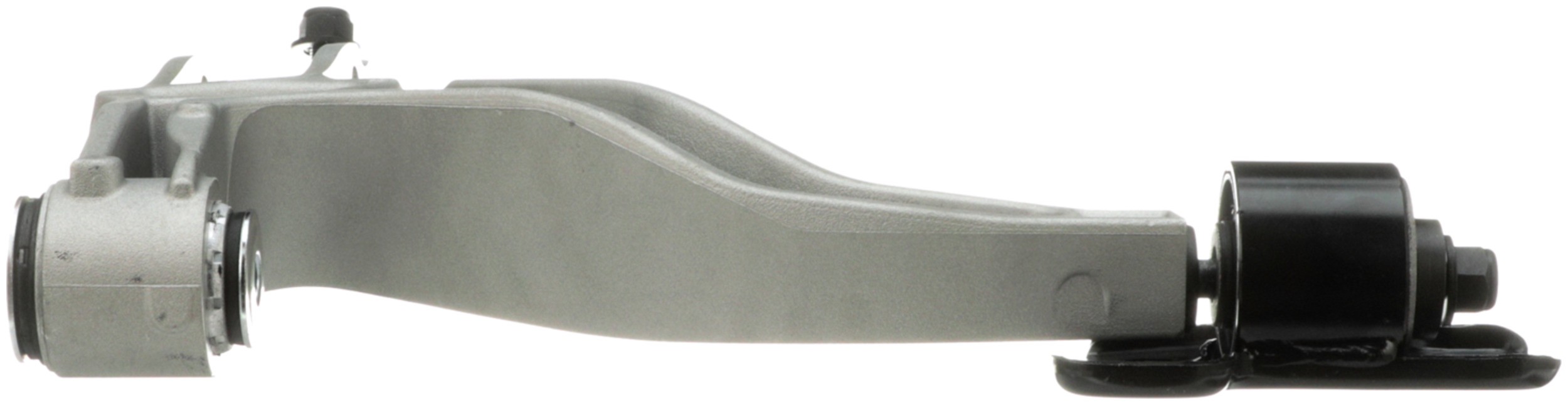

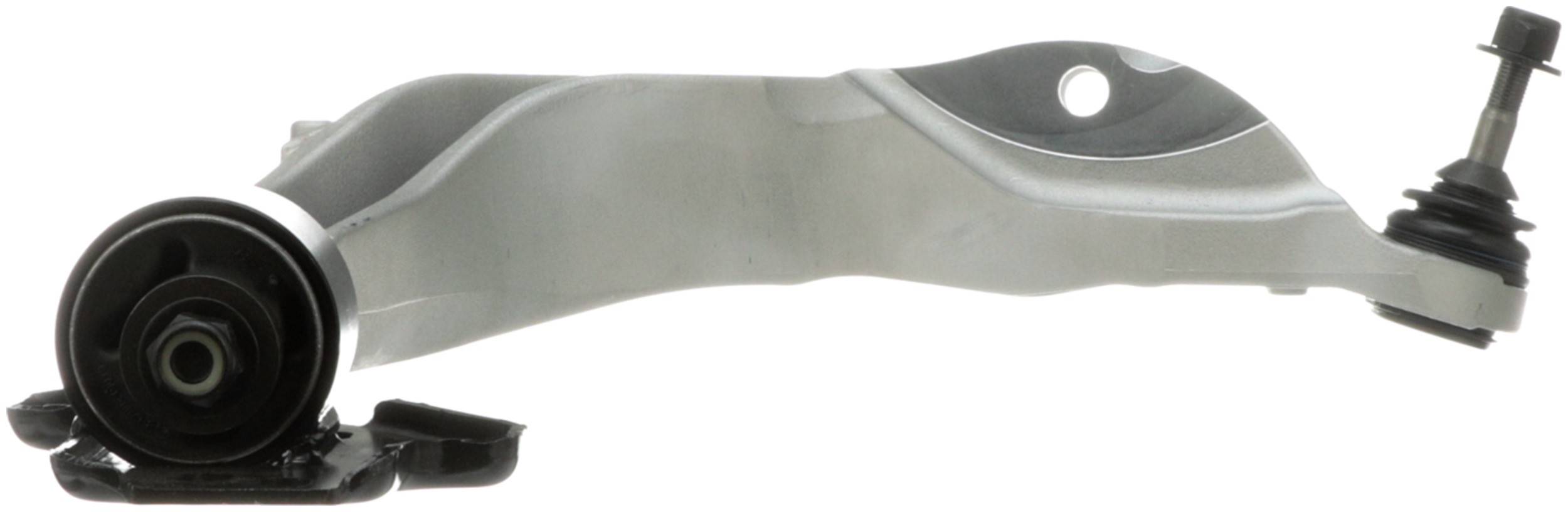

Delphi TC6309 Suspension Control Arm and Ball Joint Assembly

Delphi TC6309 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Material	Aluminum
6529	Power
9090	Chloroprene Rubber (CR)
Dust Boot Included	Yes
Bushings Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Adjustable	No
Greaseable	No
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
4241	Yes
Boot Colour	Black
Bushing Type	Rubber
Mounting Hardware Included	Yes
Position(s)	Front Left Lower
2384	Yes
2386	Casting/Forged
