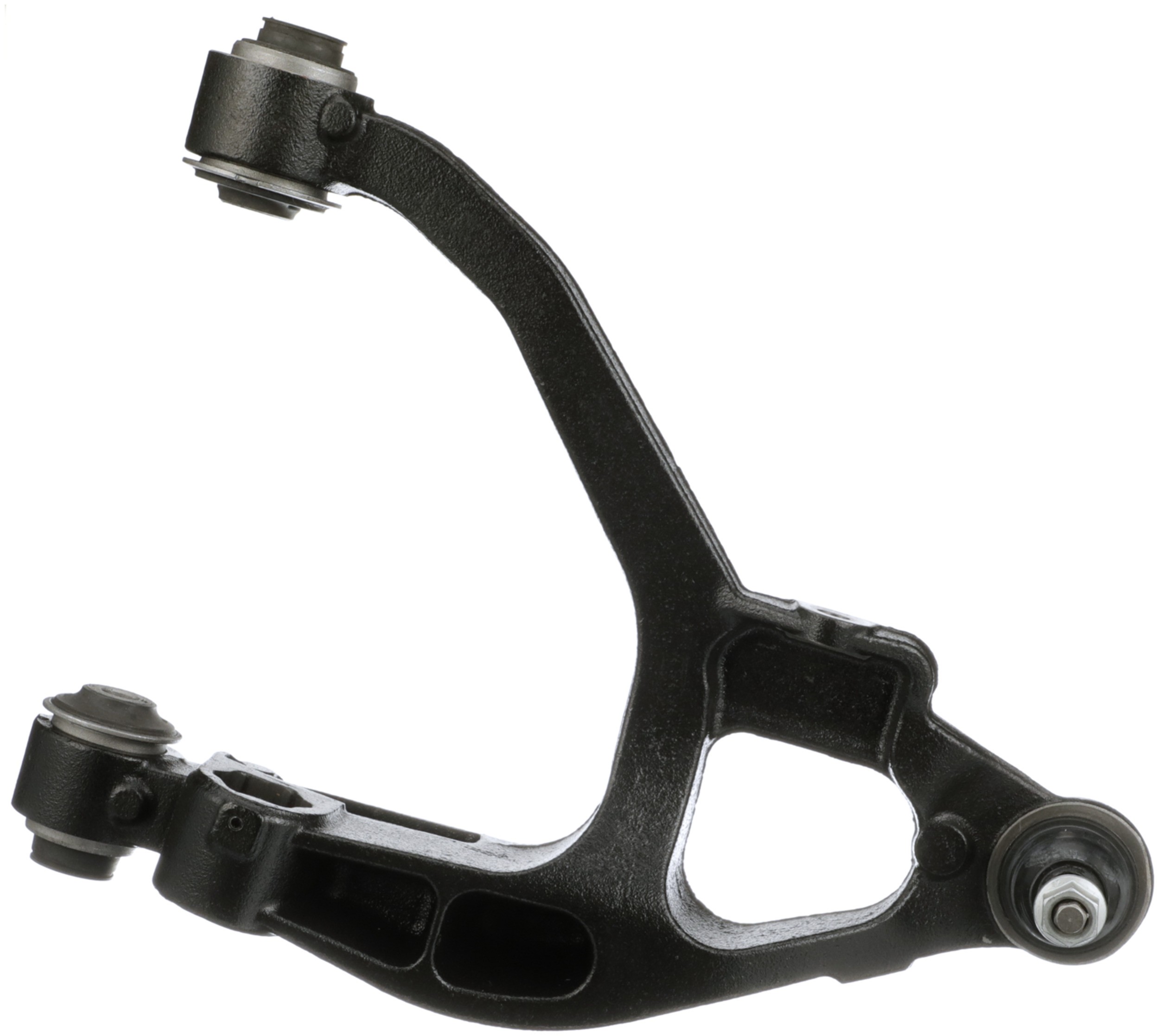

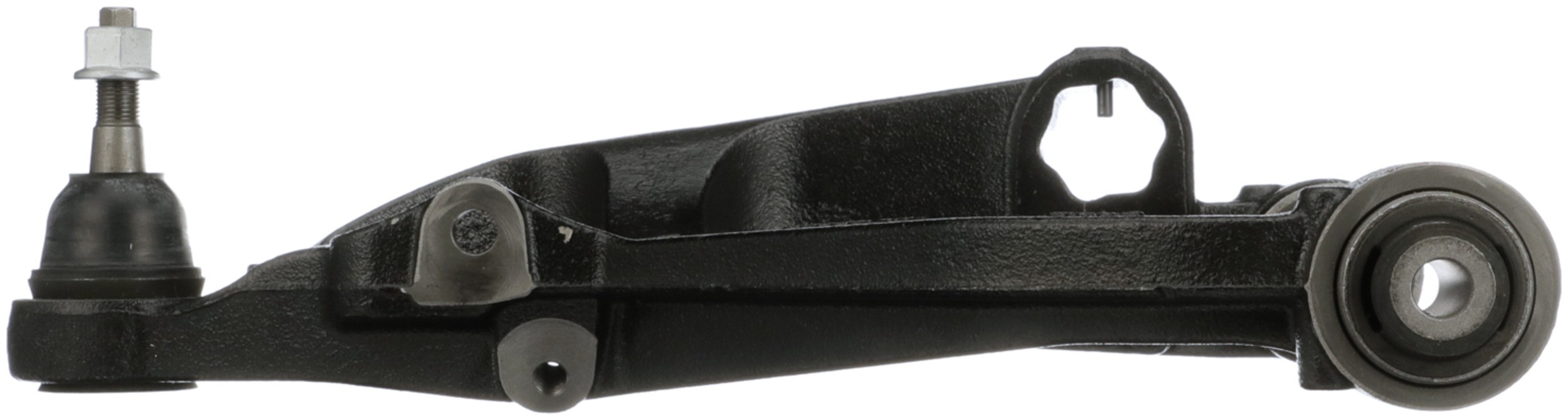

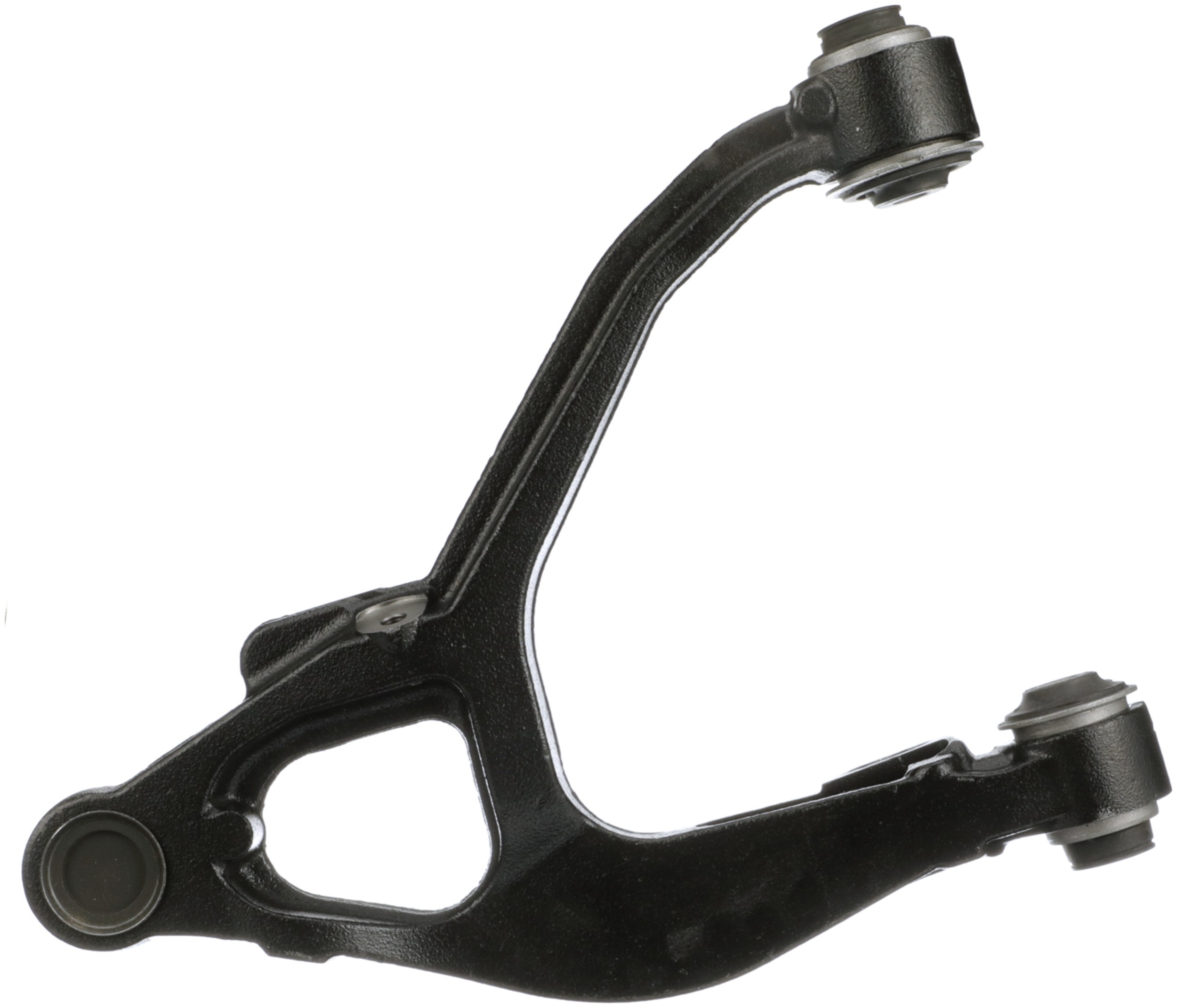

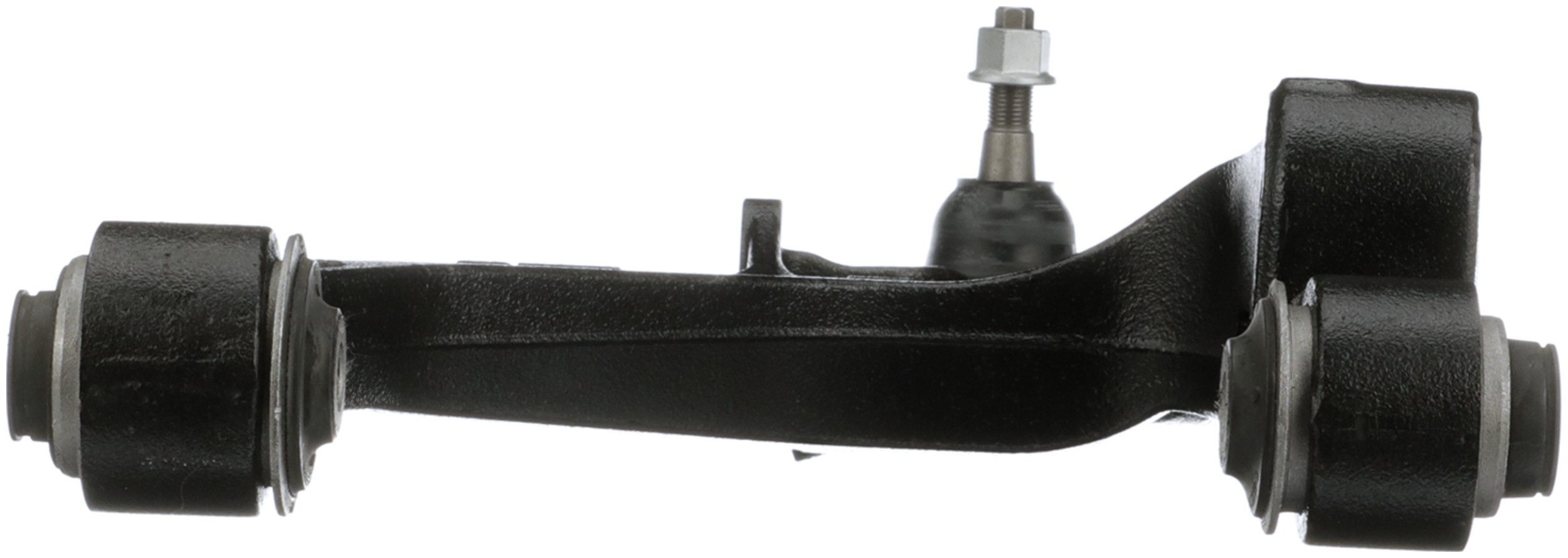

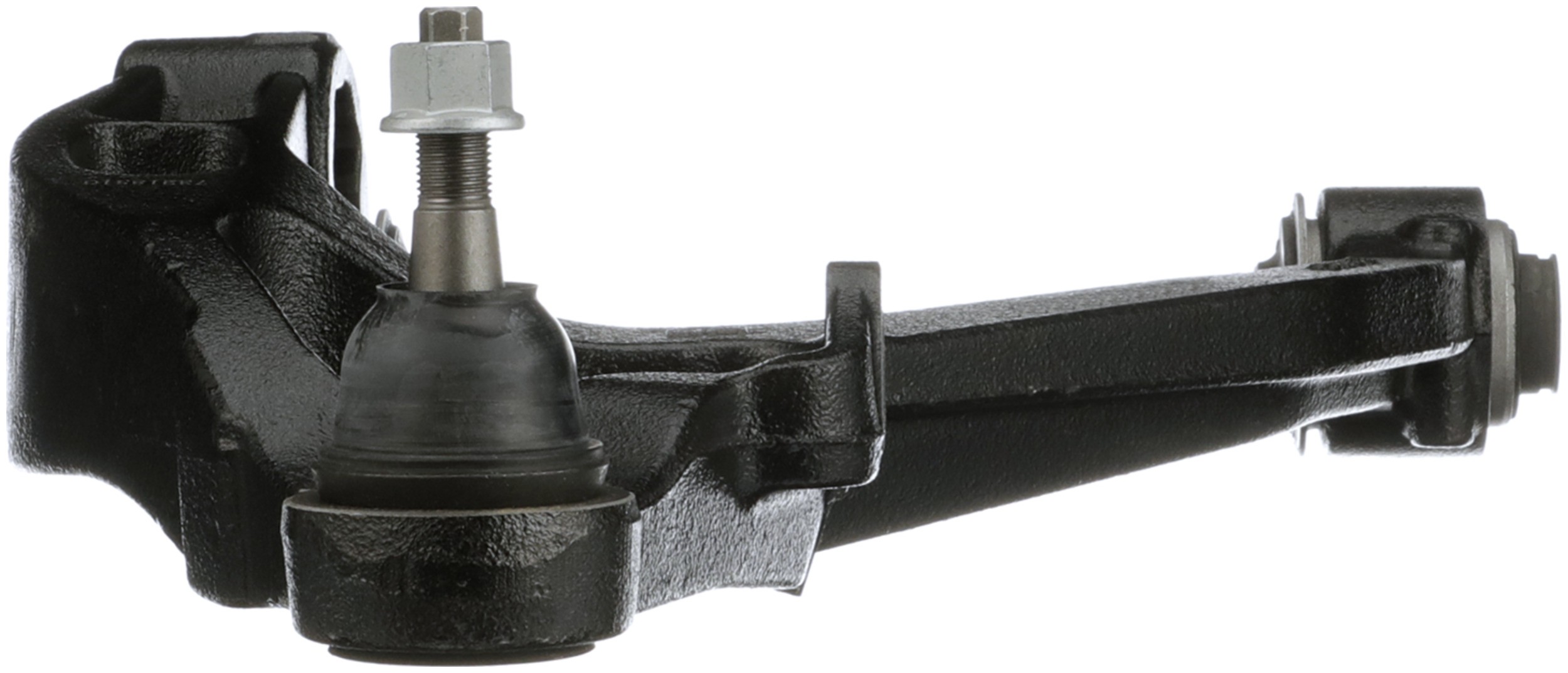

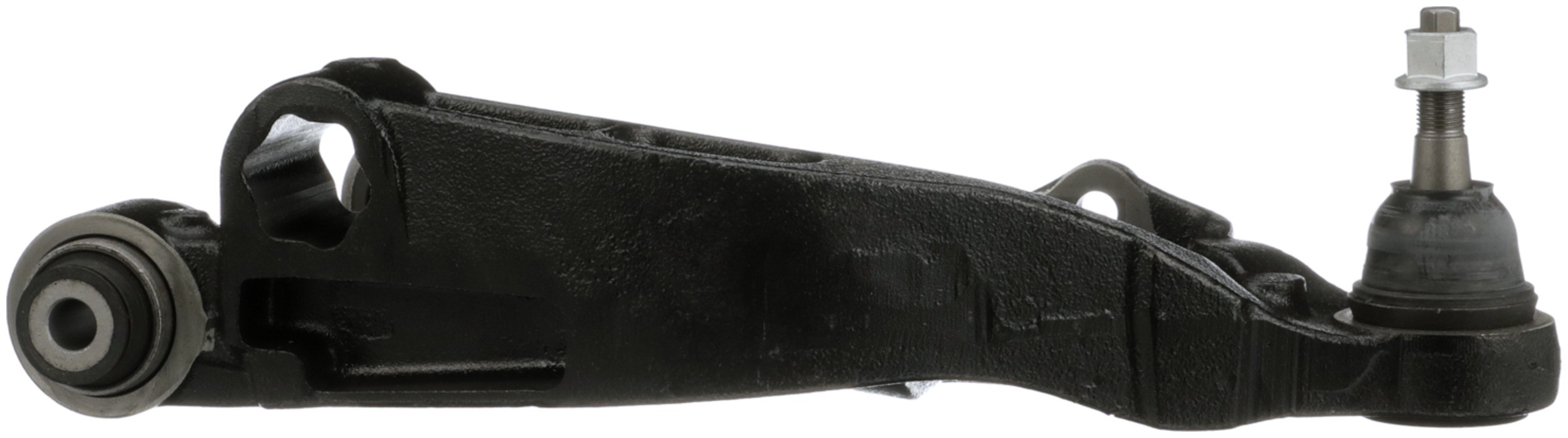

Delphi TC6313 Suspension Control Arm and Ball Joint Assembly

Delphi TC6313 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	19.094 IN
9532	14.843 IN
9532	377.00 MM
4890	1.634 IN
4890	41.50 MM
4887	14.961 IN
4887	380.00 MM
Boot Material	Chloroprene Rubber (CR)
Bushing Inside Diameter	16.40 MM
Bushing Inside Diameter	0.646 IN
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Pre-greased	Yes
Grease Fitting Included	No
Bushings Included	Yes
Dust Boot Included	Yes
Position(s)	Front Left Lower
2384	Yes
2386	Casting/Forged
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Length	3.154 IN
Bushing Length	80.10 MM
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Length	485.00 MM
Mounting Hole Diameter	0.646 IN
Mounting Hole Diameter	16.40 MM
