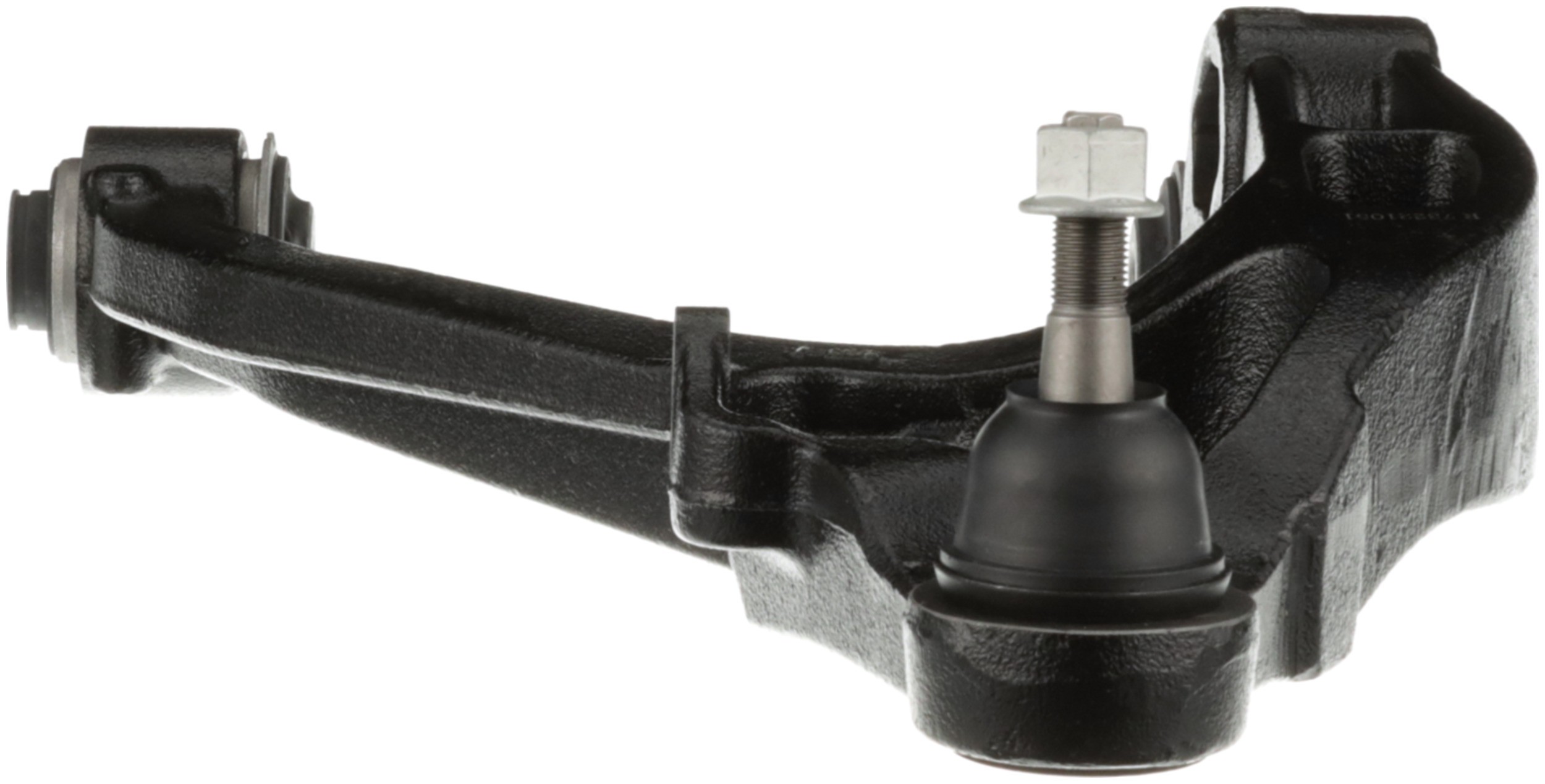

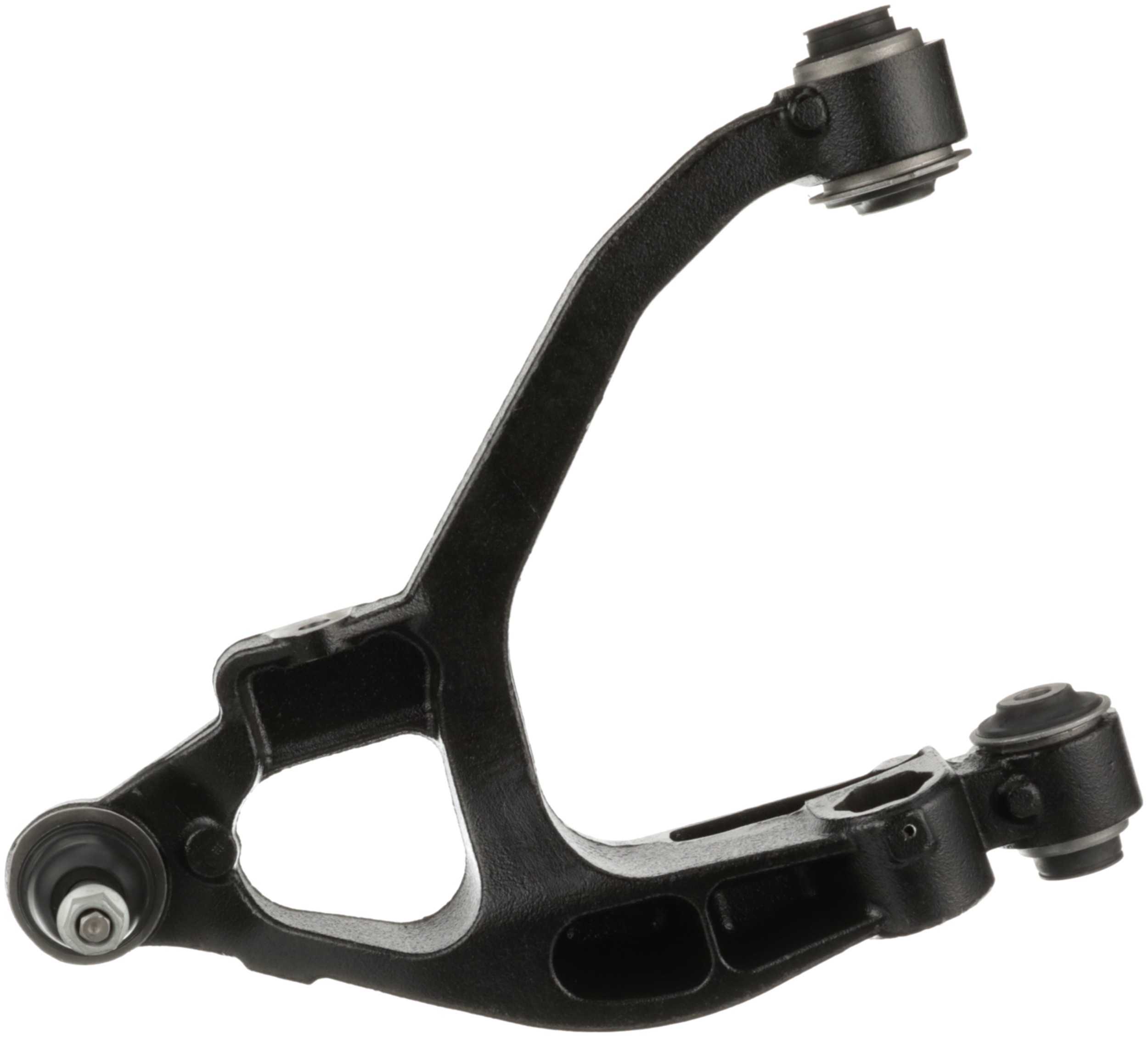

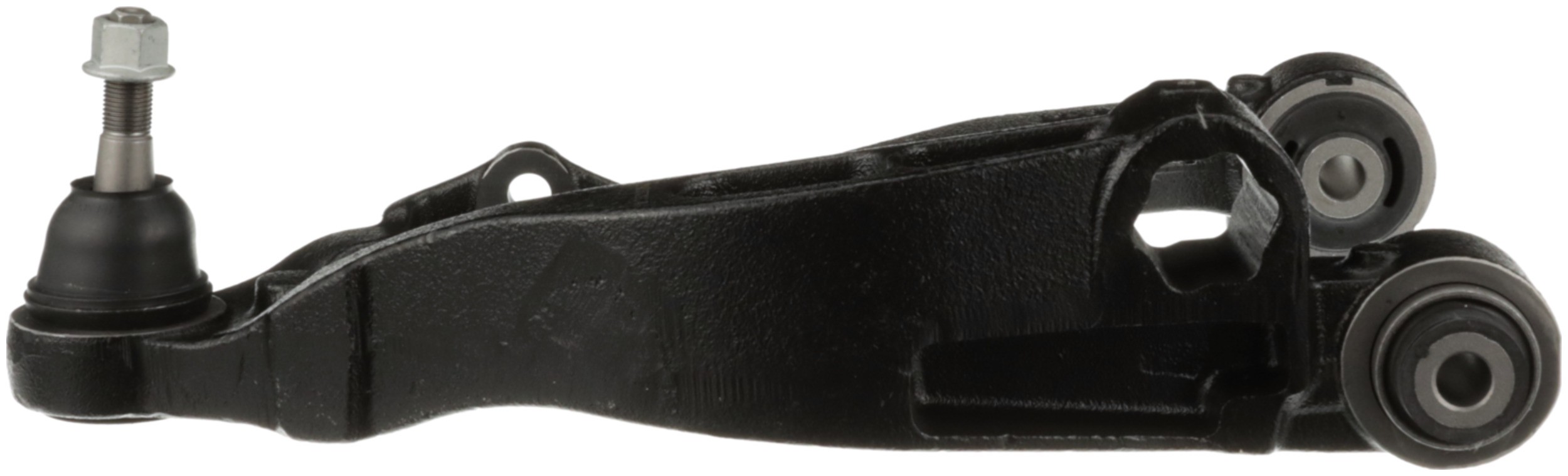

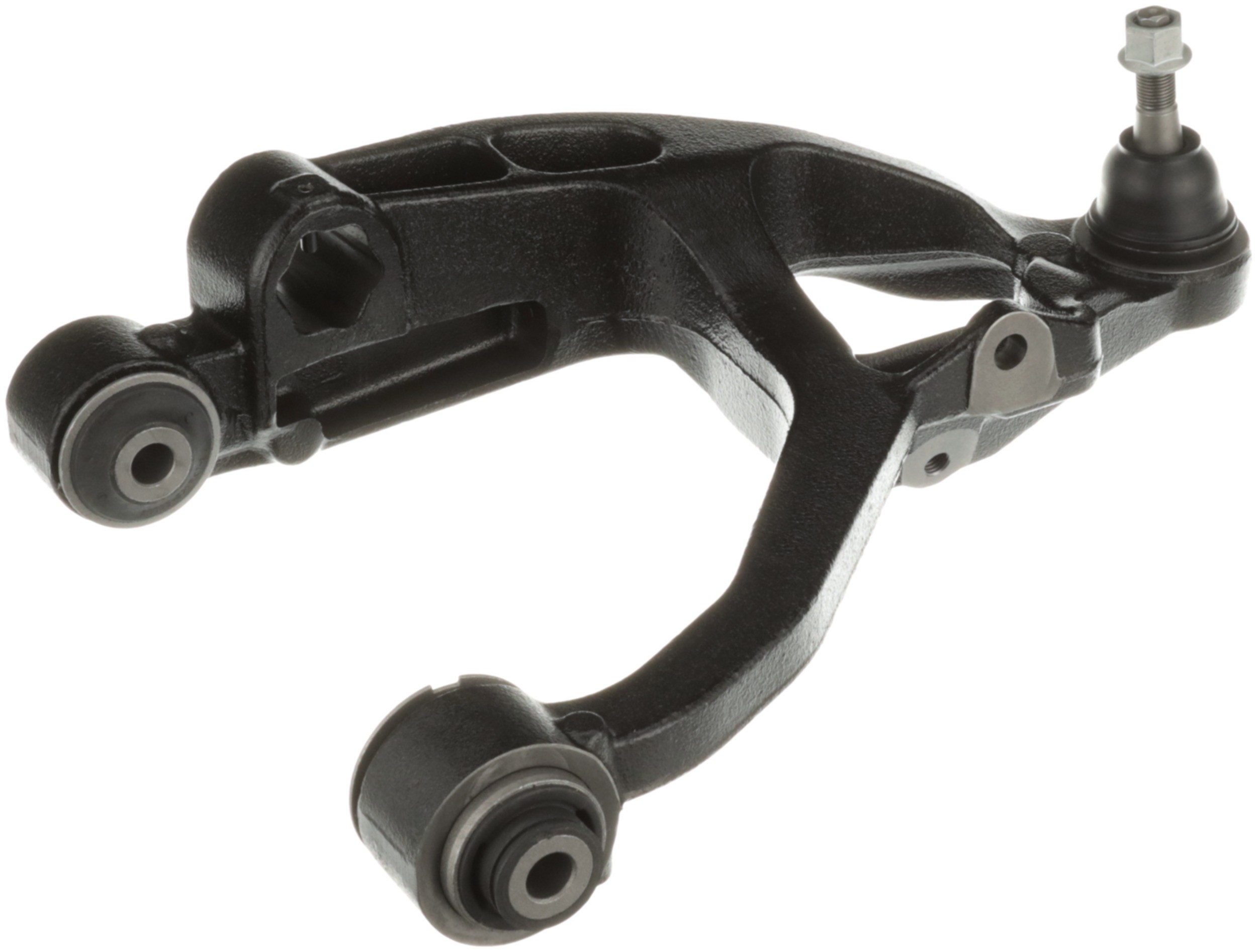

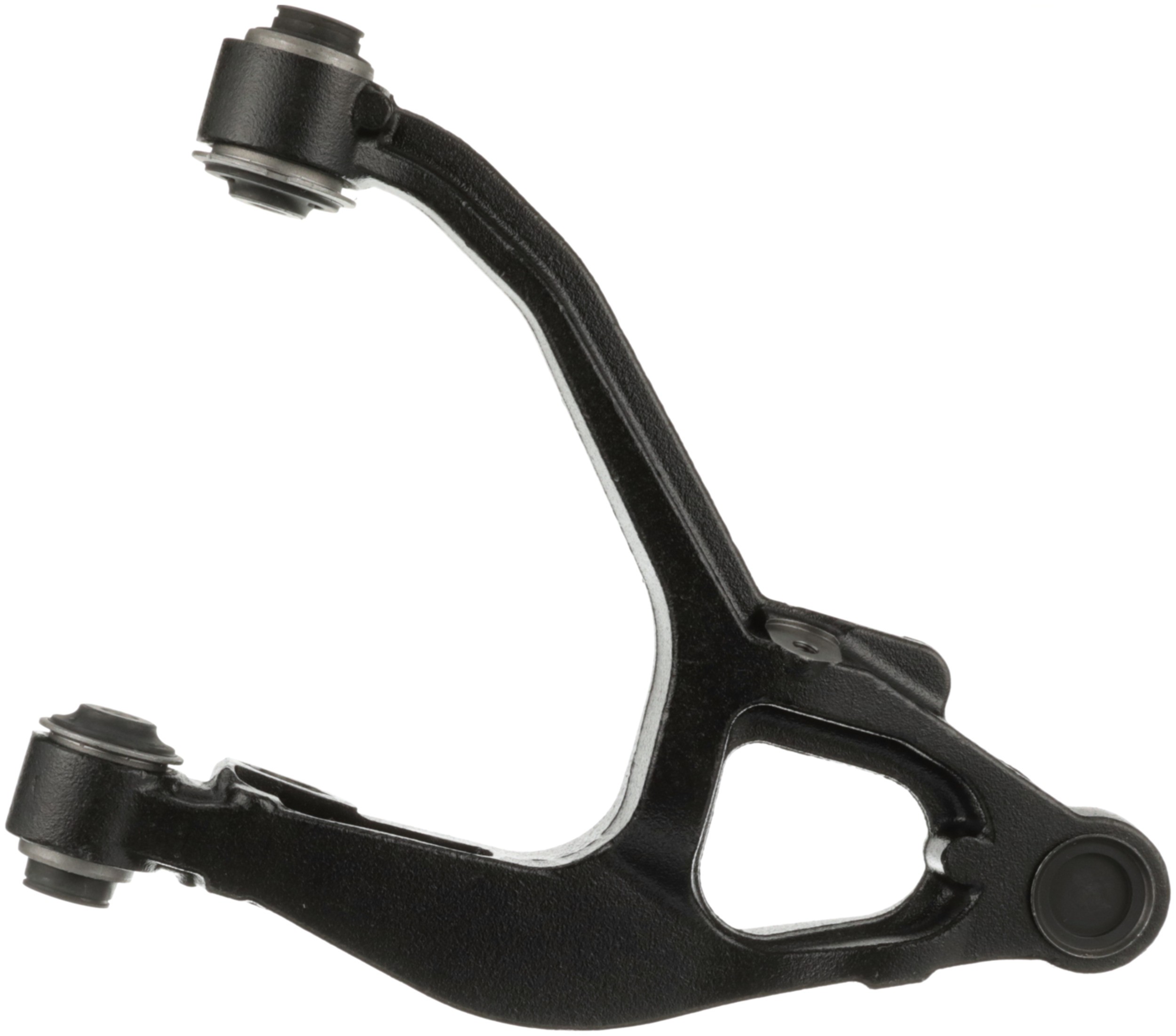

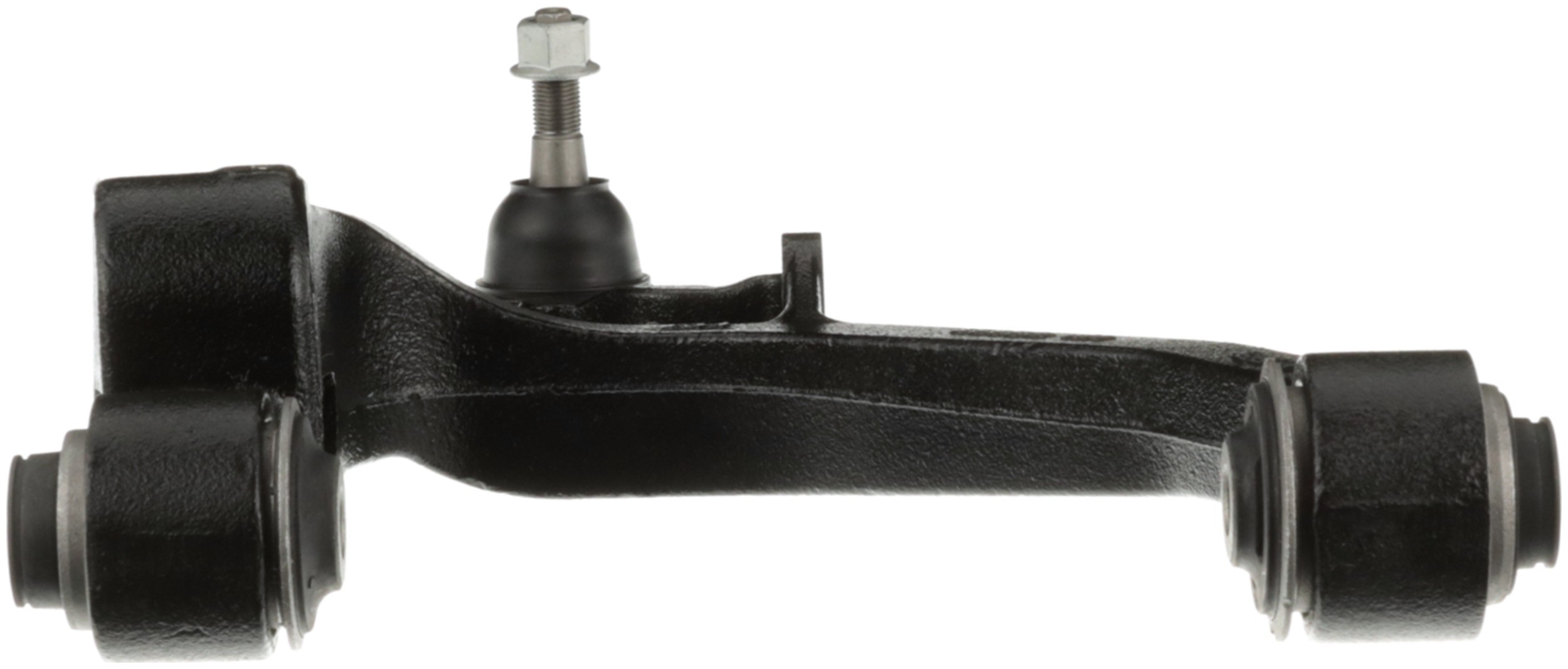

Delphi TC6314 Suspension Control Arm and Ball Joint Assembly

Delphi TC6314 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Length	485.00 MM
Length	19.094 IN
Mounting Hole Diameter	16.40 MM
Mounting Hole Diameter	0.646 IN
Bushing Inside Diameter	16.40 MM
Bushing Inside Diameter	0.646 IN
Bushing Length	80.10 MM
Bushing Length	3.154 IN
2384	Yes
Position(s)	Front Right Lower
Bushing Type	Rubber
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Bushings Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
9090	Chloroprene Rubber (CR)
6529	Power
4887	380.00 MM
4887	14.961 IN
2386	Casting/Forged
4890	41.50 MM
4890	1.634 IN
9532	377.00 MM
9532	14.843 IN
