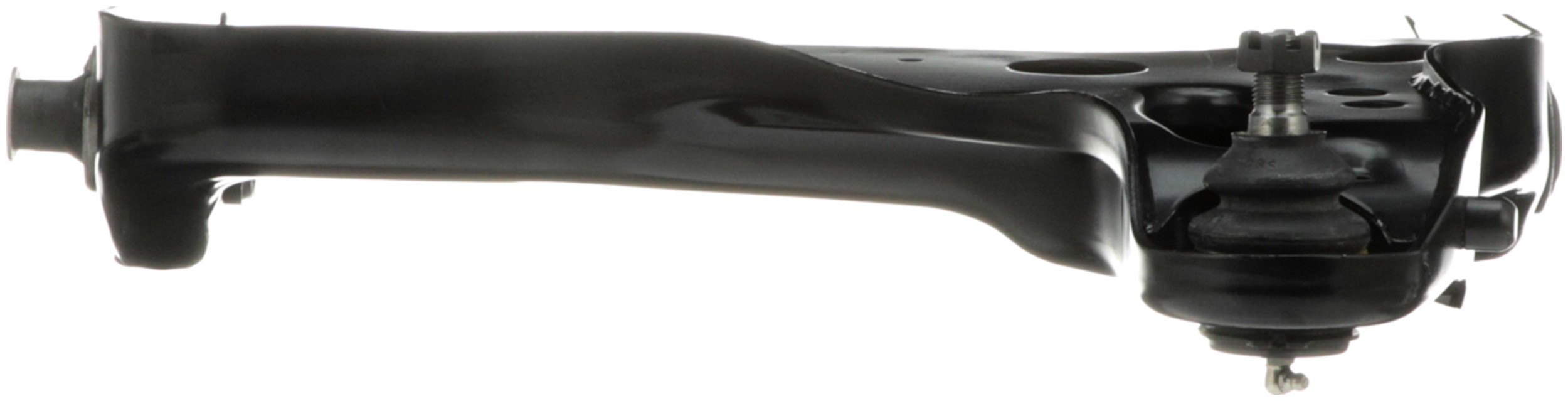

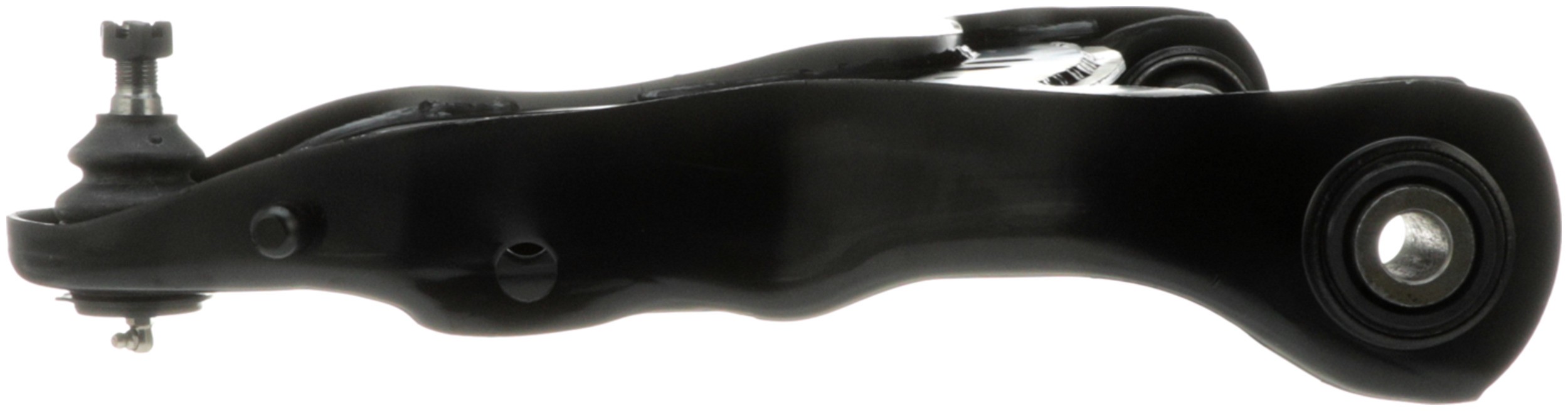

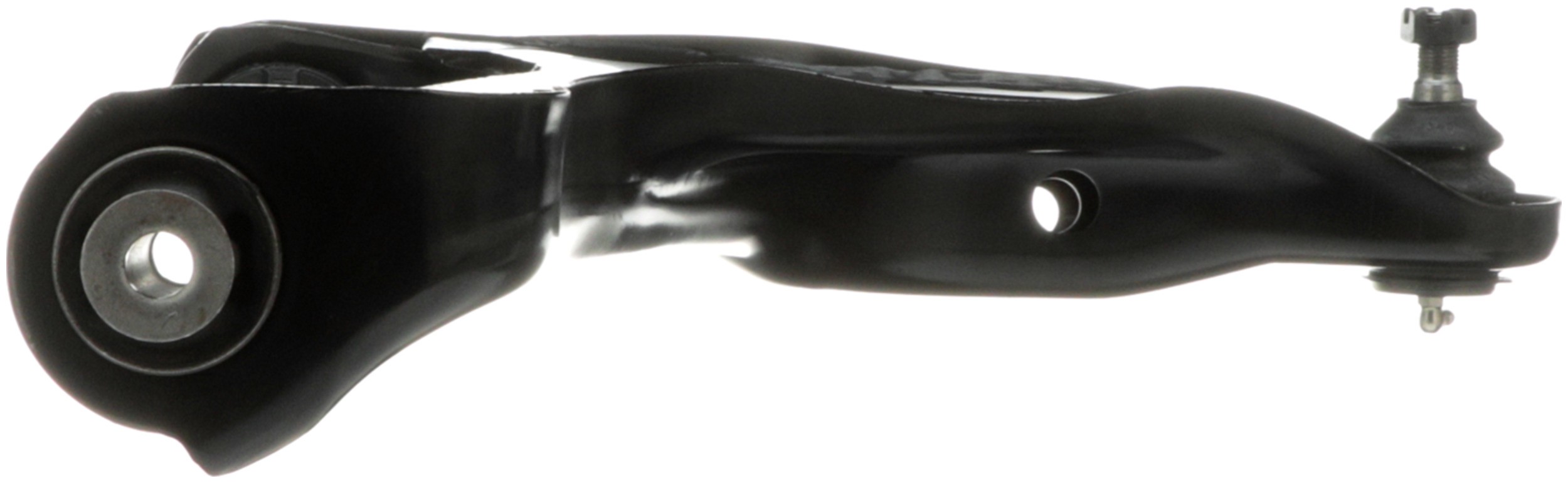

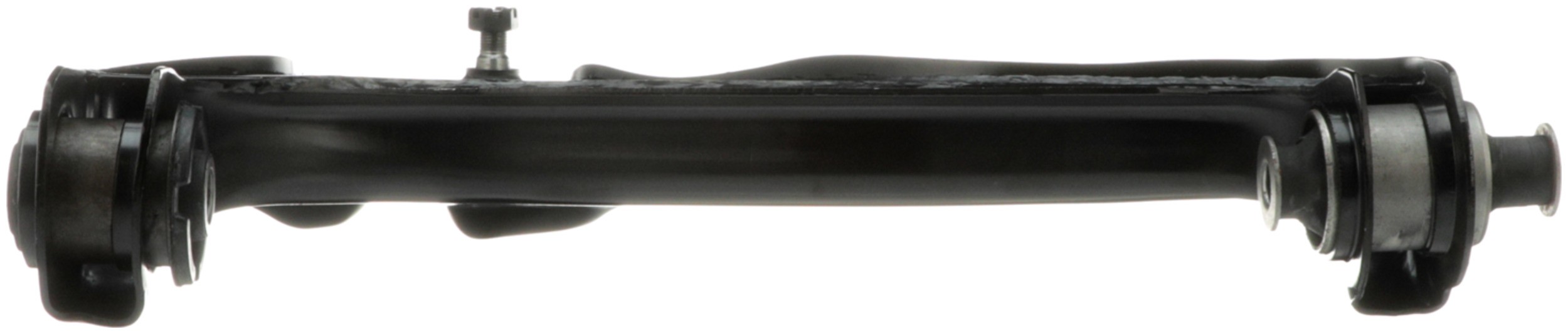

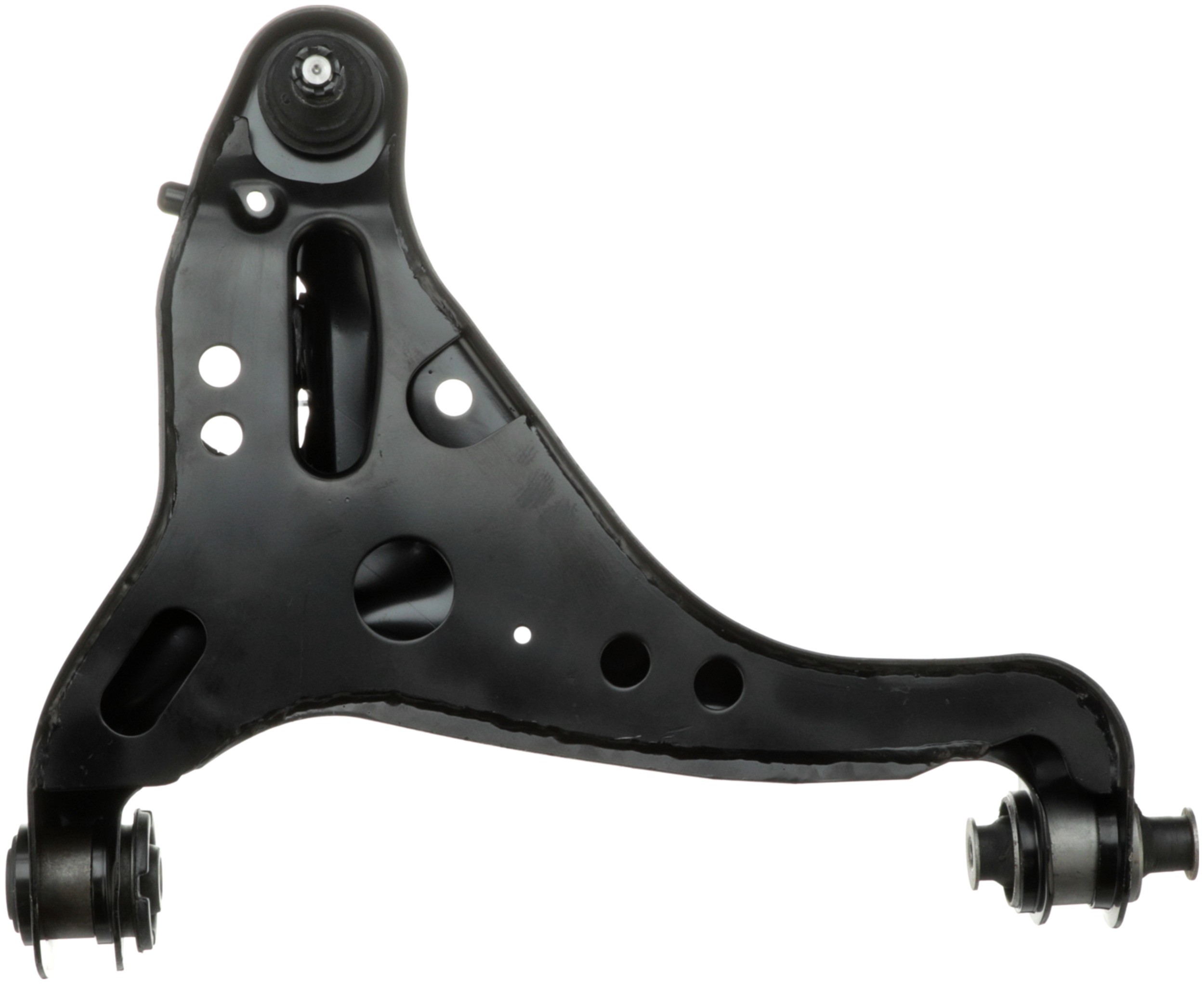

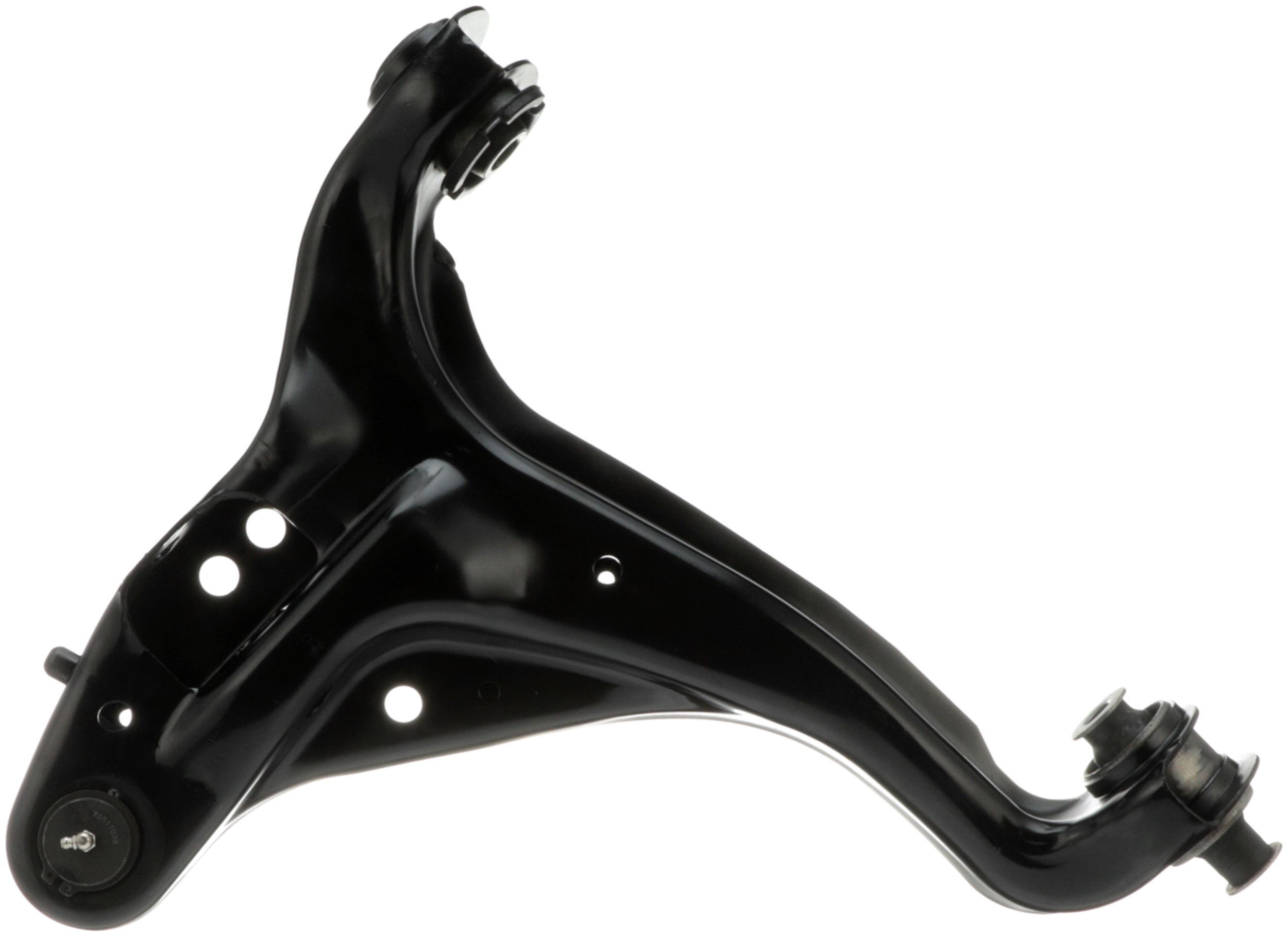

Delphi TC6324 Suspension Control Arm and Ball Joint Assembly

Delphi TC6324 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
Thread Direction	Clockwise (Right)
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
Mounting Hole Diameter	16.50 MM
Mounting Hole Diameter	20.00 MM
Position(s)	Front Left Lower
Mounting Hole Diameter	0.650 IN
2384	Yes
2386	Stamped
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Bushing Colour	Black
Mounting Hole Diameter	0.787 IN
