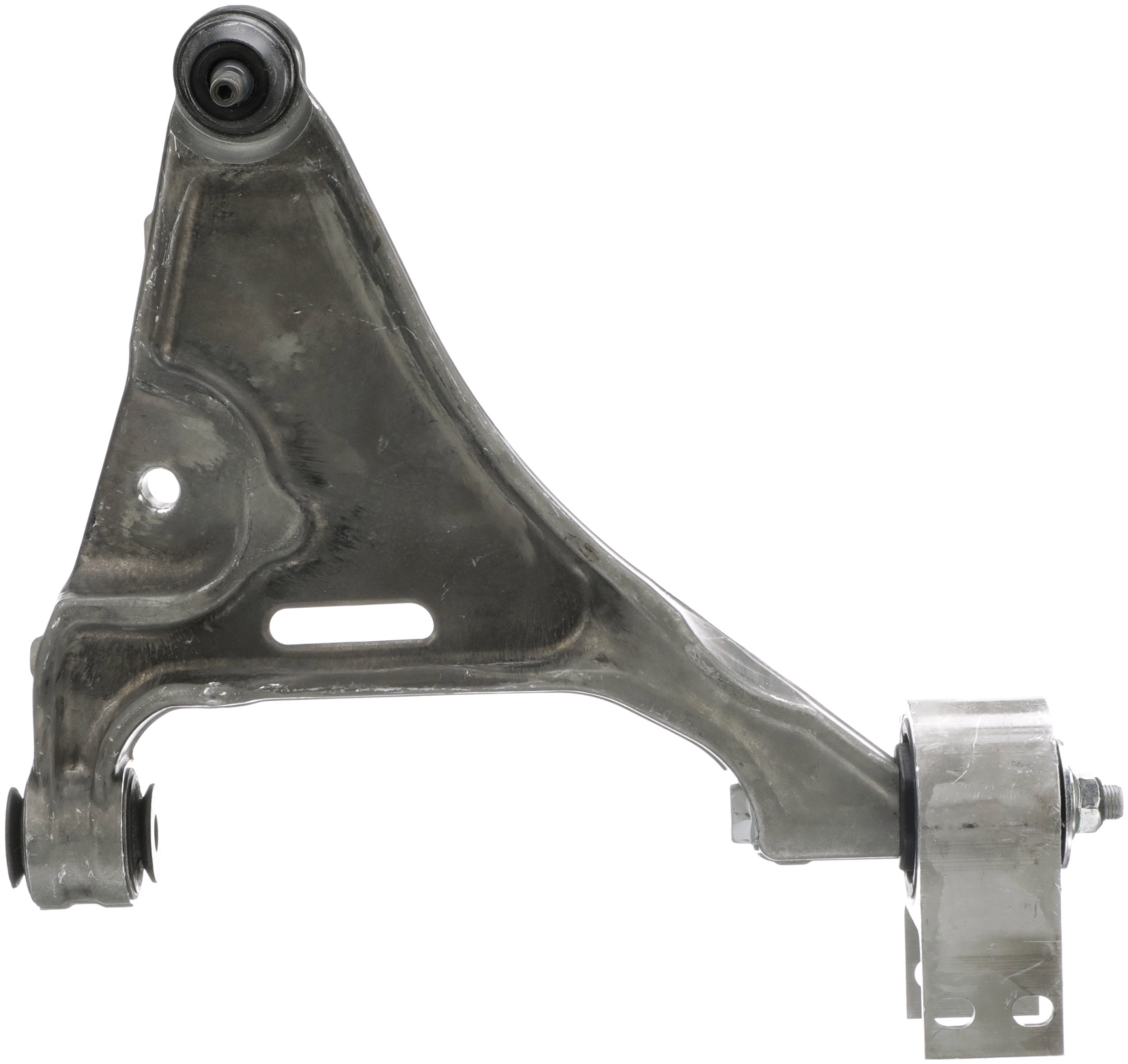

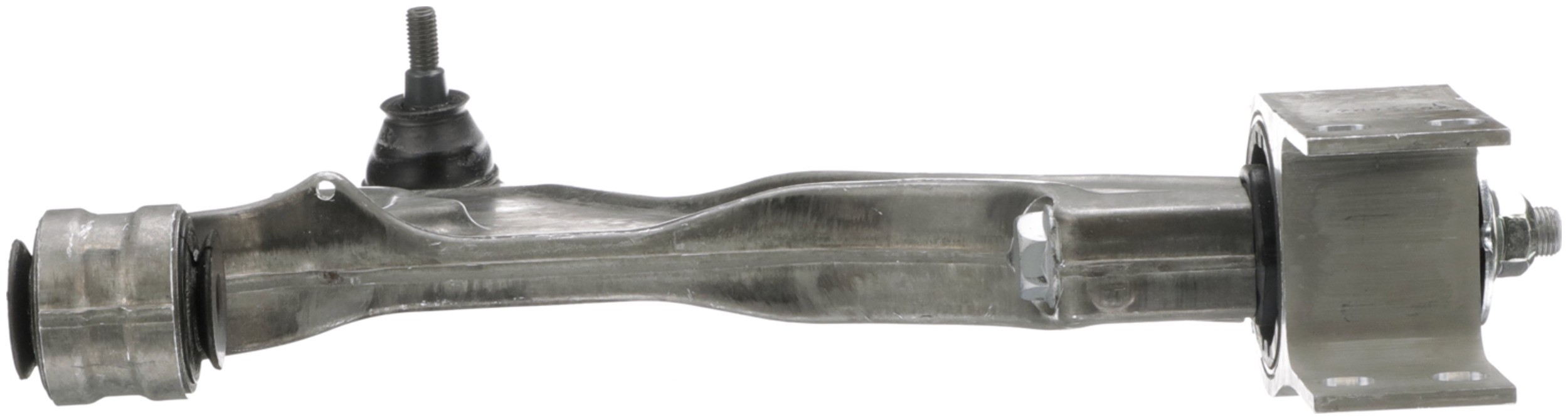

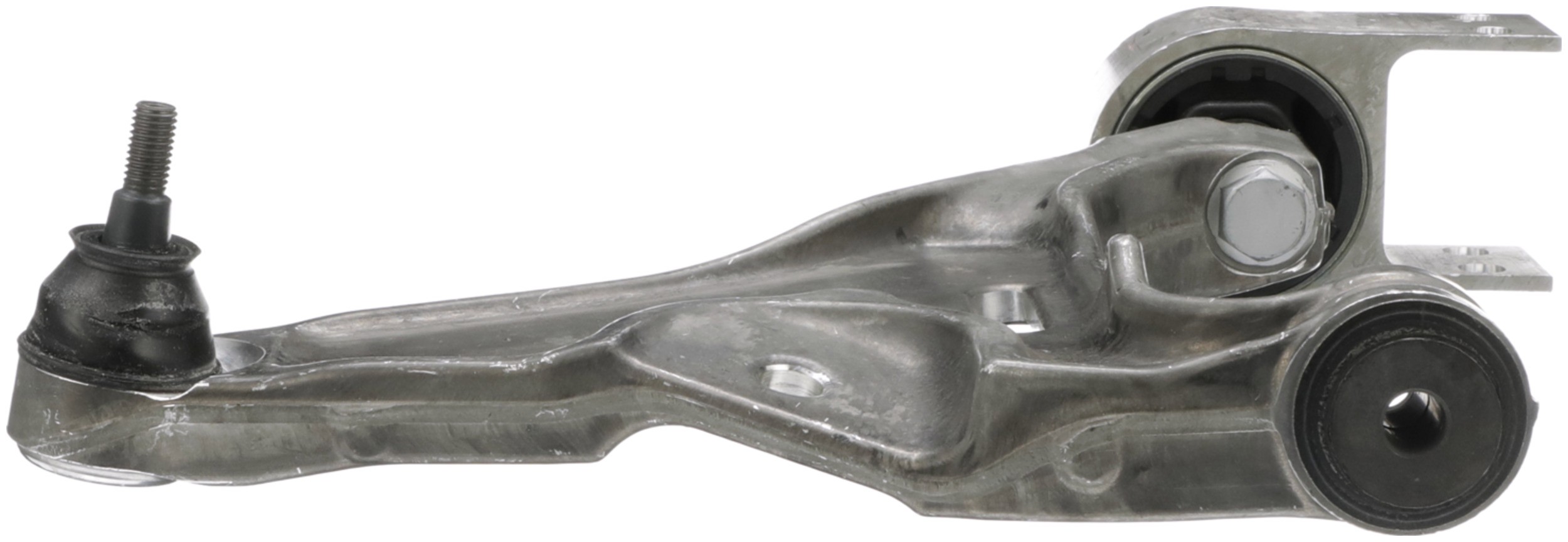

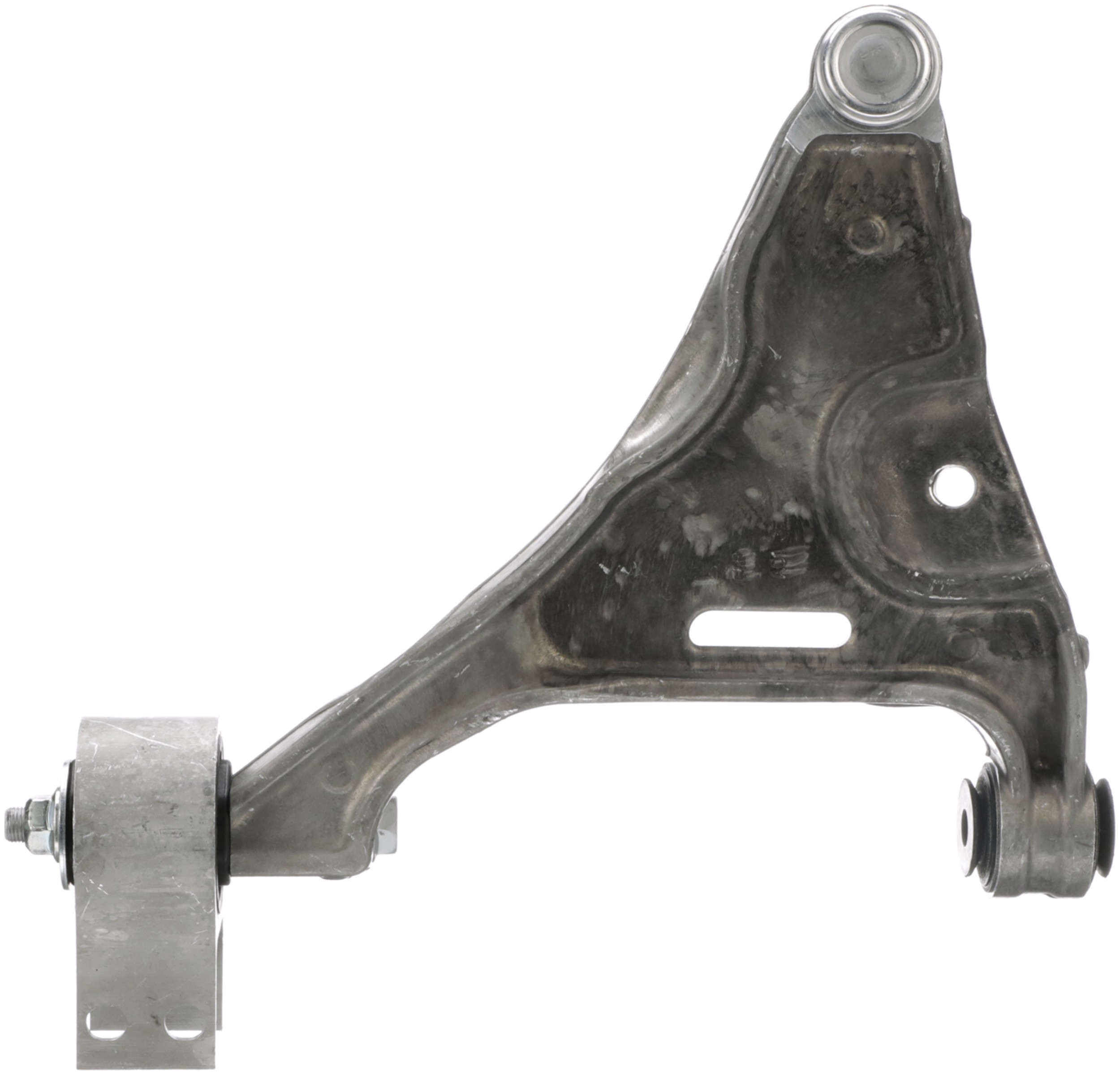

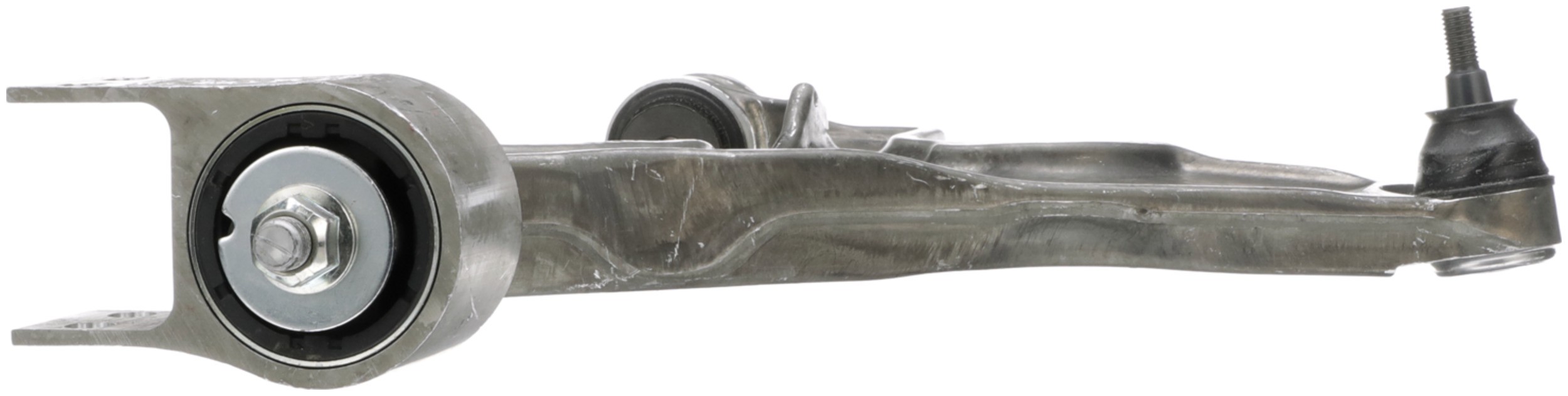

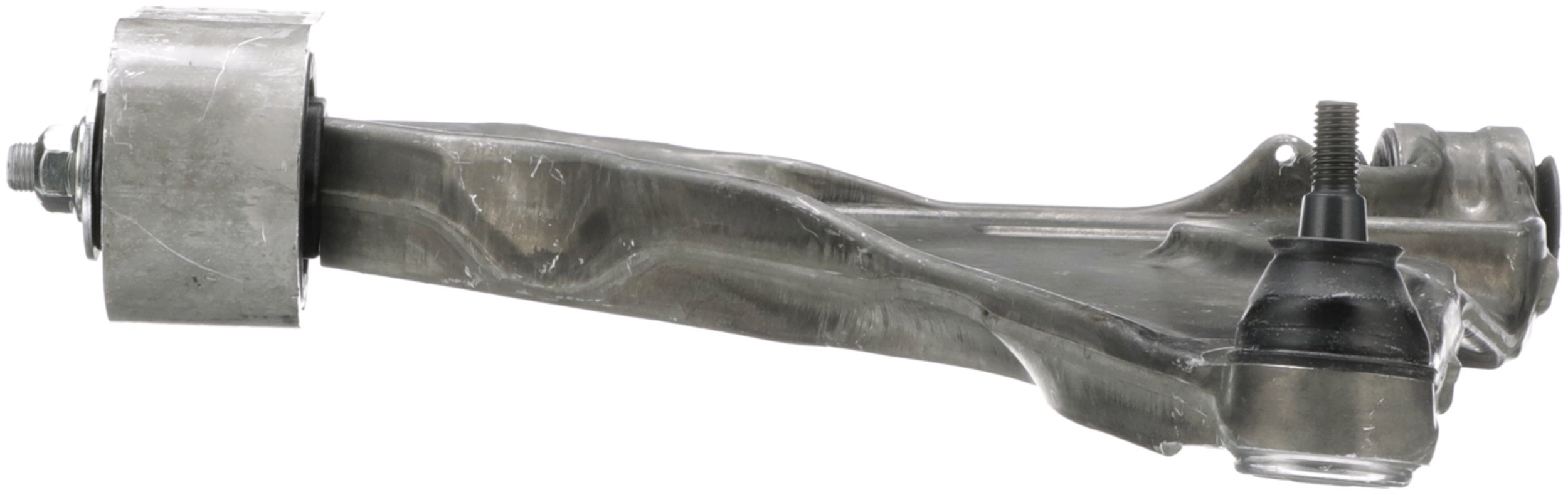

Delphi TC6340 Suspension Control Arm and Ball Joint Assembly

Delphi TC6340 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	463.50 MM
Length	18.248 IN
Pre-greased	Yes
4887	439.00 MM
4887	17.283 IN
4890	89.00 MM
4890	3.504 IN
Ball Joint Stud Type	Threaded
2384	Yes
2386	Casting/Forged
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Uncoated
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Attachment Type	Machined
Material	Aluminum
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Position(s)	Front Left, Front Left Lower. For the position specific to your vehicle, refer to the Applications.
Greaseable	No
Mounting Hardware Included	Yes
Boot Colour	Black
Bearing Material	Plastic
Bushings Included	Yes
Dust Boot Included	Yes
Bushing Type	Rubber
Grade Type	Premium
Mounting Hole Quantity	4
