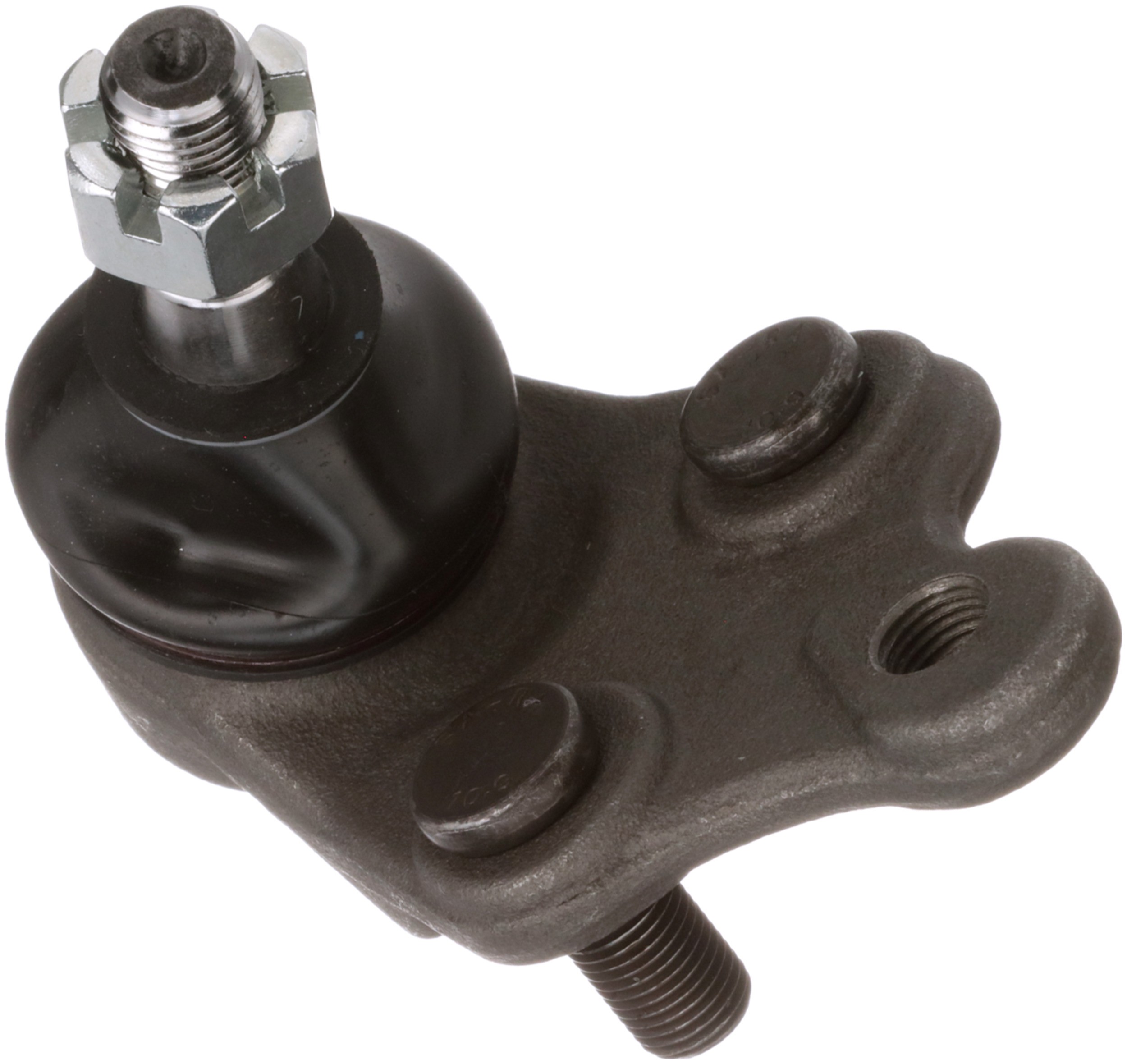

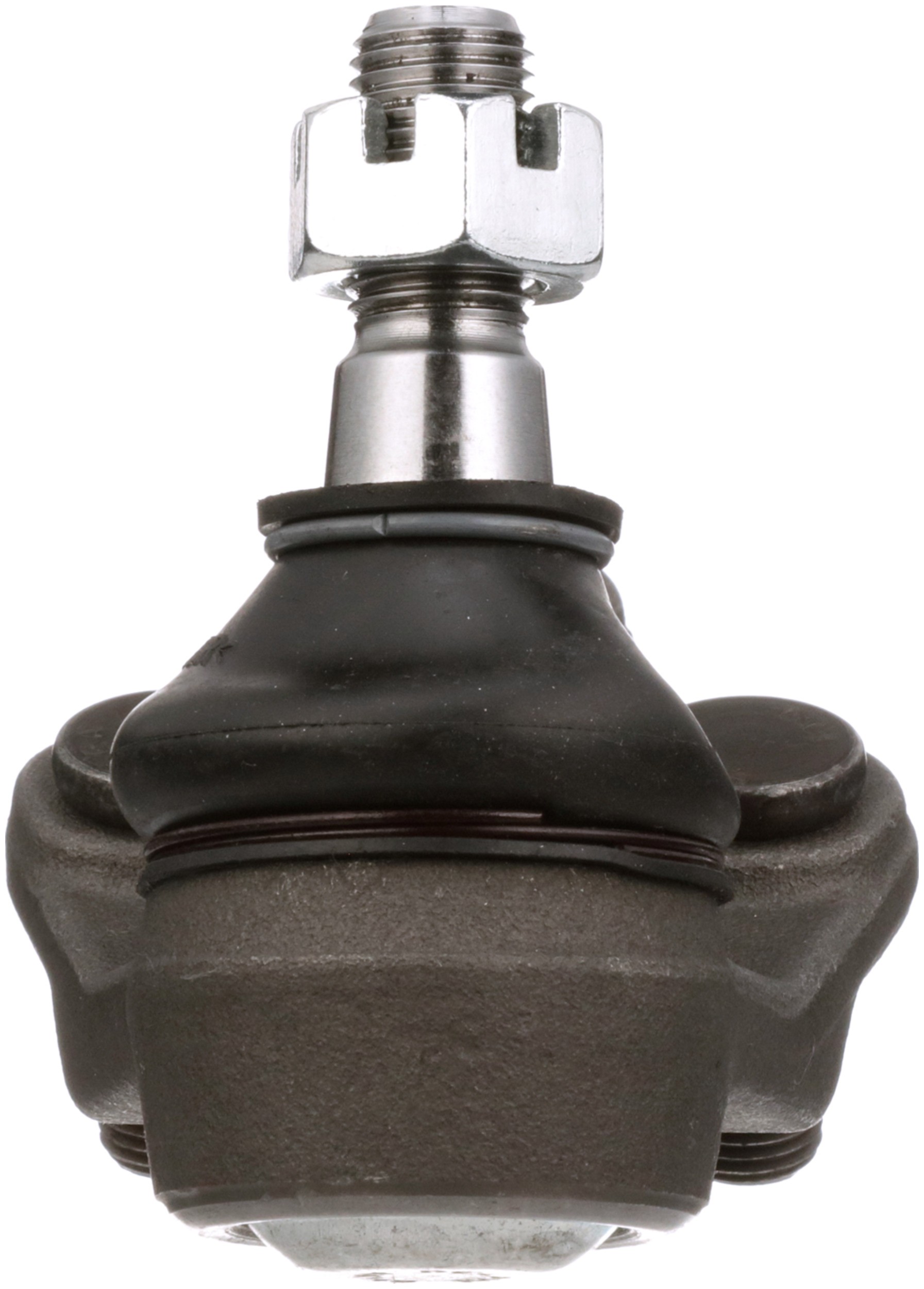

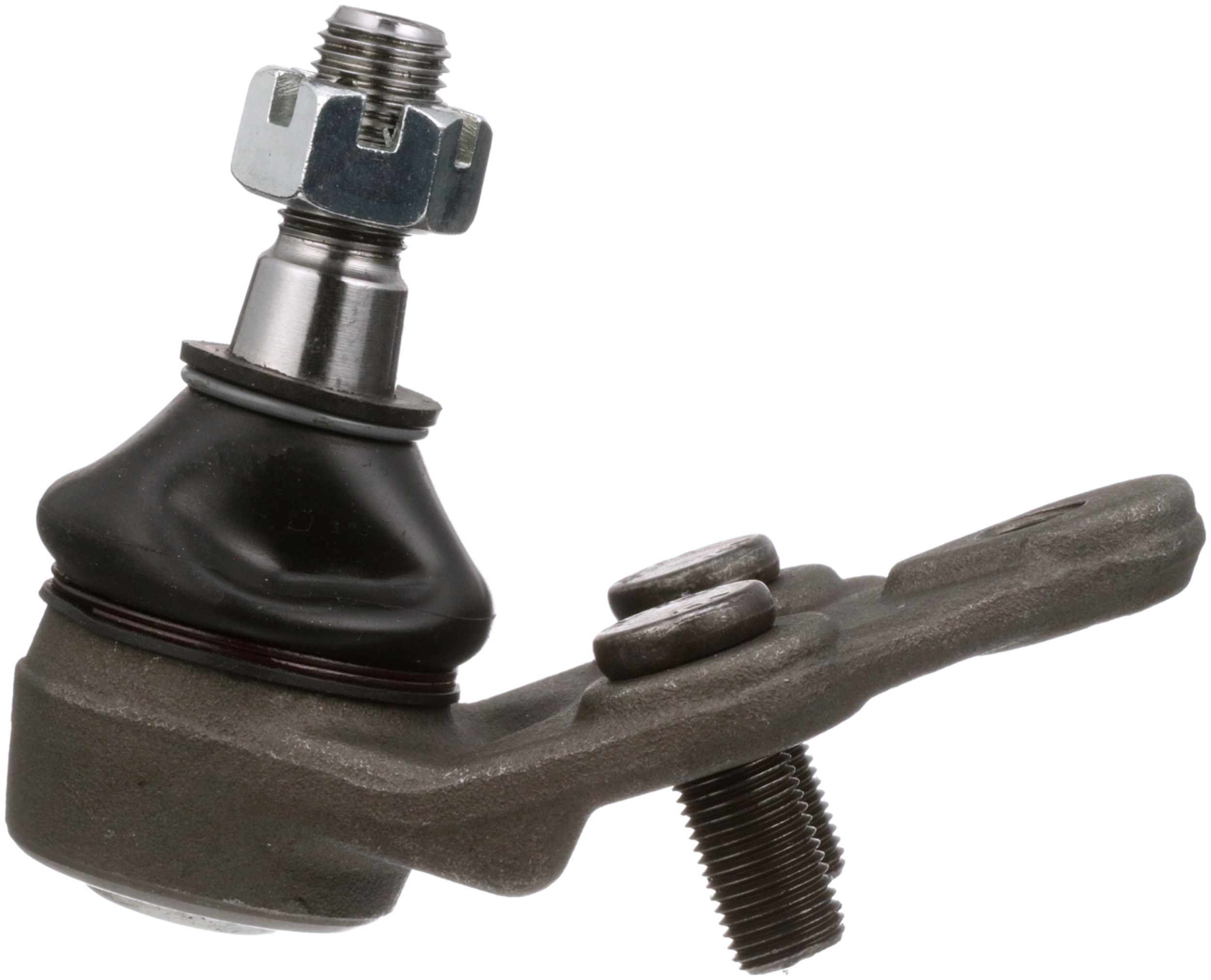

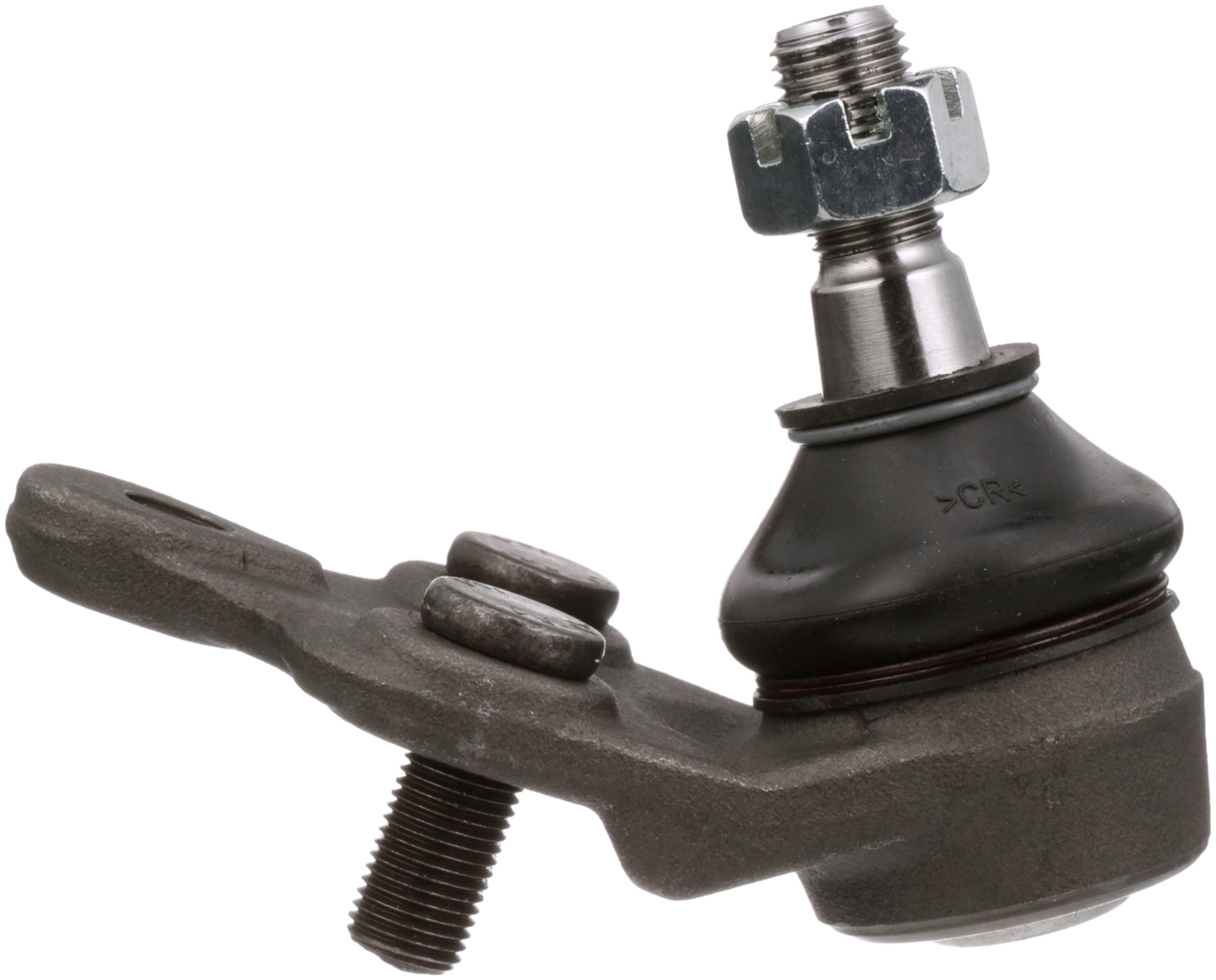

Delphi TC637 Suspension Ball Joint

Delphi TC637 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Material	Steel
9213	15.5 MM
9213	0.61 IN
9212	18.2 MM
9212	0.717 IN
9207	20.00 MM
9207	0.787 IN
9203	19.00 MM
9203	0.748 IN
9202	12.00 MM
9202	0.472 IN
9058	35.00 MM
4966	20 MM
4966	0.787 IN
3068	30.00 MM
3068	1.181 IN
Position(s)	Front Left Lower
2334	Yes
2381	Yes
2827	Yes
839	19mm
881	Threaded
9090	Rubber
9204	Yes
9209	No
9210	Yes
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
Greaseable	No
Adjustable	No
Mounting Hole Quantity	3
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Maximum Outside Diameter	1.732 IN
Maximum Outside Diameter	44.00 MM
Length	121.00 MM
Length	4.760 IN
Width	70 MM
Height	3.831 IN
Height	97.30 MM
