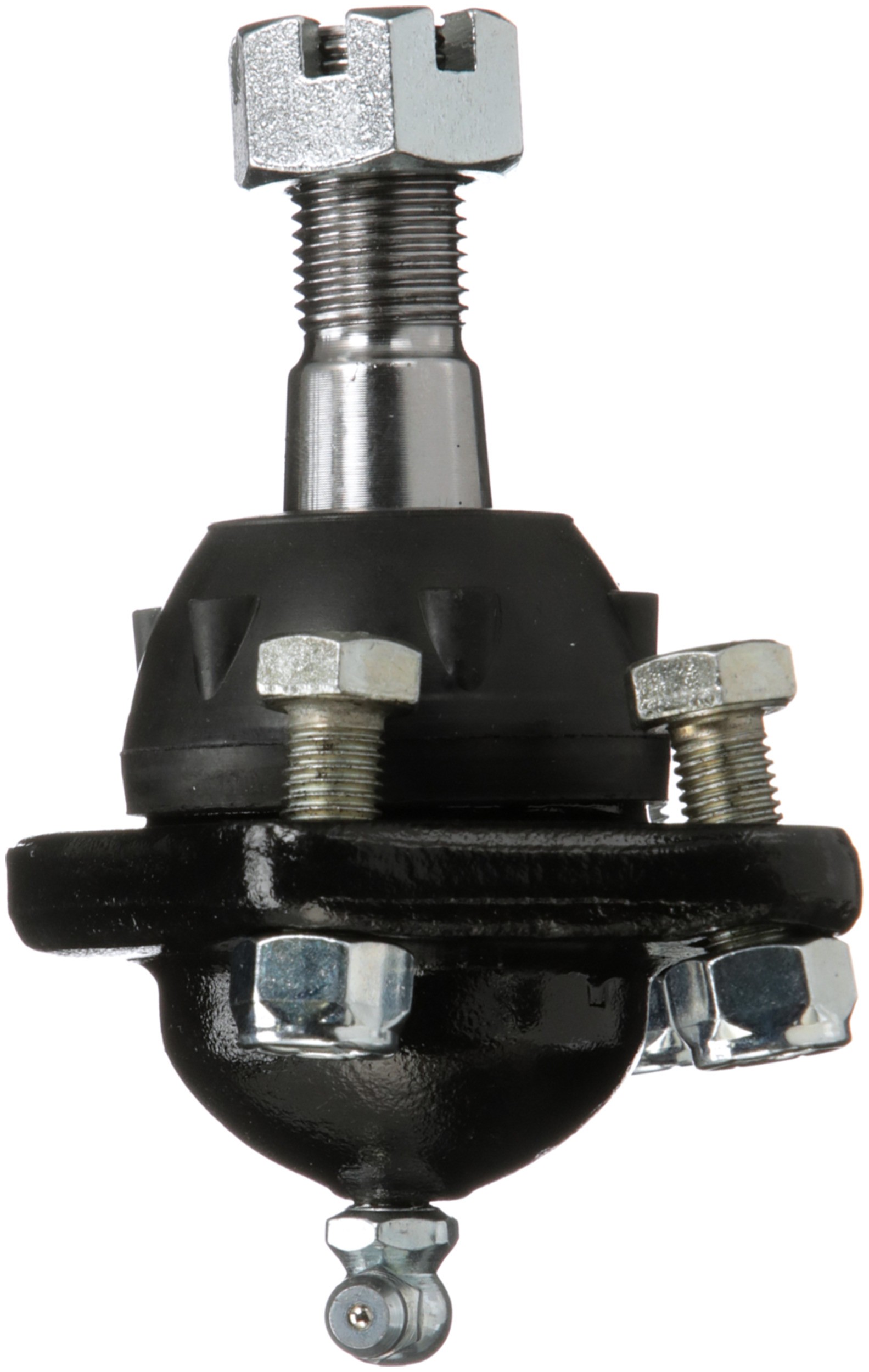

Delphi TC6390 Suspension Ball Joint

Delphi TC6390 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9202	0.313 IN
Width	62 MM
Height	4.252 IN
Height	108.00 MM
Suspension Grade Type	Standard Replacement
Mounting Type	Bolt-In
3068	0.984 IN
3068	25.00 MM
4966	1.063 IN
4966	27 MM
9202	7.95 MM
9203	0.571 IN
9203	14.50 MM
9207	23.00 MM
9207	0.910 IN
9211	0.125 IN
9212	0.61 IN
9212	15.5 MM
9213	0.689 IN
Greaseable	Yes
Adjustable	No
Mounting Hole Quantity	4
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	Yes
Position(s)	Front Upper
2334	Yes
2381	Yes
2827	Yes
839	13mm
881	Threaded
9090	Rubber
9204	Yes
9209	No
9210	Yes
9213	17.5 MM
Color	Black
Material	Steel
Length	81.00 MM
Length	3.190 IN

Vehicle Applications:

Make	Model	Years
American Motors	AMX	1970 to 1980
American Motors	Ambassador	1970 to 1974
American Motors	Concord	1978 to 1983
American Motors	Eagle	1980 to 1988
American Motors	Gremlin	1970 to 1978
American Motors	Hornet	1970 to 1977
American Motors	Javelin	1969 to 1974
American Motors	Matador	1971 to 1978
American Motors	Rebel	1970 to 1970
American Motors	Spirit	1979 to 1983
