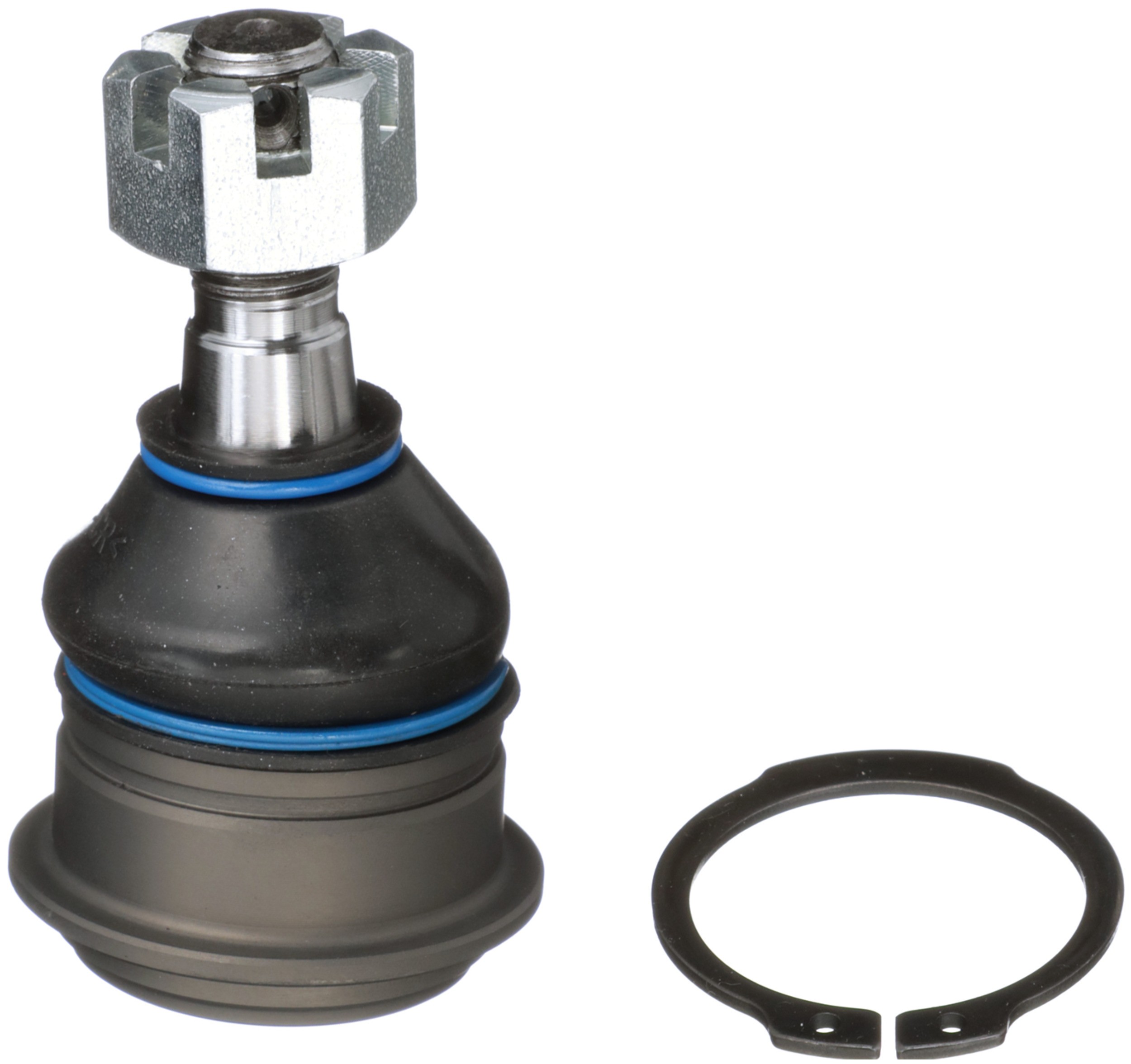

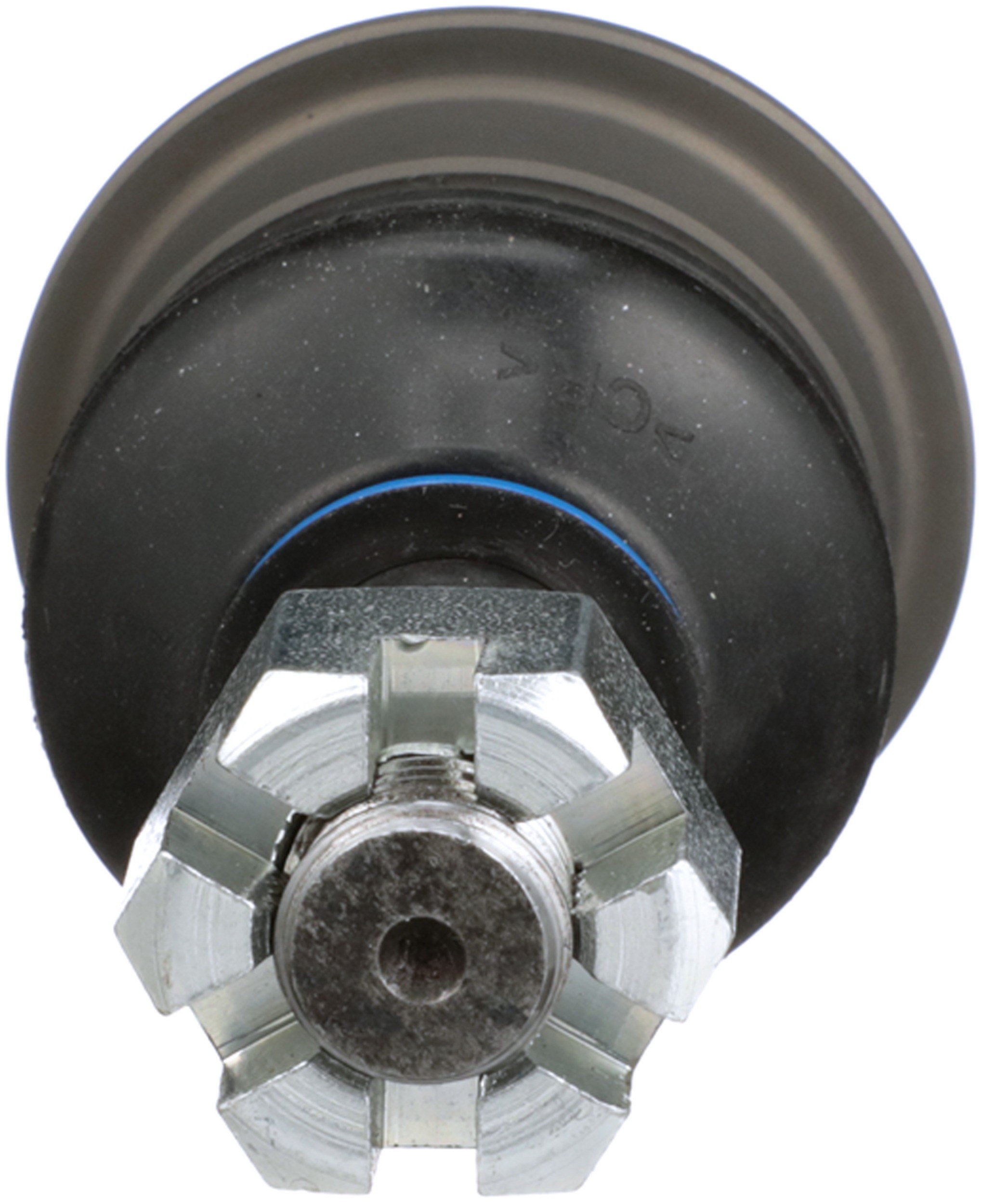

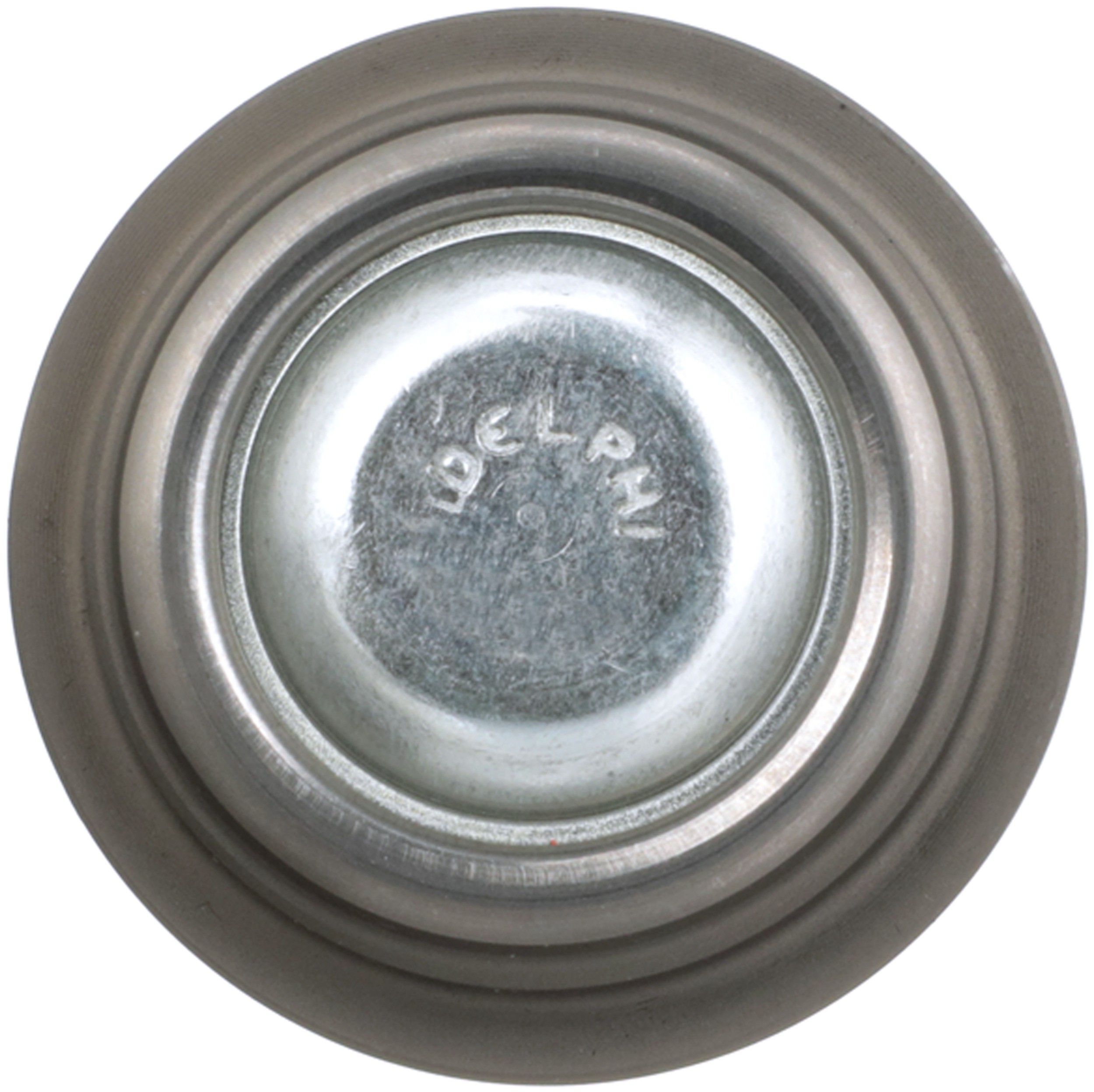

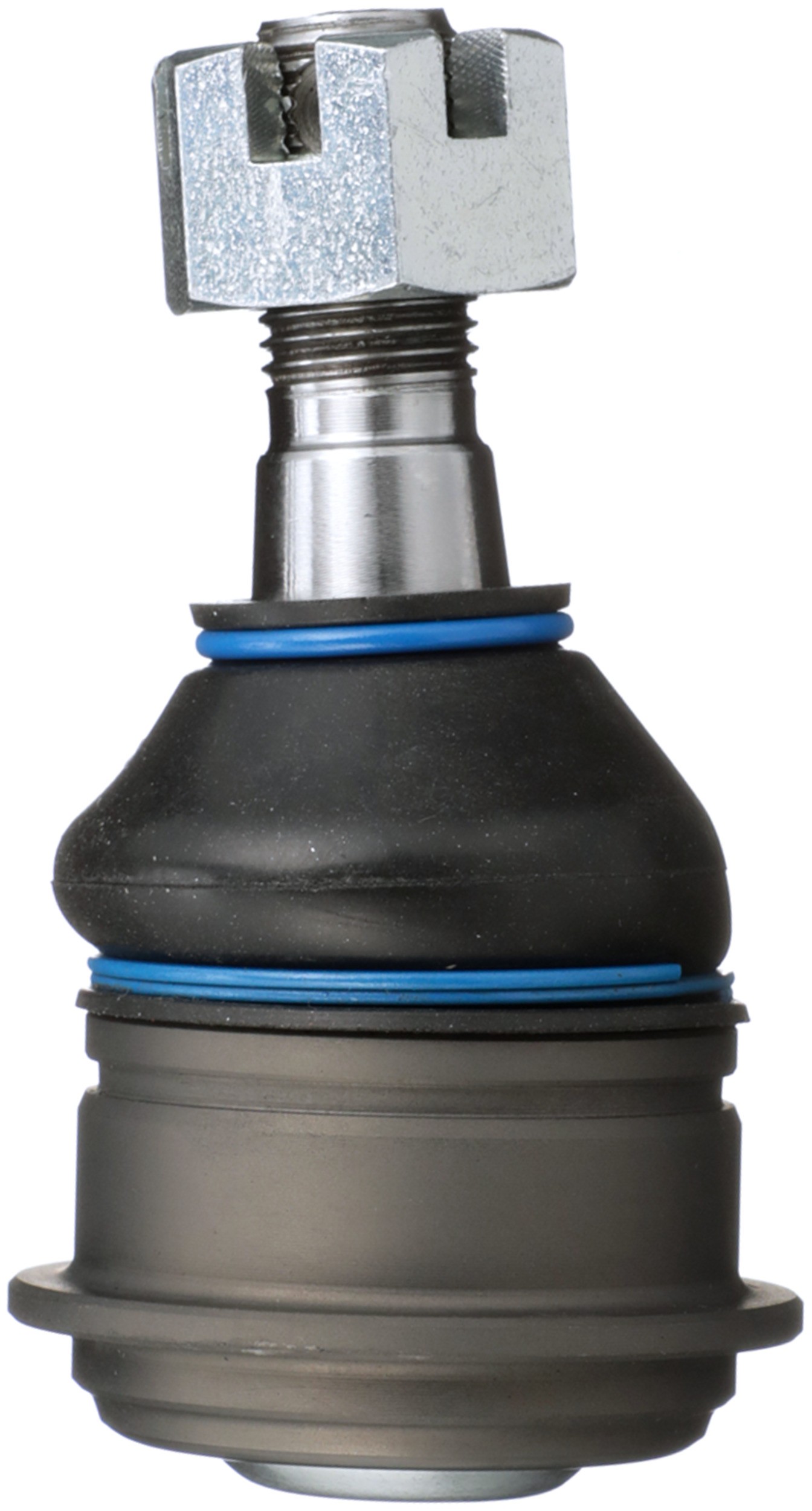

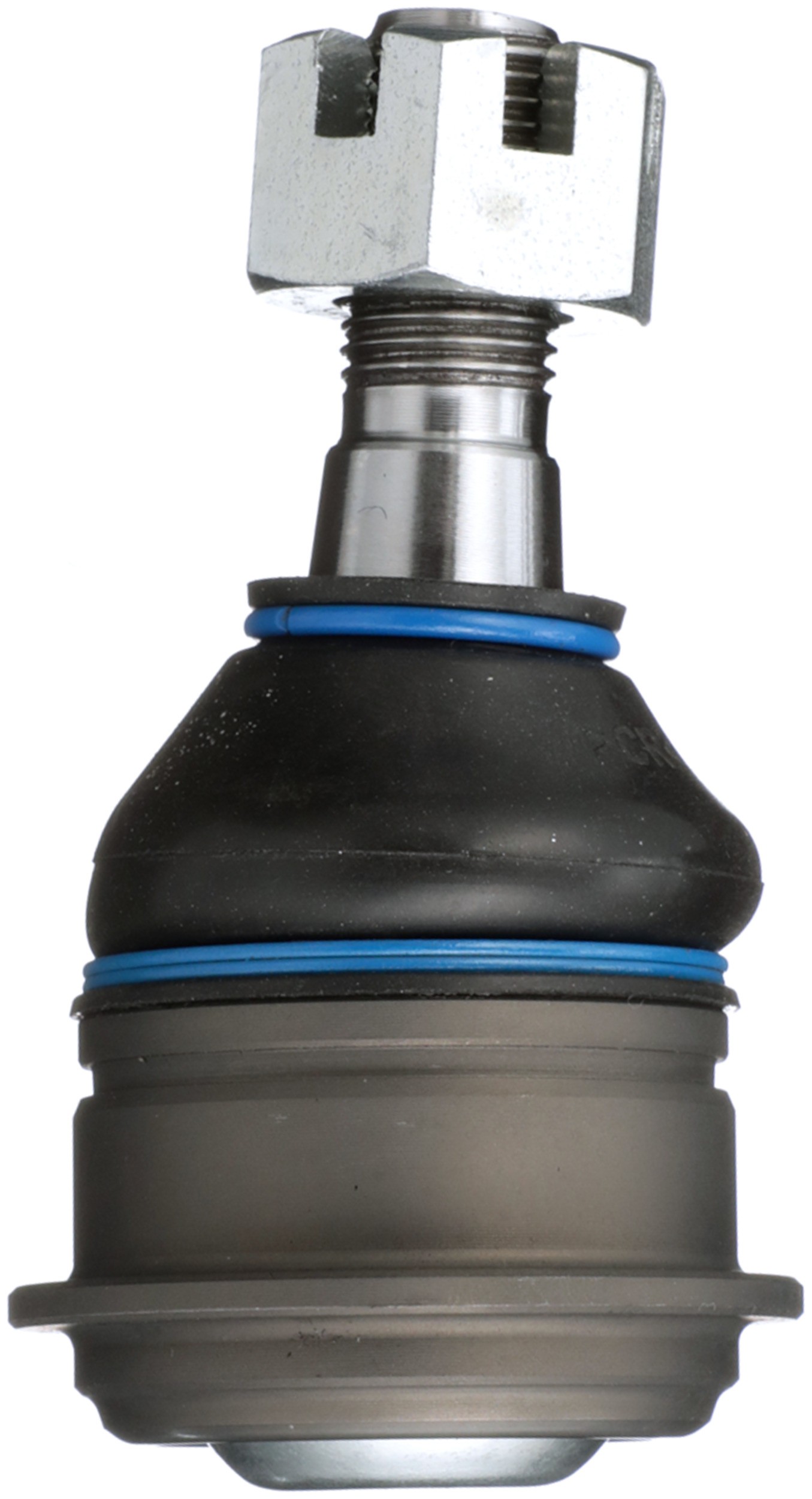

Delphi TC6396 Suspension Ball Joint

Delphi TC6396 Suspension Ball Joint

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grease Fitting Included	No
Length	91.00 MM
Length	3.580 IN
Width	49 MM
Height	91.01 MM
Height	3.583 IN
Material	Steel
Color	Gray
Suspension Grade Type	Standard Replacement
Mounting Type	Press-In
Greaseable	No
Adjustable	No
9210	Yes
9209	No
9204	No
9090	Rubber
881	Threaded
2827	Yes
2381	Yes
2334	Yes
Maximum Outside Diameter	1.929 IN
Maximum Outside Diameter	49.00 MM
9213	18.6 MM
9213	0.732 IN
9212	14.8 MM
9212	0.583 IN
9211	0.167 IN
4966	27 MM
4966	1.063 IN
Position(s)	Front Right Lower
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	Yes
Dust Boot Included	Yes
Bushings Included	No
