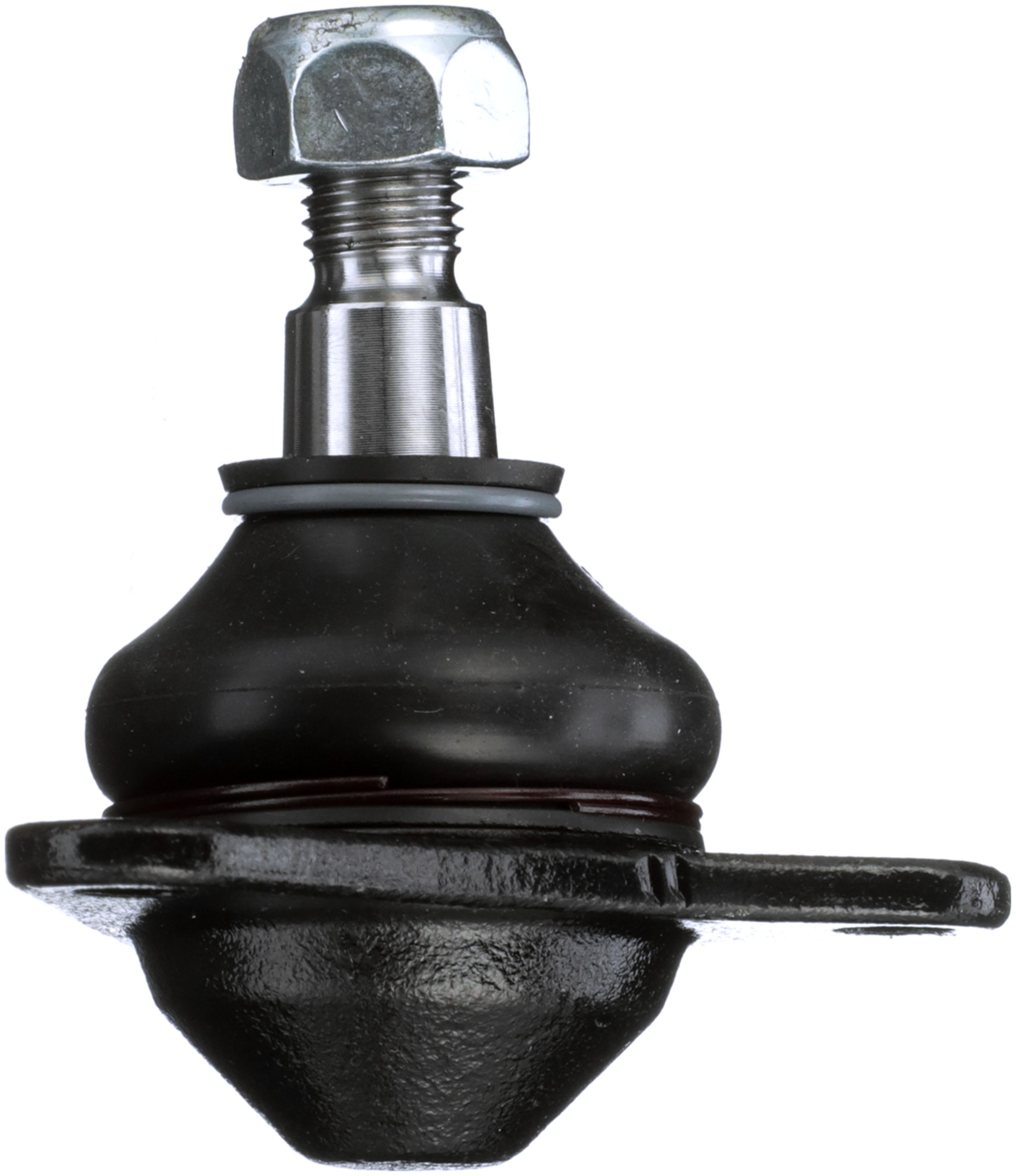

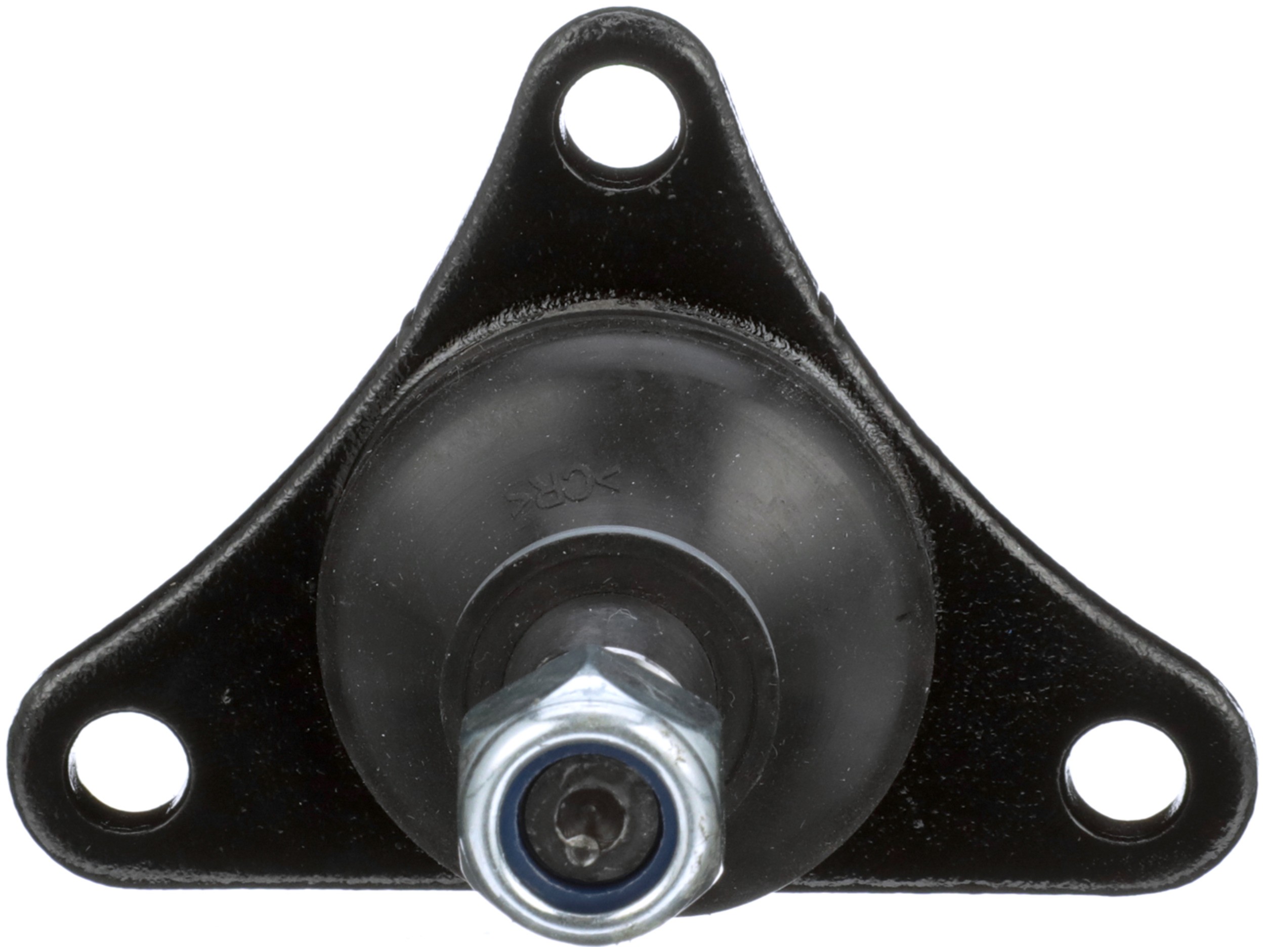

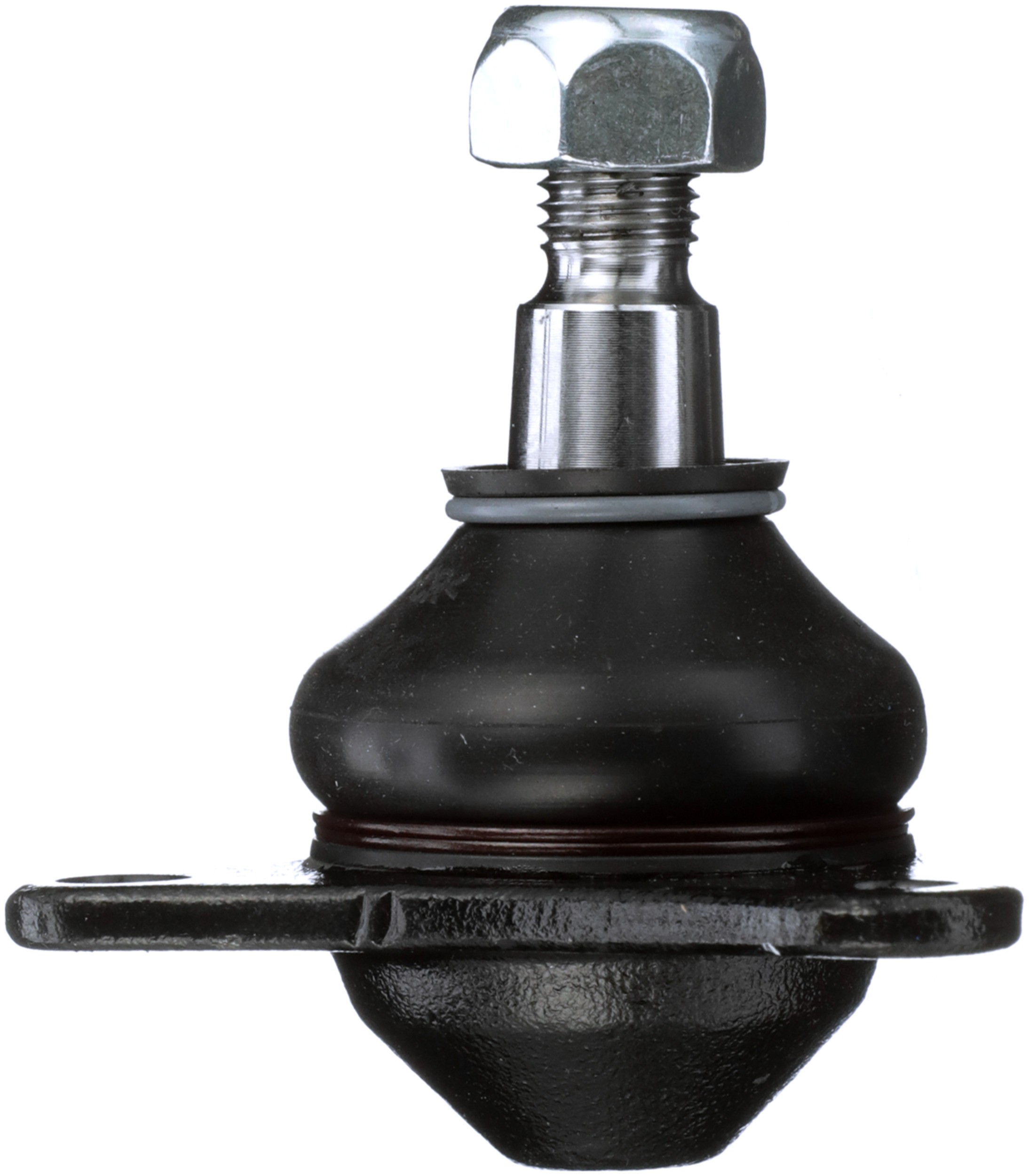

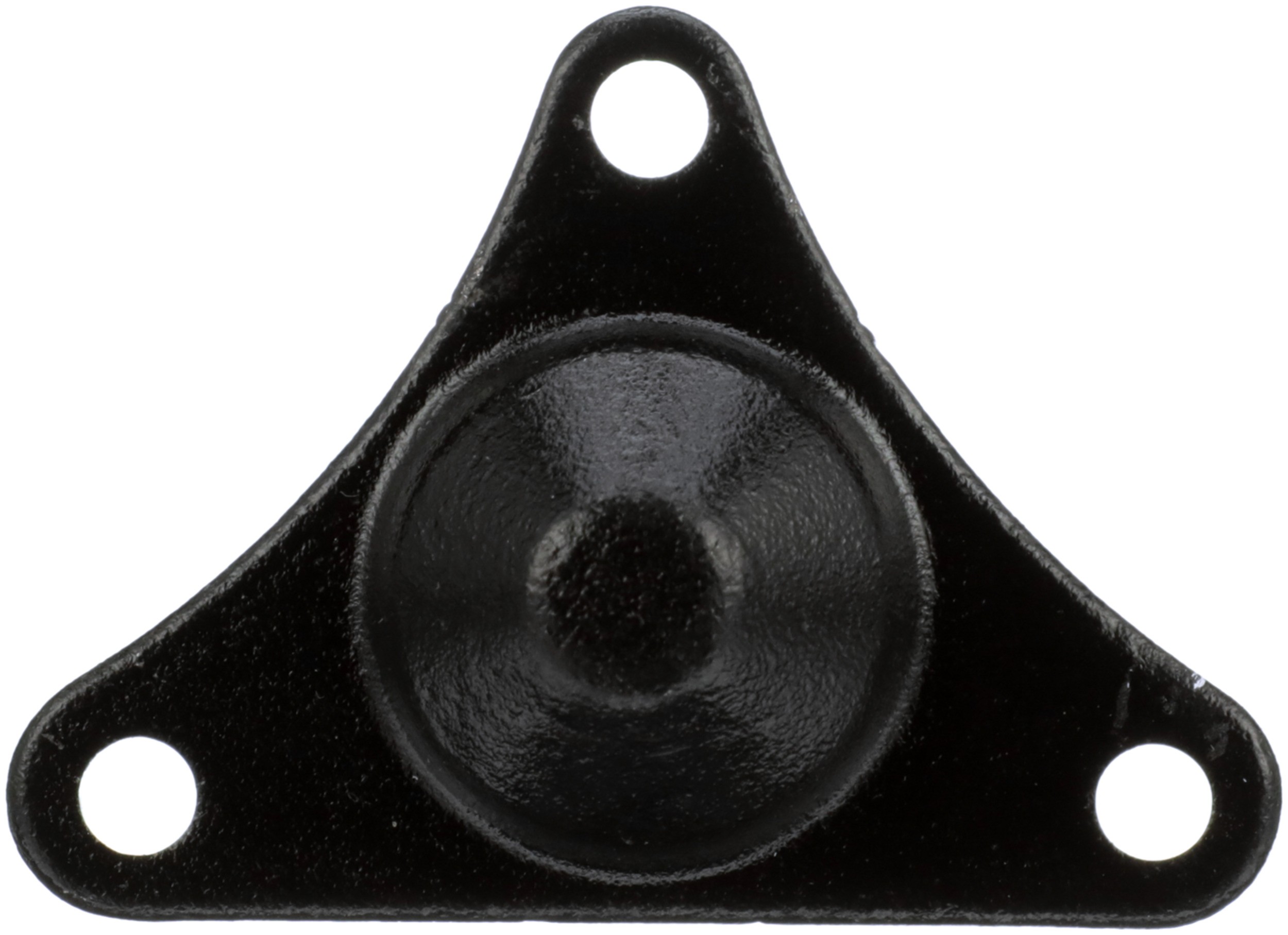

Delphi TC6399 Suspension Ball Joint
Features:
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Attributes:
| Position(s) | Front Upper |
| 4966 | 0.728 IN |
| 9213 | 16.5 MM |
| 9213 | 0.65 IN |
| Suspension Grade Type | Standard Replacement |
| 9210 | Yes |
| 9209 | No |
| 9204 | Yes |
| 9090 | Rubber |
| 881 | Threaded |
| 839 | 13mm |
| 2827 | No |
| Washers Included | Yes |
| Mounting Hardware Included | Yes |
| 2381 | Yes |
| Greaseable | No |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Material | Steel |
| Color | Black |
| Mounting Type | Bolt-In |
| 9212 | 14.5 MM |
| 3068 | 20.00 MM |
| Cotter Pin Hole | No |
| Dust Boot Included | Yes |
| 9212 | 0.571 IN |
| 3068 | 0.787 IN |
| Grease Fitting Included | No |
| 9211 | 0.1 IN |
| 9207 | 0.670 IN |
| Length | 94.00 MM |
| Length | 3.700 IN |
| Width | 67 MM |
| Height | 3.150 IN |
| Height | 80.01 MM |
| Bushings Included | No |
| 9207 | 17.00 MM |
| 9203 | 14.50 MM |
| 9203 | 0.571 IN |
| 9202 | 0.310 IN |
| 9202 | 8.00 MM |
| 4966 | 18.49 MM |
| 2334 | No |
Vehicle Applications:
| Make | Model | Years |
| Mercedes-Benz | 220 | 1968 to 1973 |
| Mercedes-Benz | 220D | 1968 to 1973 |
| Mercedes-Benz | 230 | 1974 to 1976 |
| Mercedes-Benz | 240D | 1974 to 1976 |
| Mercedes-Benz | 250 | 1968 to 1972 |
| Mercedes-Benz | 250C | 1969 to 1972 |
| Mercedes-Benz | 280 | 1973 to 1976 |
| Mercedes-Benz | 280C | 1973 to 1976 |
| Mercedes-Benz | 300D | 1975 to 1976 |
| Mercedes-Benz | 380SL | 1981 to 1985 |
| Mercedes-Benz | 380SLC | 1981 to 1981 |
| Mercedes-Benz | 450SL | 1973 to 1980 |
| Mercedes-Benz | 450SLC | 1973 to 1980 |
