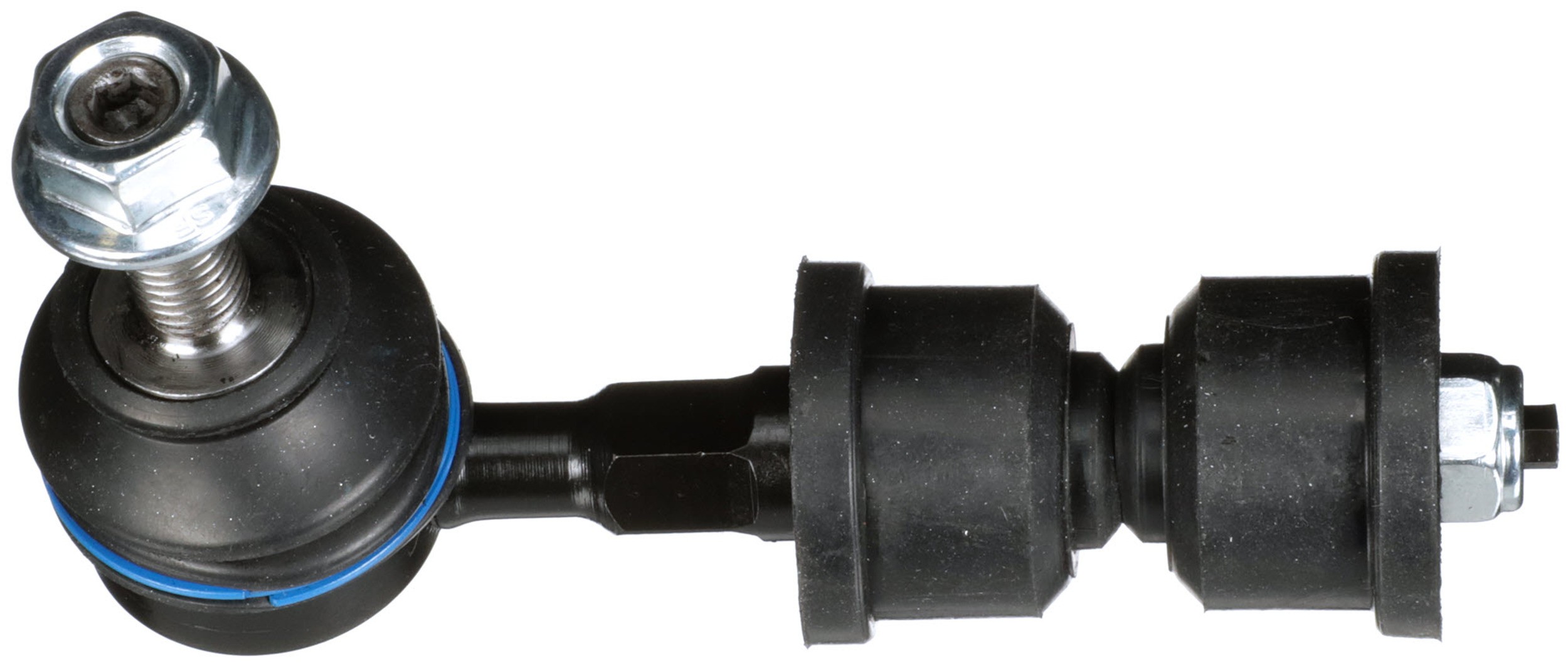

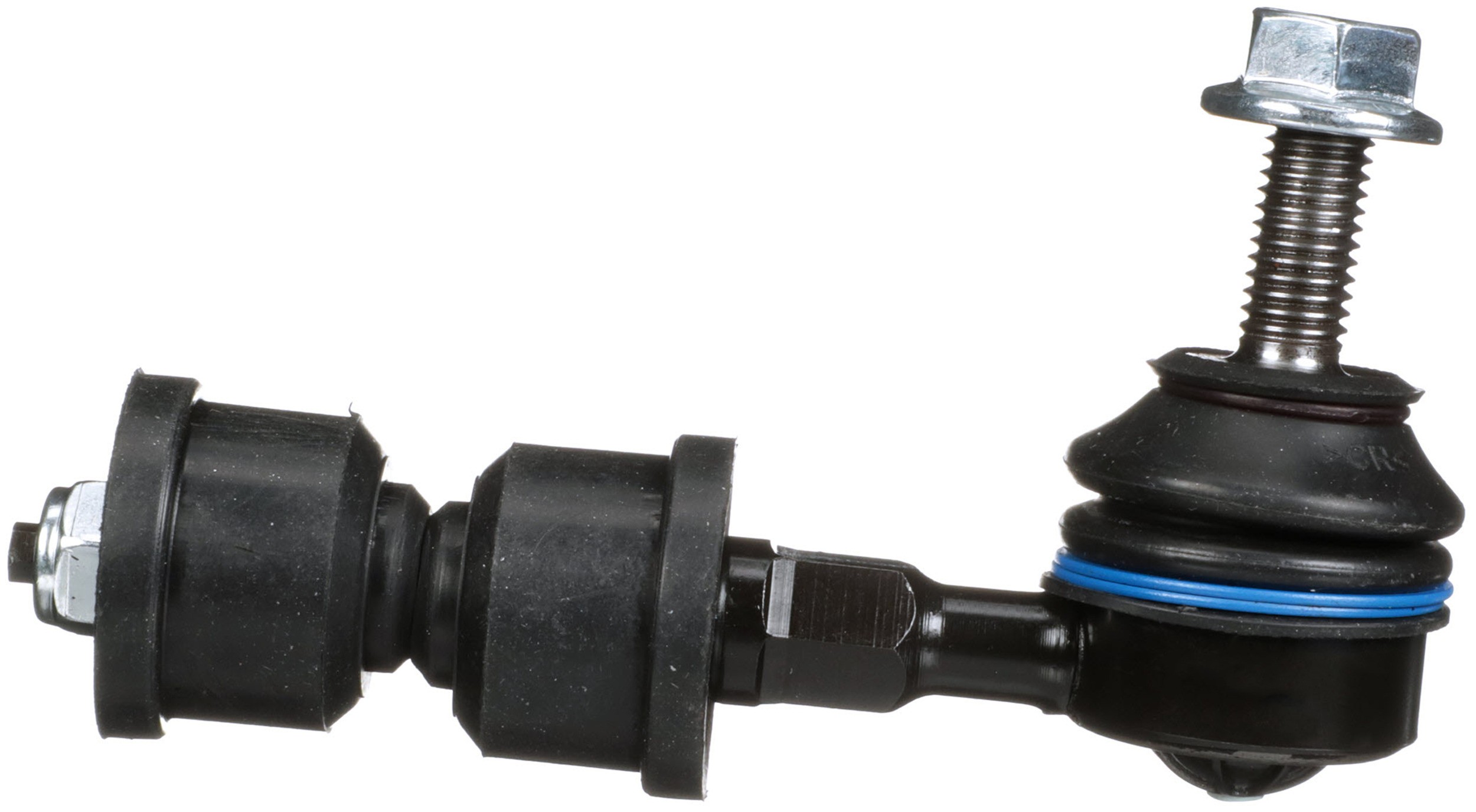

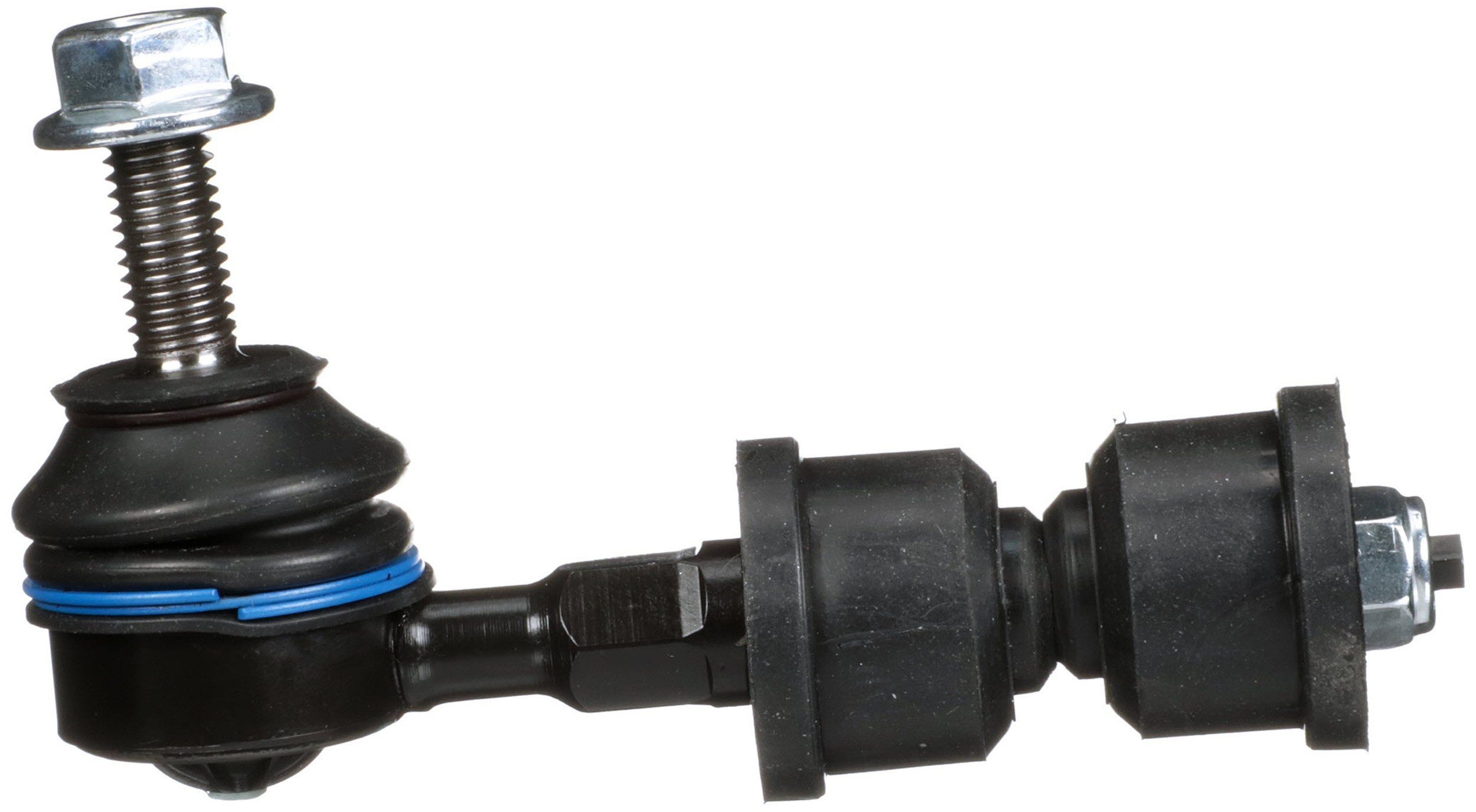

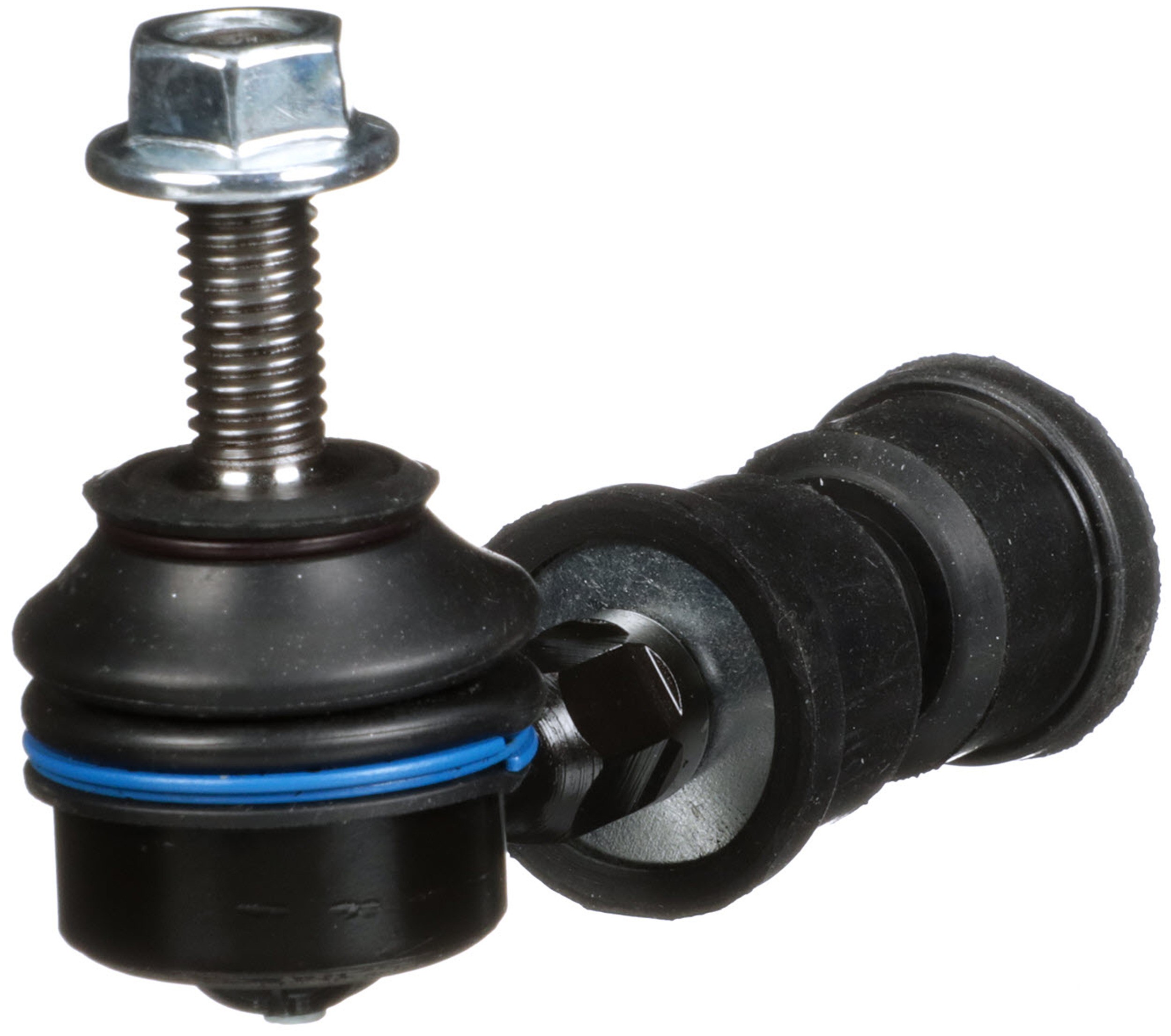

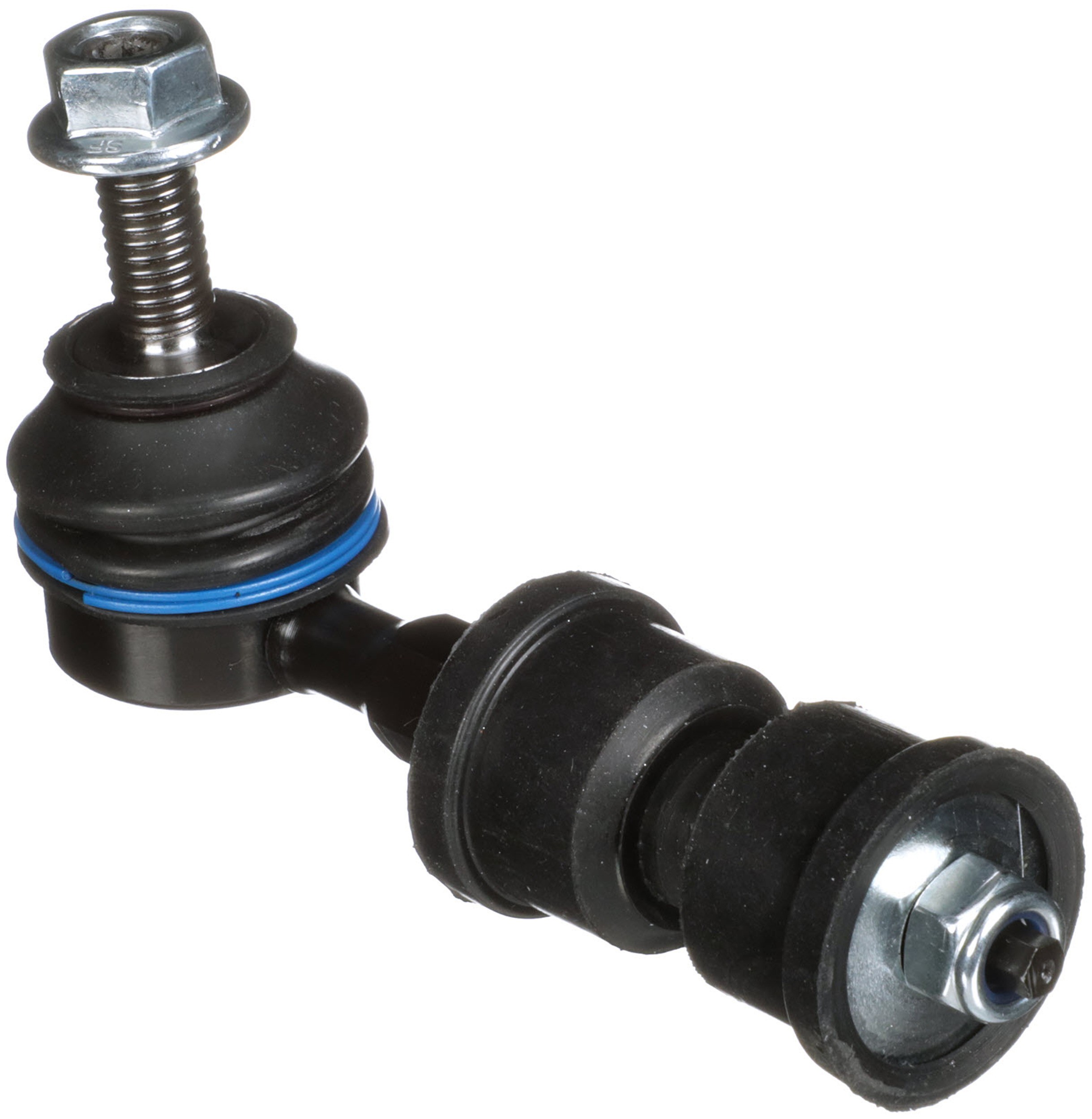

Delphi TC6401 Suspension Stabilizer Bar Link

Delphi TC6401 Suspension Stabilizer Bar Link

Features:

Delphi sway bar links are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4504	0.390 IN
627	0.11 LB
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
Bolts Included	No
Washers Included	No
Dust Boot Included	Yes
Bolt Length	30.00 MM
Bushings Included	Yes
End 2 Type	Ball Joint
End 1 Type	Bracket
Bushing Colour	Black
Bushing Inside Diameter	10.50 MM
Bushing Inside Diameter	0.413 IN
Height	70.00 MM
Height	2.756 IN
Width	40 MM
Width	1.575 IN
Length	108.50 MM
Position(s)	Rear
Bolt Length	1.181 IN
Bushing Type	Rubber
Grade Type	Standard Replacement
4504	10.00 MM
9296	Yes
Length	4.272 IN
