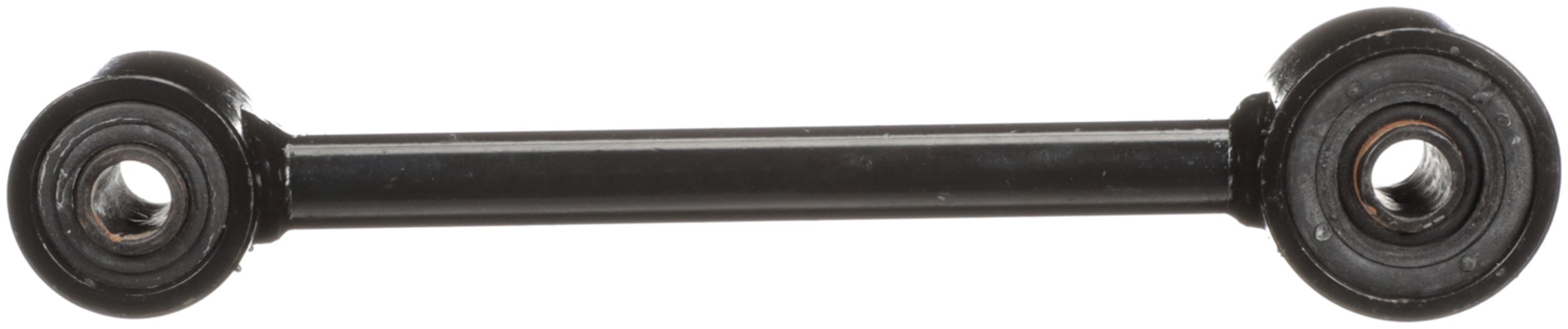

Delphi TC6412 Suspension Stabilizer Bar Link

Delphi TC6412 Suspension Stabilizer Bar Link

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Delphi sway bar links are fatigue tested to avoid failure
Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Bushing Outside Diameter	40.00 MM
Bushing Outside Diameter	1.570 IN
Length	206.50 MM
Length	8.130 IN
Width	40 MM
Width	1.57 IN
Height	36.00 MM
Height	1.420 IN
Bushing Inside Diameter	10.50 MM
Bushing Inside Diameter	0.410 IN
9058	169.50 MM
Bushing Type	Rubber
Greaseable	No
Housing Material	Steel
Bolts Included	No
Washers Included	No
Dust Boot Included	No
Bushings Included	Yes
End 2 Type	Bushing
End 1 Type	Bushing
Bushing Colour	Black
Position(s)	Rear
9296	No
