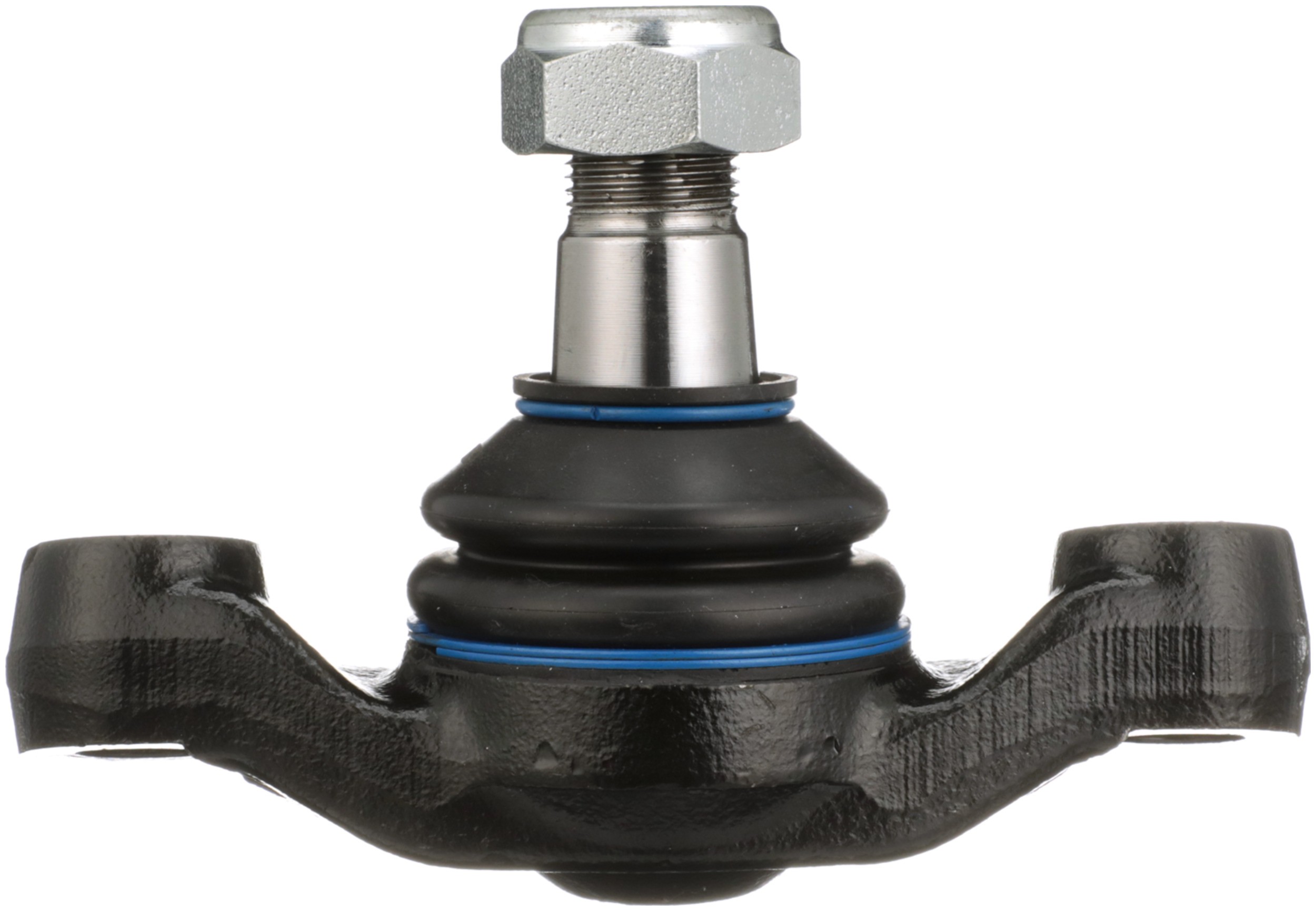

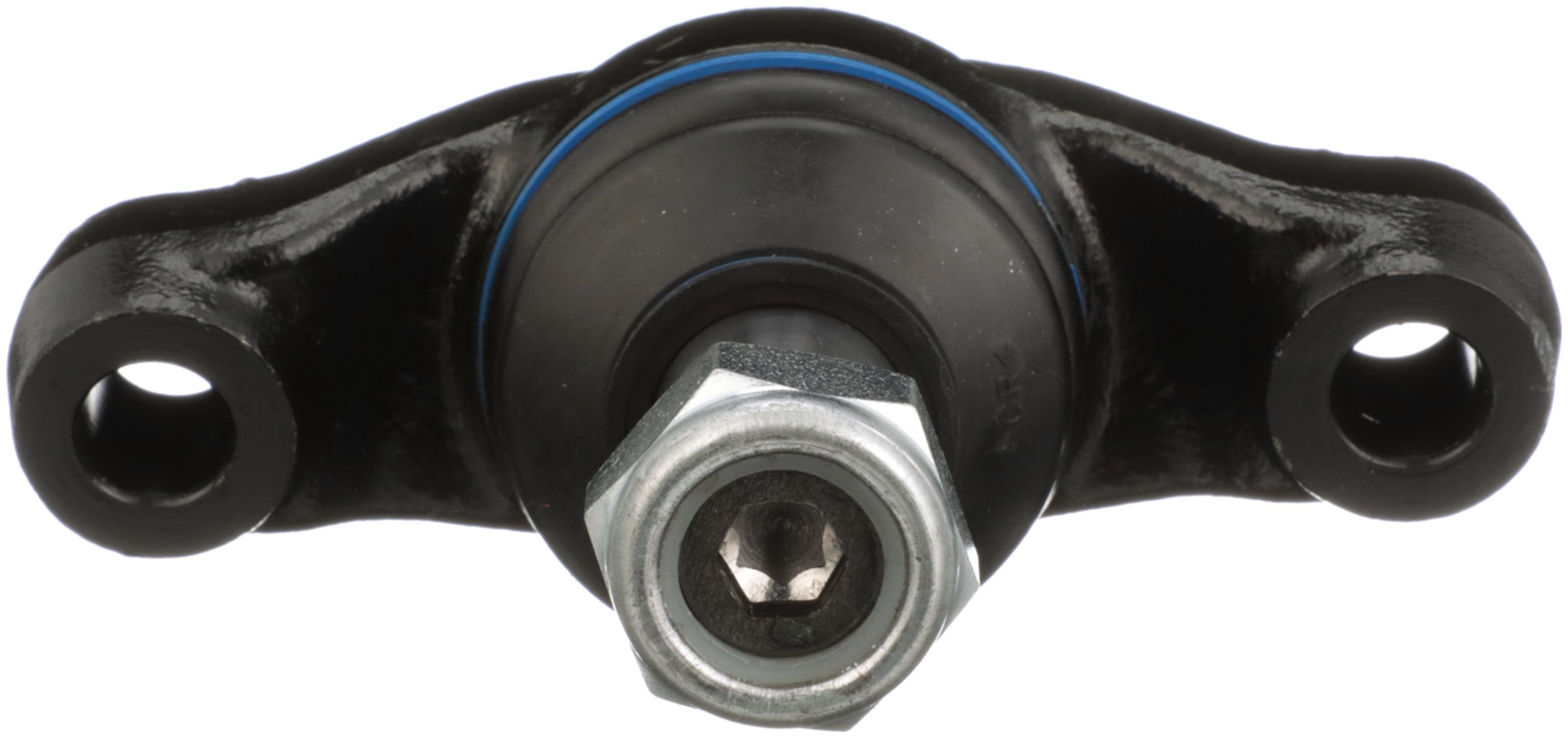

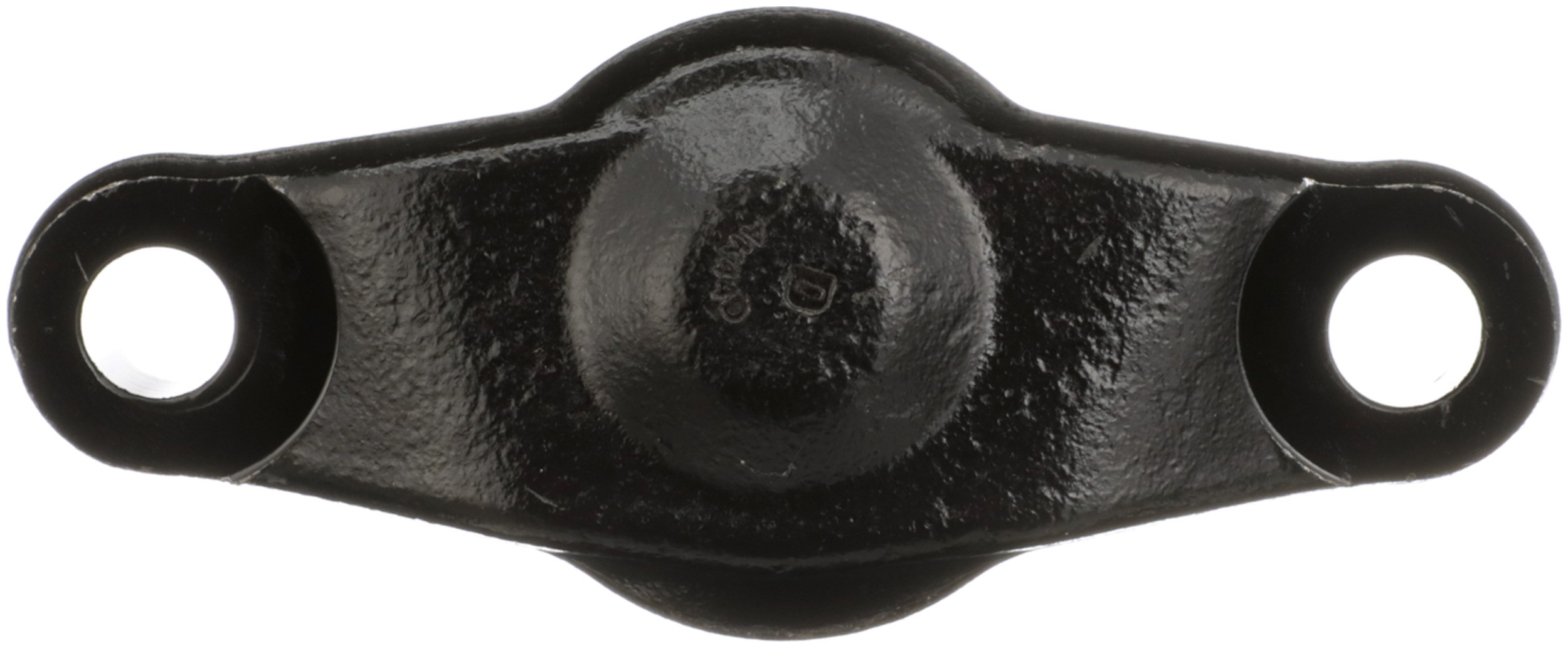

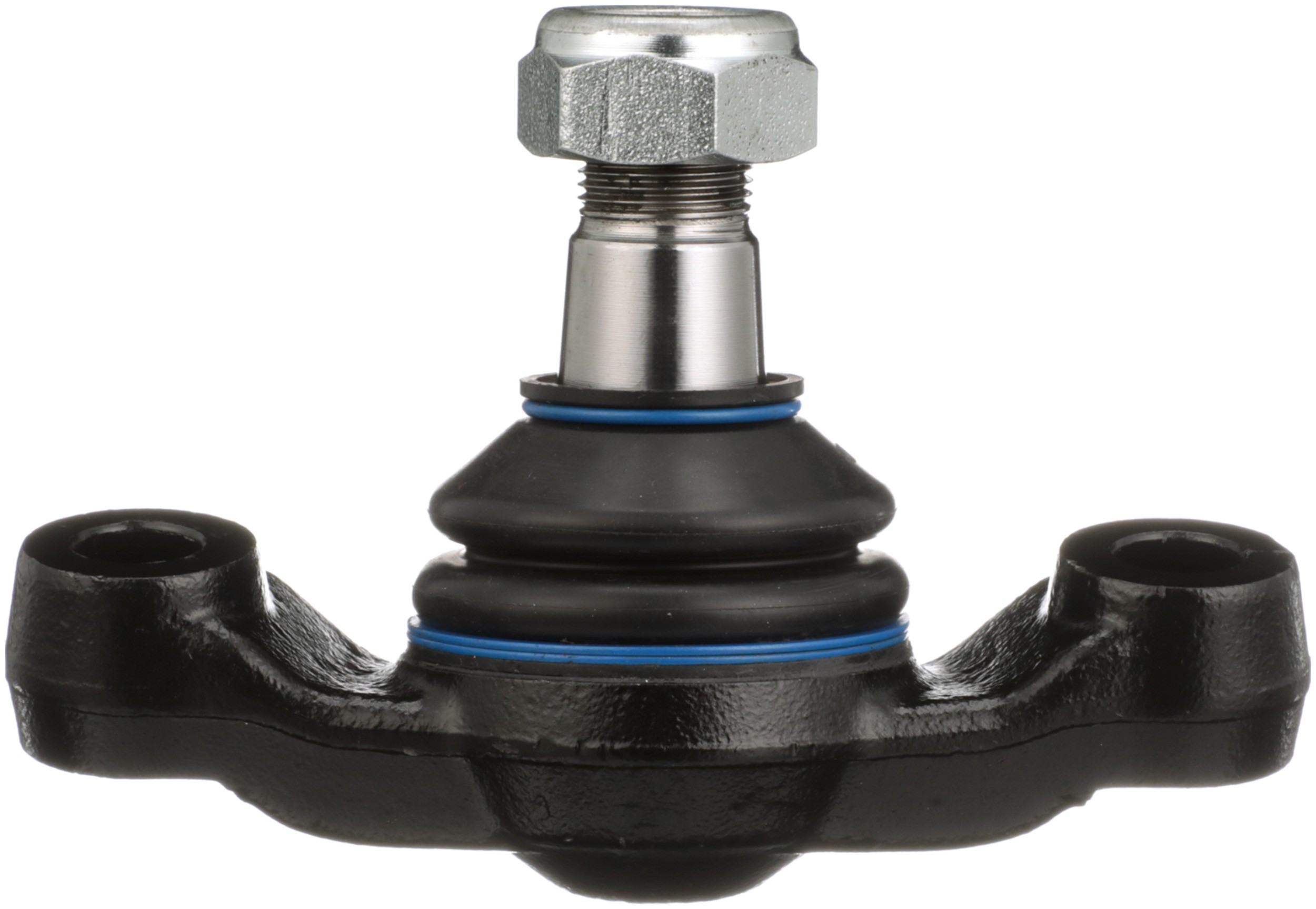

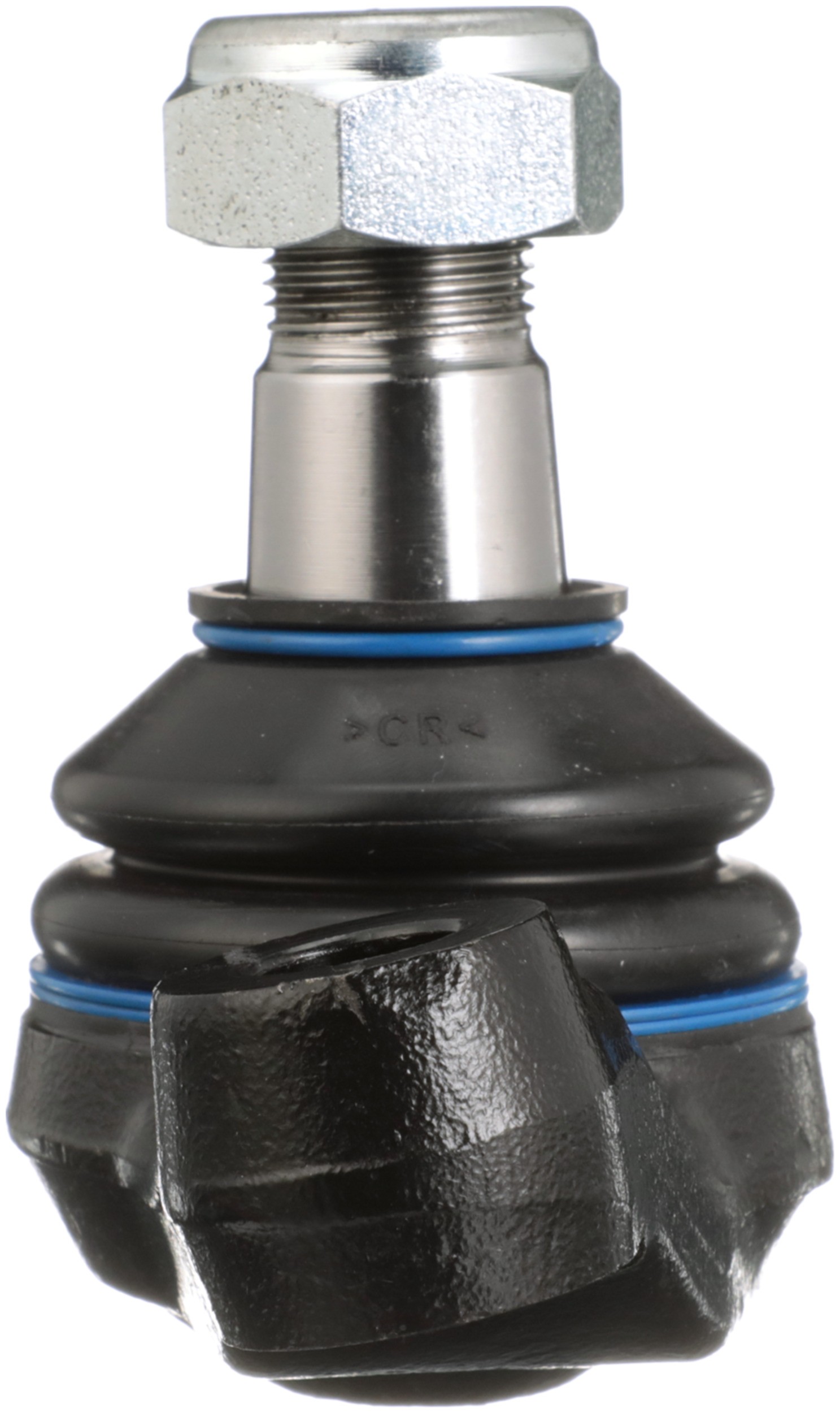

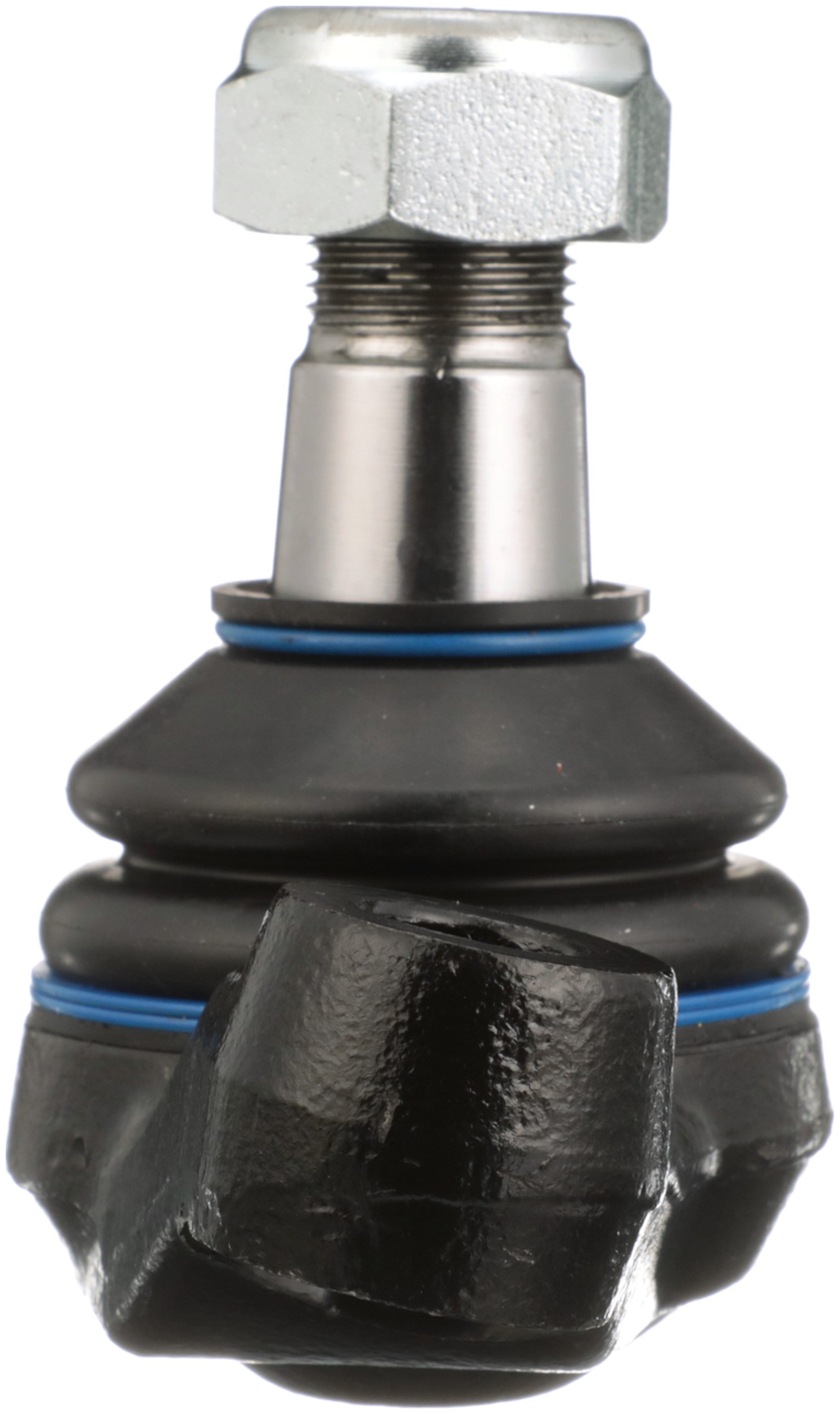

Delphi TC6489 Suspension Ball Joint

Delphi TC6489 Suspension Ball Joint

Features:

Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	105.00 MM
Height	4.134 IN
881	Threaded
9090	Rubber
Width	63 MM
Maximum Outside Diameter	63.00 MM
Maximum Outside Diameter	2.480 IN
2334	No
Adjustable	No
Greaseable	No
Position(s)	Front Lower
Mounting Type	Press-In
4966	1.142 IN
4966	29 MM
9212	0.854 IN
Washers Included	No
Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Gray
Material	Steel
Mounting Hole Quantity	0
9212	21.7 MM
9213	0.669 IN
9213	17 MM
9210	Yes
9209	No
2827	No
2381	Yes
