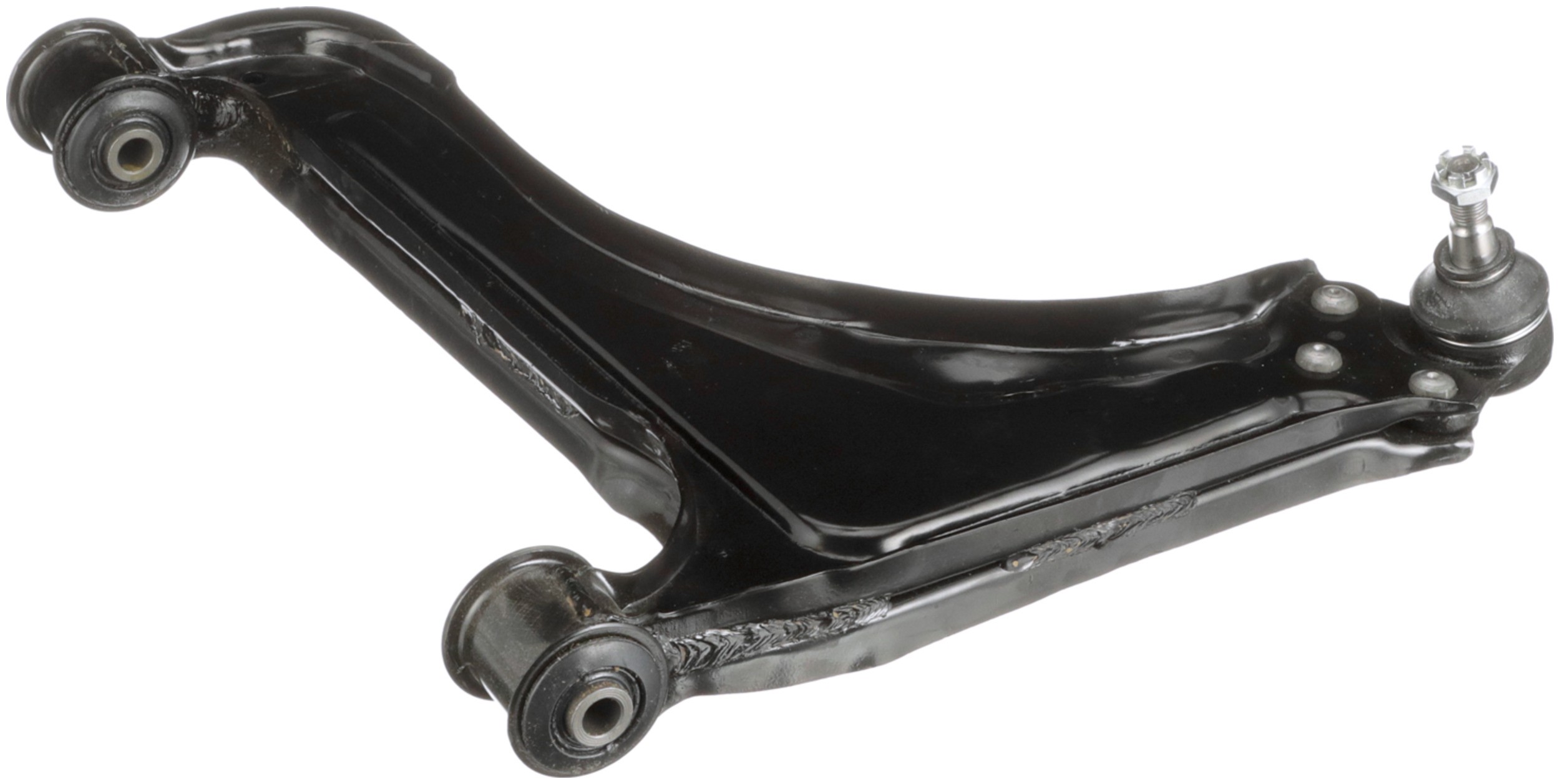

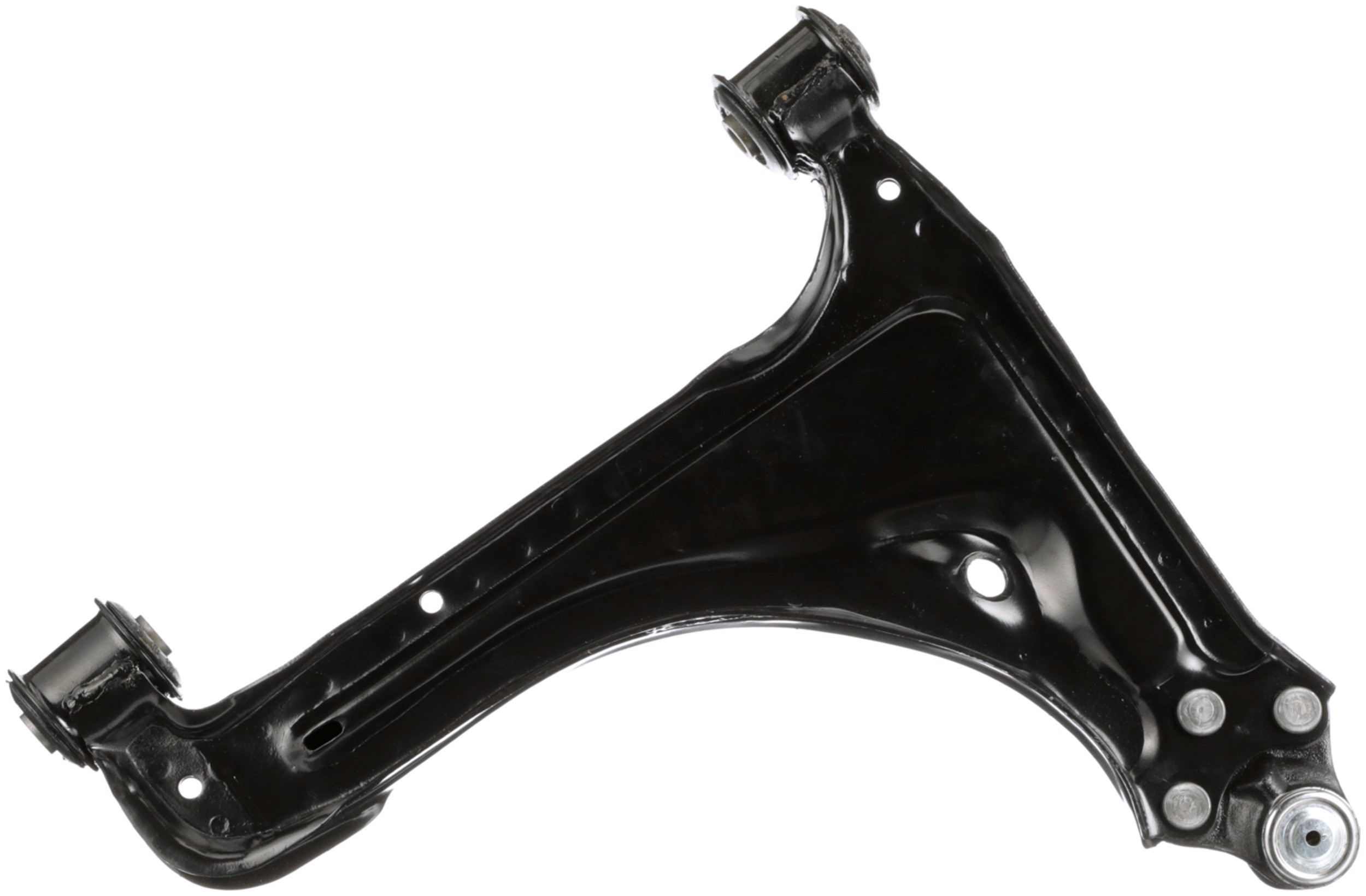

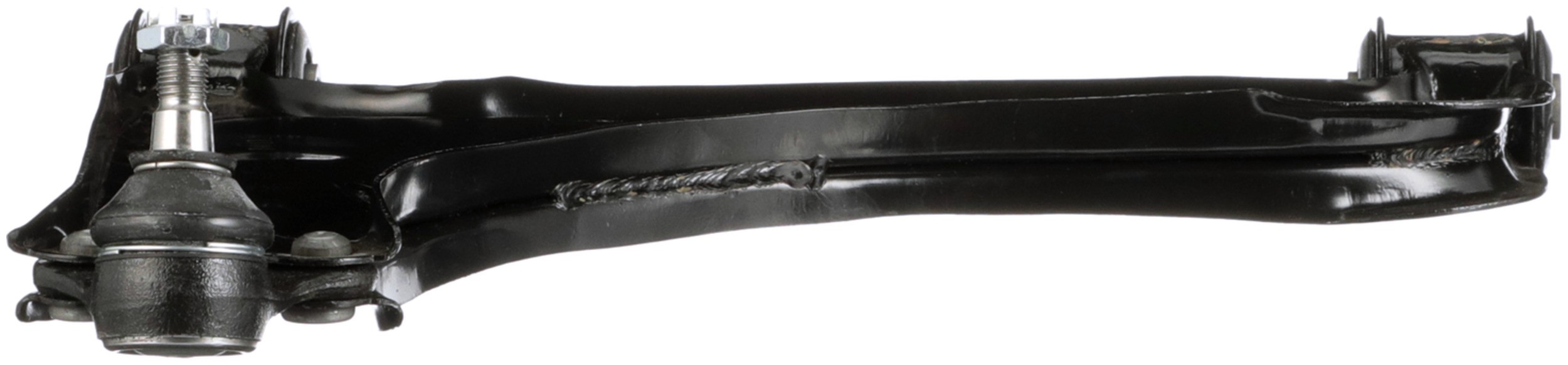

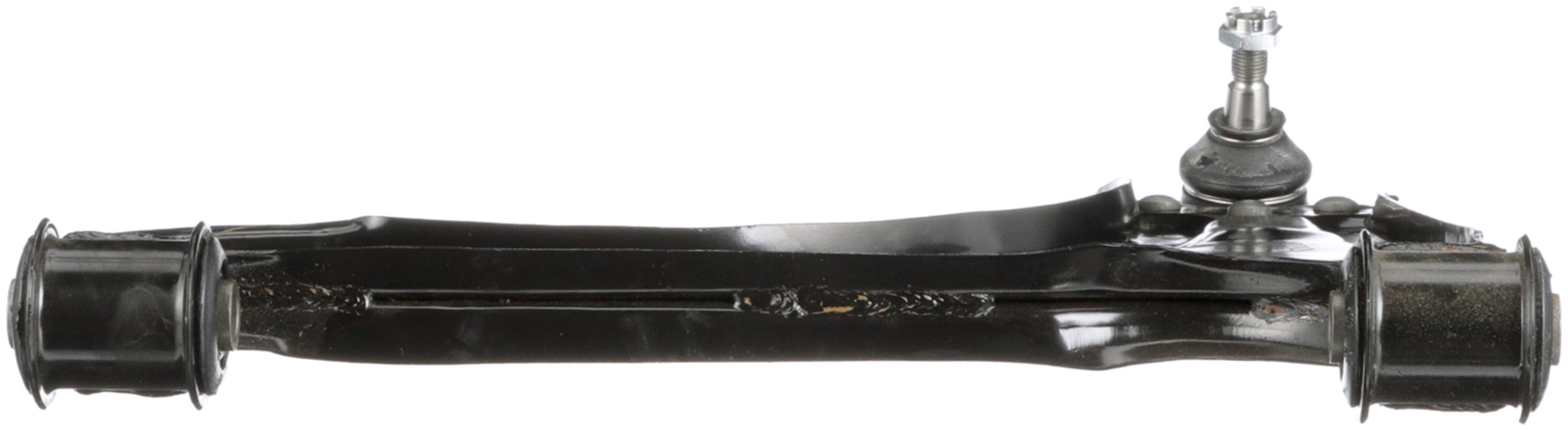

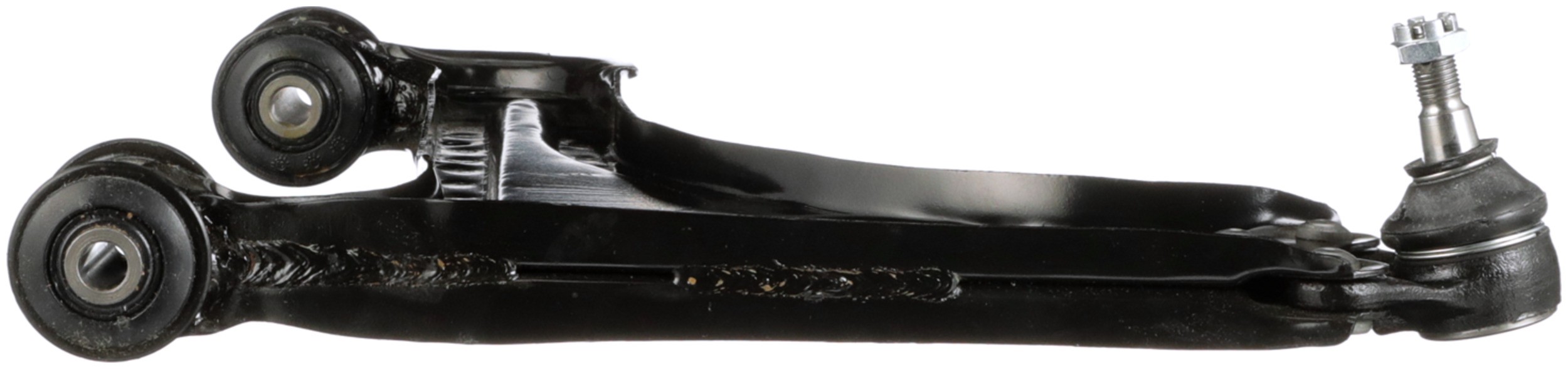

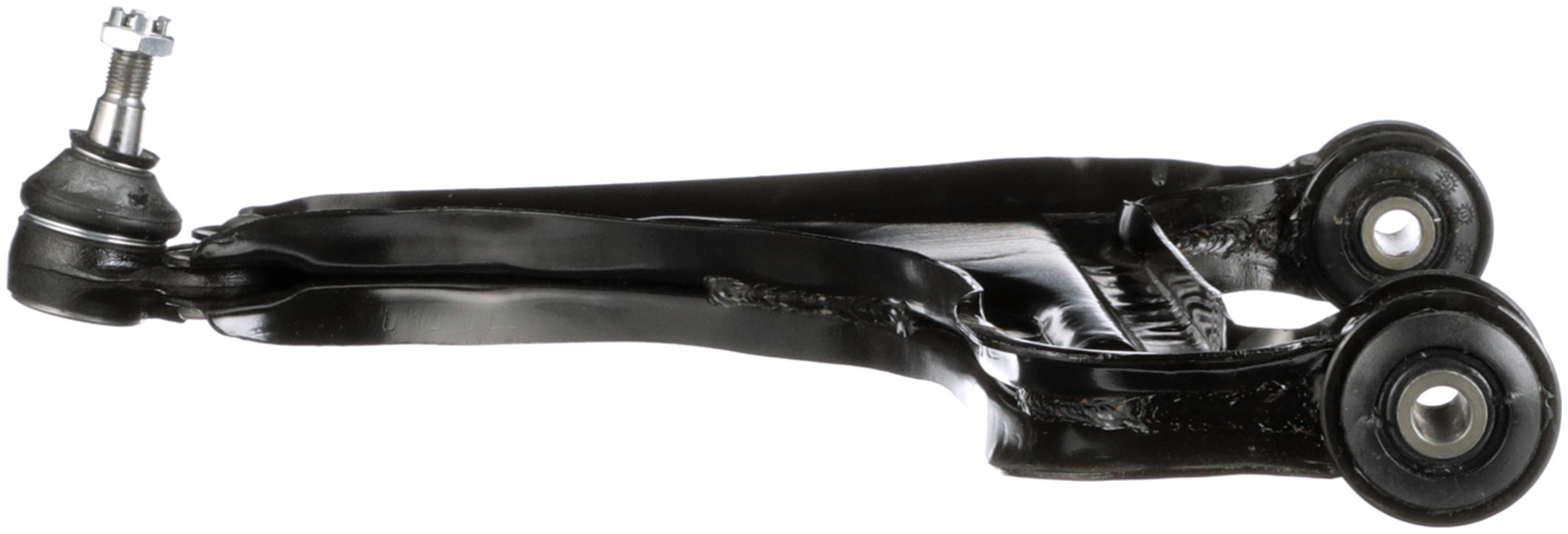

Delphi TC6666 Suspension Control Arm and Ball Joint Assembly

Delphi TC6666 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4241	Yes
2386	Stamped
2384	Yes
Position(s)	Front Left Lower
Finish	Black
Boot Colour	Black
Bushing Type	Rubber
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Grade Type	Premium
Mounting Hardware Included	Yes
4887	410.20 MM
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Greaseable	Yes
4887	16.150 IN
4890	36.70 MM
4890	1.445 IN
Thread Direction	Clockwise (Right)
Length	338.60 MM
Length	13.331 IN
9090	Chloroprene Rubber (CR)
6529	Power

Vehicle Applications:

Make	Model	Years
Buick	Skyhawk	1982 to 1989
Buick	Skylark	1987 to 1993
Buick	Somerset Regal	1985 to 1985
Buick	Somerset	1986 to 1987
Cadillac	Cimarron	1982 to 1988
Chevrolet	Beretta	1987 to 1993
Chevrolet	Cavalier	1982 to 1994
Chevrolet	Corsica	1987 to 1993
Oldsmobile	Achieva	1992 to 1993
Oldsmobile	Cutlass Calais	1988 to 1991
Oldsmobile	Firenza	1987 to 1988
Pontiac	Grand Am	1985 to 1993
Pontiac	Sunbird	1987 to 1994
