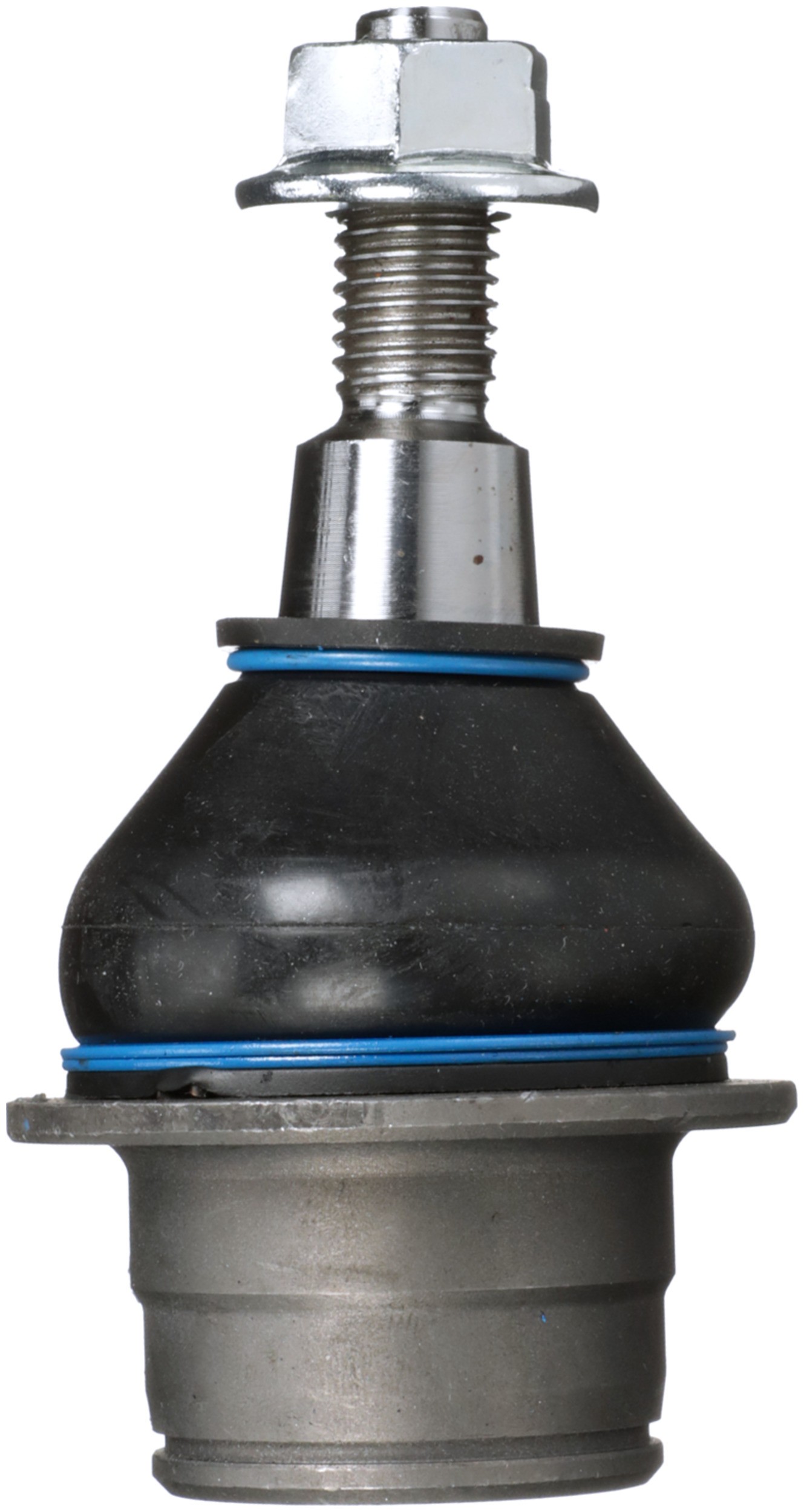

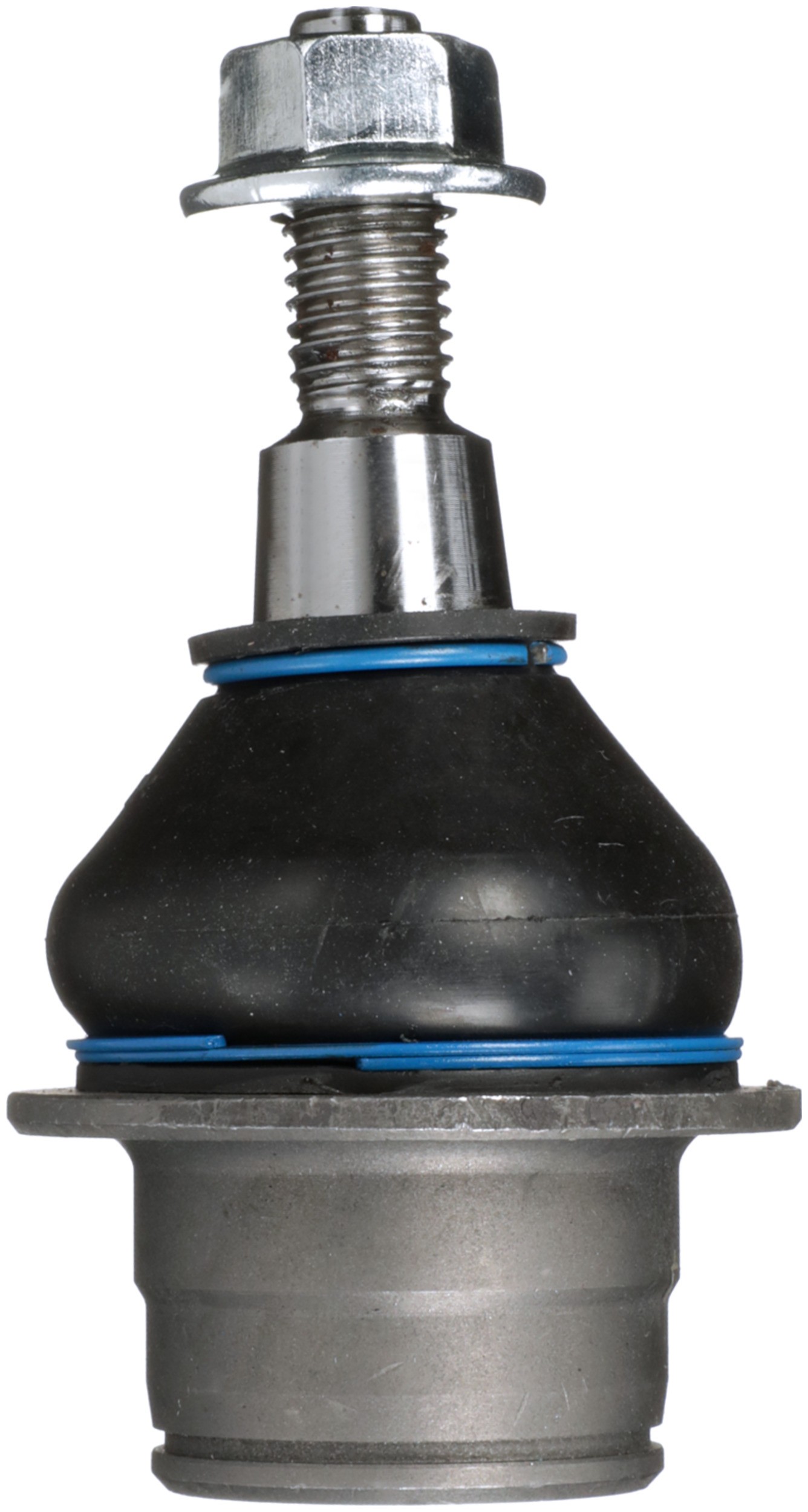

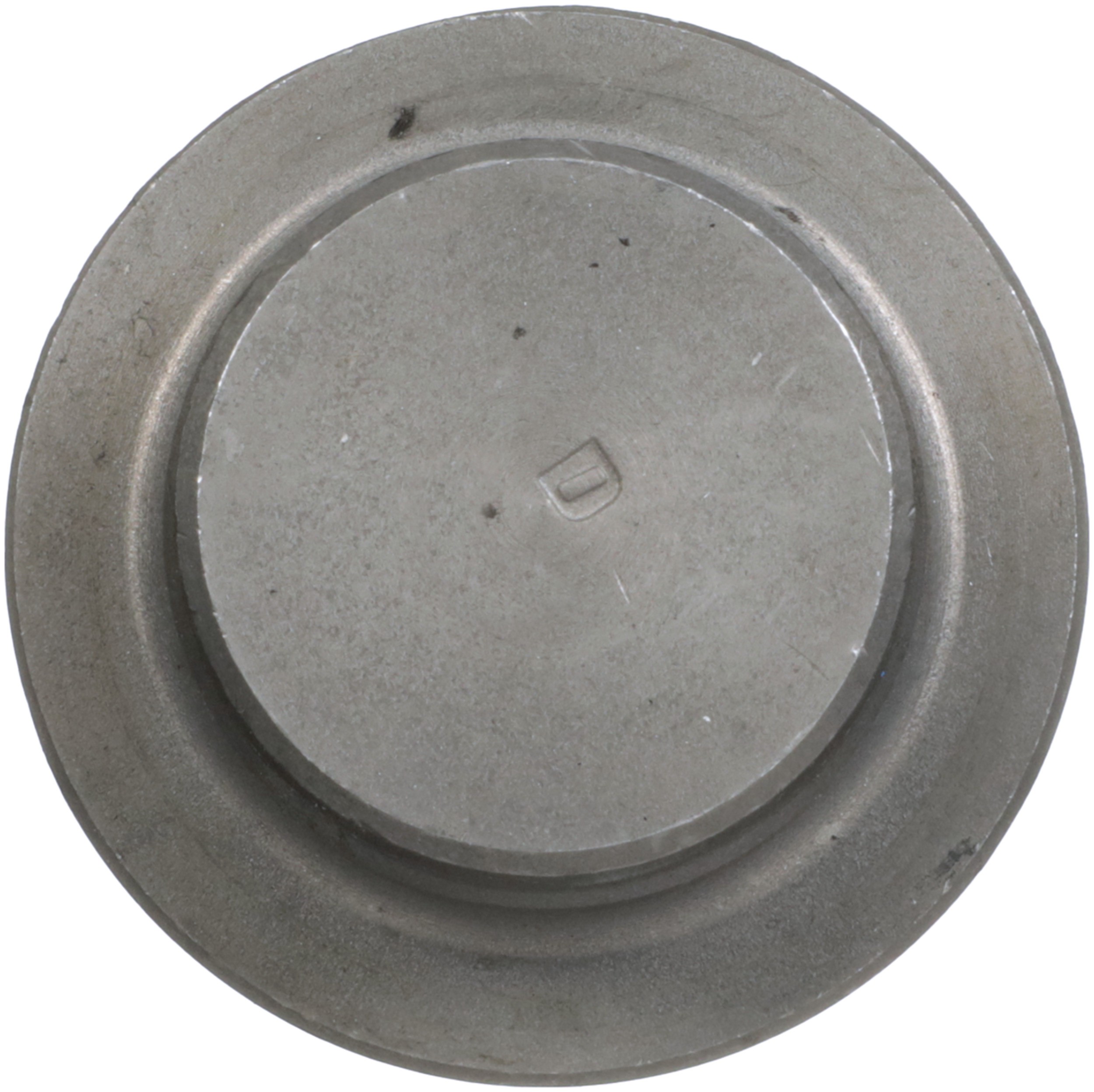

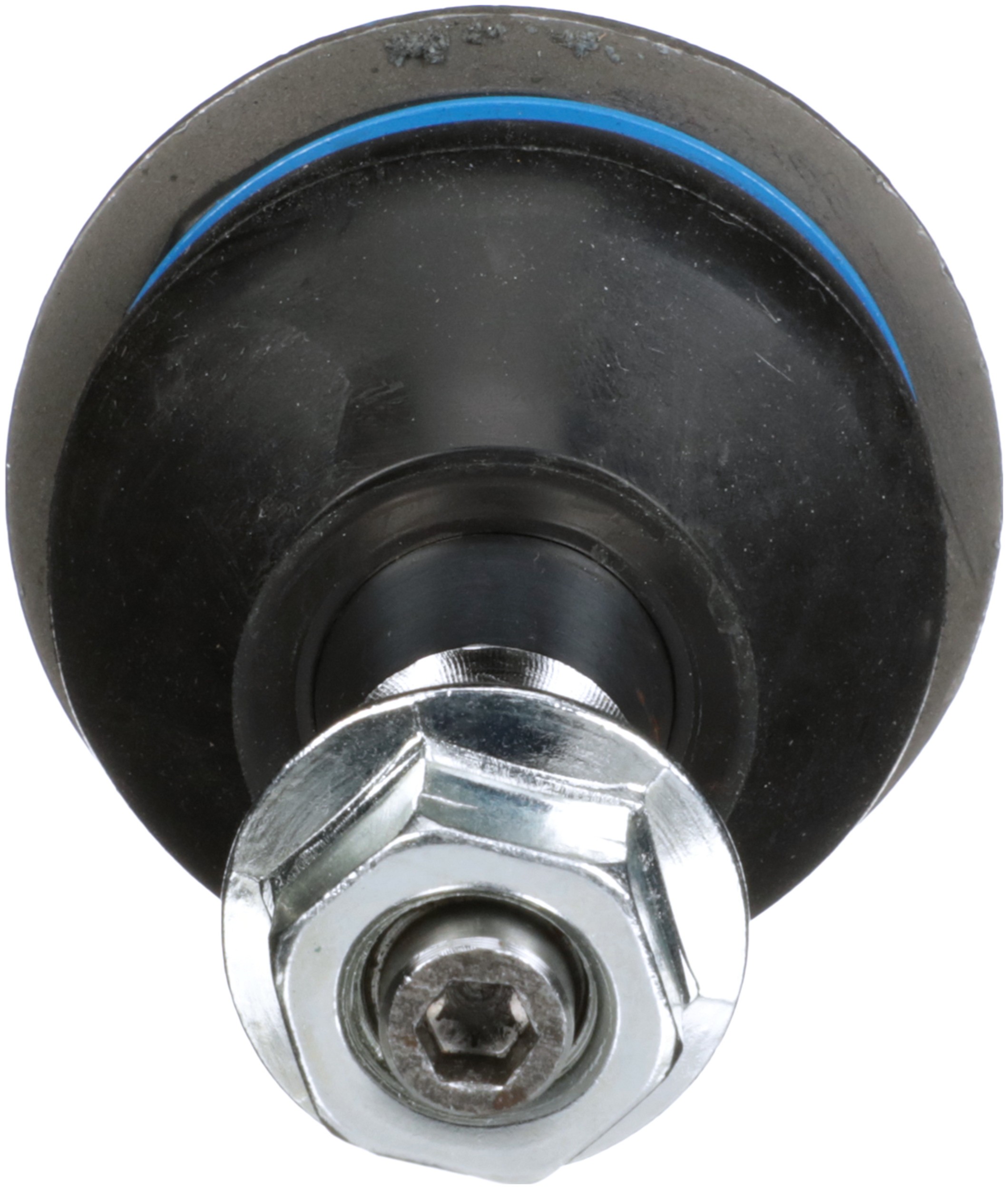

Delphi TC6724 Suspension Ball Joint

Delphi TC6724 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Front Lower
Grease Fitting Included	No
Color	Gray
Material	Steel
Height	118.01 MM
Height	4.646 IN
Width	65 MM
Length	4.650 IN
Length	118.00 MM
Maximum Outside Diameter	65.00 MM
Maximum Outside Diameter	2.559 IN
Cotter Pin Hole	No
9211	0.167 IN
9212	0.756 IN
9212	19.2 MM
Mounting Hardware Included	Yes
Washers Included	No
Adjustable	No
Greaseable	No
Bushings Included	No
Mounting Type	Press-In
Suspension Grade Type	Standard Replacement
Dust Boot Included	Yes
9210	Yes
3068	0.984 IN
3068	25.00 MM
4966	1.142 IN
4966	29.01 MM
9202	8.00 MM
9202	0.310 IN
9203	0.571 IN
9203	14.50 MM
9207	23.00 MM
9213	23.9 MM
9213	0.941 IN
9207	0.910 IN
9209	No
9204	Yes
9090	Rubber
881	Threaded
839	13mm
2827	No
2381	Yes
2334	No
