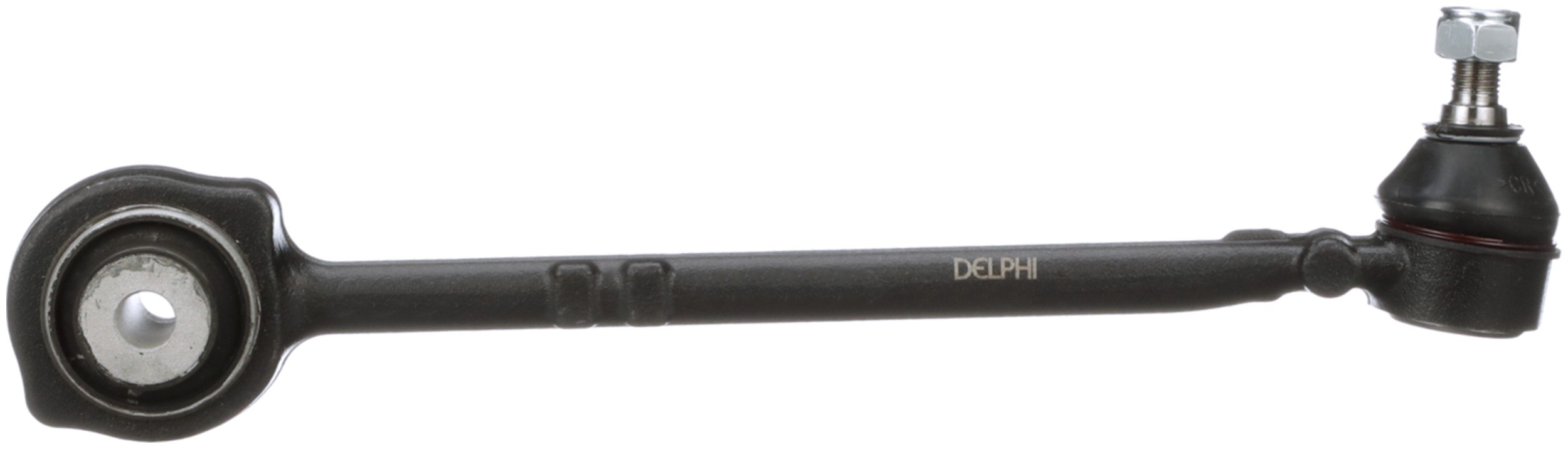

Delphi TC6753 Suspension Control Arm and Ball Joint Assembly

Delphi TC6753 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	1
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Length	416.00 MM
Bearing Material	Plastic
4887	60.00 MM
4890	2.992 IN
4887	2.362 IN
4890	76.00 MM
Mounting Hole Diameter	14.70 MM
Mounting Hole Diameter	0.579 IN
Position(s)	Front Lower Rearward
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Length	16.378 IN
Bushing Type	Rubber
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	CLS400	2015 to 2017
Mercedes-Benz	CLS550	2012 to 2018
Mercedes-Benz	E250	2014 to 2016
Mercedes-Benz	E350	2010 to 2016
Mercedes-Benz	E400	2015 to 2016
Mercedes-Benz	E550	2010 to 2014
