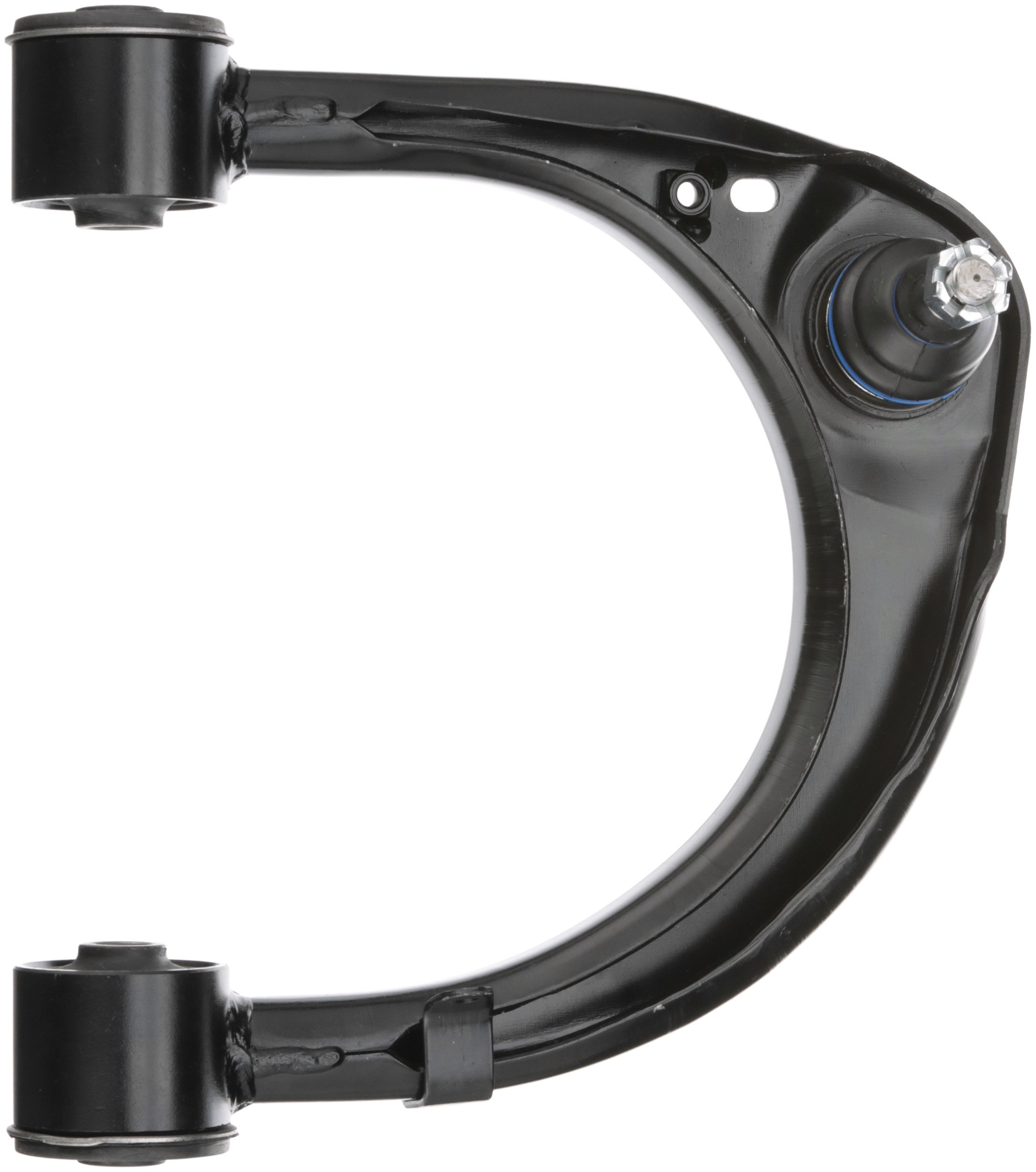

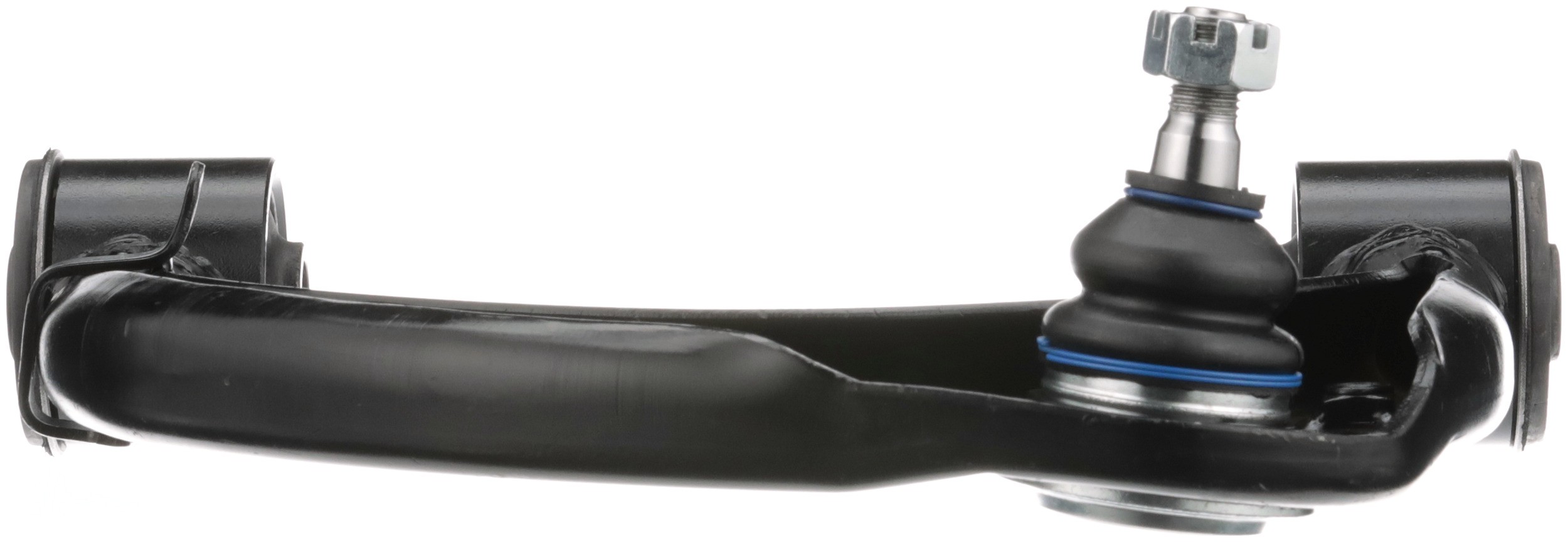

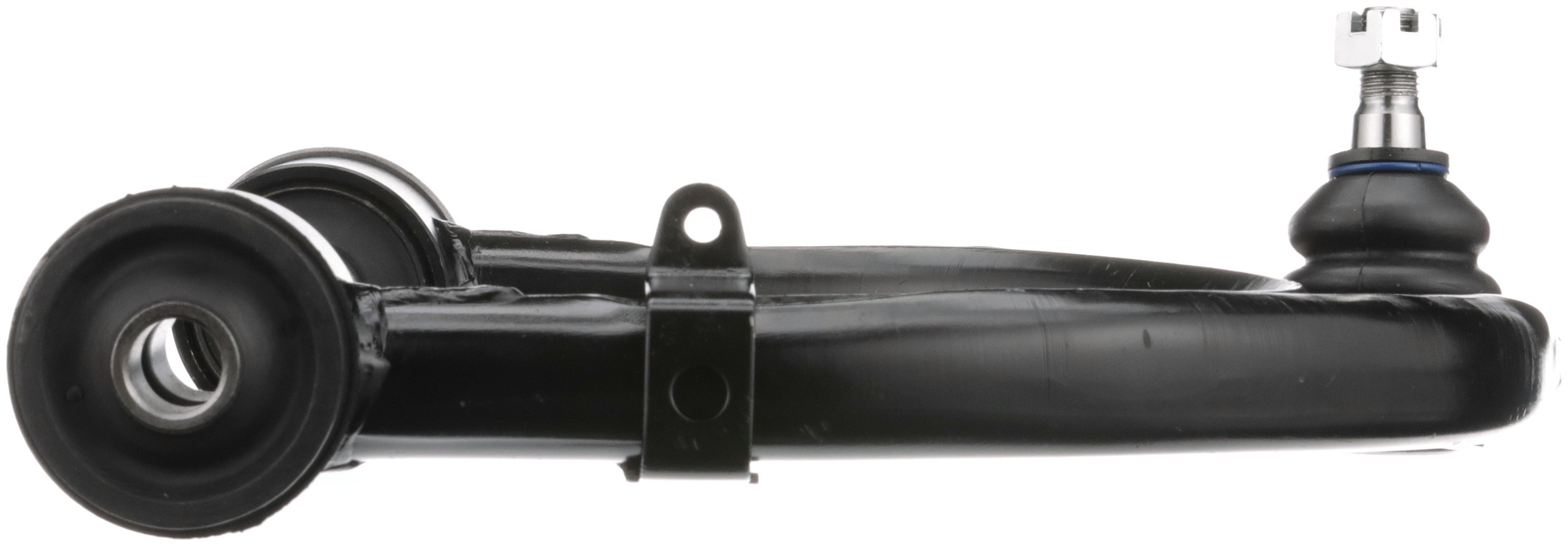

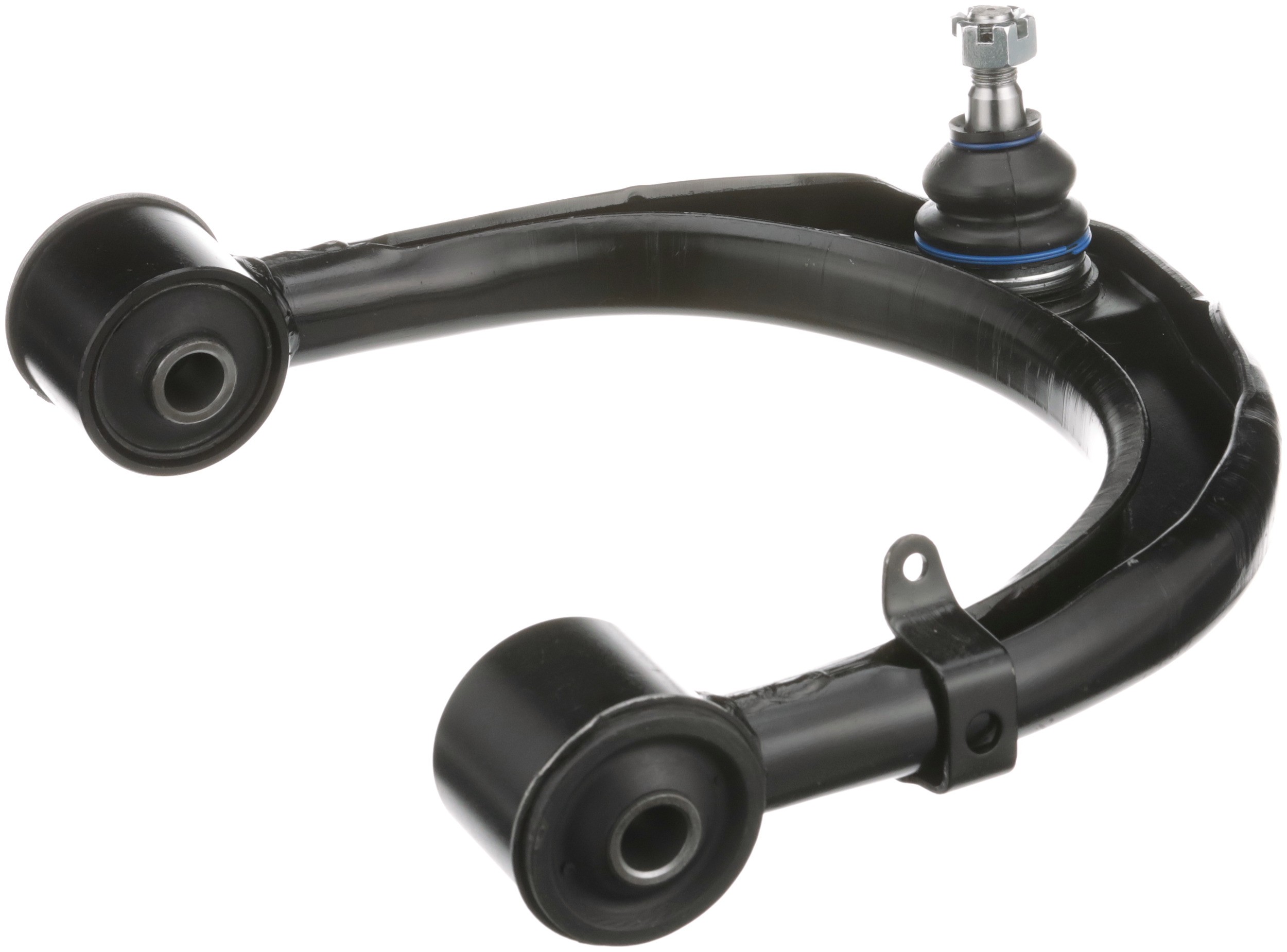

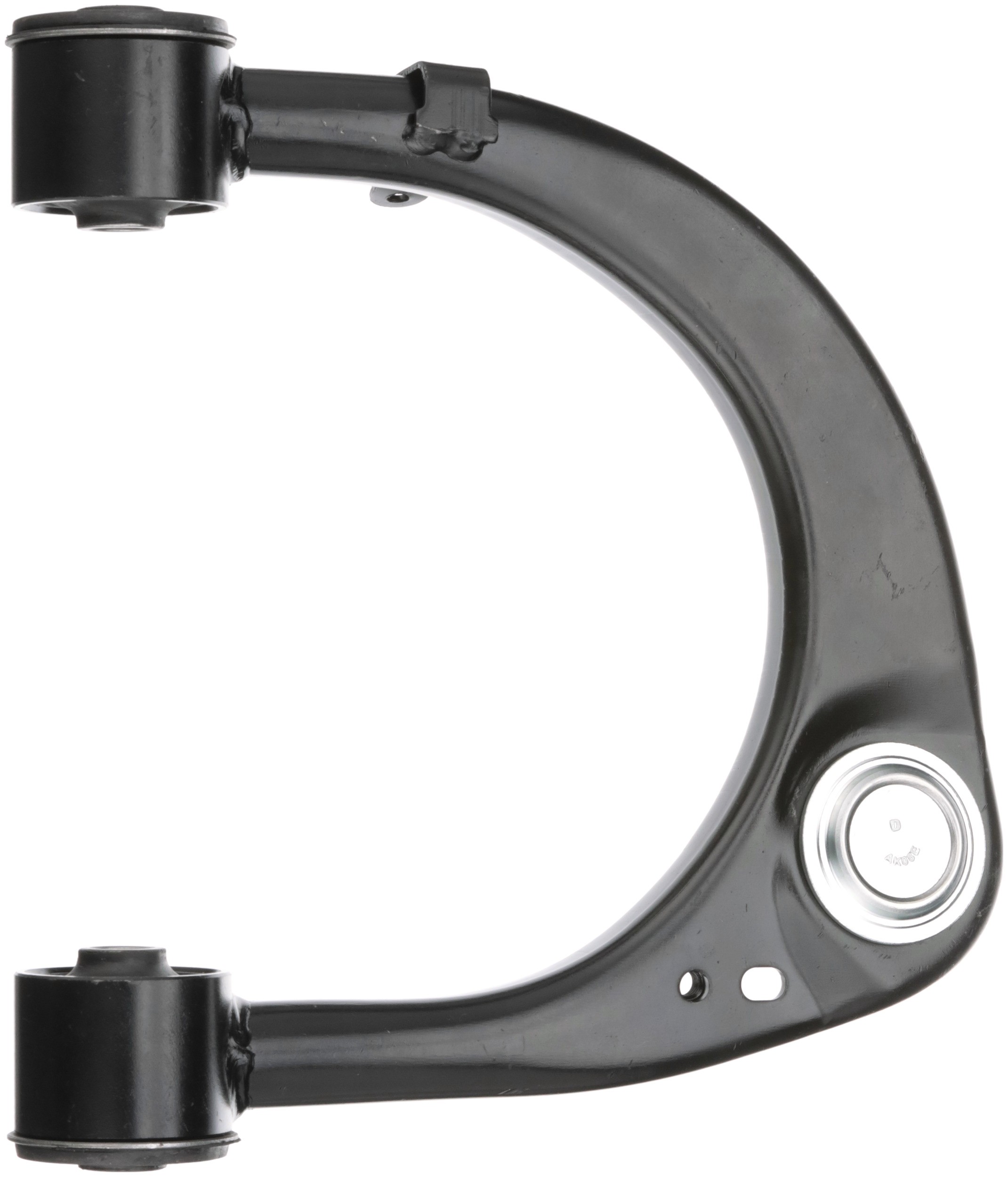

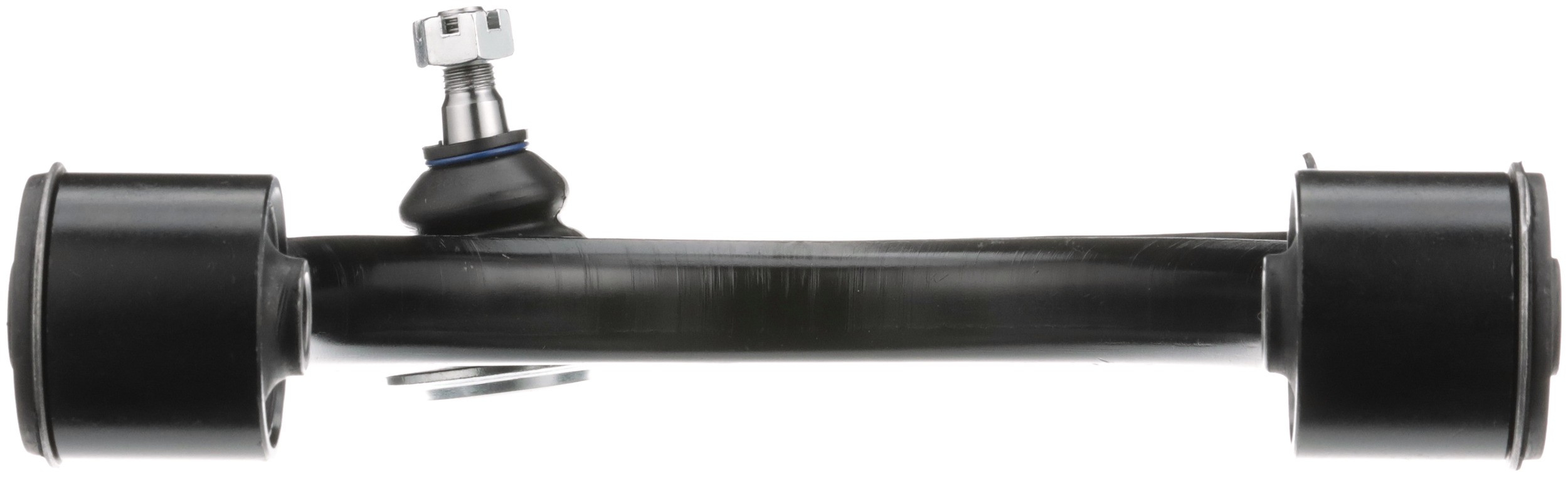

Delphi TC6860 Suspension Control Arm and Ball Joint Assembly

Delphi TC6860 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4887	12.008 IN
6529	Power
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
4241	Yes
2386	Stamped
2384	Yes
9532	7.835 IN
9532	199.00 MM
Dust Boot Included	Yes
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
4890	3.406 IN
4890	86.50 MM
4887	305.00 MM
Length	323.00 MM
Length	12.717 IN
Mounting Hole Diameter	17.20 MM
Mounting Hole Diameter	0.677 IN
Bushing Inside Diameter	17.20 MM
Bushing Inside Diameter	0.677 IN
Bushing Length	62.00 MM
Bushing Length	2.441 IN
Position(s)	Front Right Upper
9090	Chloroprene Rubber (CR)
