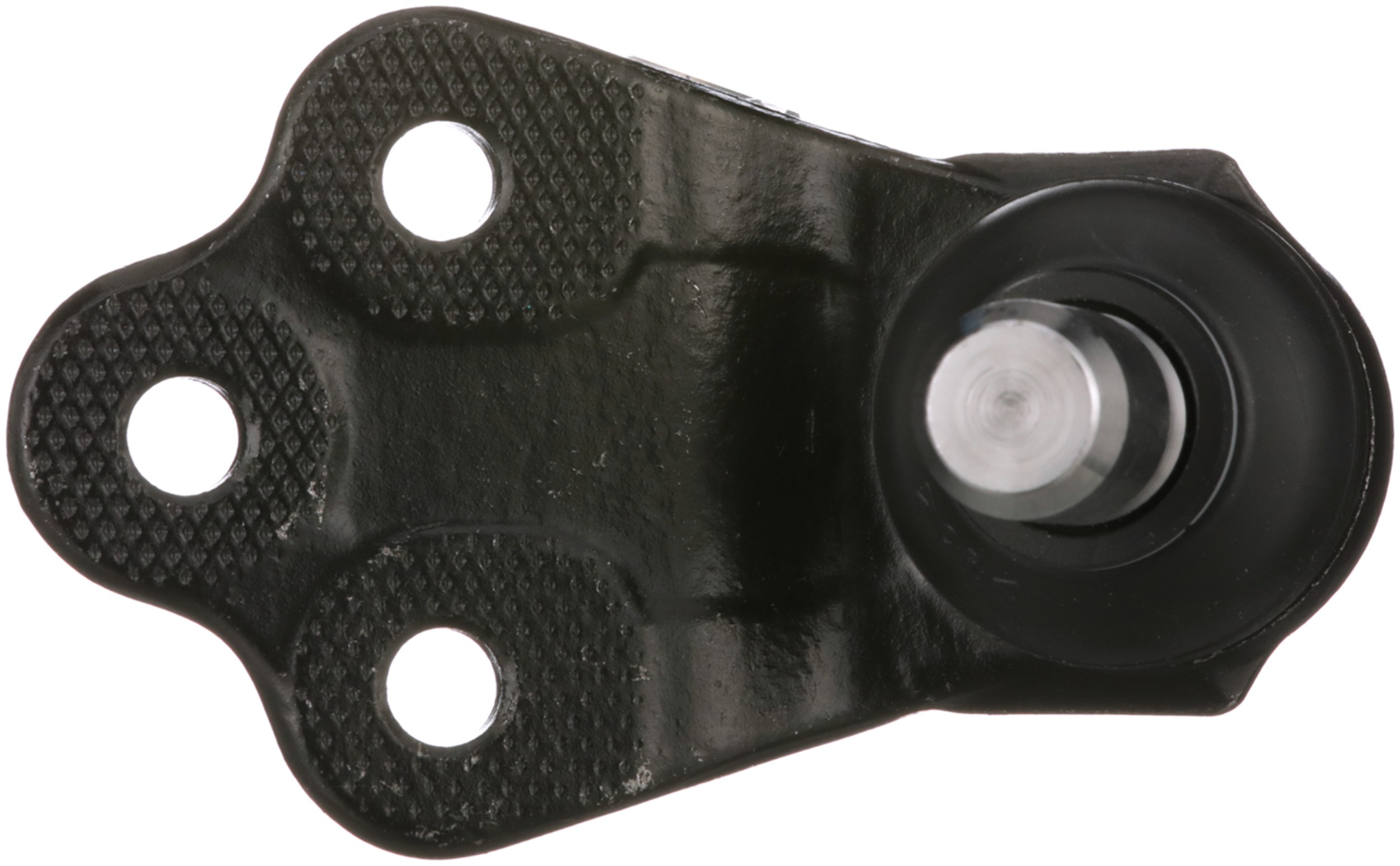

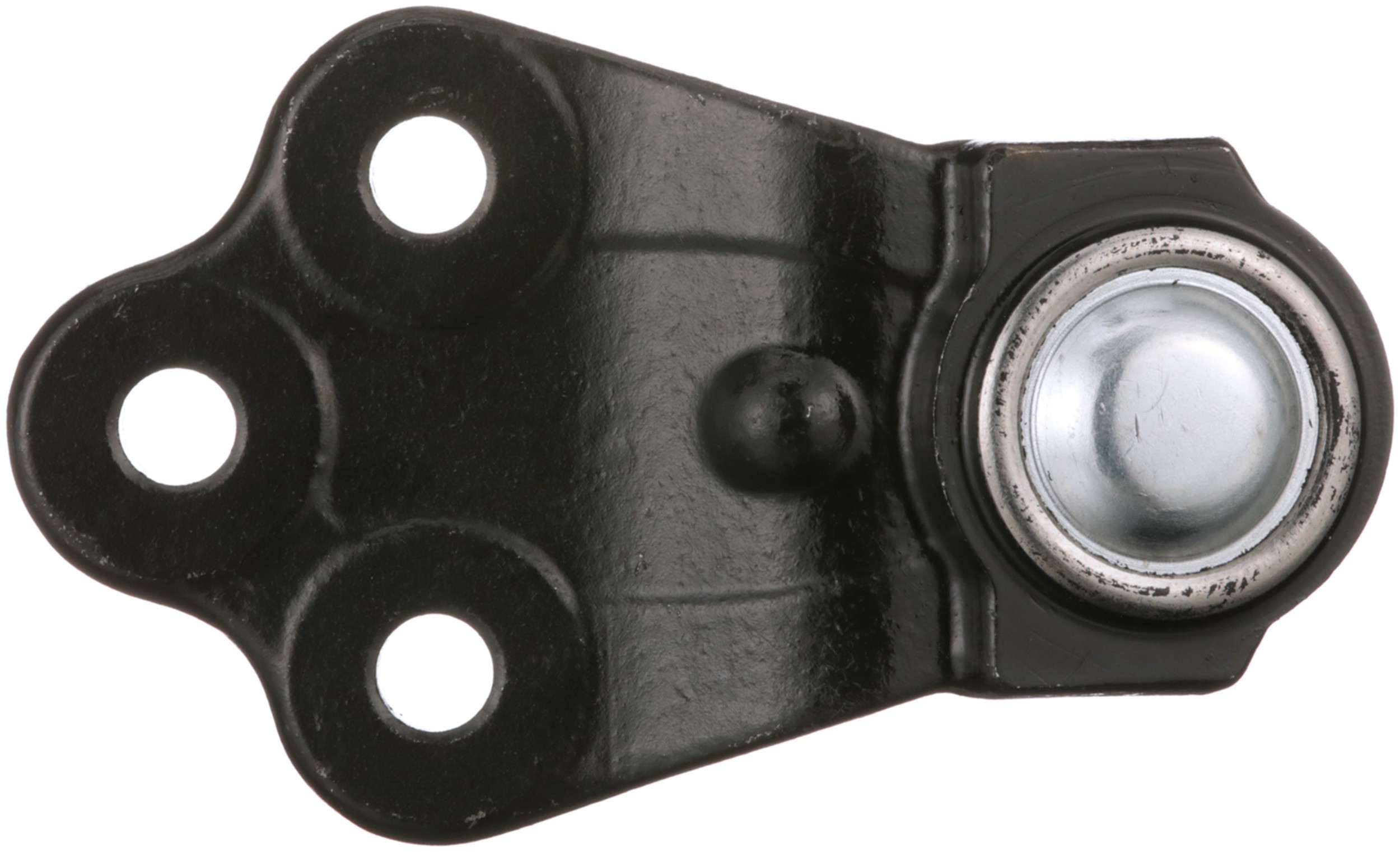

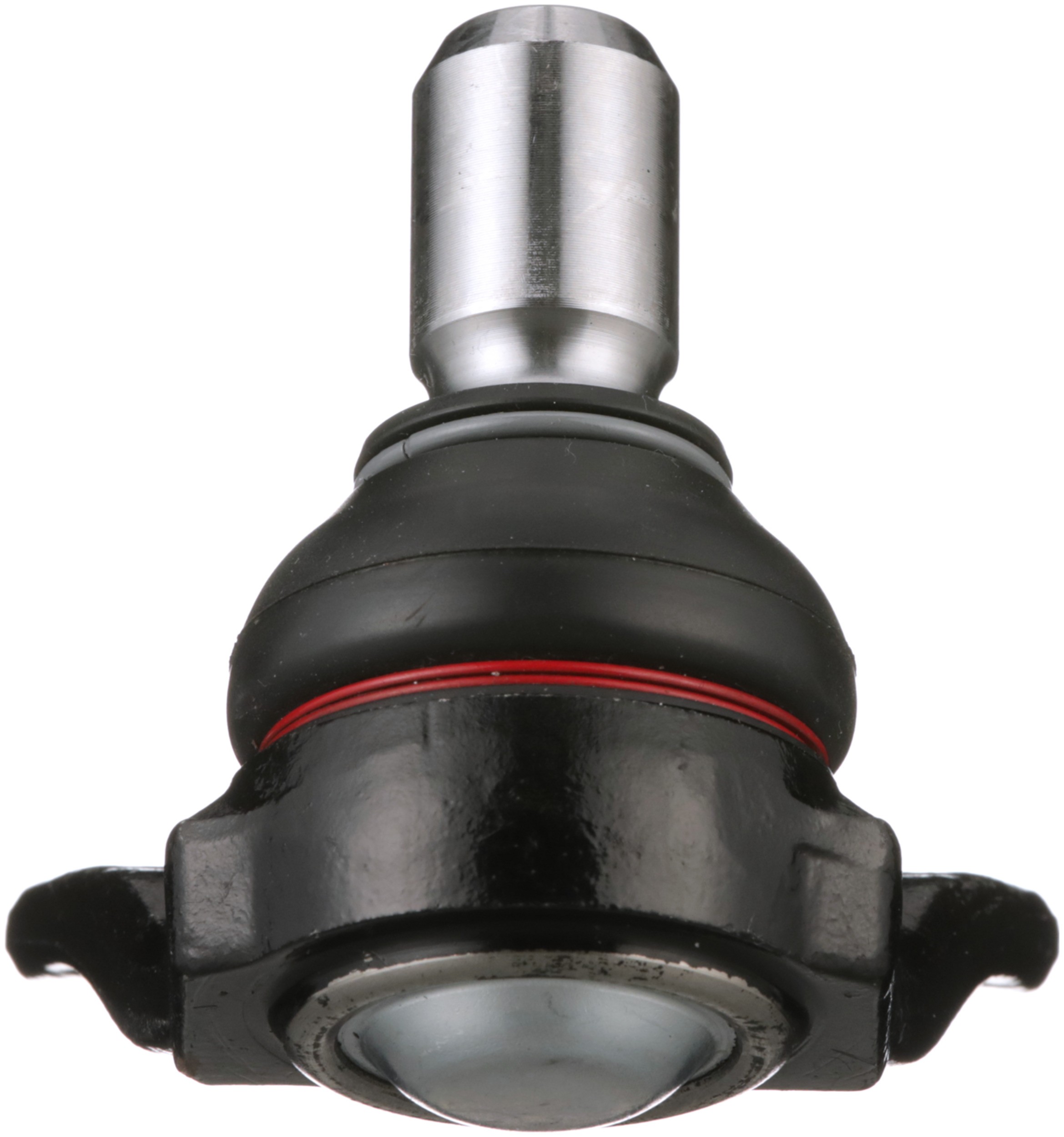

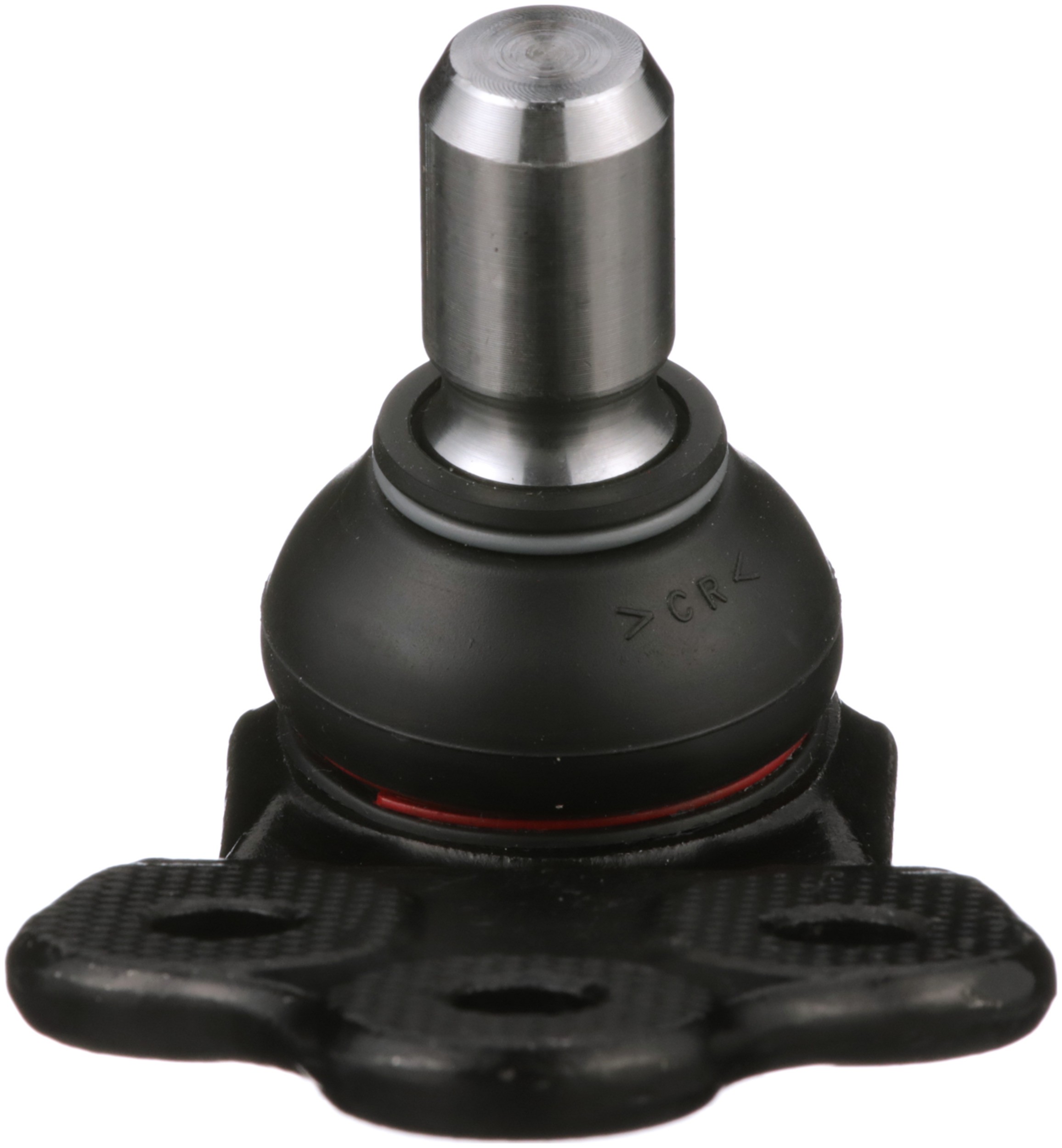

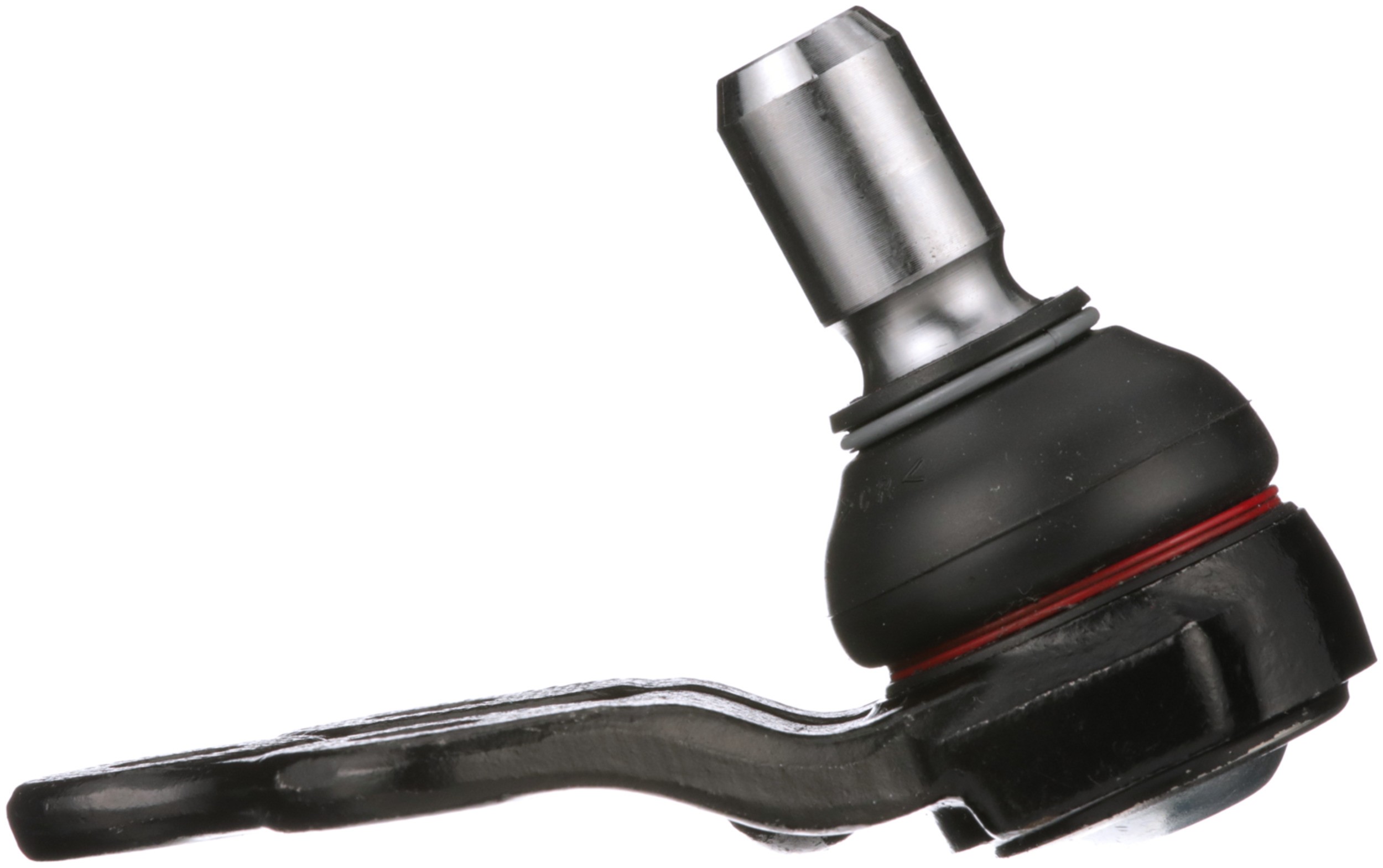

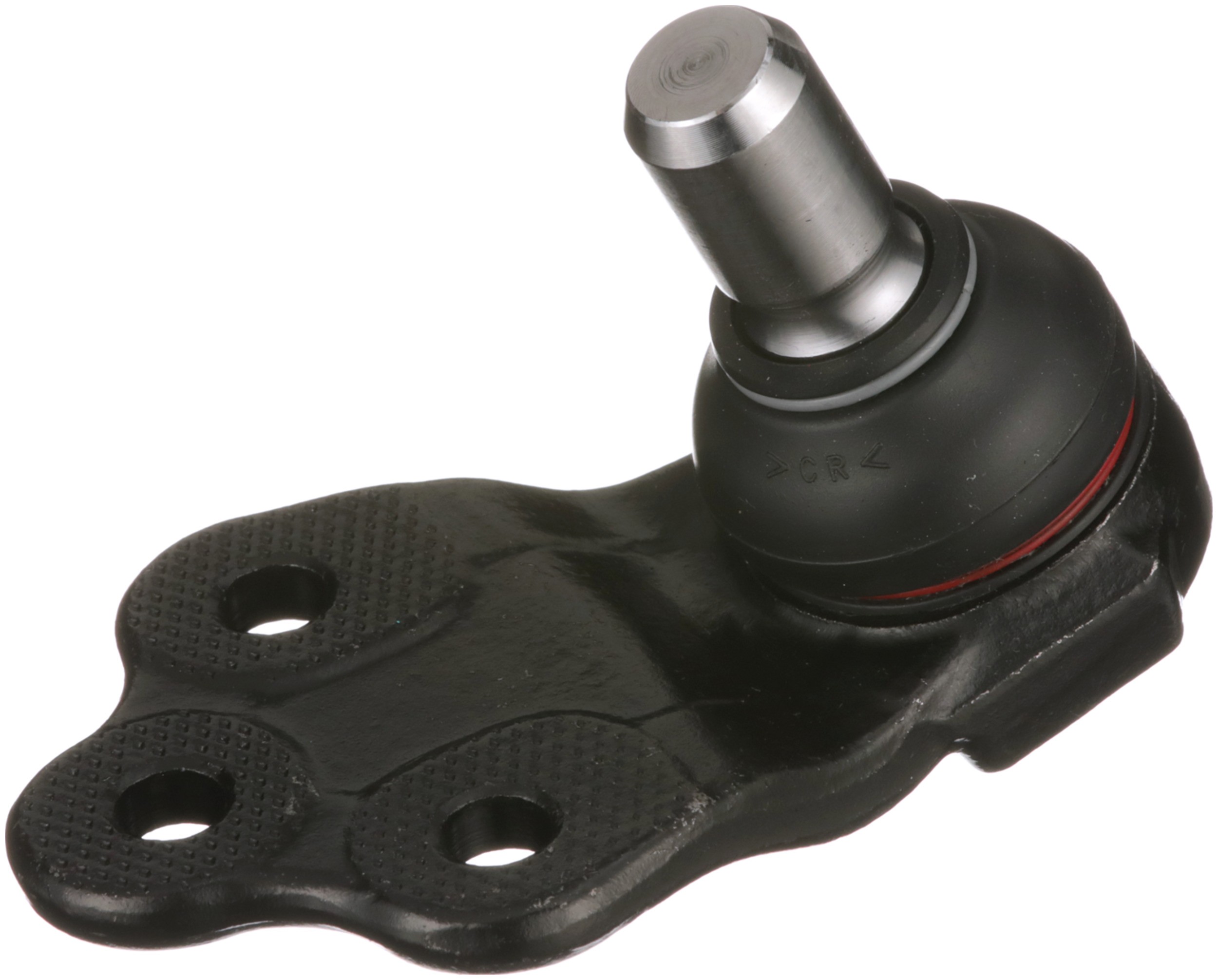

Delphi TC6864 Suspension Ball Joint

Delphi TC6864 Suspension Ball Joint

Features:

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
2827	No
2334	No
Position(s)	Front Lower
2381	Yes
9213	0.62 IN
9213	15.90 MM
9212	0.74 IN
9212	19.00 MM
9207	1.18 IN
9058	45.00 MM
9202	10.00 MM
3068	39.00 MM
9207	30.00 MM
3068	1.53 IN
Mounting Hole Diameter	0.39 IN
Mounting Hole Diameter	10.10 MM
Height	3.29 IN
Height	83.60 MM
Outside Diameter	1.73 IN
Outside Diameter	44.00 MM
Width	3.05 IN
Width	77.50 MM
Length	4.89 IN
Length	124.30 MM
Maximum Outside Diameter	1.73 IN
Maximum Outside Diameter	44.00 MM
4966	28.00 MM
4966	1.10 IN
9058	1.77 IN
9202	0.39 IN
9203	22.30 MM
9203	0.87 IN
Mounting Type	Bolt-In
Boot Colour	Black
Bearing Type	Plastic
Type	Grooved
Pre-greased	Yes
Suspension Grade Type	Standard Replacement
Greaseable	No
Adjustable	No
Mounting Hole Quantity	3
Washers Included	No

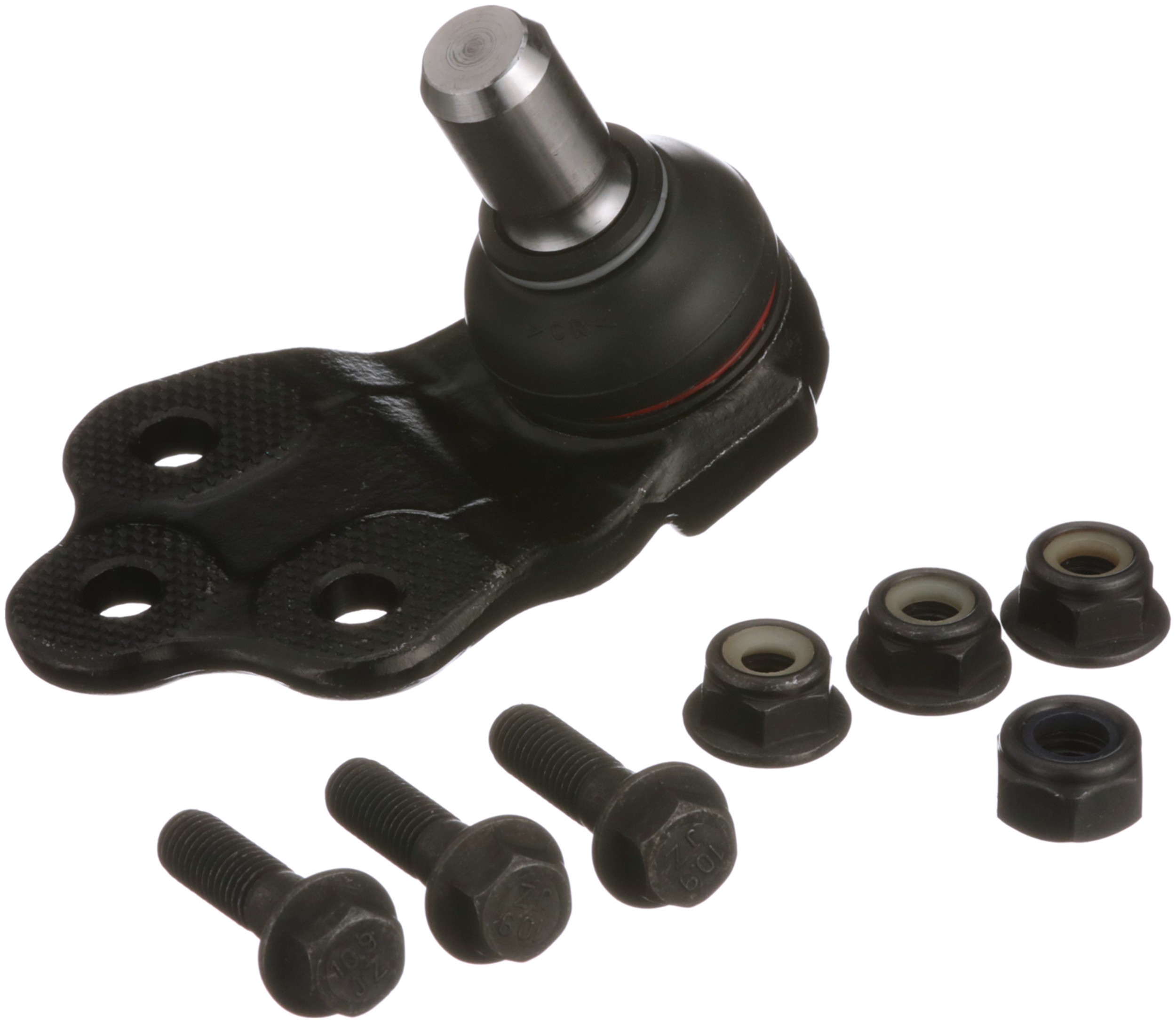

Mounting Hardware Included	Yes
Cotter Pin Hole	No
Dust Boot Included	Yes
Bushings Included	No
Grease Fitting Included	No
Color	Black
Material	Steel
9906	Yes
881	Grooved
9210	No
9209	No
9204	Yes
839	17mm
