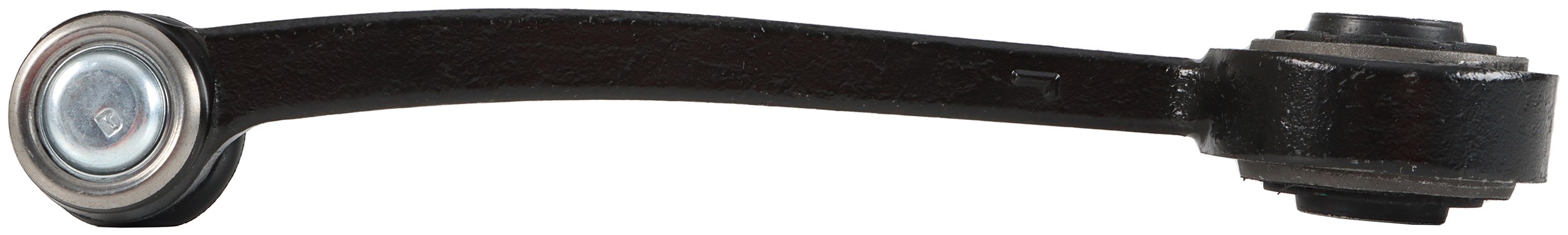

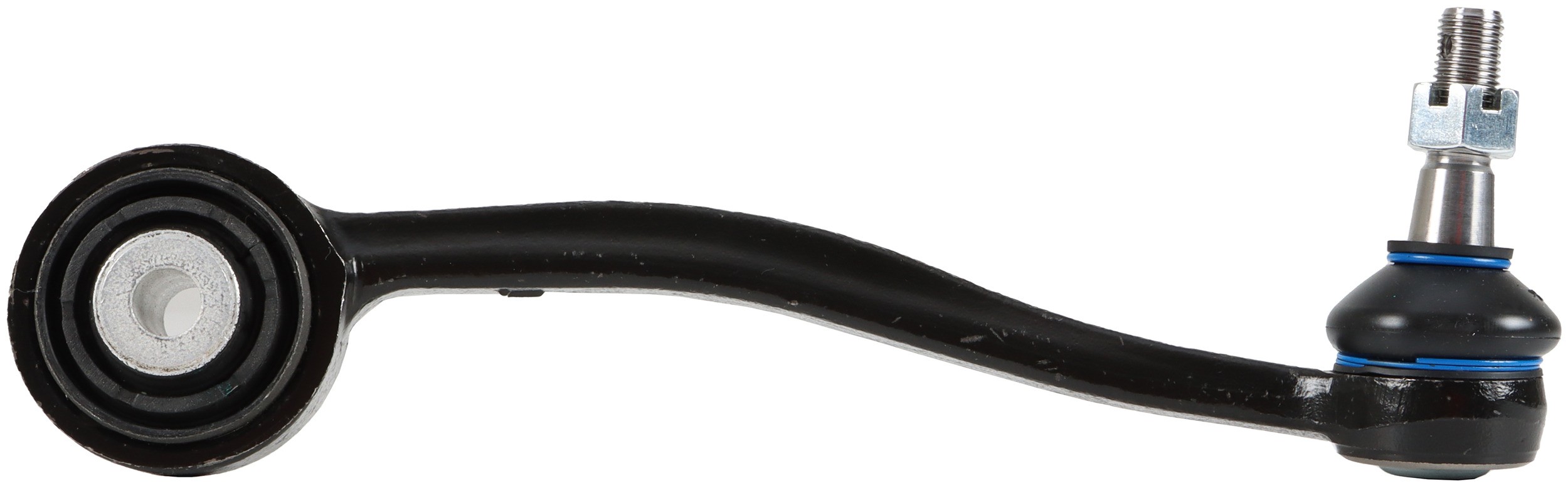

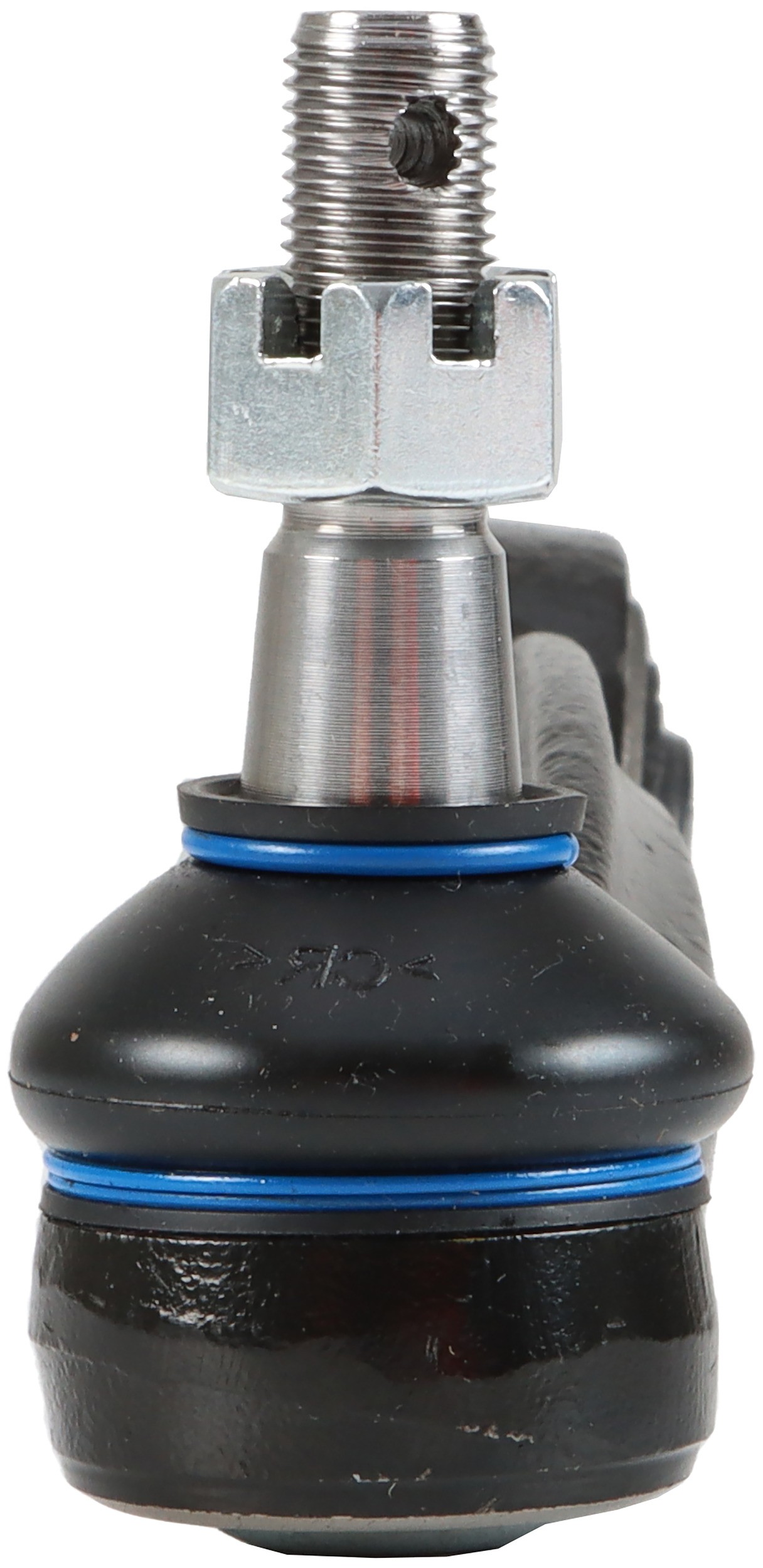

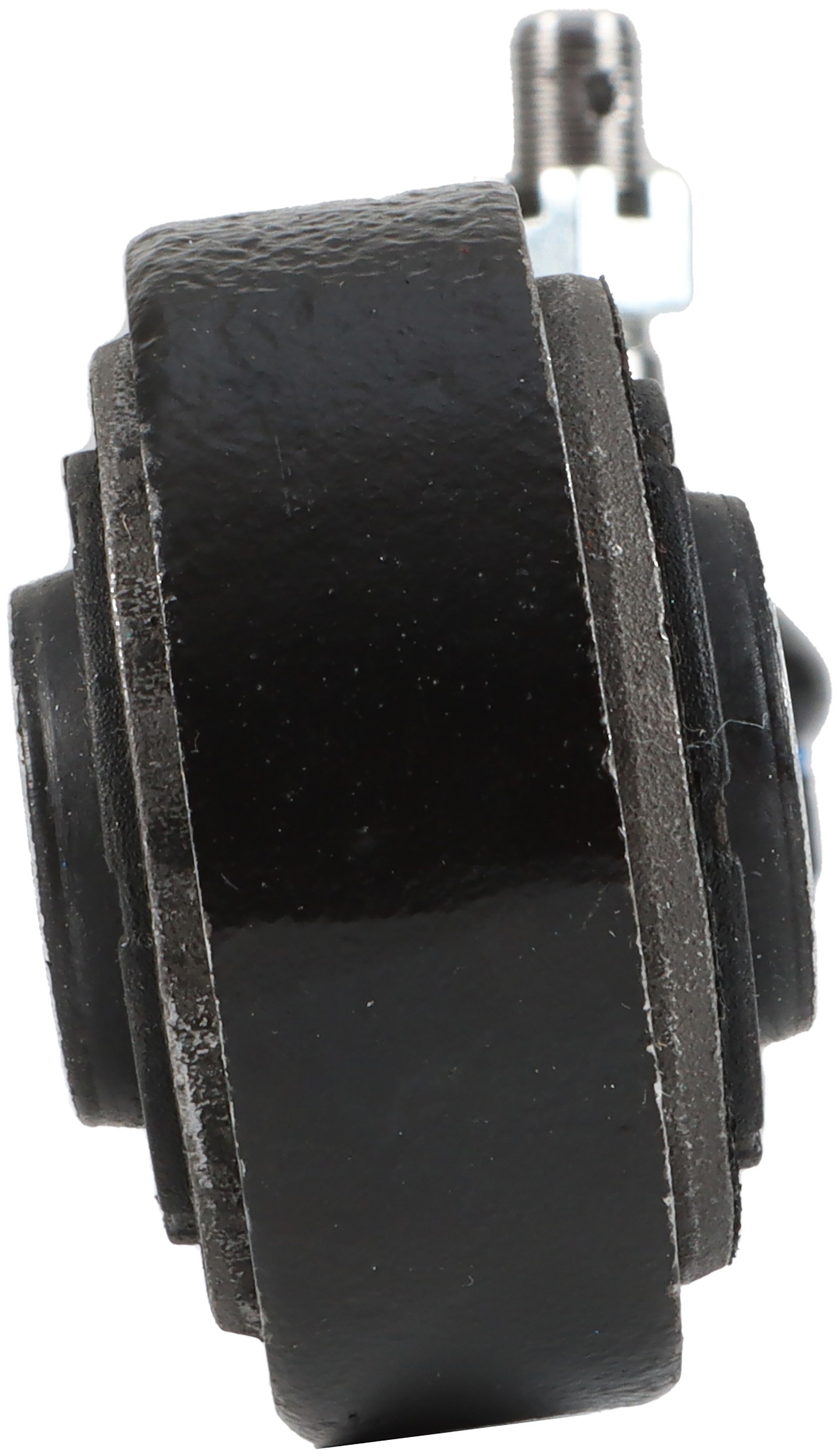

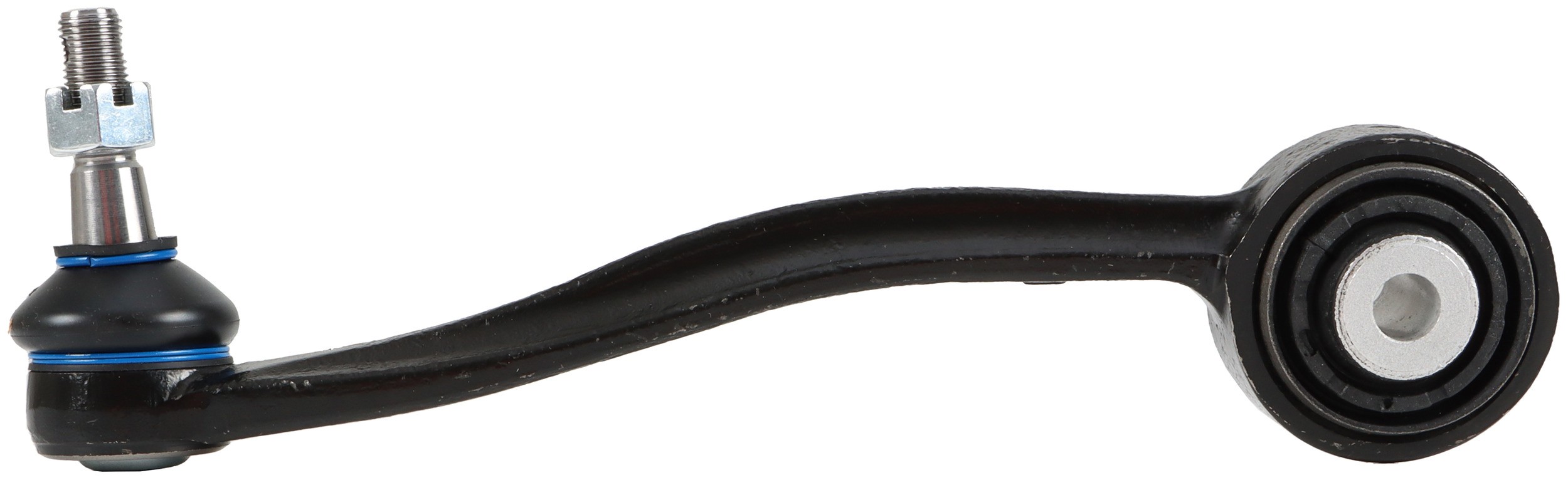

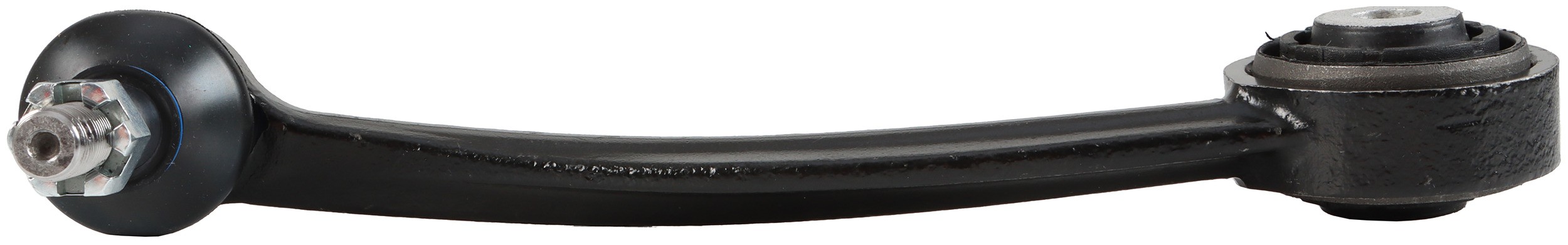

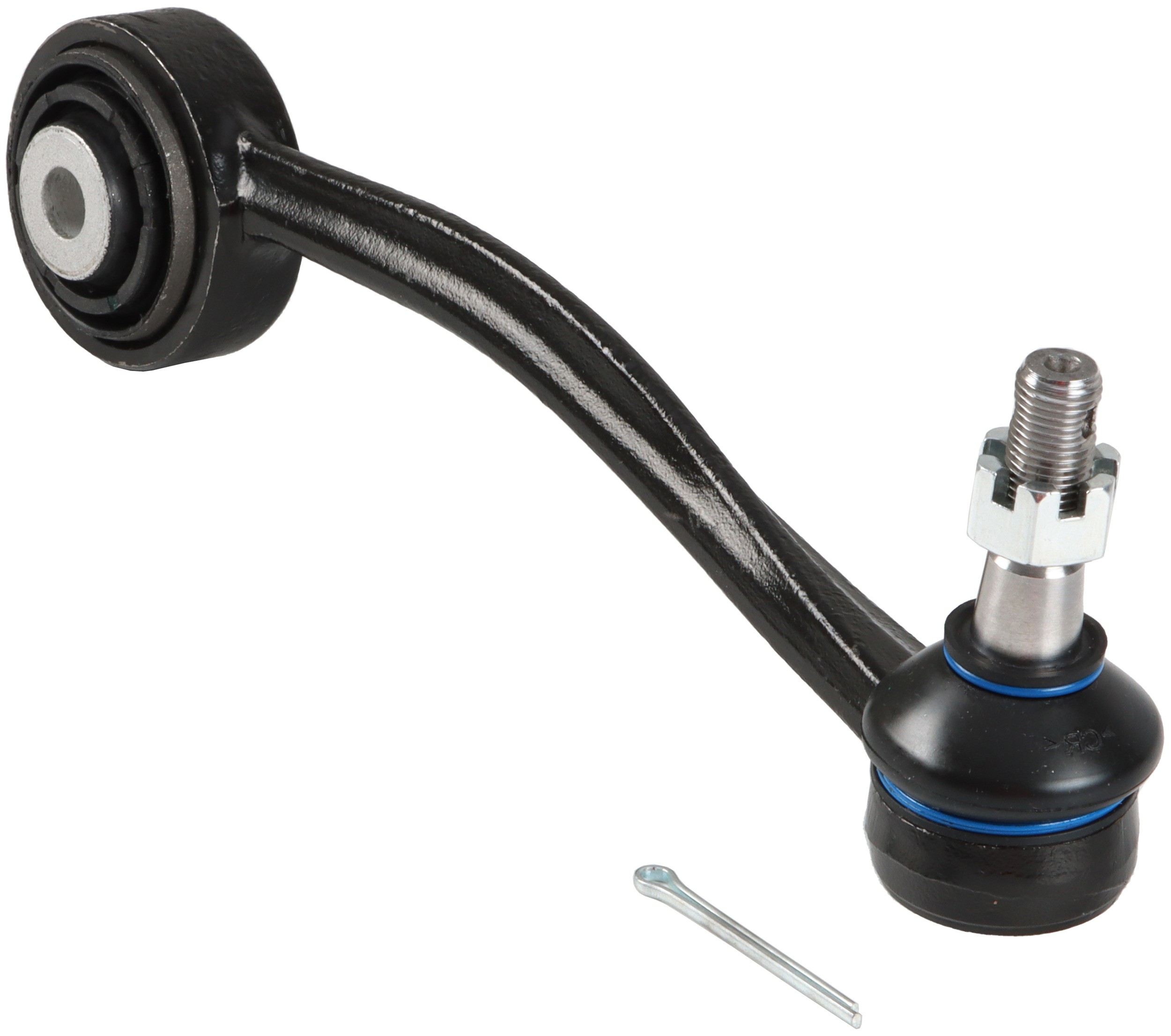

Delphi TC7019 Suspension Control Arm and Ball Joint Assembly

Delphi TC7019 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9532	9.016 IN
Bushings Included	Yes
Pre-greased	Yes
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Bushing Colour	Black
Bushing Inside Diameter	12.20 MM
Bushing Inside Diameter	0.480 IN
Bushing Length	37.00 MM
Bushing Length	1.457 IN
Thread Direction	Clockwise (Right)
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Front Right Upper Rearward
Mounting Hardware Included	Yes
Bushing Type	Rubber
9532	229.00 MM
Dust Boot Included	Yes
Material	Steel
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Greaseable	No
