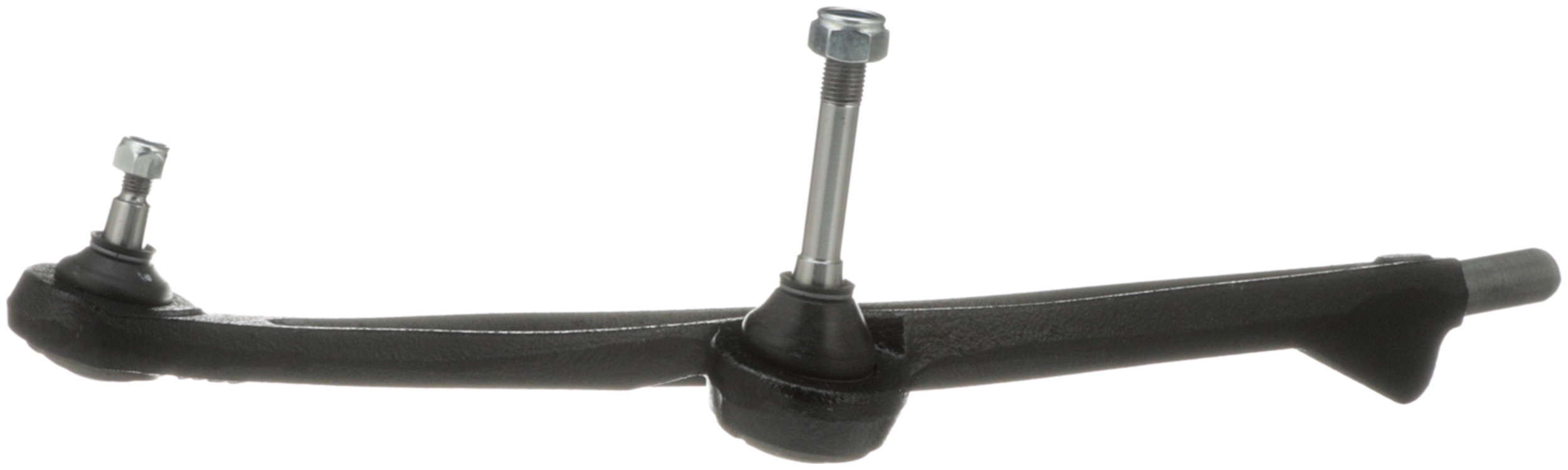

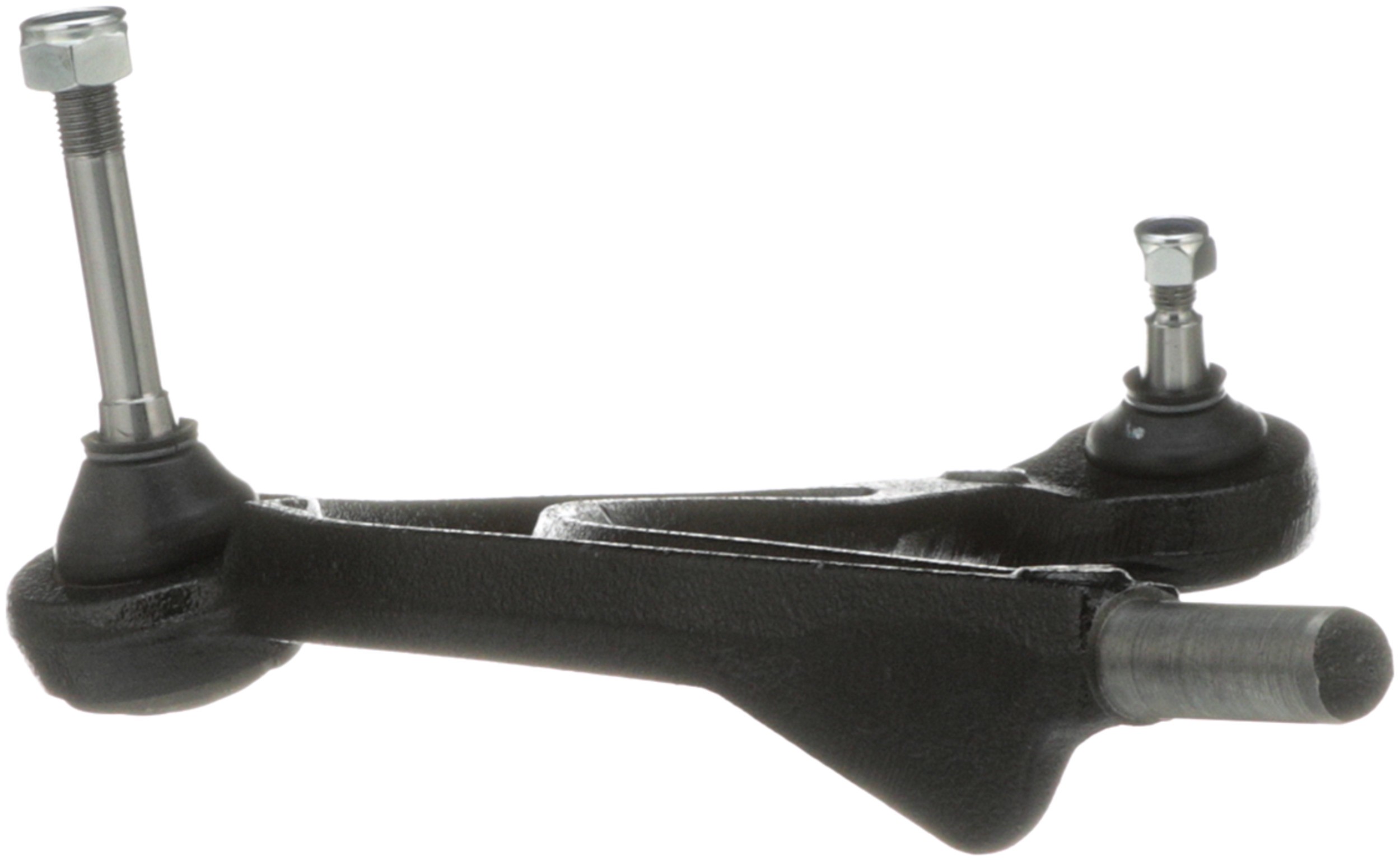

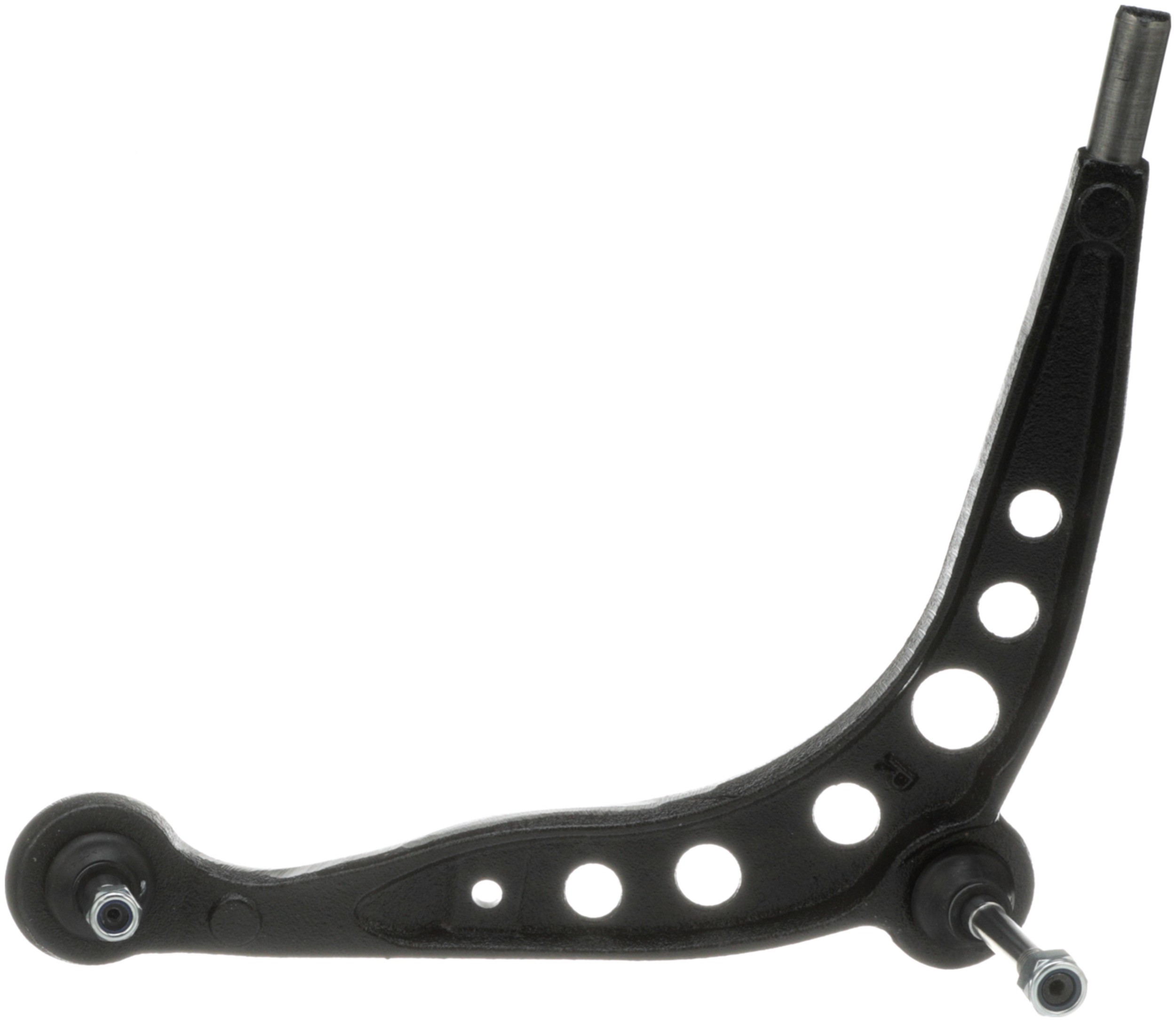

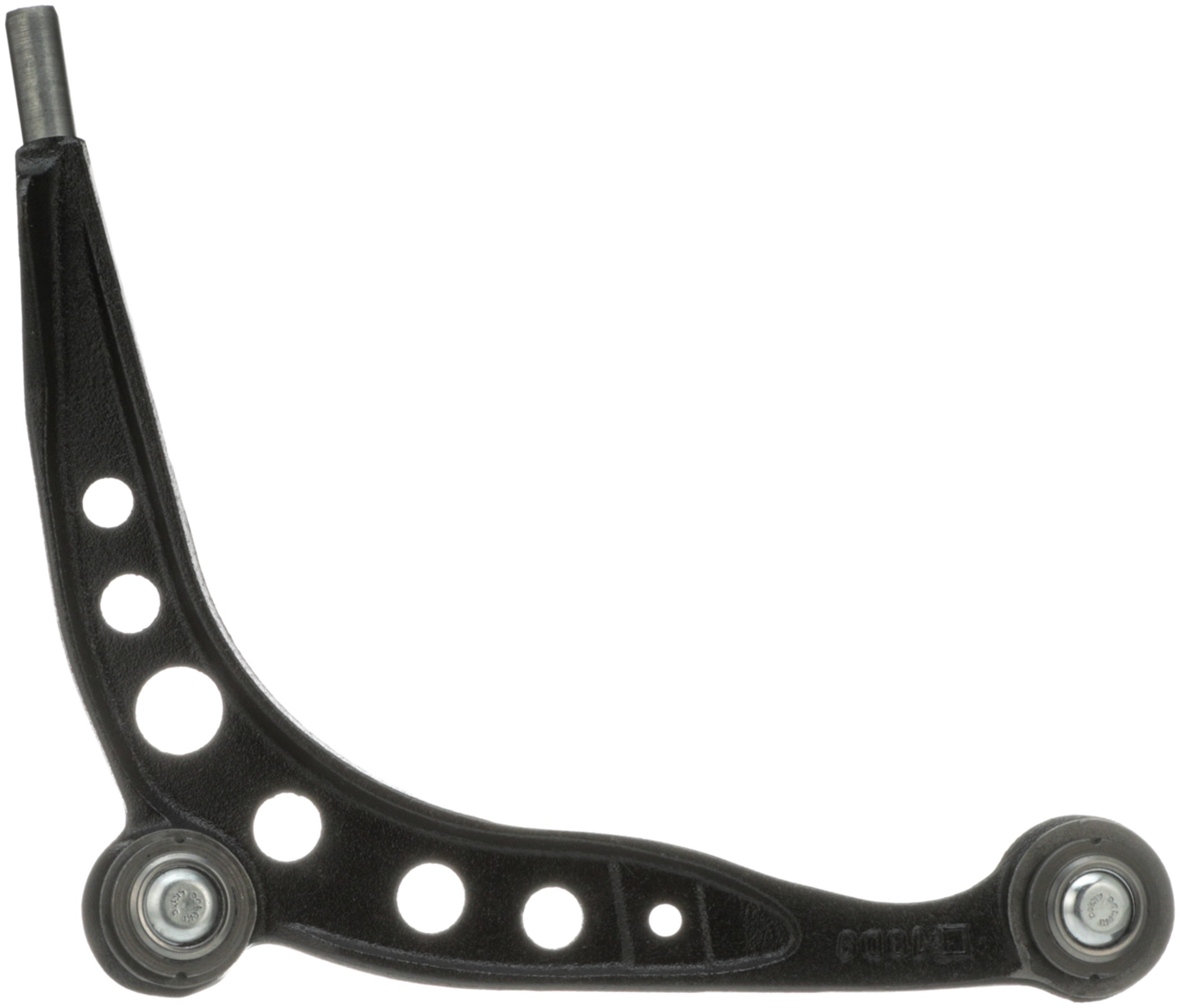

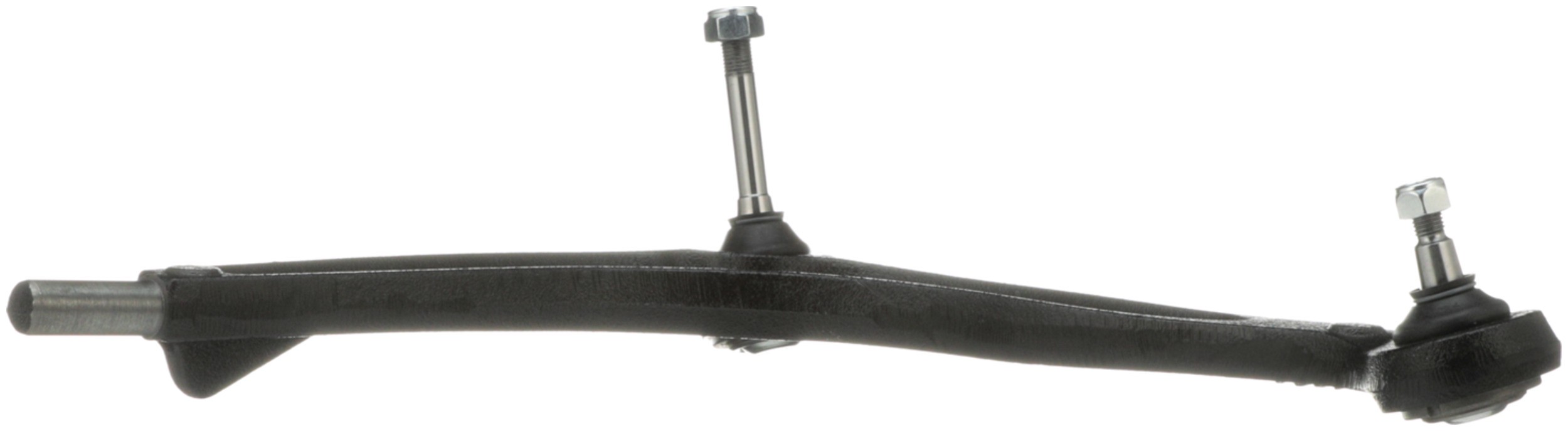

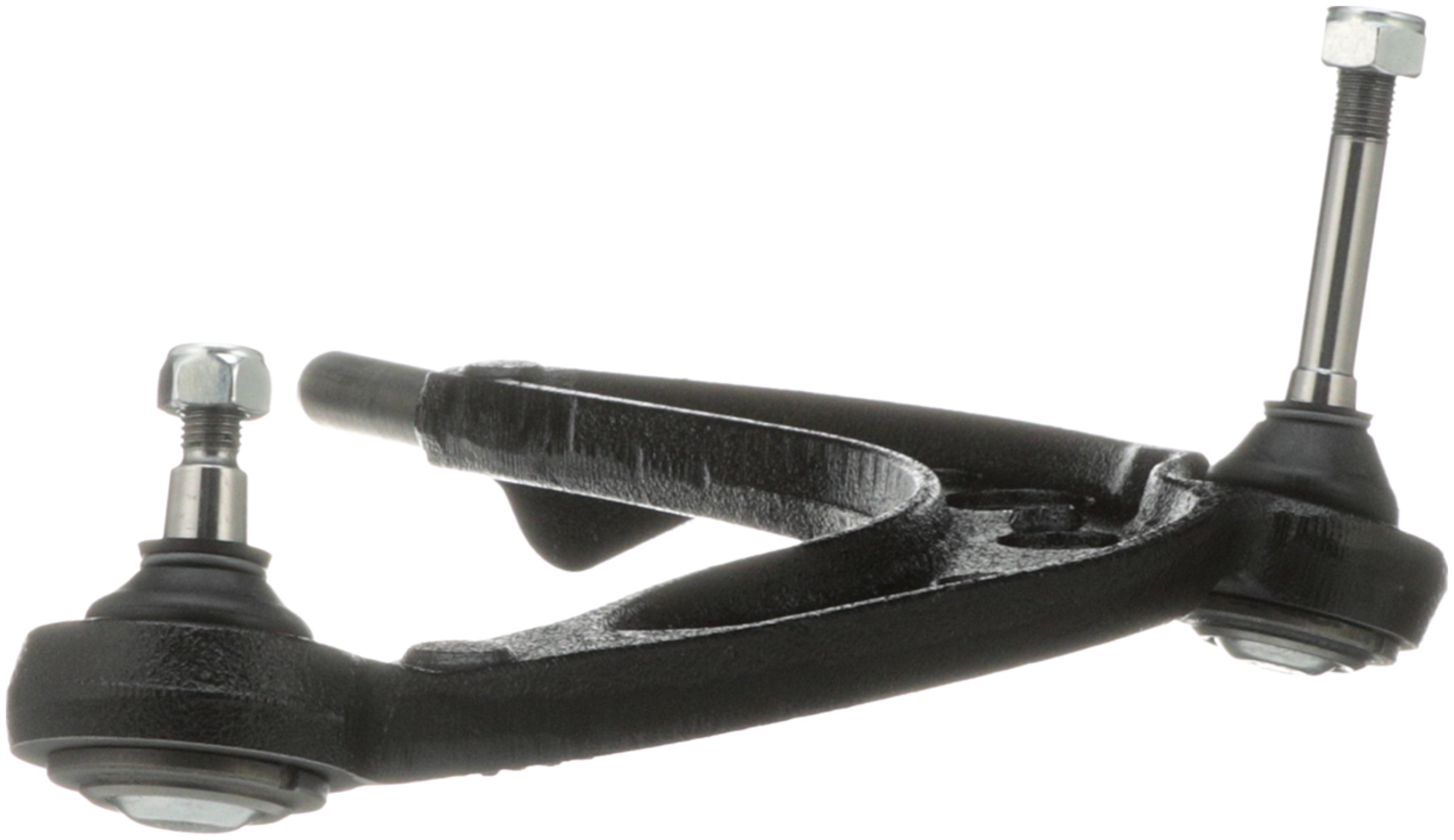

Delphi TC710 Suspension Control Arm and Ball Joint Assembly

Delphi TC710 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Grade Type	Premium
4887	104.30 MM
Pre-greased	Yes
Ball Joint Stud Type	Threaded
Position(s)	Front Right Lower
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Attachment Type	Press In
Boot Colour	Black
Mounting Hardware Included	Yes
Material	Steel
Dust Boot Included	Yes
Bushings Included	No
Thread Direction	Clockwise (Right)
Length	356.10 MM
Length	14.020 IN
4890	0.965 IN
4890	0.728 IN
4890	24.50 MM
4890	18.50 MM
4887	4.106 IN

Vehicle Applications:

Make	Model	Years
BMW	318i	1984 to 1991
BMW	318is	1991 to 1991
BMW	325	1986 to 1988
BMW	325e	1984 to 1987
BMW	325es	1986 to 1987
BMW	325i	1987 to 1993
BMW	325is	1987 to 1991
BMW	M3	1988 to 1991
