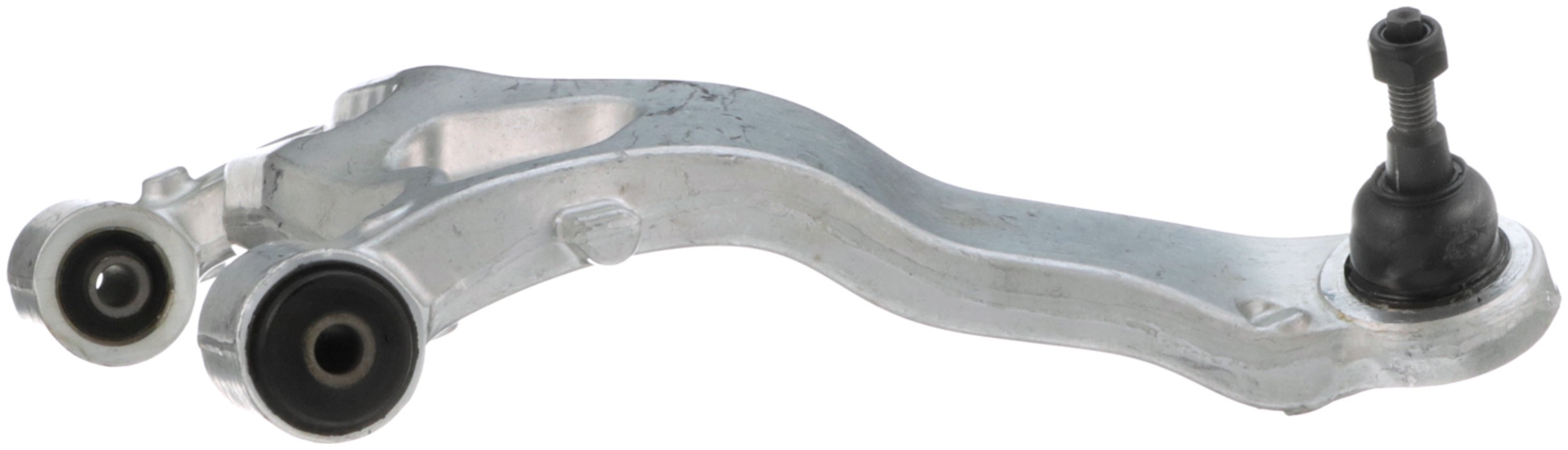

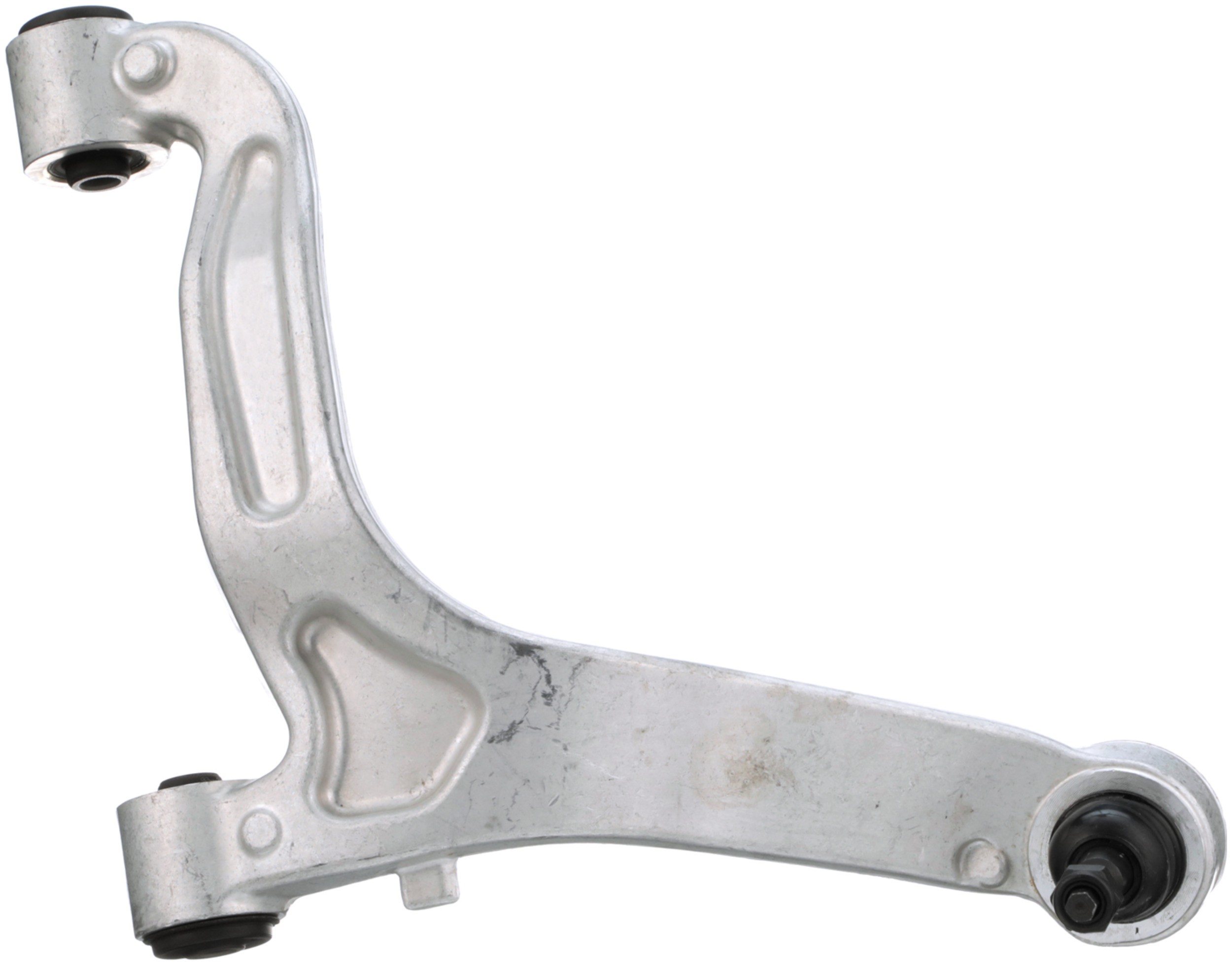

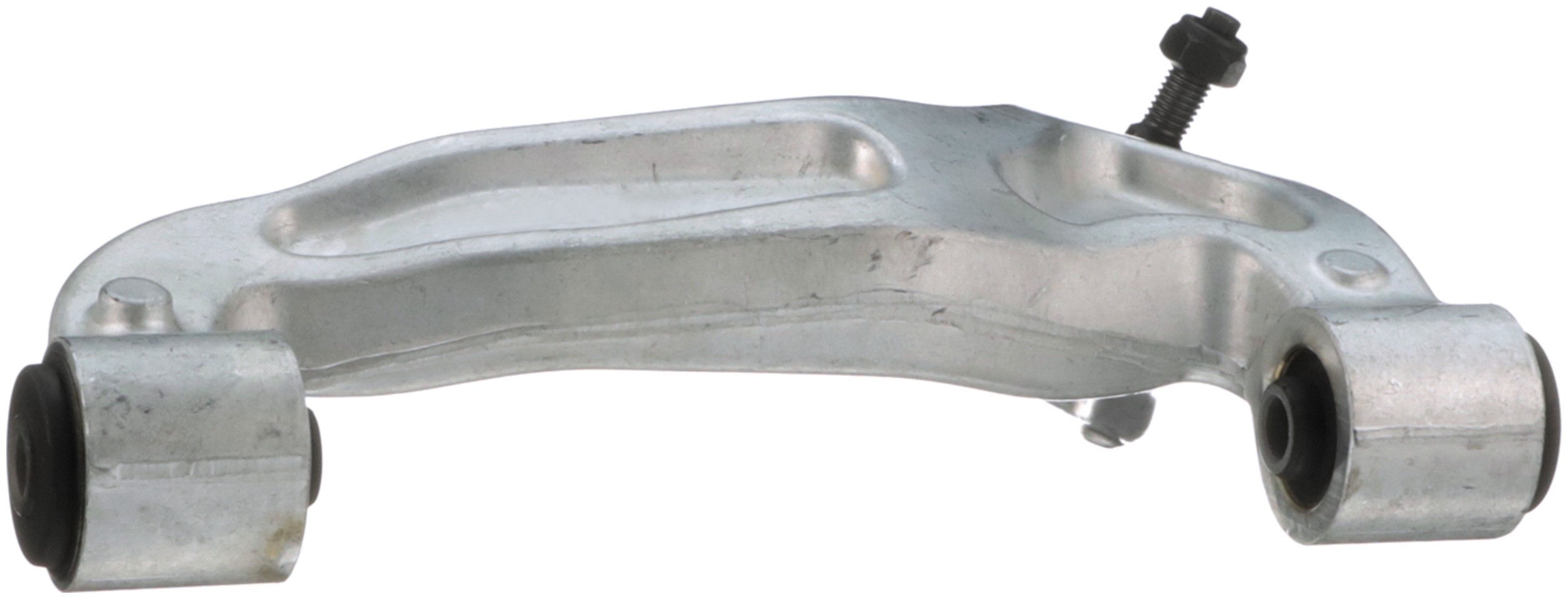

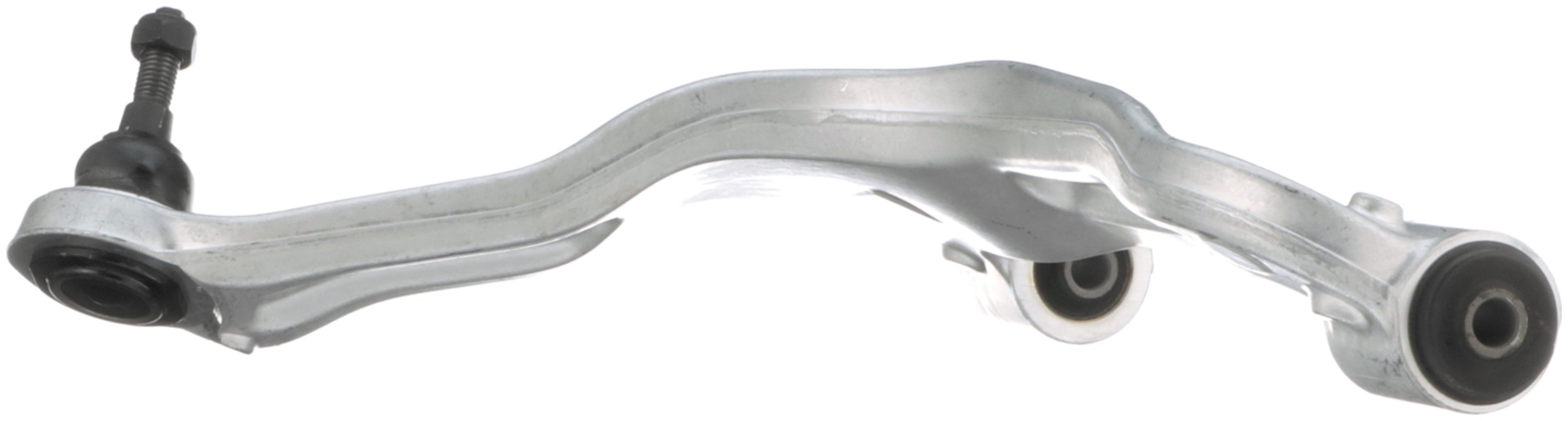

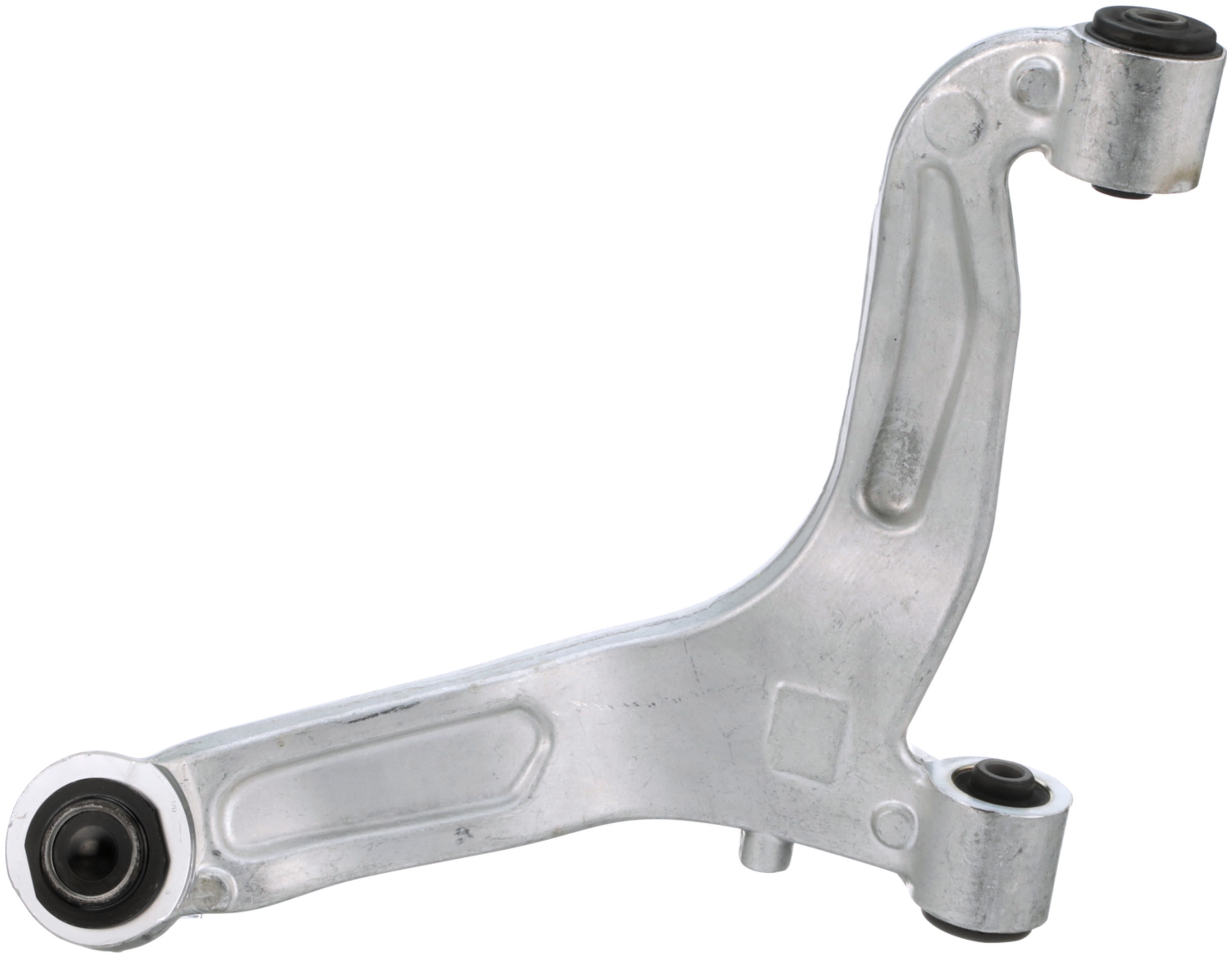

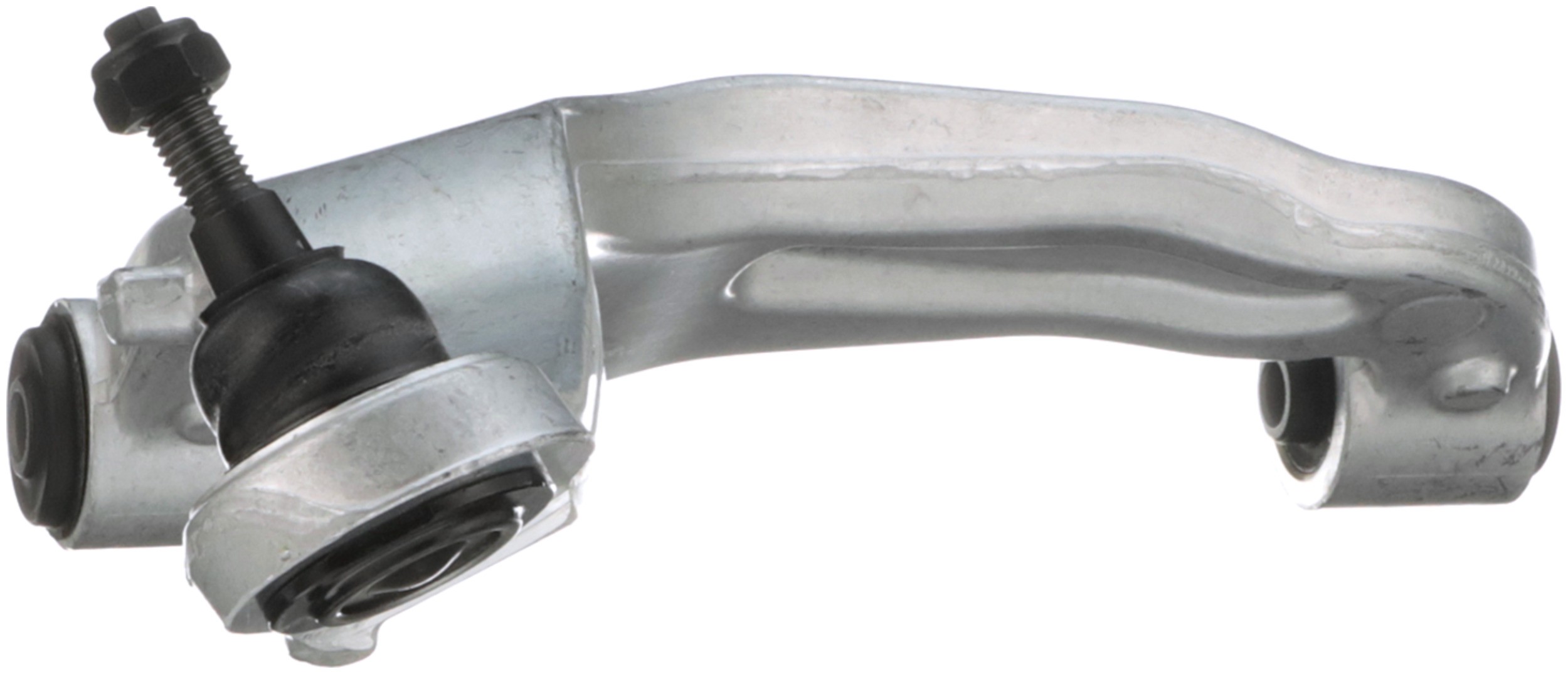

Delphi TC7247 Suspension Control Arm and Ball Joint Assembly

Delphi TC7247 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Position(s)	Rear Right Upper
2384	Yes
Adjustable	No
Finish	Uncoated
Bushing Colour	Black
Boot Colour	Black
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Thread Direction	Clockwise (Right)
Attachment Type	Press In
Ball Joint Stud Type	Threaded
Material	Aluminum
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.559 IN
2386	Casting/Forged
4241	Yes
4890	1.555 IN
4890	39.50 MM
4887	12.850 IN
4887	326.40 MM
Mounting Hole Diameter	0.559 IN
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	14.20 MM
Length	12.063 IN
Length	306.40 MM
6529	Power
9090	Chloroprene Rubber (CR)
Bearing Material	Plastic
Bushing Type	Rubber
