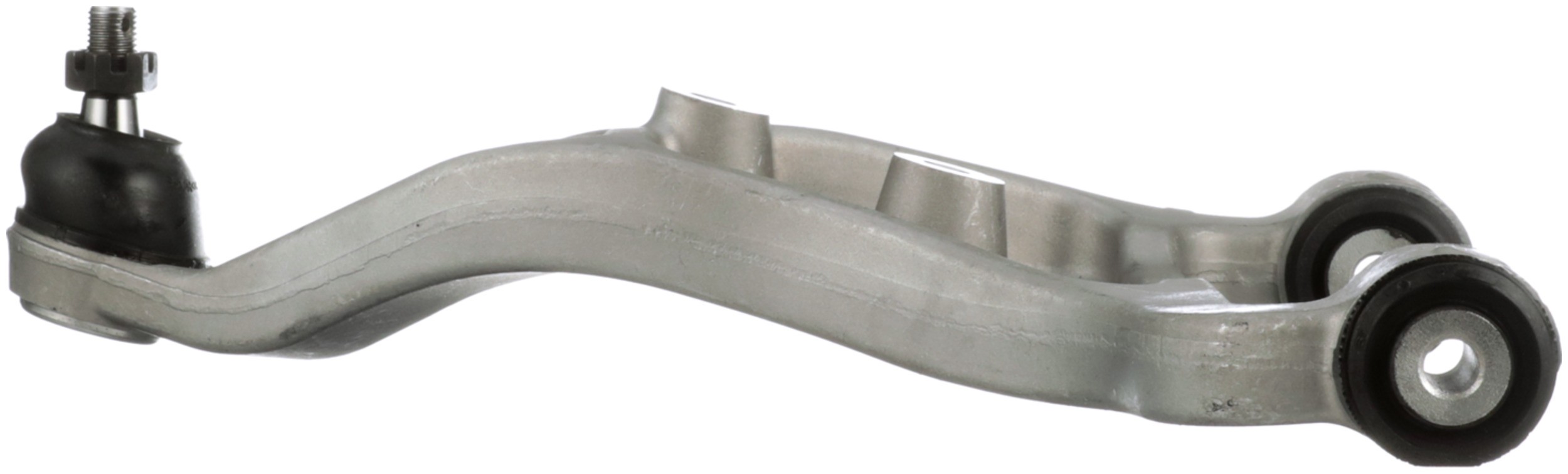

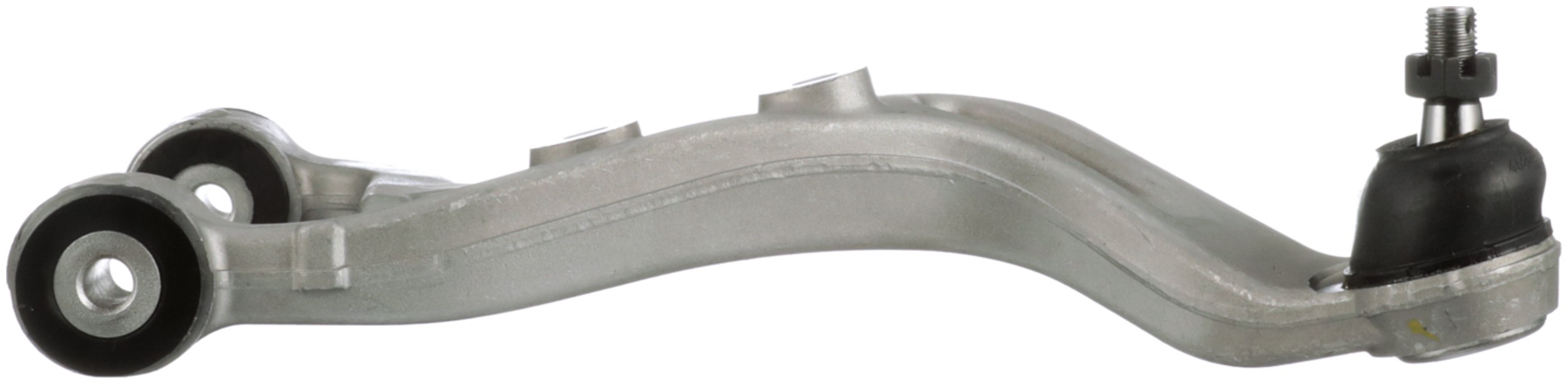

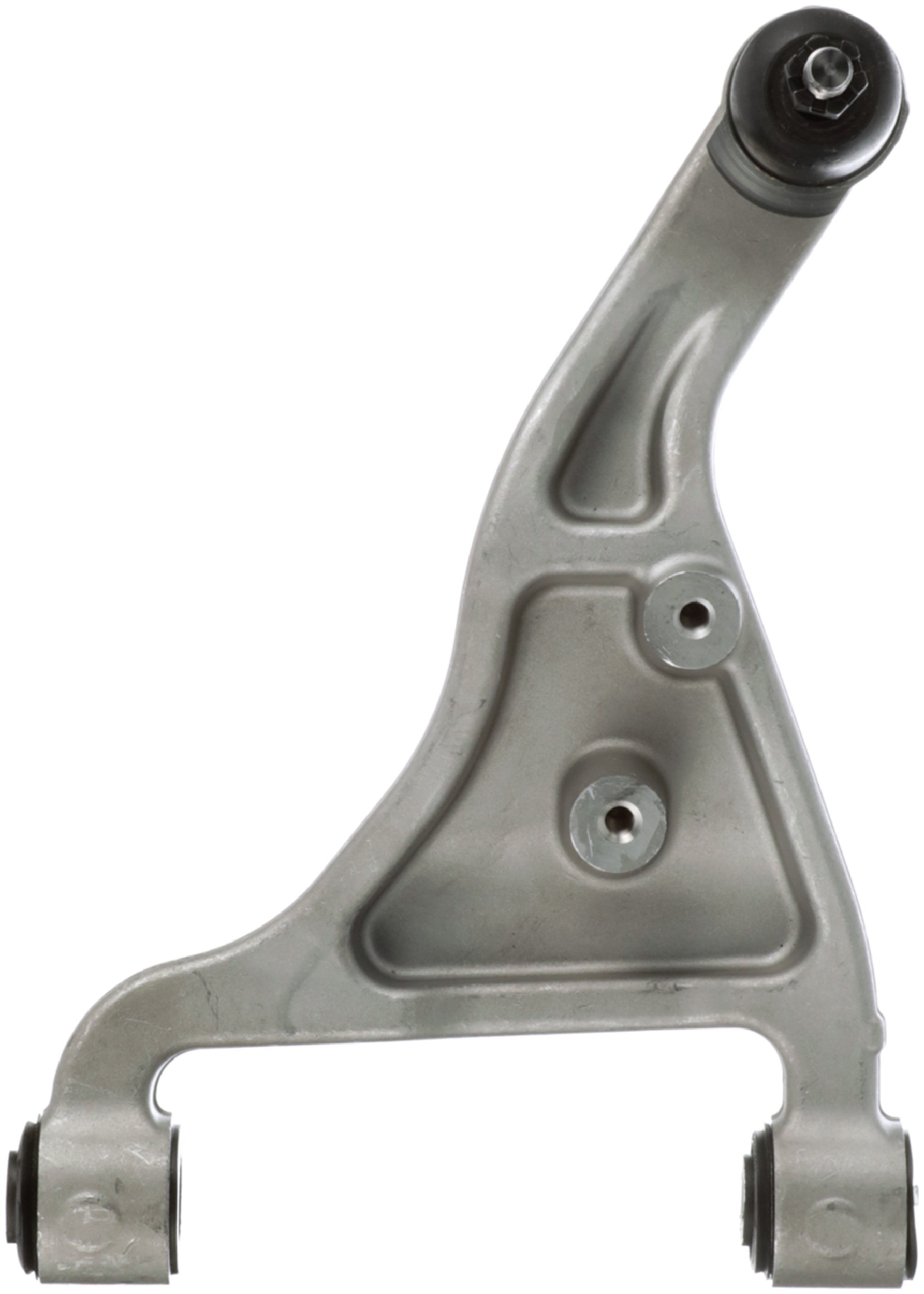

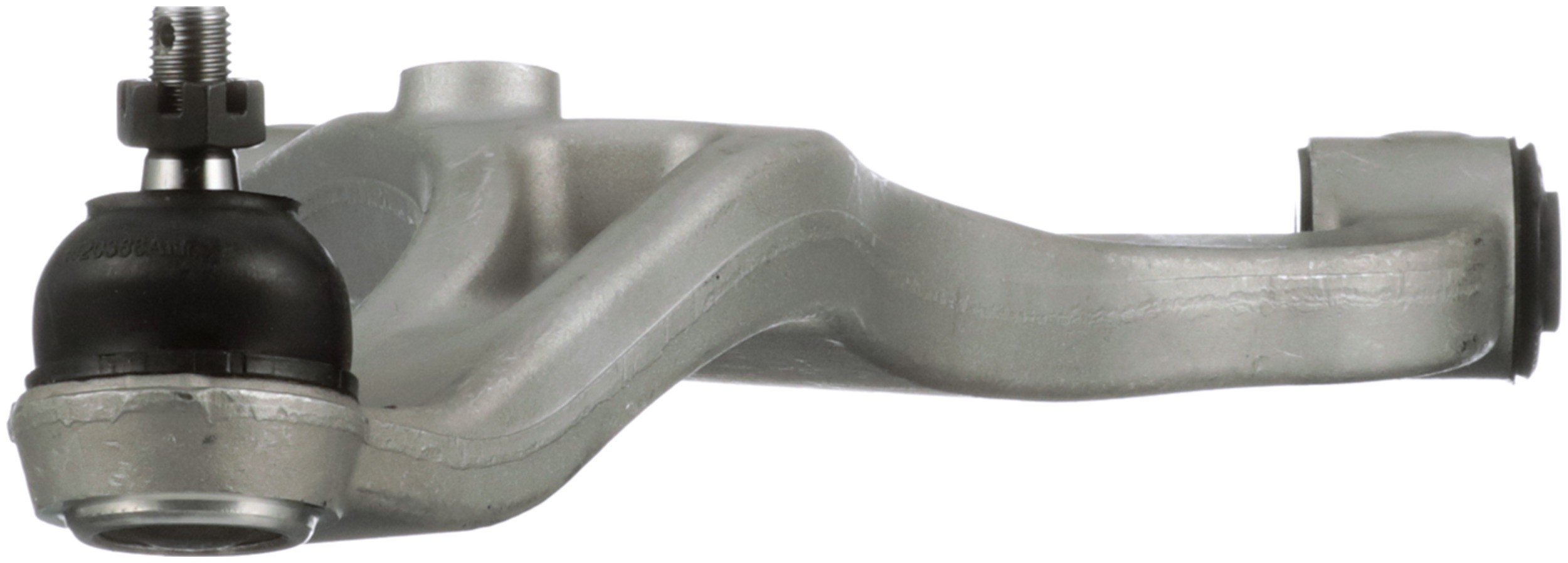

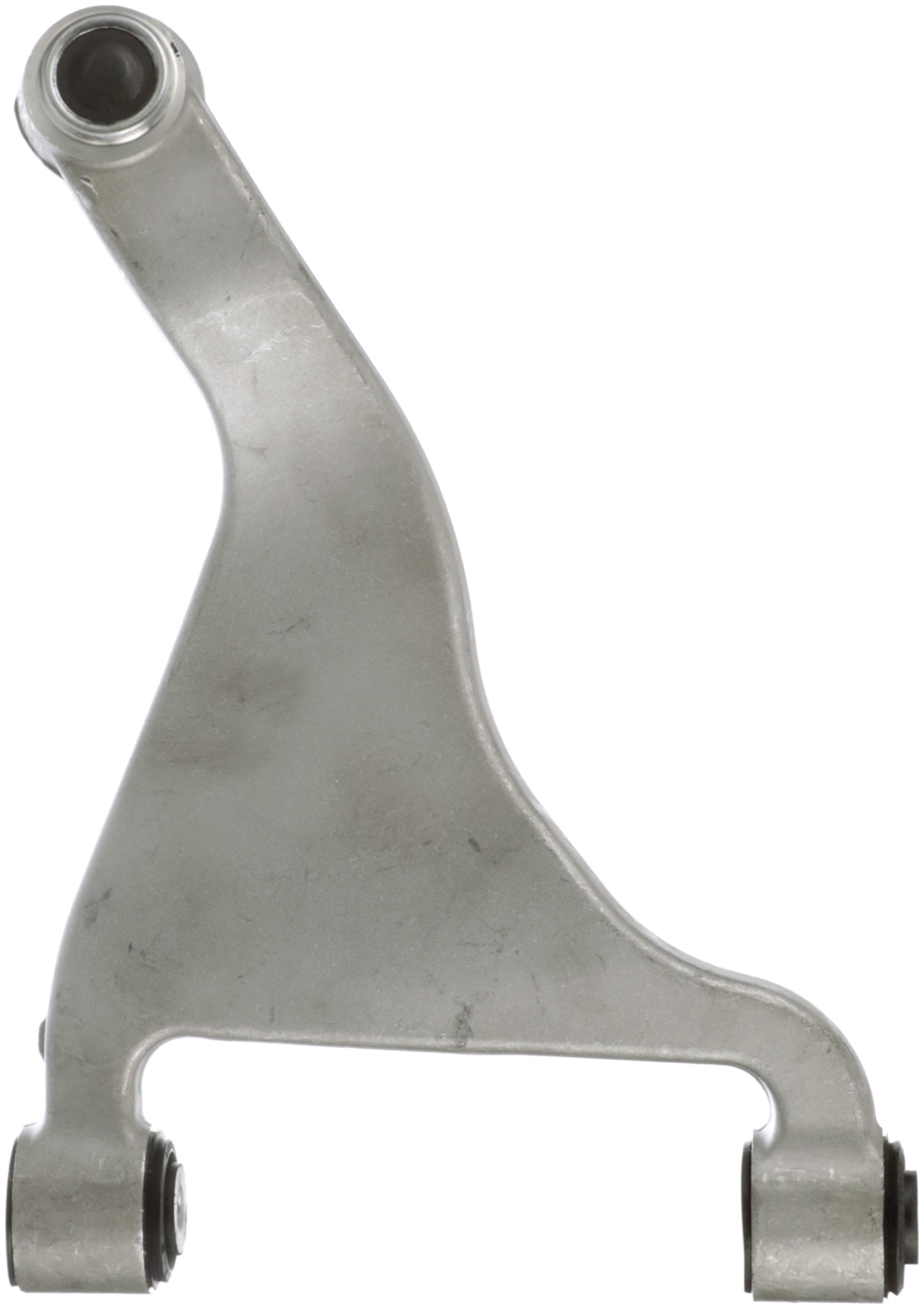

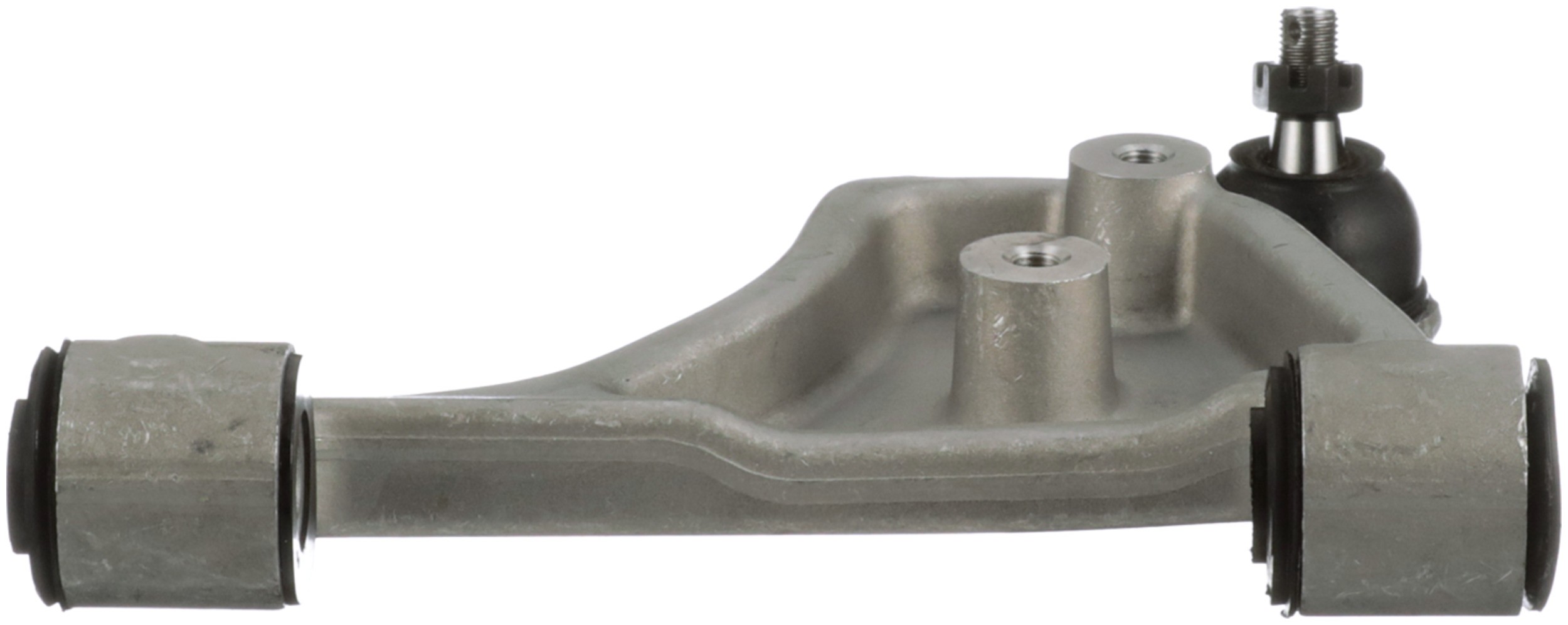

Delphi TC7255 Suspension Control Arm and Ball Joint Assembly

Delphi TC7255 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

2386	Casting/Forged
2384	Yes
Mounting Hole Diameter	12.20 MM
Position(s)	Rear Left Upper
4887	269.40 MM
4890	1.693 IN
4887	10.606 IN
4890	43.00 MM
Bushings Included	Yes
Pre-greased	Yes
Finish	Uncoated
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Gray
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Length	12.547 IN
Length	318.70 MM
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.480 IN
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
