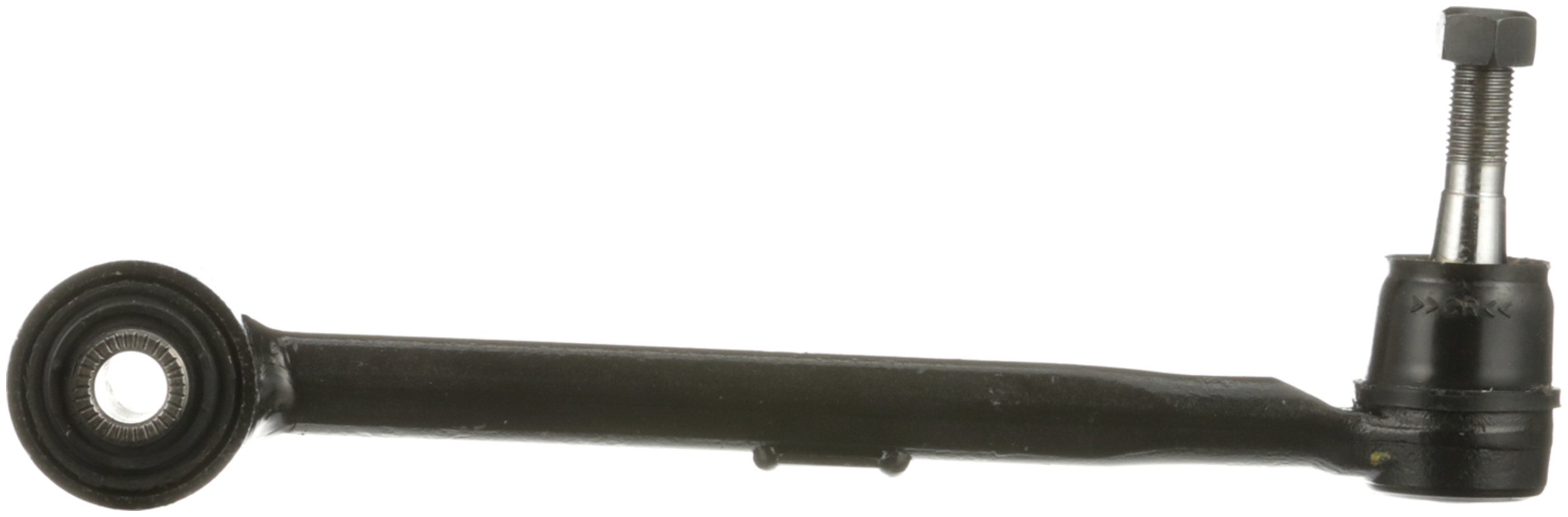

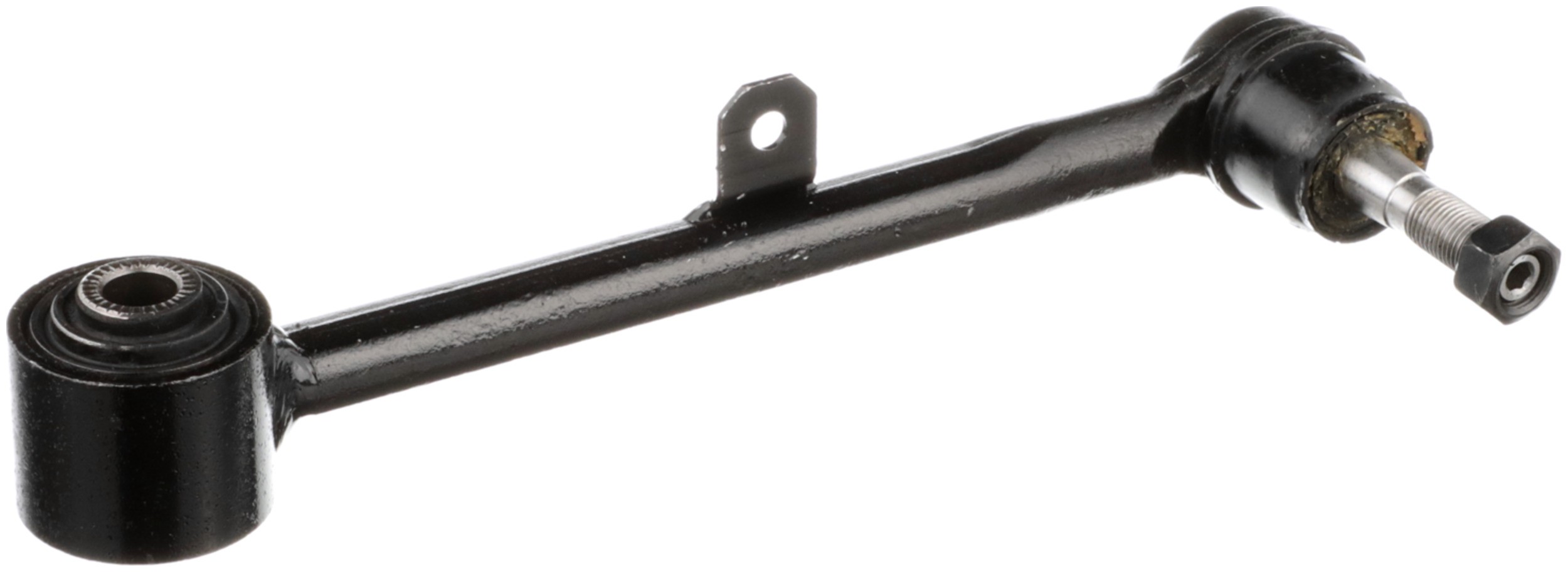

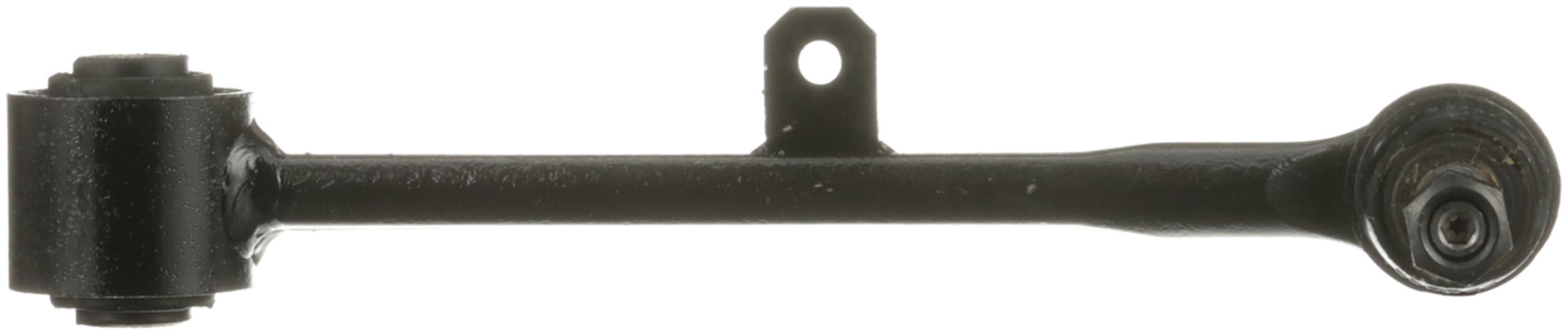

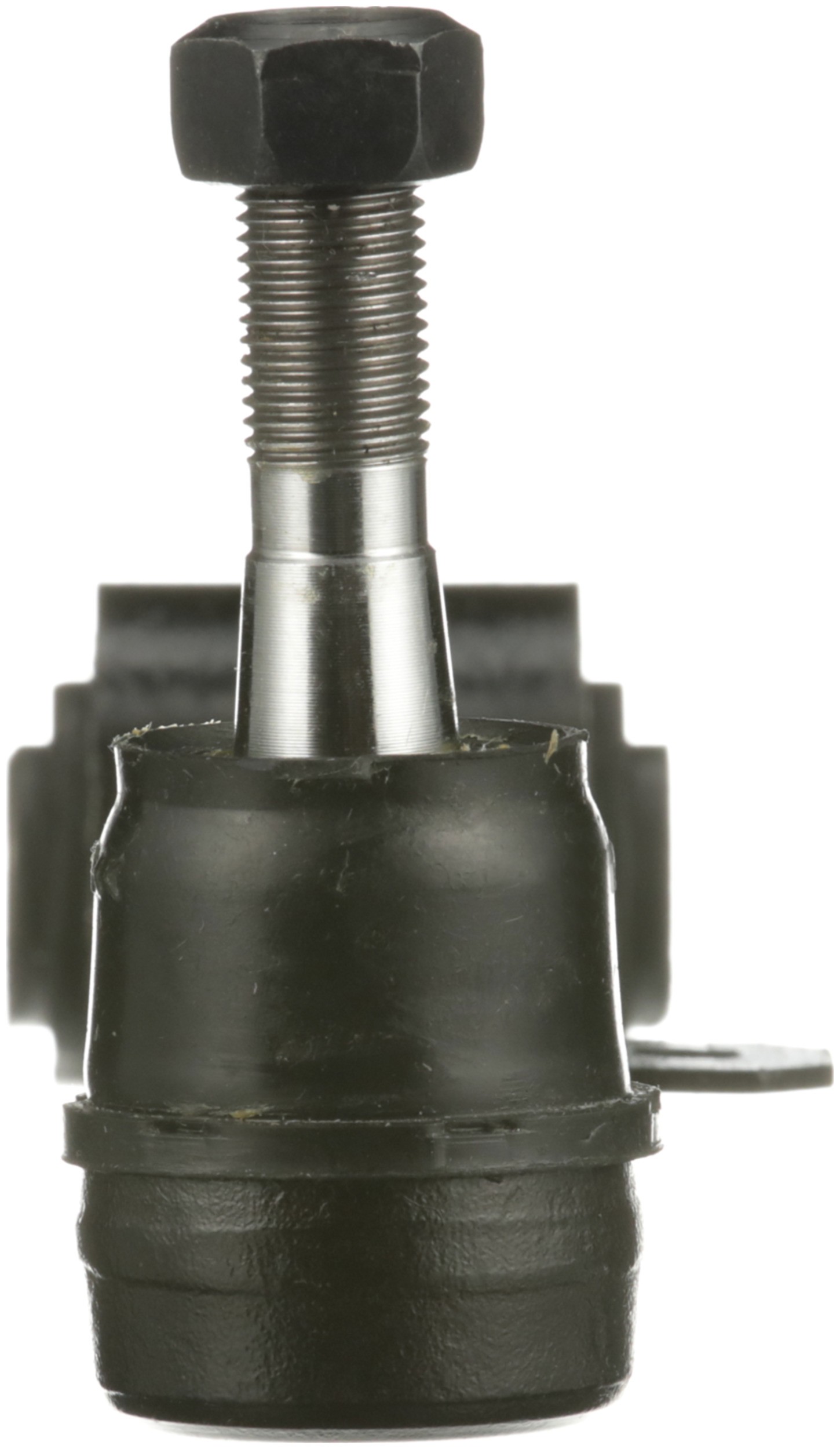

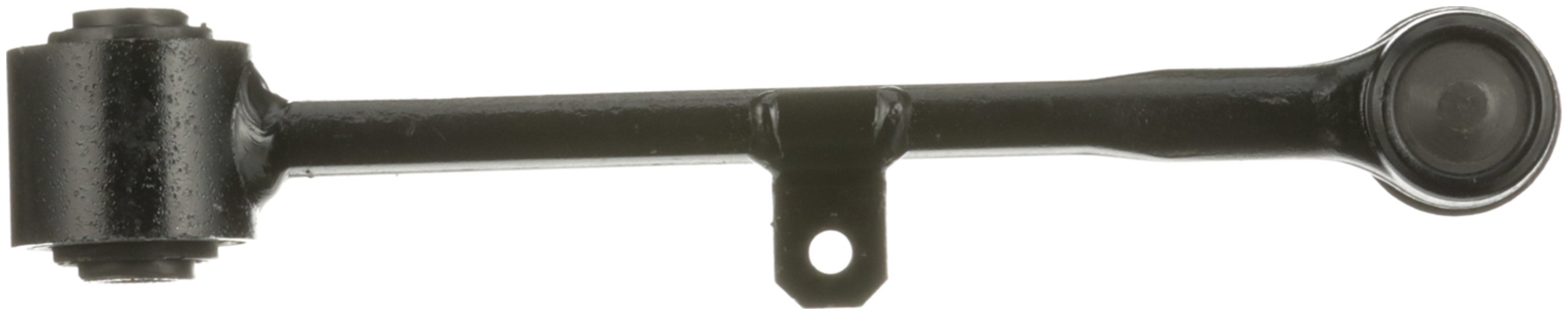

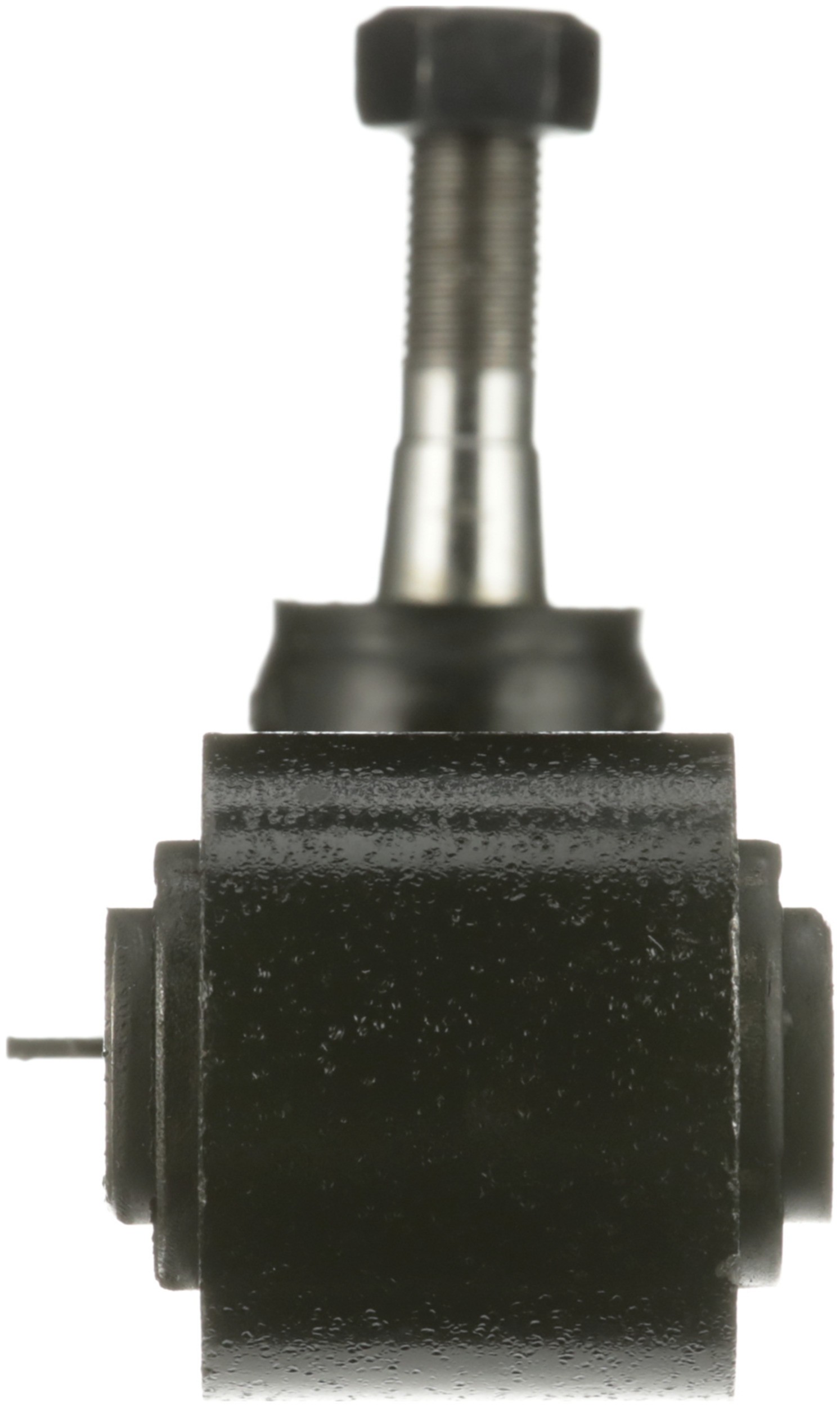

Delphi TC7302 Suspension Control Arm and Ball Joint Assembly

Delphi TC7302 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Position(s)	Rear Right Lower Center
2384	Yes
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Length	273.48 MM
Length	10.767 IN
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Machined
Ball Joint Stud Type	Threaded
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
4887	55.10 MM
4887	2.169 IN
4890	71.80 MM
4890	2.827 IN
Greaseable	No
Finish	Black
