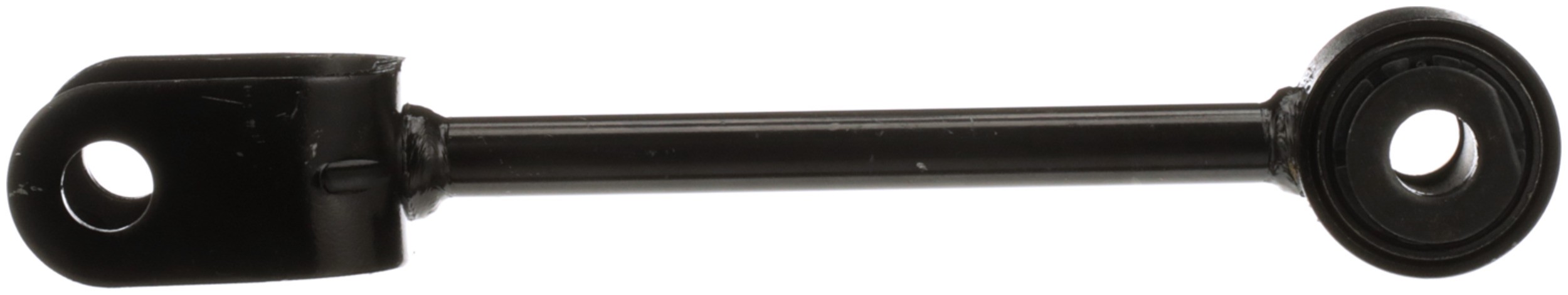

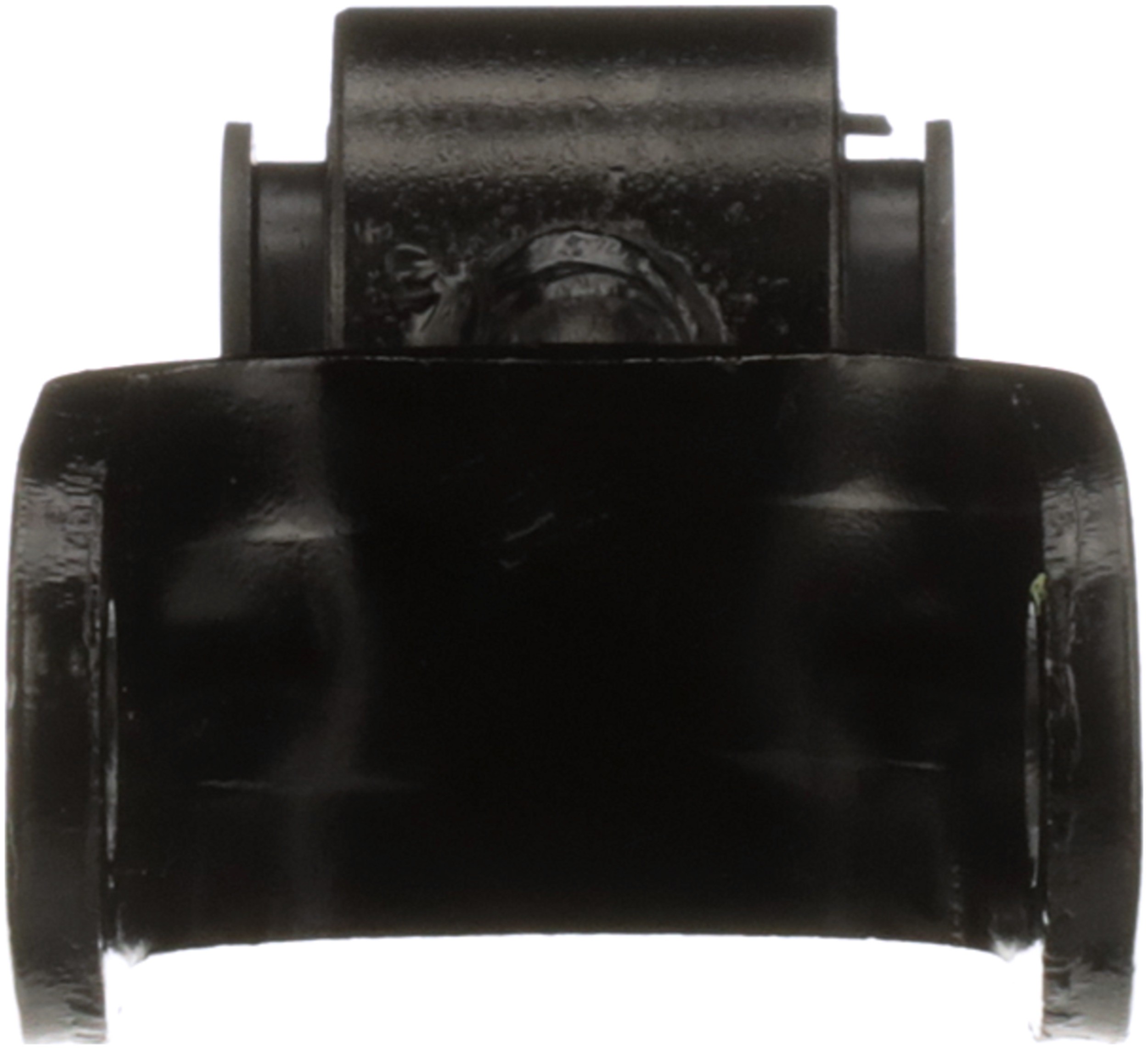

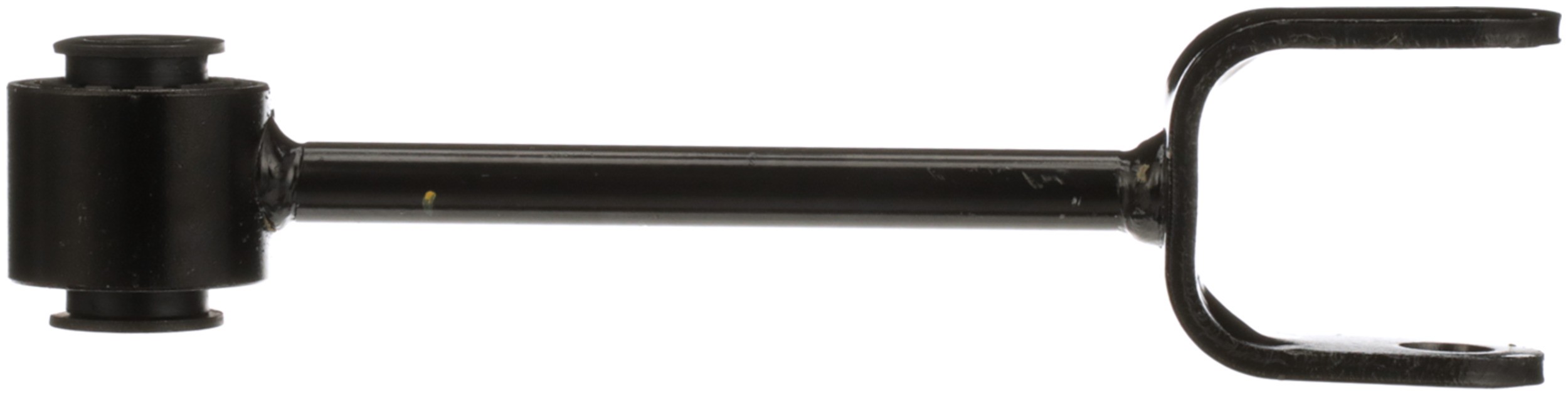

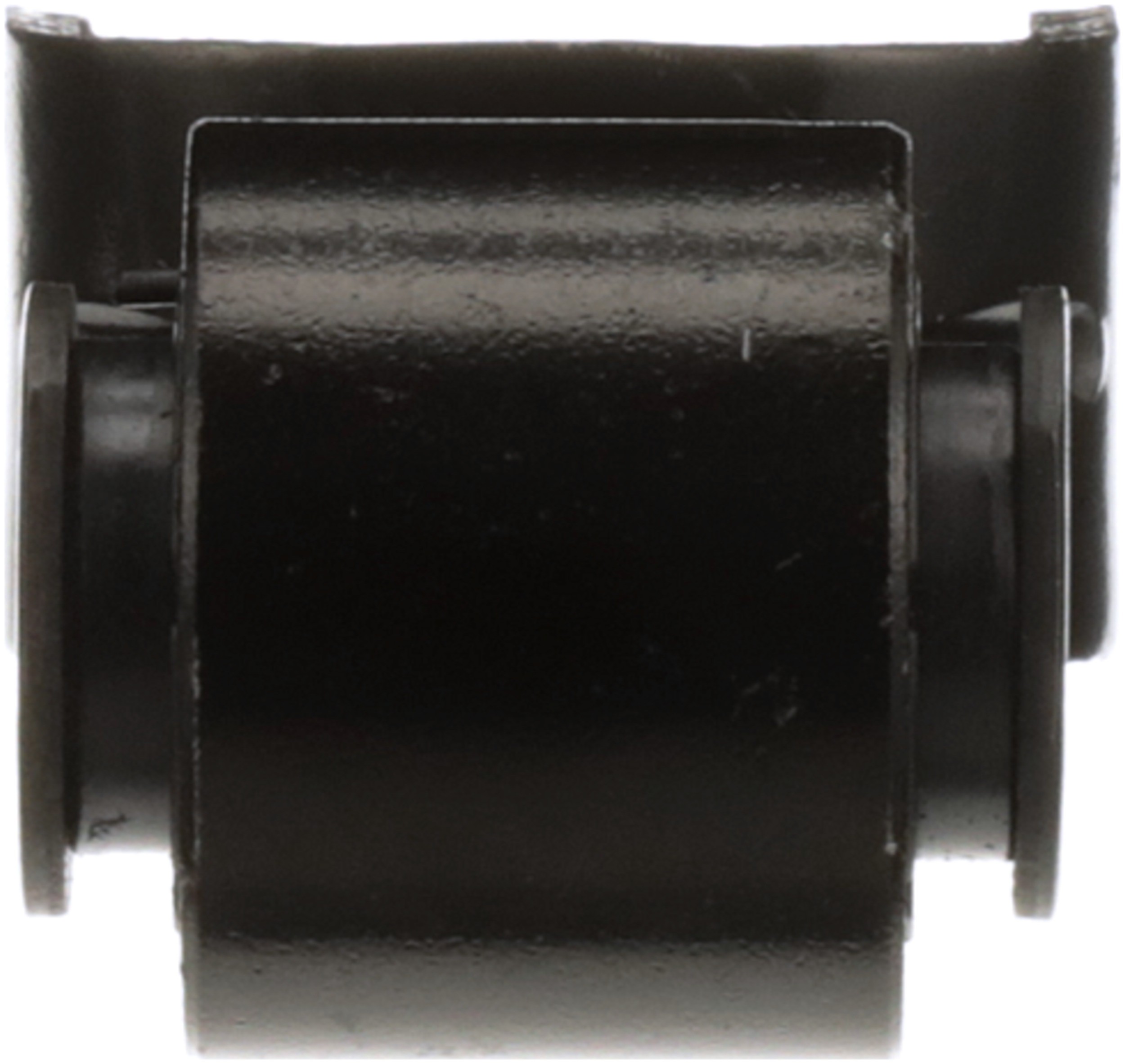

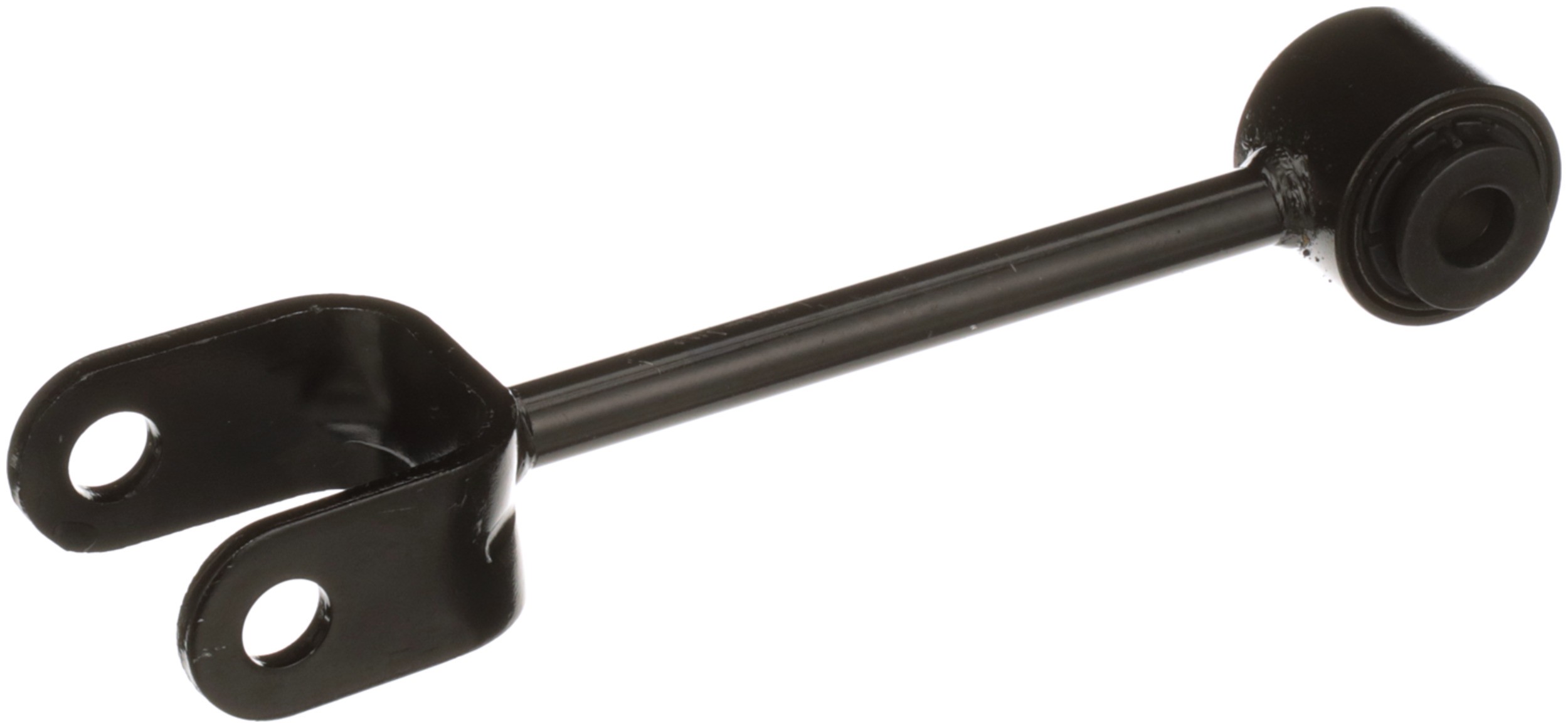

Delphi TC7307 Suspension Control Arm and Ball Joint Assembly

Delphi TC7307 Suspension Control Arm and Ball Joint Assembly

Features:

Control arms utilize robot welding for consistent performance and quality
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	9.902 IN
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	2
Grade Type	Premium
Bushings Included	Yes
Mounting Hole Diameter	16.00 MM
Mounting Hole Diameter	17.00 MM
Mounting Hole Diameter	0.630 IN
Mounting Hole Diameter	0.669 IN
Mounting Hardware Included	No
Material	Steel
Dust Boot Included	Yes
Length	251.50 MM
9090	Chloroprene Rubber (CR)
2384	Yes
Position(s)	Rear Upper Forward
6529	Power
2386	Tubular
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
