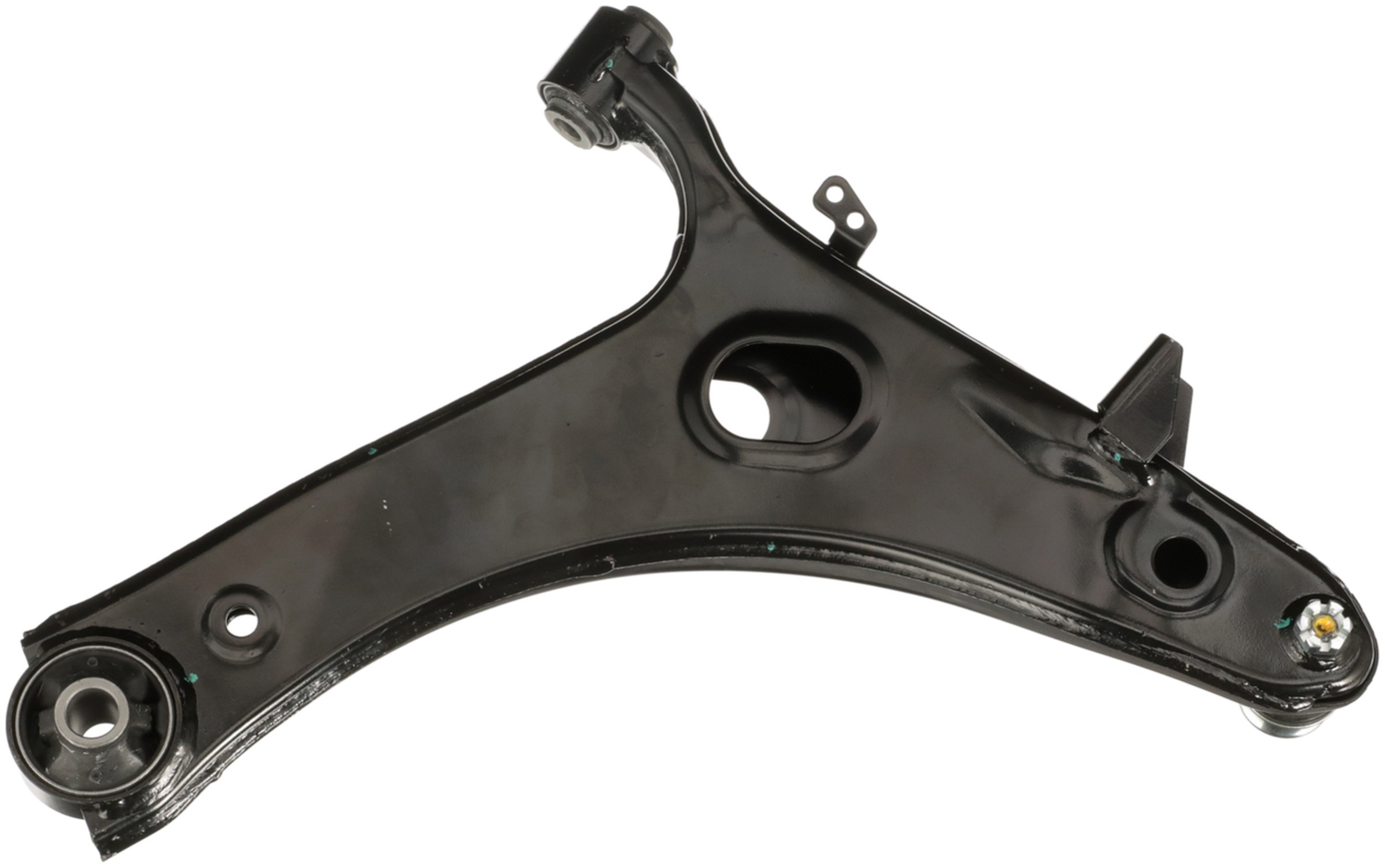

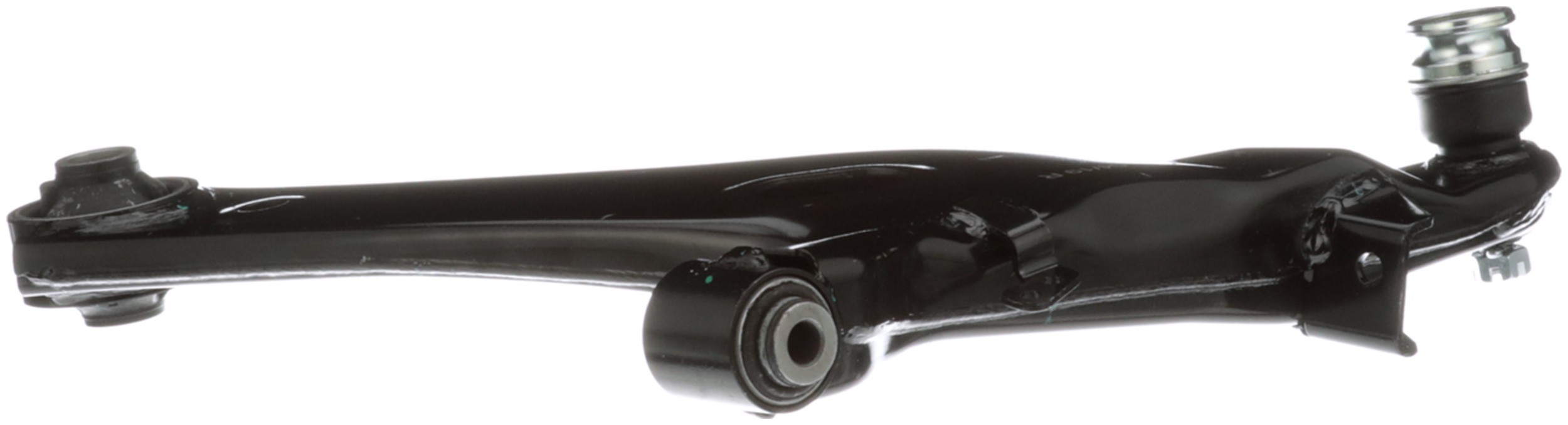

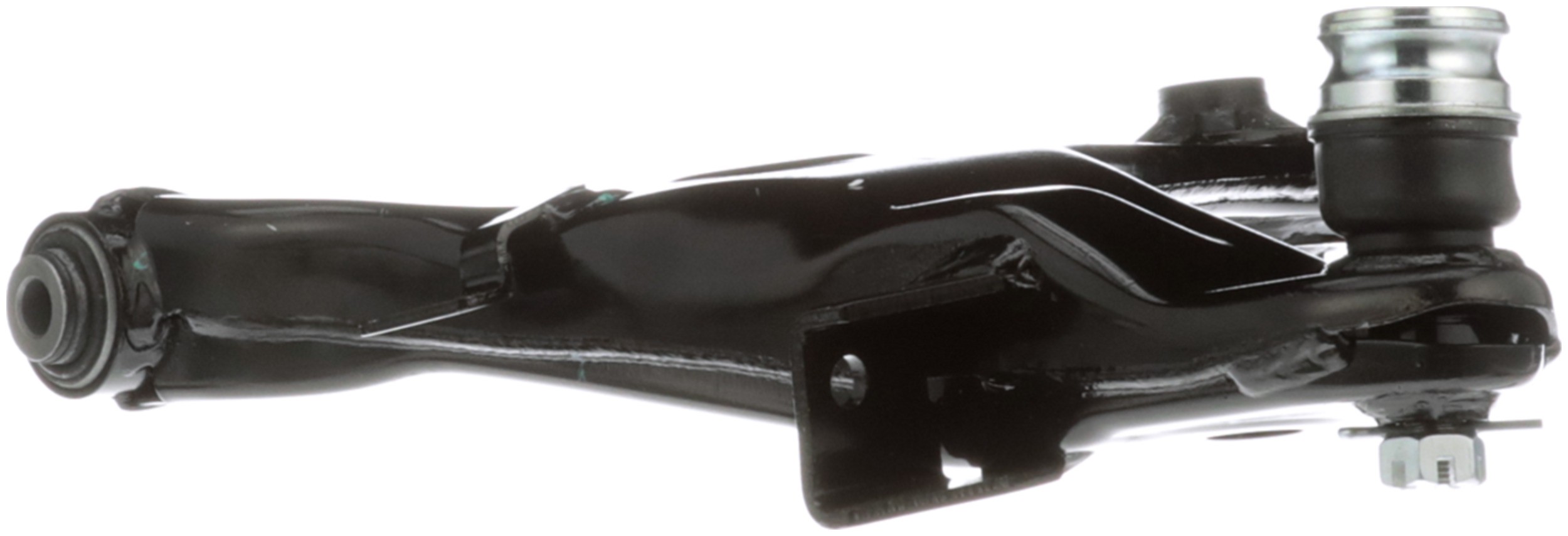

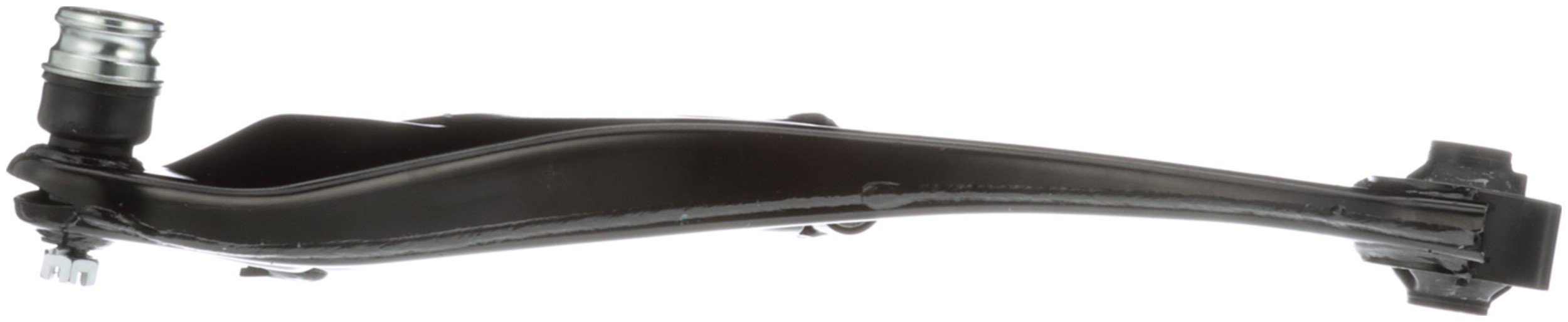

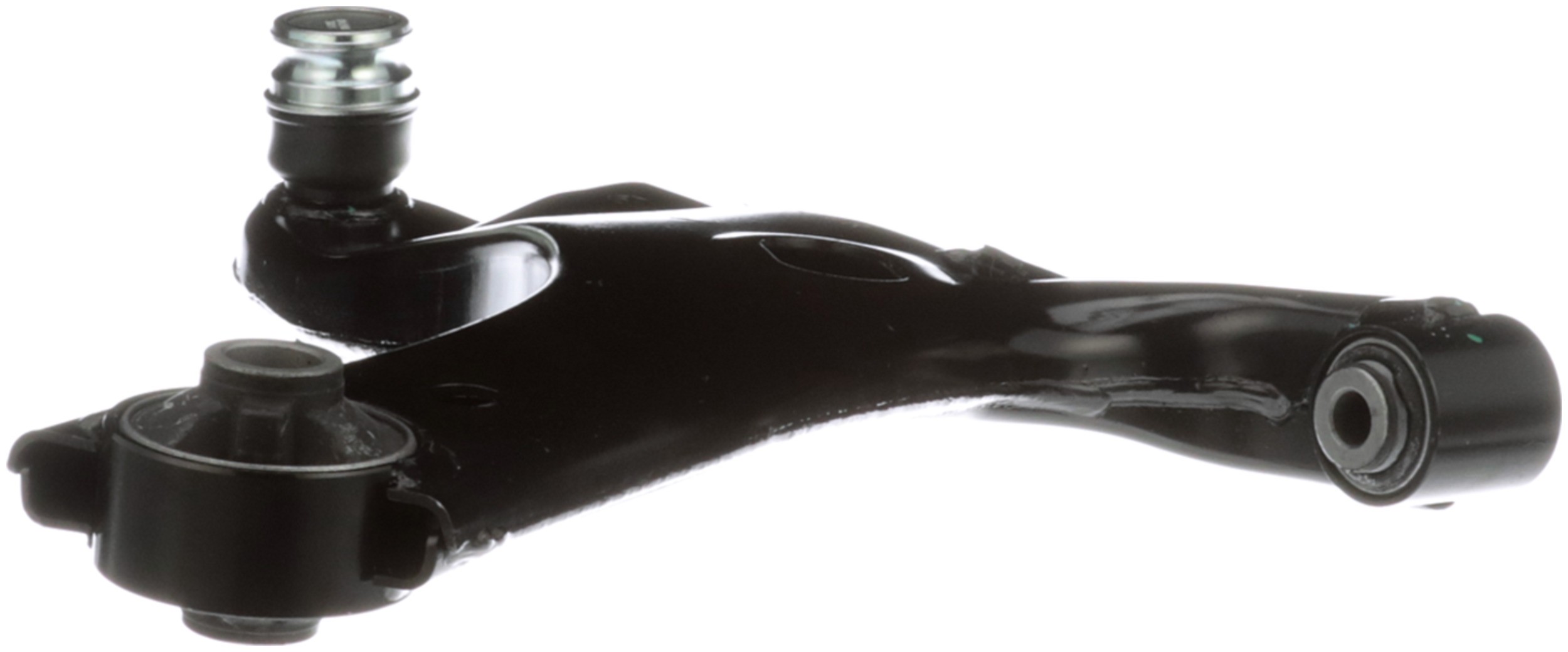

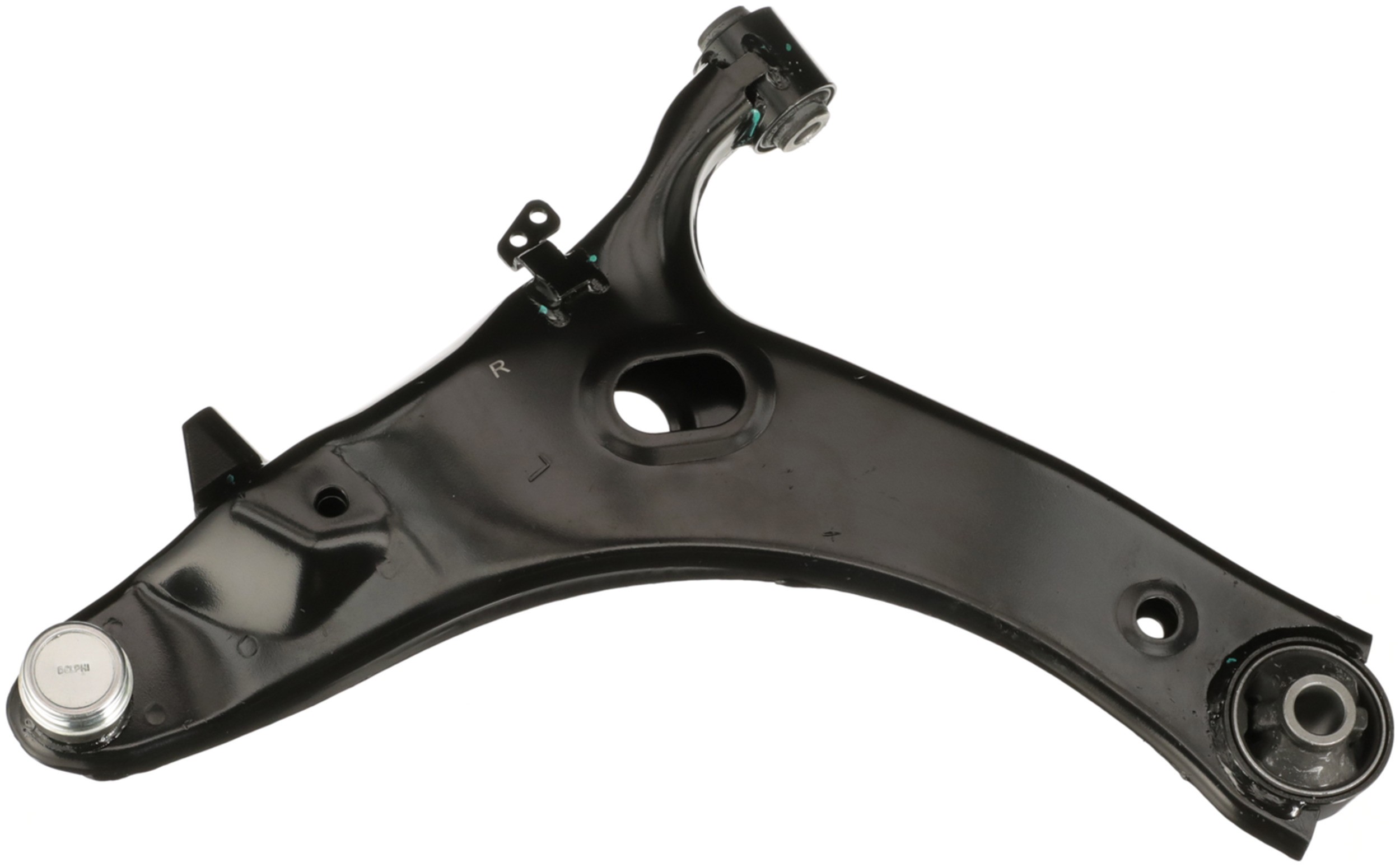

Delphi TC7364 Suspension Control Arm and Ball Joint Assembly

Delphi TC7364 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	0.756 IN
Mounting Hole Diameter	19.20 MM
Length	17.244 IN
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	3
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
2386	Stamped
Bearing Material	Plastic
2384	Yes
Position(s)	Front Left Lower
Length	438.00 MM
Bushing Type	Rubber
Material	Steel
4241	Yes
Bushing Colour	Black
Finish	Painted
9090	Chloroprene Rubber (CR)
6529	Power
Ball Joint Stud Type	Threaded
4887	404.00 MM
4887	15.906 IN
4890	80.00 MM
4890	3.150 IN
Attachment Type	Press In
Thread Direction	Clockwise (Right)
Bushings Included	Yes
Dust Boot Included	Yes
Pre-greased	Yes
