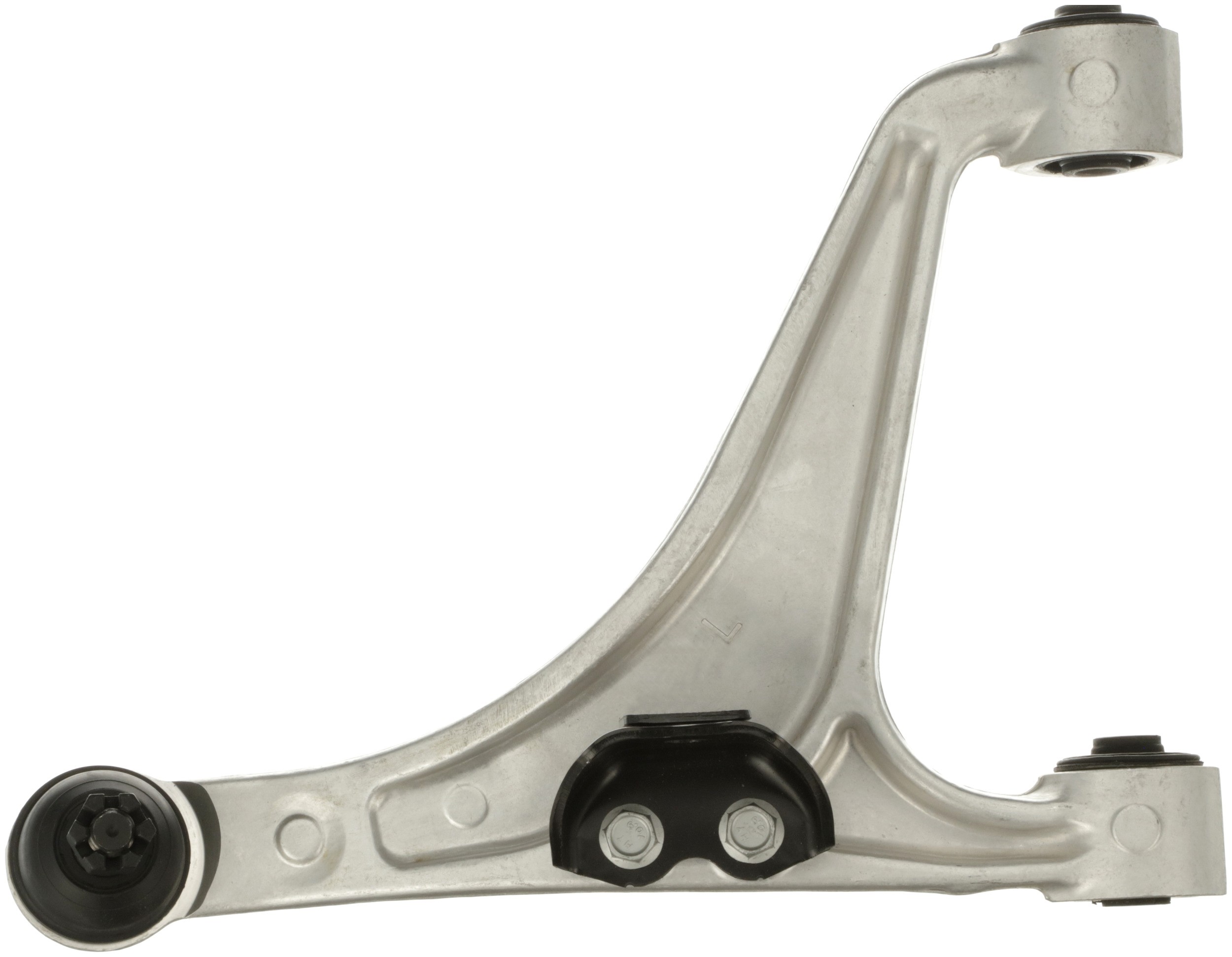

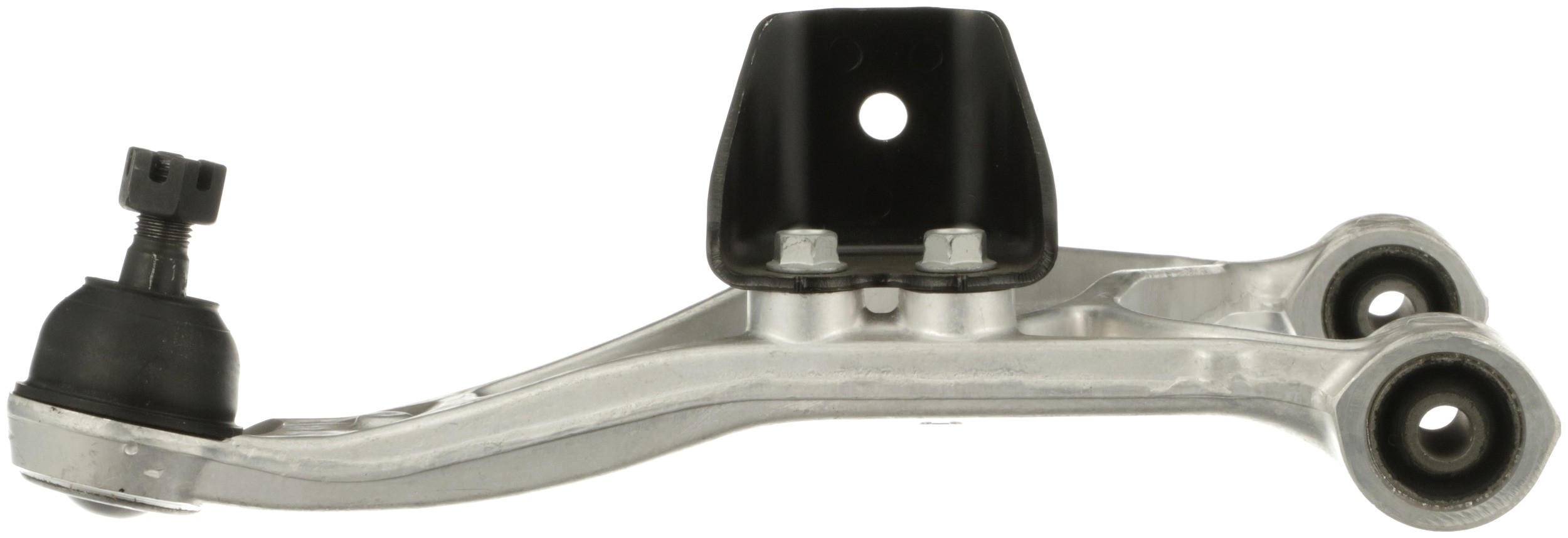

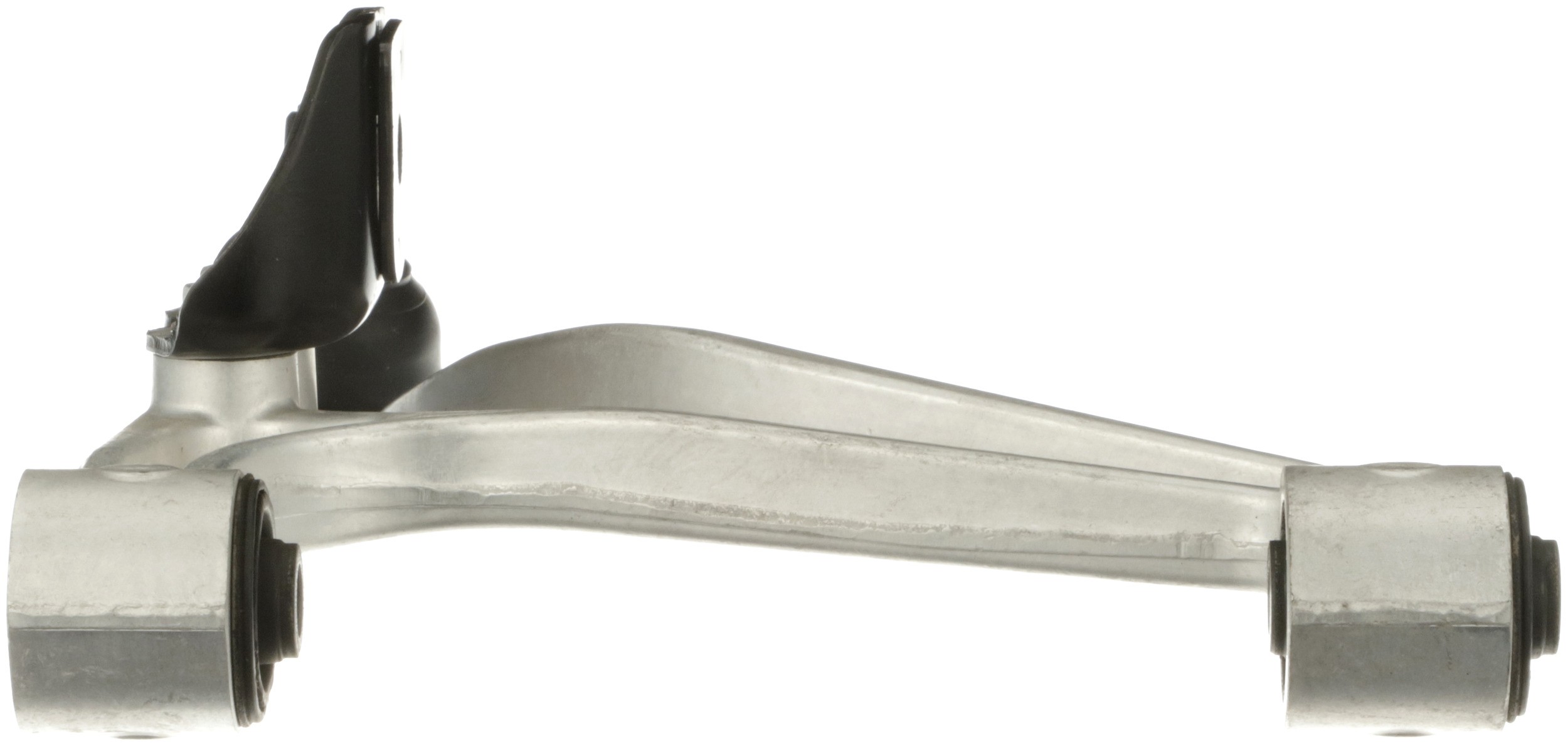

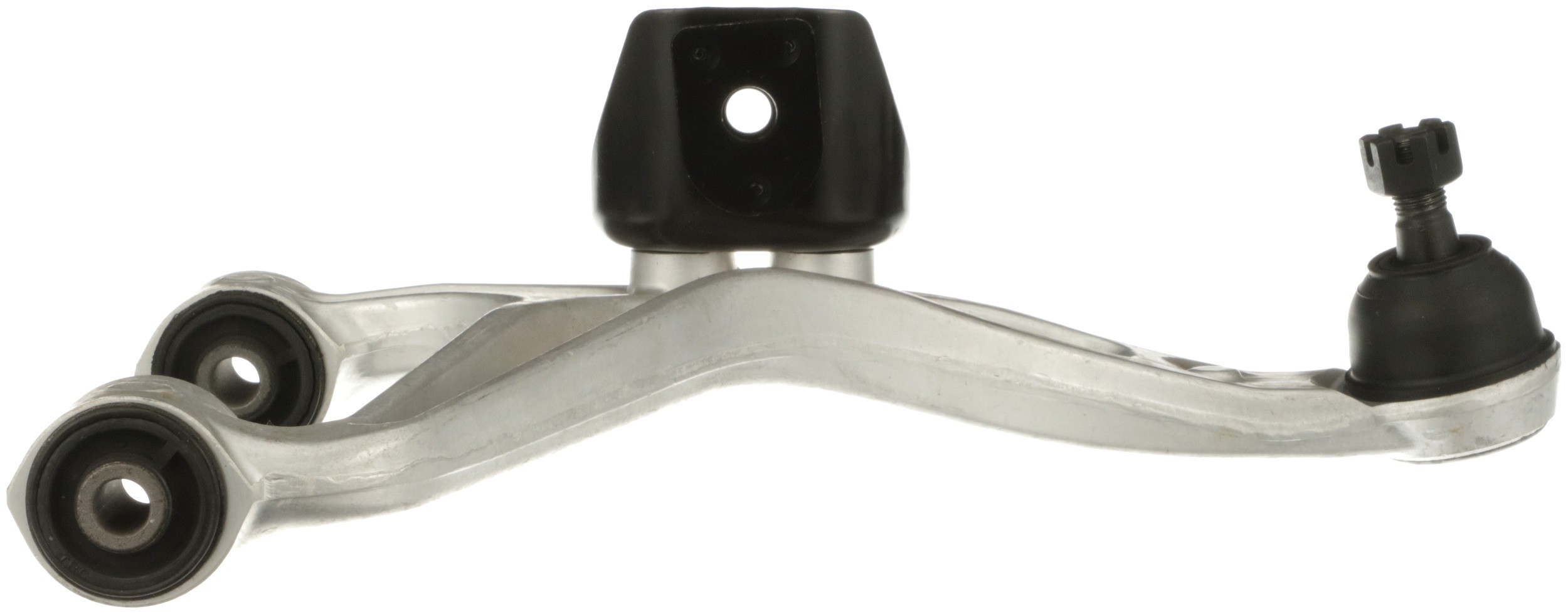

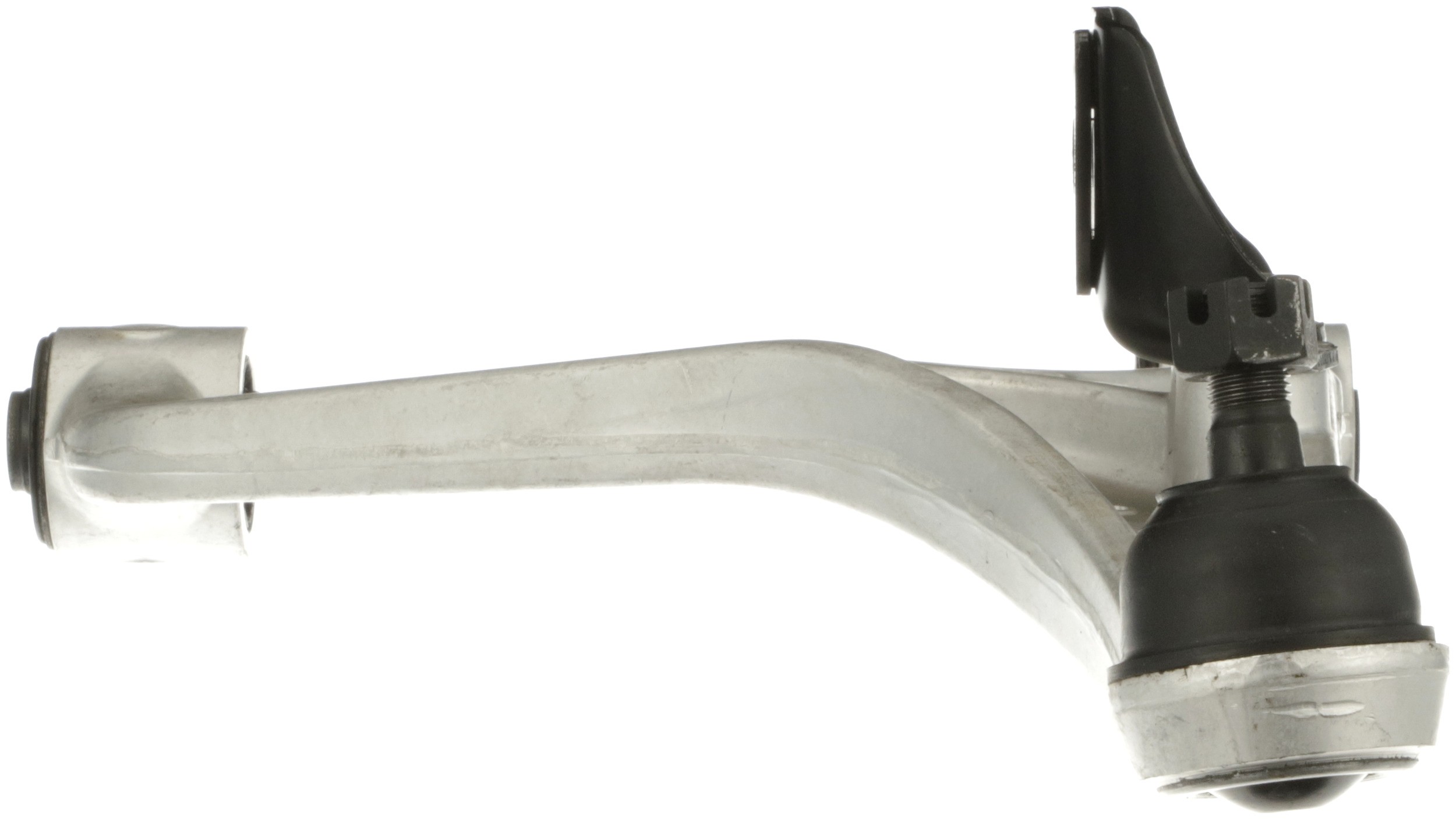

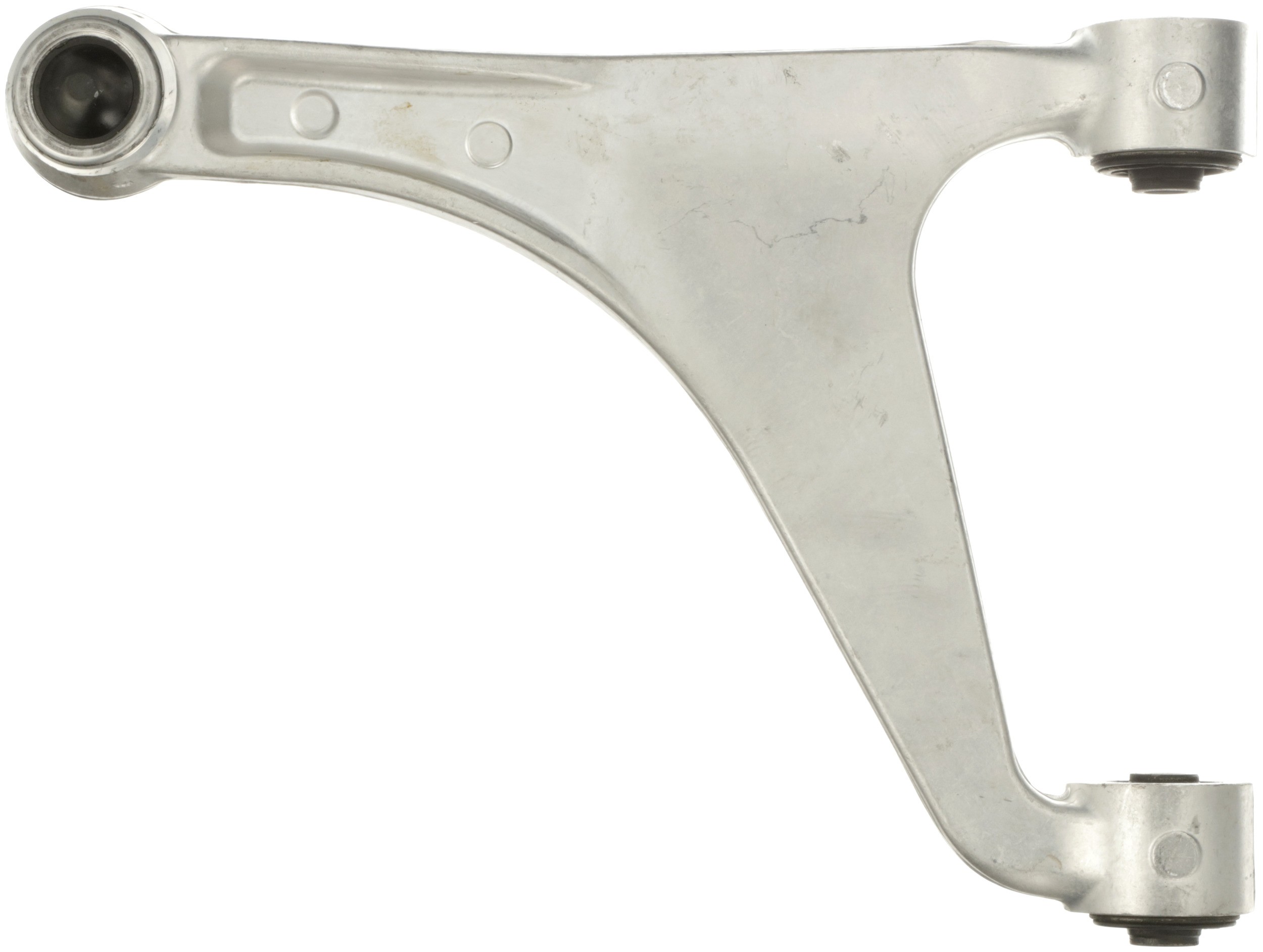

Delphi TC7399 Suspension Control Arm and Ball Joint Assembly

Delphi TC7399 Suspension Control Arm and Ball Joint Assembly

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
Thread Direction	Clockwise (Right)
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.433 IN
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	11.00 MM
Length	11.972 IN
Length	304.10 MM
4887	269.50 MM
4887	10.610 IN
Position(s)	Rear Left Upper
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	3
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Bushing Colour	Black
