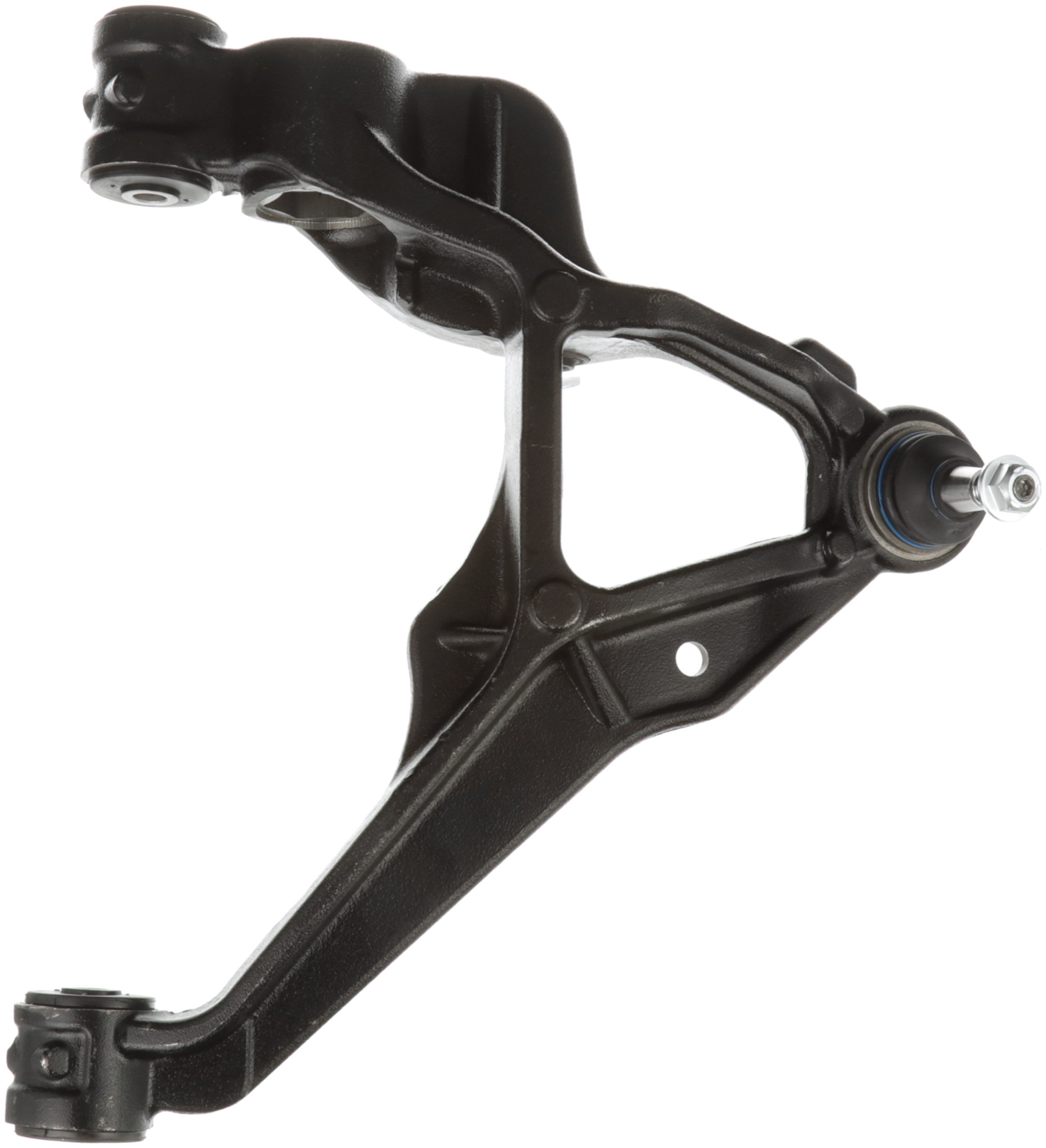

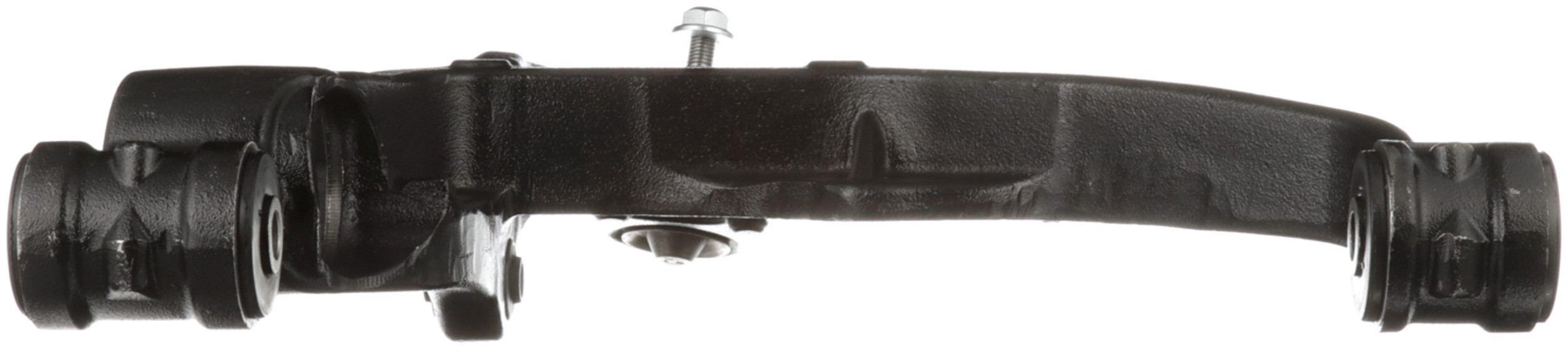

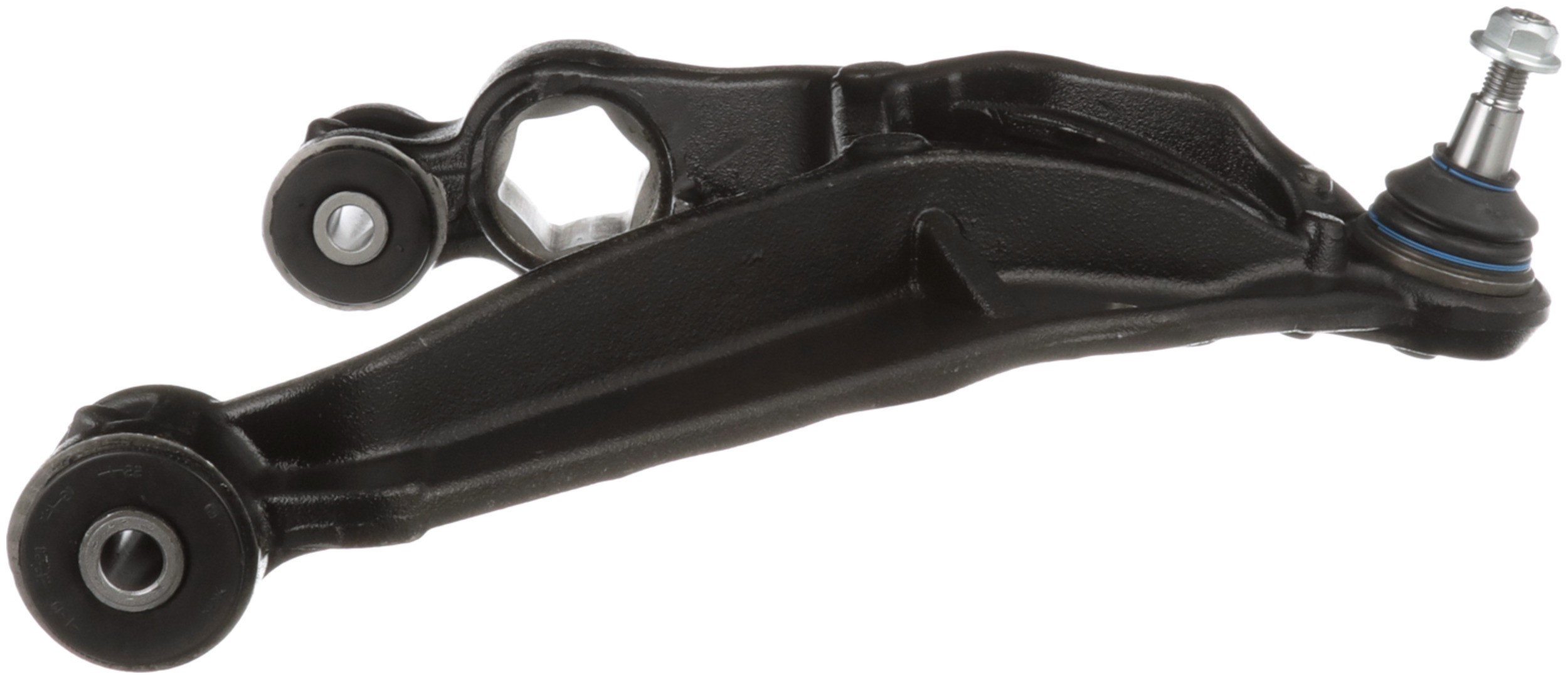

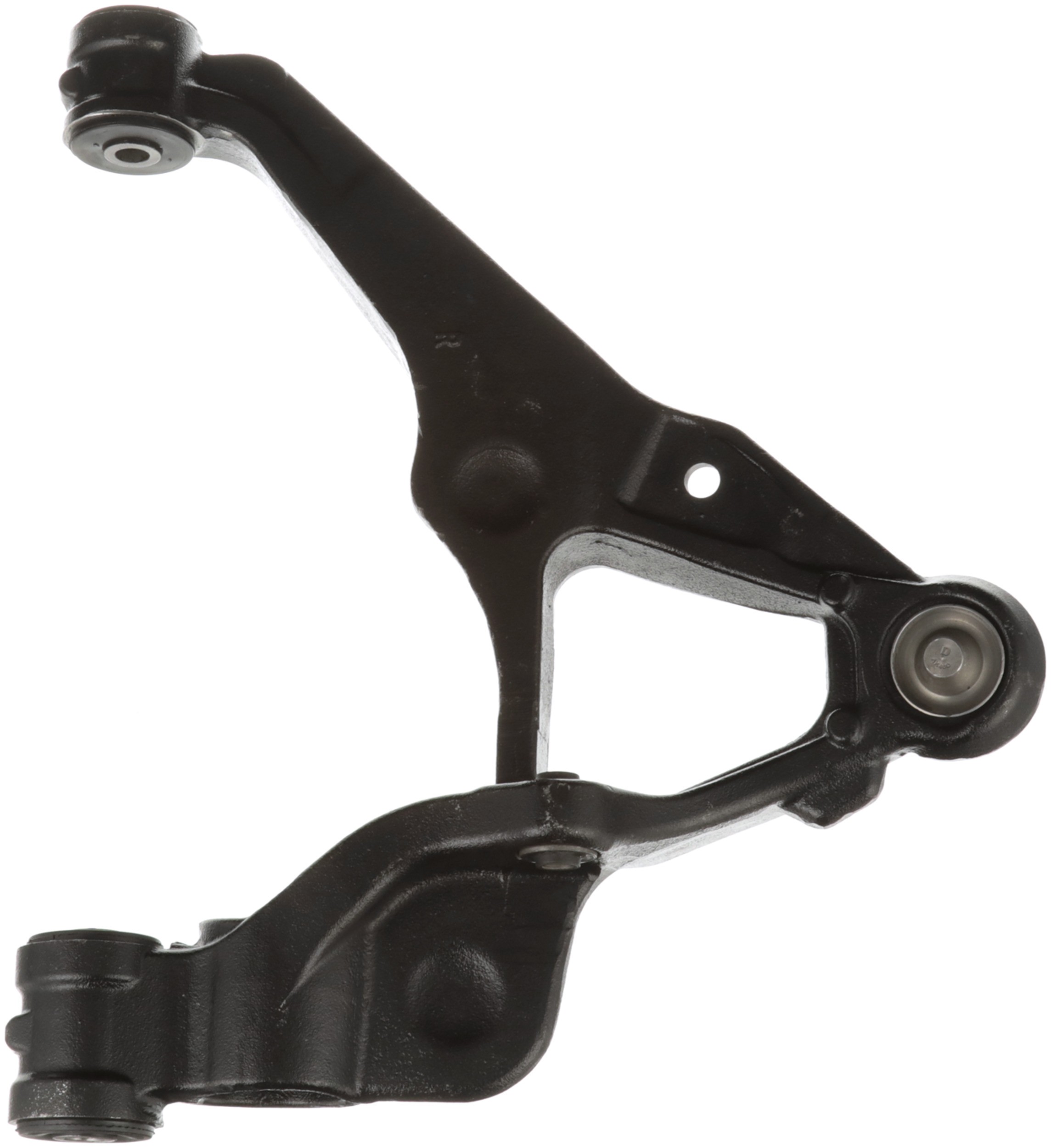

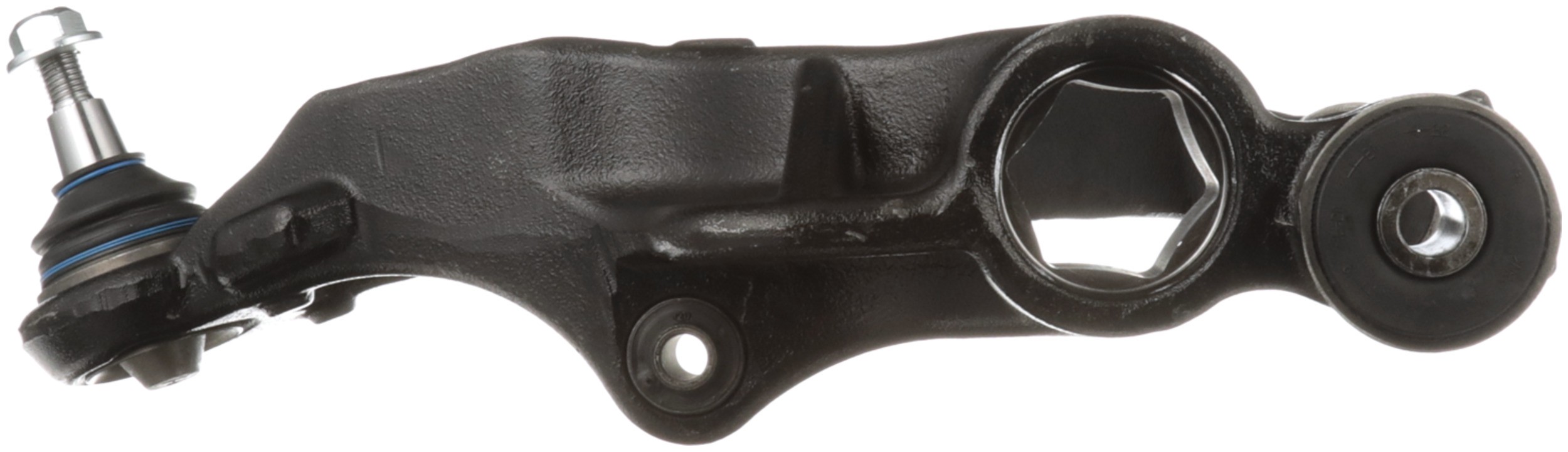

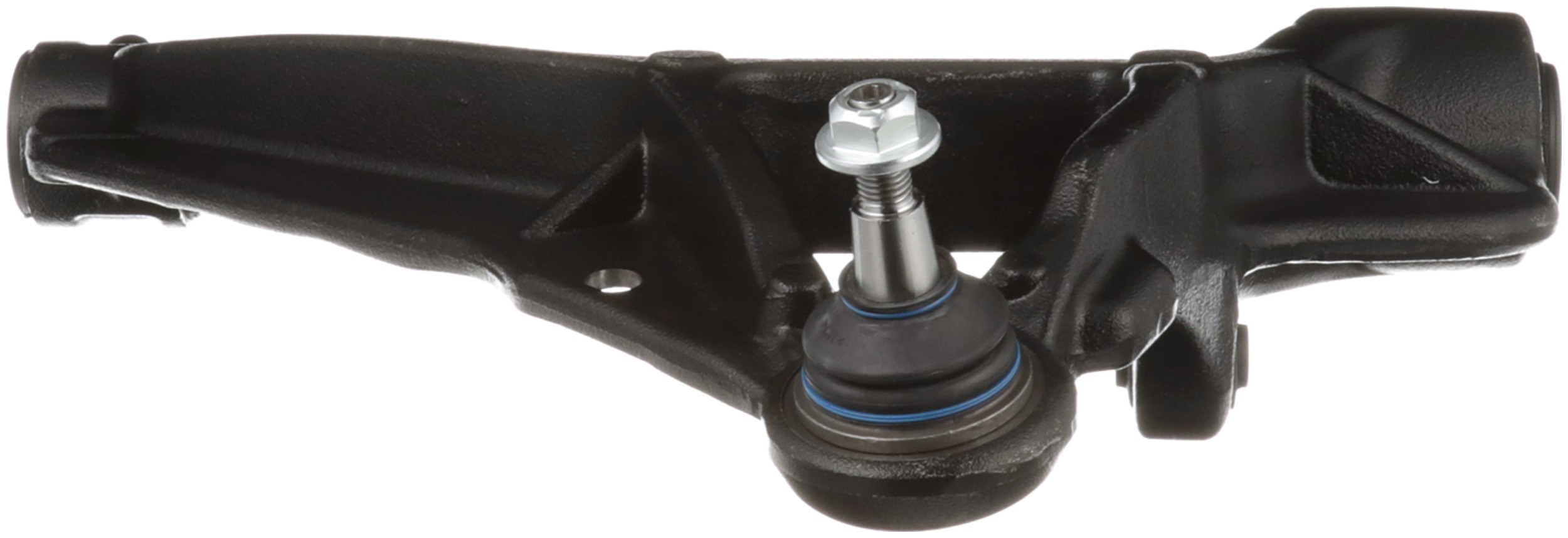

Delphi TC7426 Suspension Control Arm and Ball Joint Assembly

Delphi TC7426 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Type	Rubber
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Thread Direction	Clockwise (Right)
Bushing Colour	Black
Finish	Painted
2386	Casting/Forged
4241	Yes
6529	Power
4890	1.378 IN
4890	35.00 MM
4887	19.134 IN
4887	486.00 MM
Pre-greased	Yes
Length	588.20 MM
Length	23.157 IN
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	18.20 MM
Mounting Hole Diameter	0.559 IN
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Ball Joint Stud Type	Threaded
Material	Steel
9090	Chloroprene Rubber (CR)
Mounting Hole Diameter	0.717 IN
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Attachment Type	Press In
Dust Boot Included	Yes
Position(s)	Front Left Lower
Bushings Included	Yes
2384	Yes
