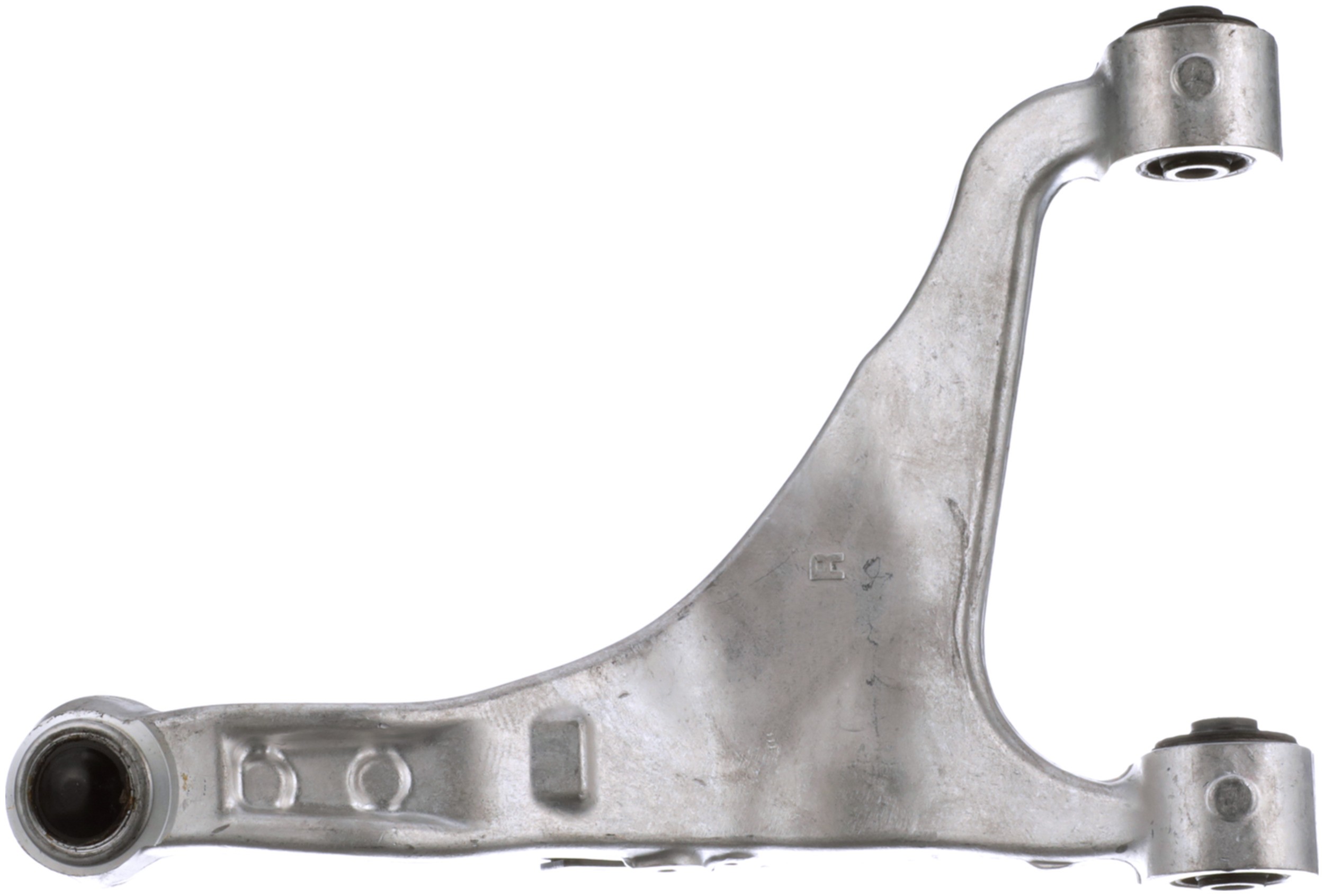

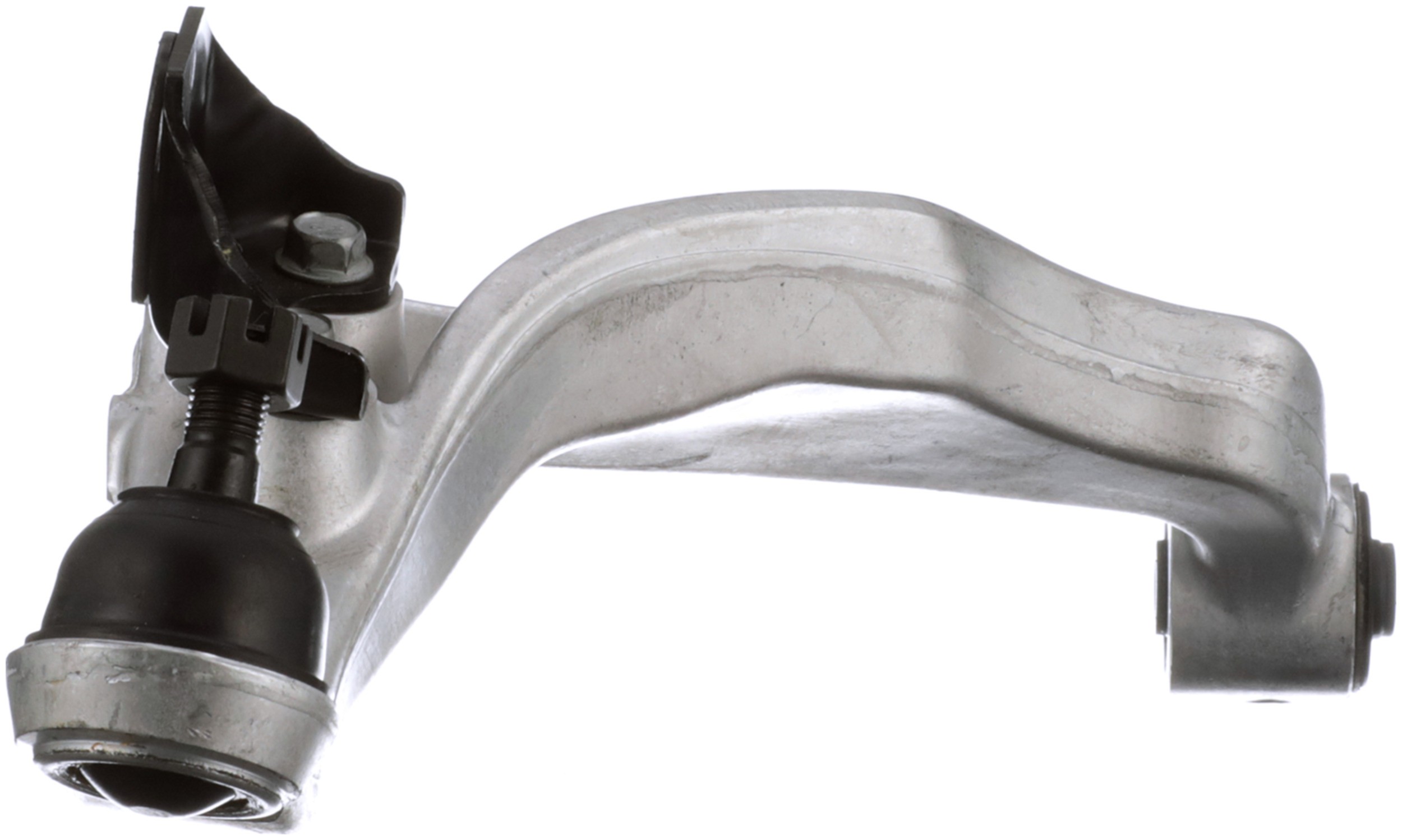

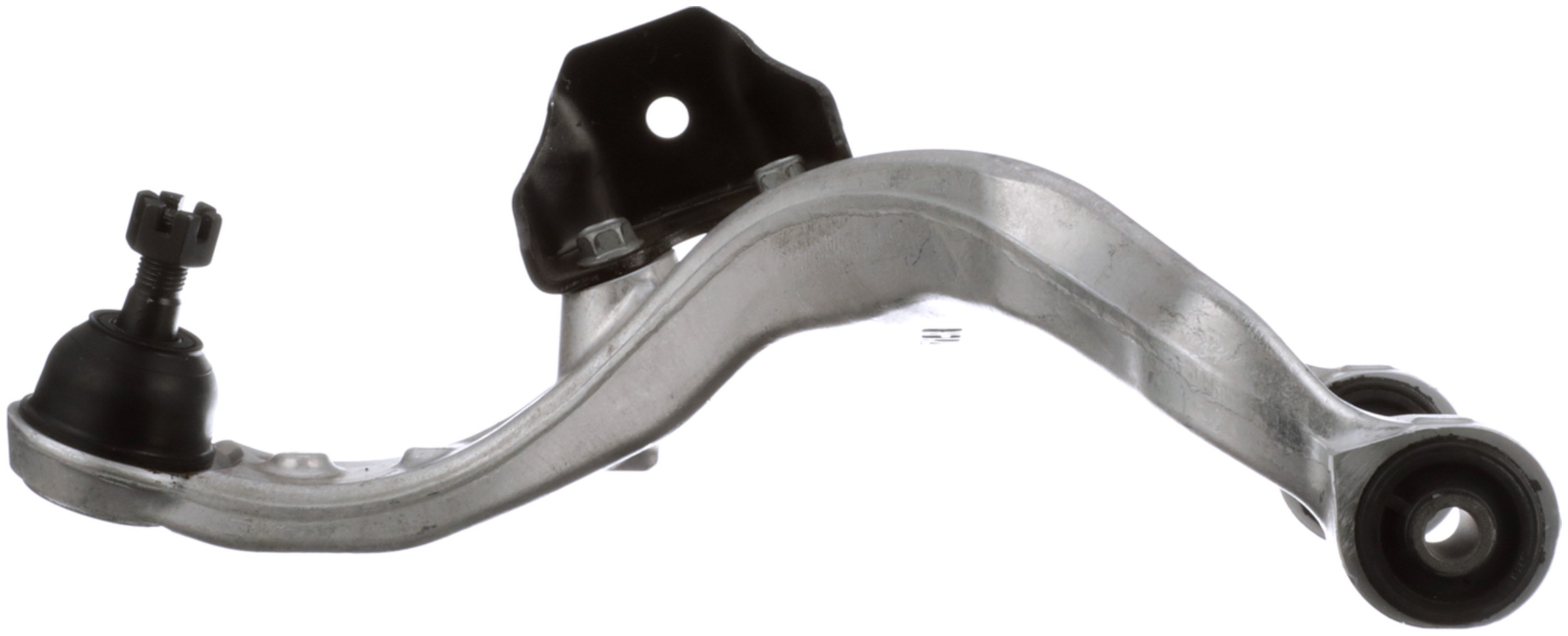

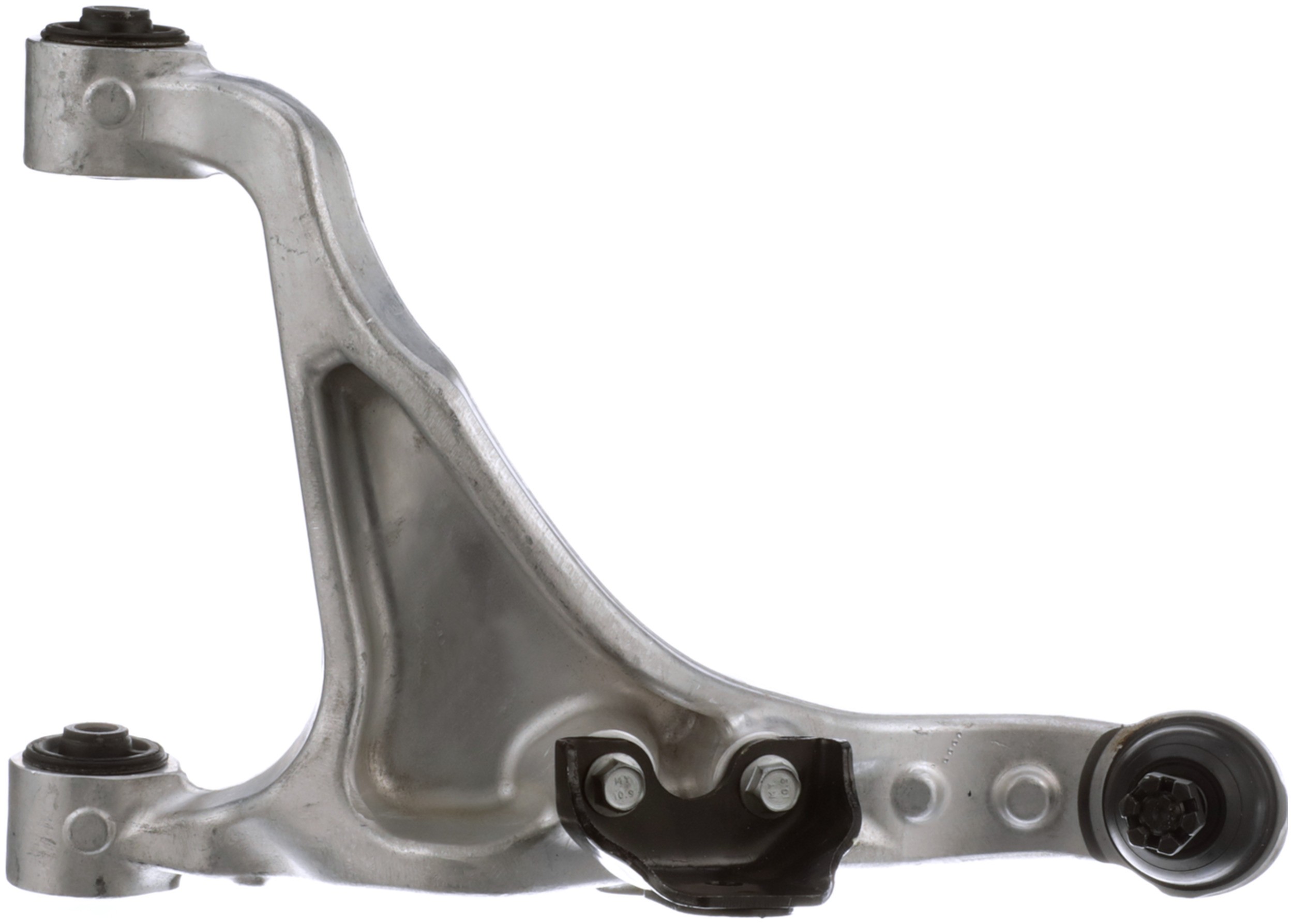

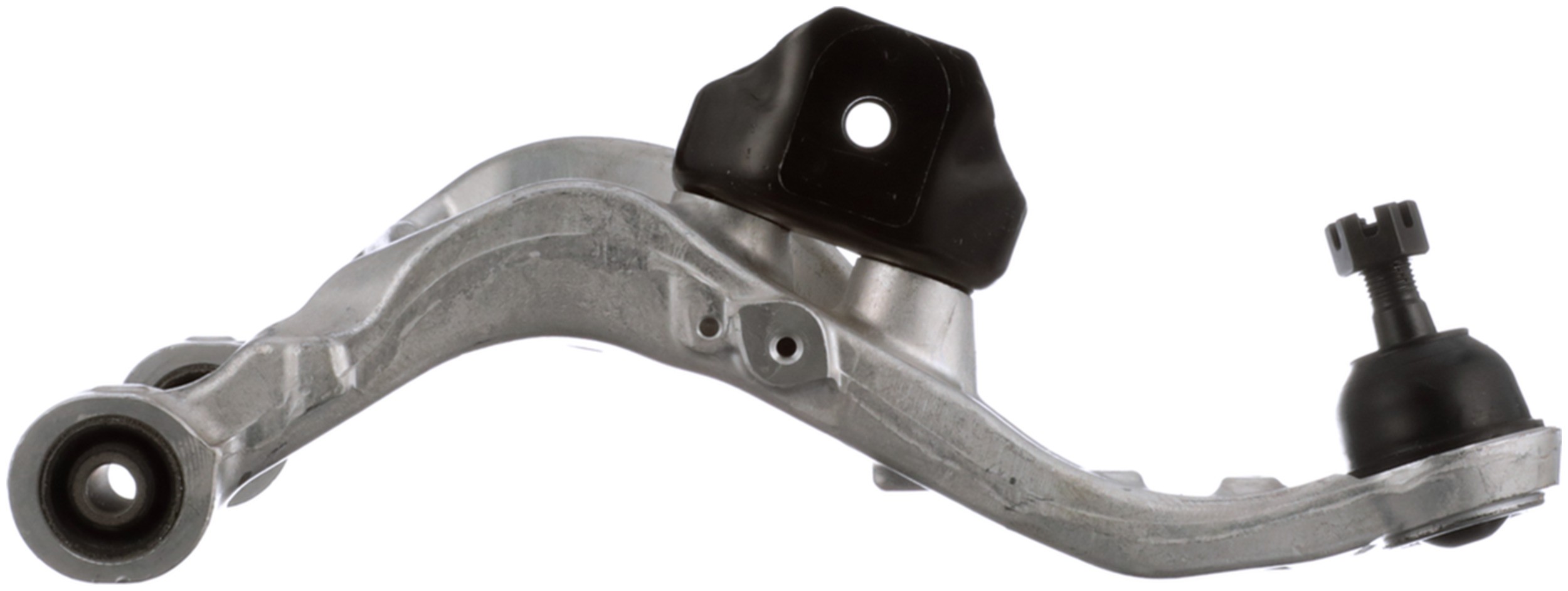

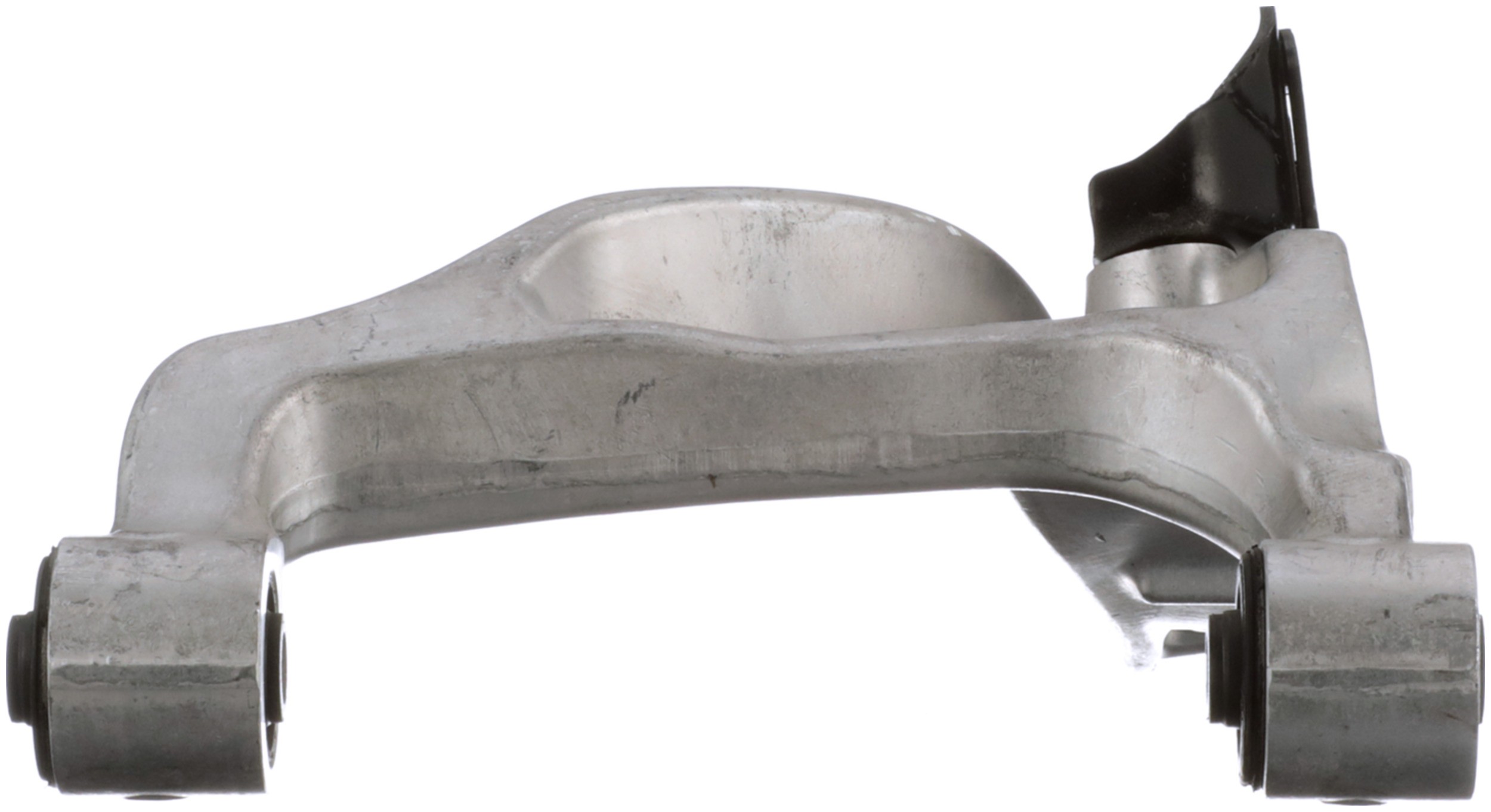

Delphi TC7559 Suspension Control Arm and Ball Joint Assembly

Delphi TC7559 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	10.80 MM
Length	12.138 IN
Length	308.30 MM
Mounting Hole Quantity	3
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
Material	Aluminum
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Bushing Colour	Black
Thread Direction	Clockwise (Right)
4887	269.40 MM
4887	10.606 IN
9090	Chloroprene Rubber (CR)
6529	Power
Mounting Hardware Included	Yes
Grade Type	Premium
4241	Yes
2386	Casting/Forged
2384	Yes
Position(s)	Rear Right Upper
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.480 IN
Mounting Hole Diameter	0.425 IN
Mounting Hole Diameter	12.20 MM
Mounting Hole Diameter	12.20 MM
