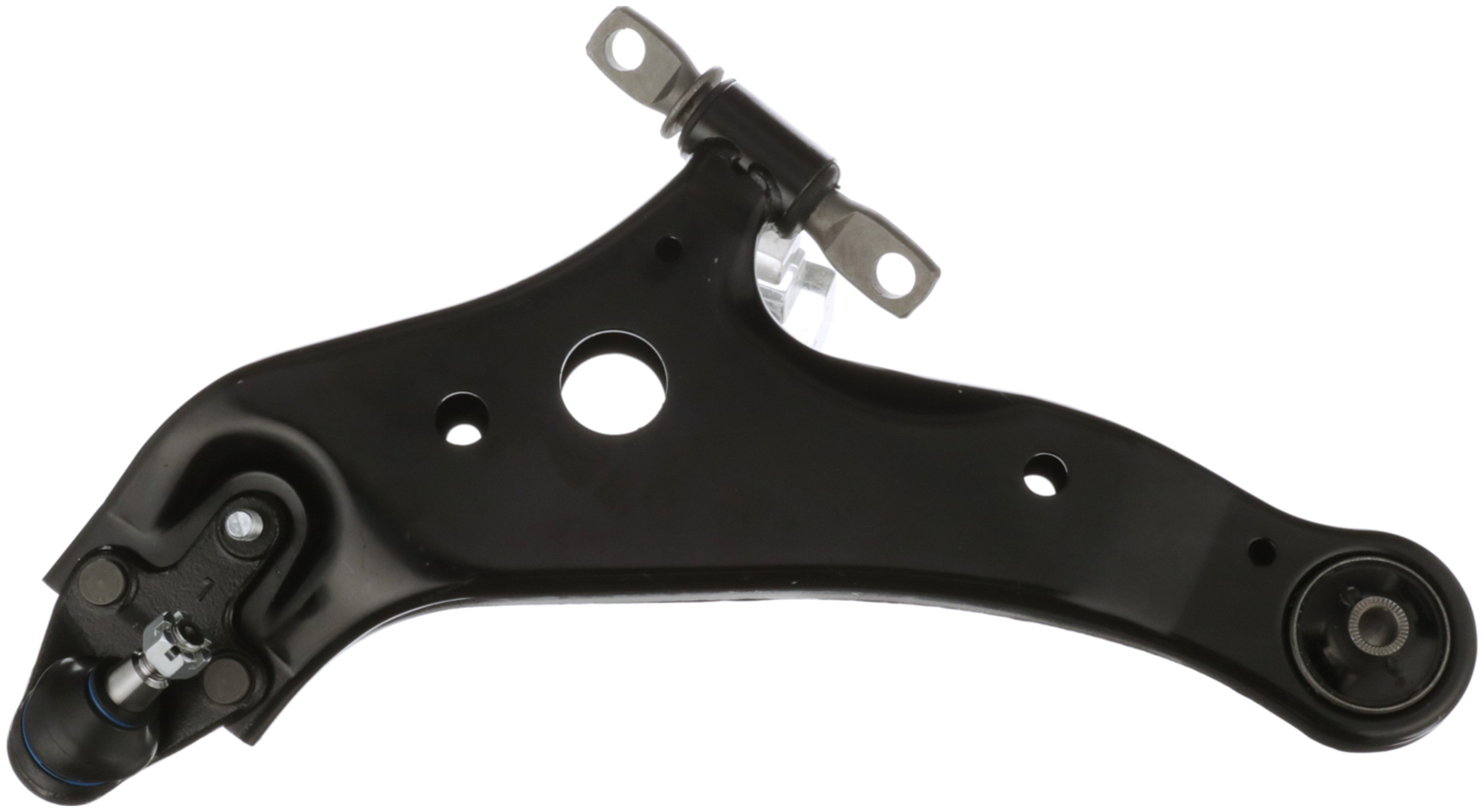

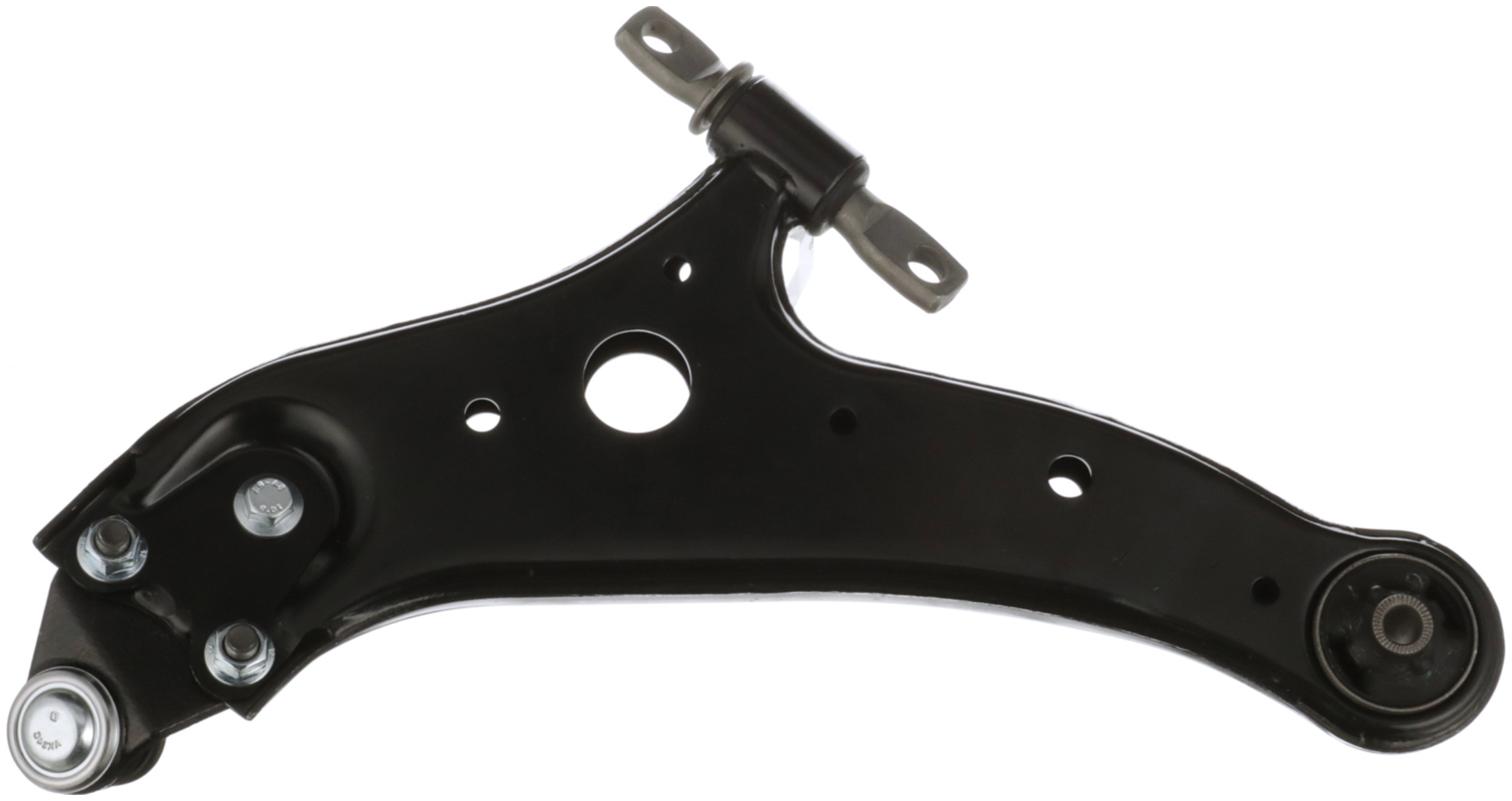

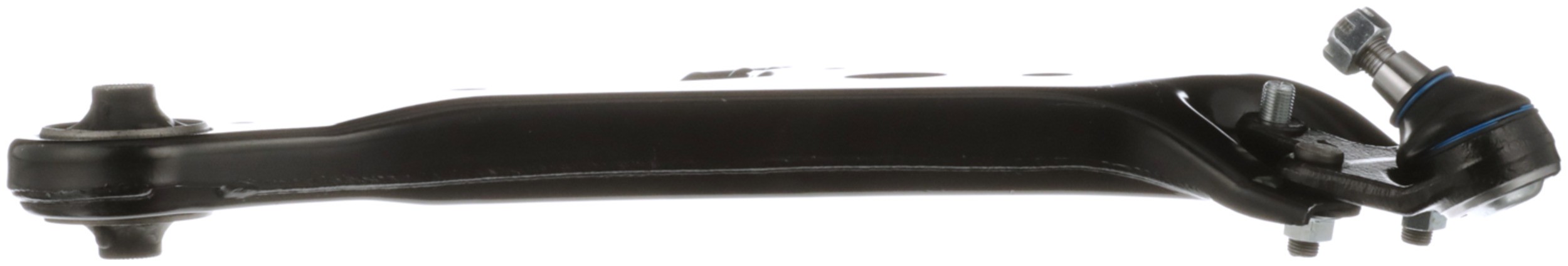

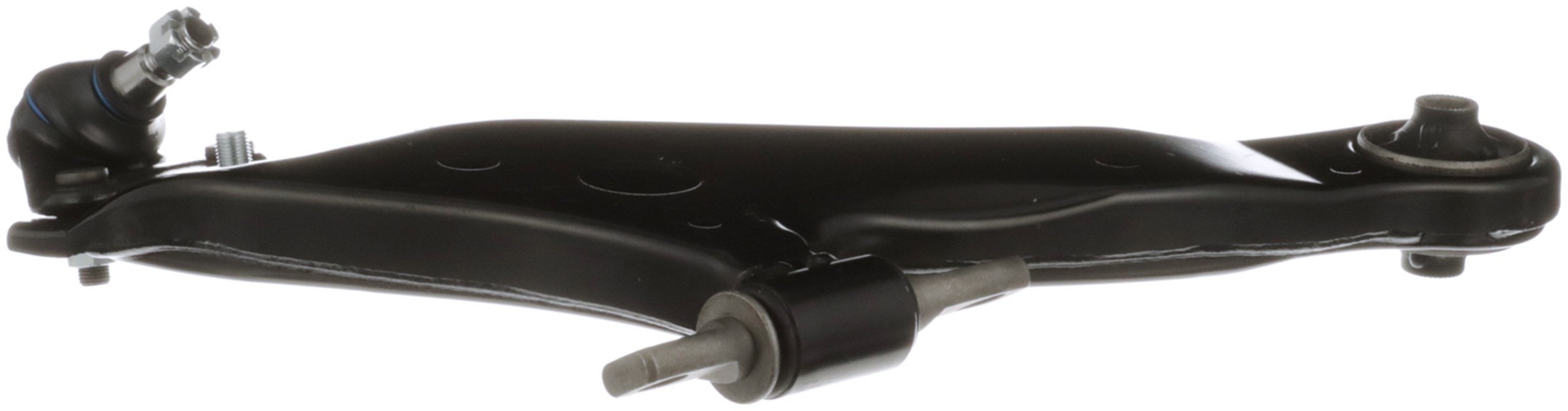

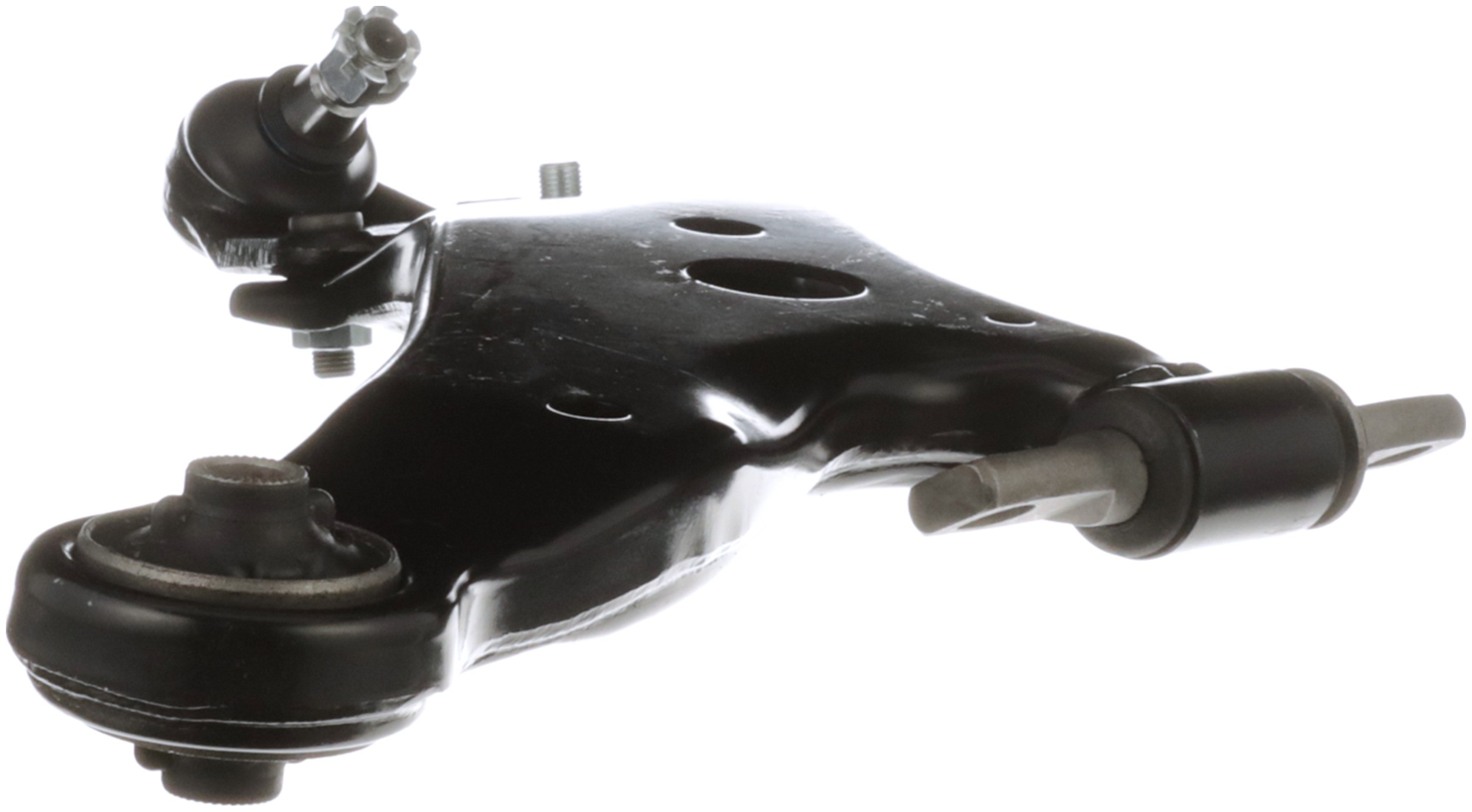

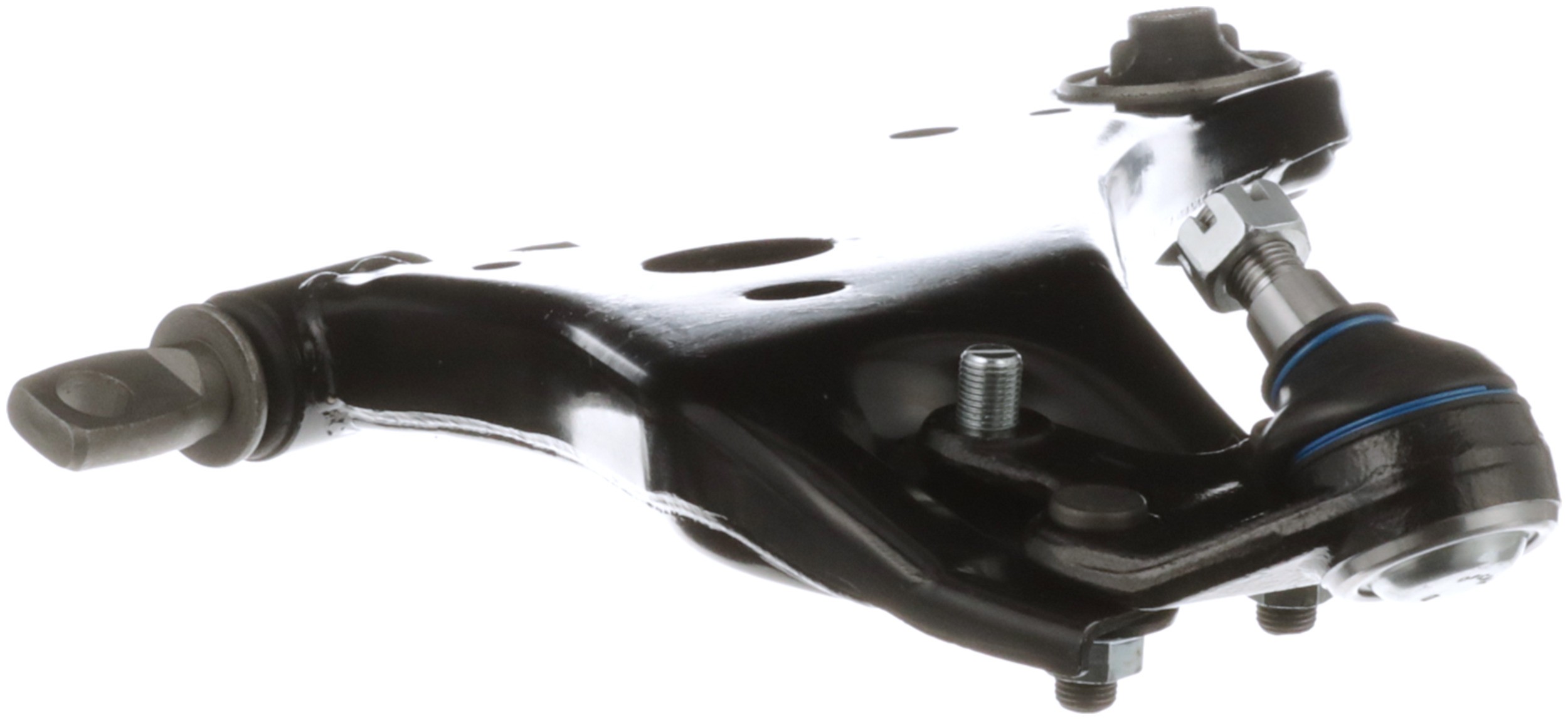

Delphi TC7567 Suspension Control Arm and Ball Joint Assembly

Delphi TC7567 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Bushing Type	Rubber
Bearing Material	Plastic
Length	437.00 MM
Length	17.205 IN
Grade Type	Premium
4887	103.00 MM
2386	Stamped
Bushing Colour	Black
Thread Direction	Clockwise (Right)
4241	Yes
6529	Power
Material	Steel
Ball Joint Stud Type	Threaded
Boot Colour	Black
Finish	Black
Attachment Type	Bolt In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	3
Position(s)	Front Right Lower
2384	Yes
9090	Chloroprene Rubber (CR)
4887	4.055 IN

Vehicle Applications:

Make	Model	Years
Lexus	RX350	2010 to 2022
Lexus	RX350L	2018 to 2022
Lexus	RX450h	2010 to 2022
Lexus	RX450hL	2018 to 2022
Toyota	Highlander	2008 to 2019
Toyota	Venza	2009 to 2015
