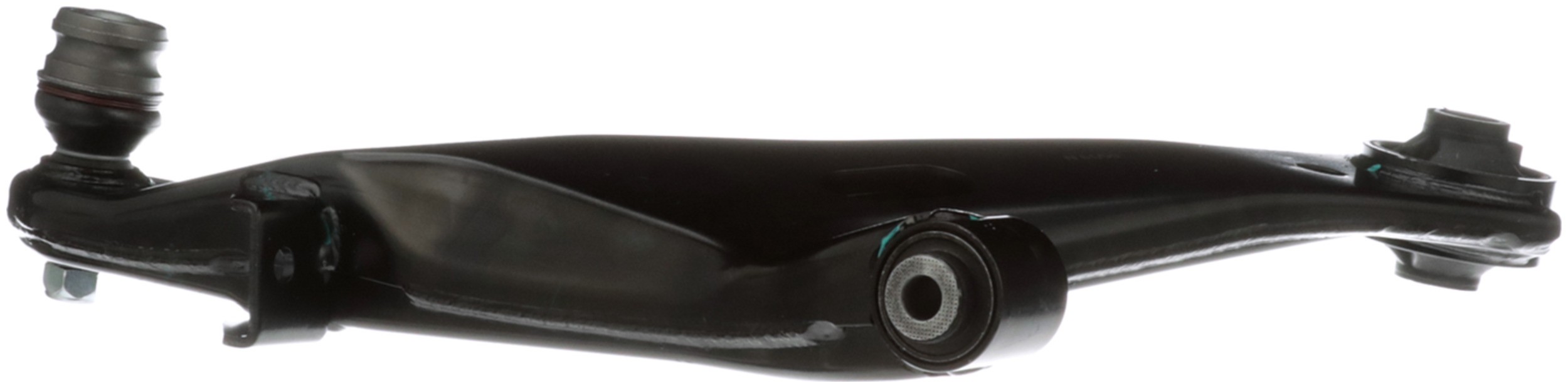

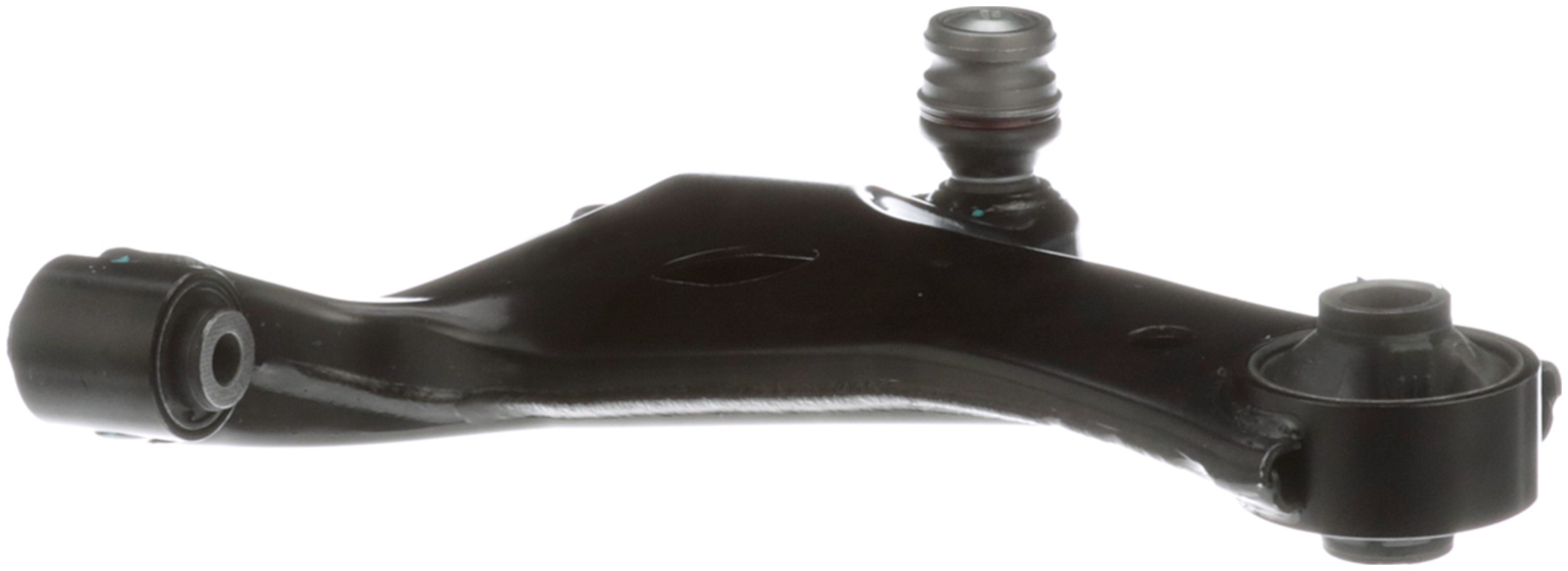

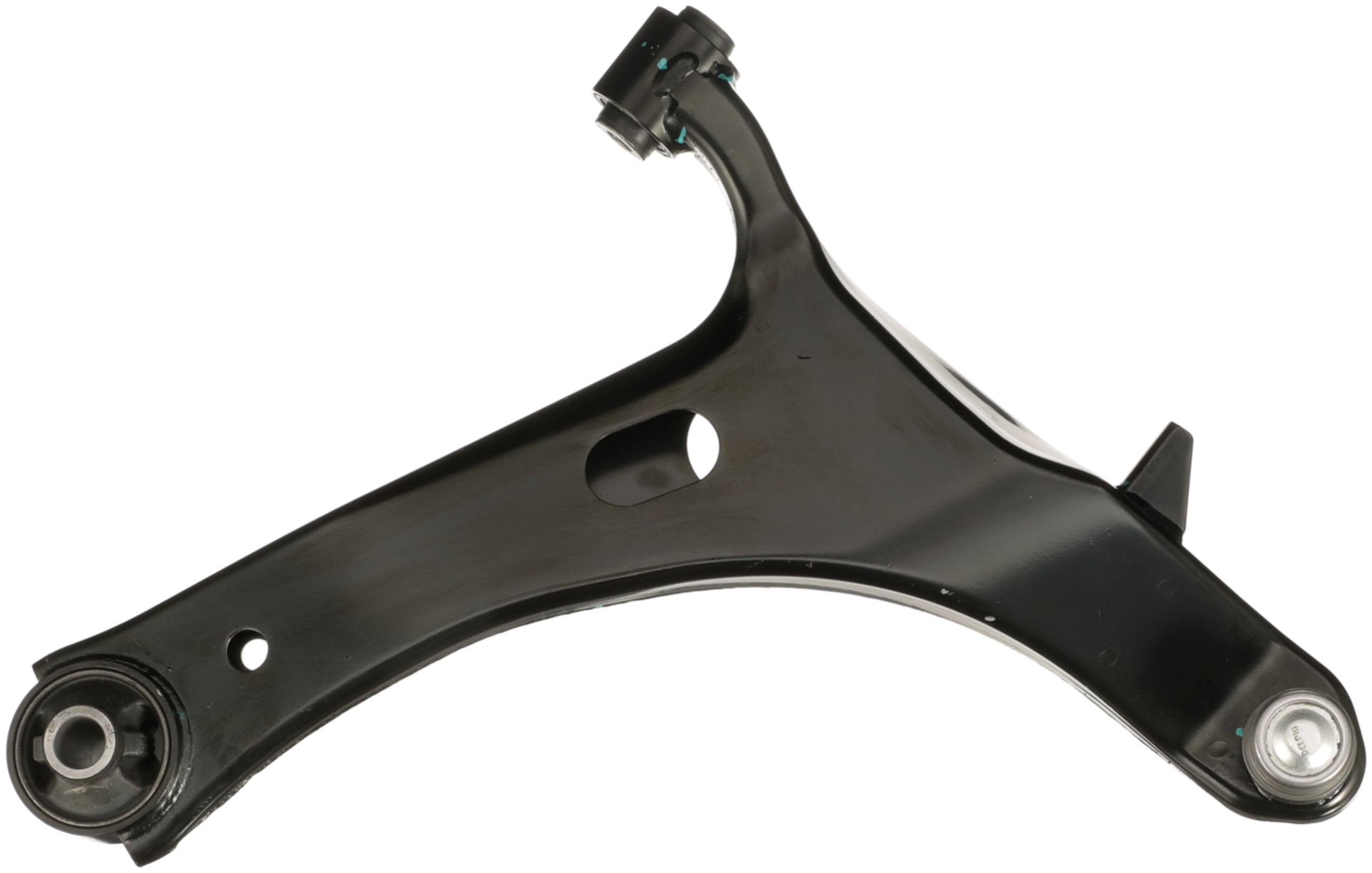

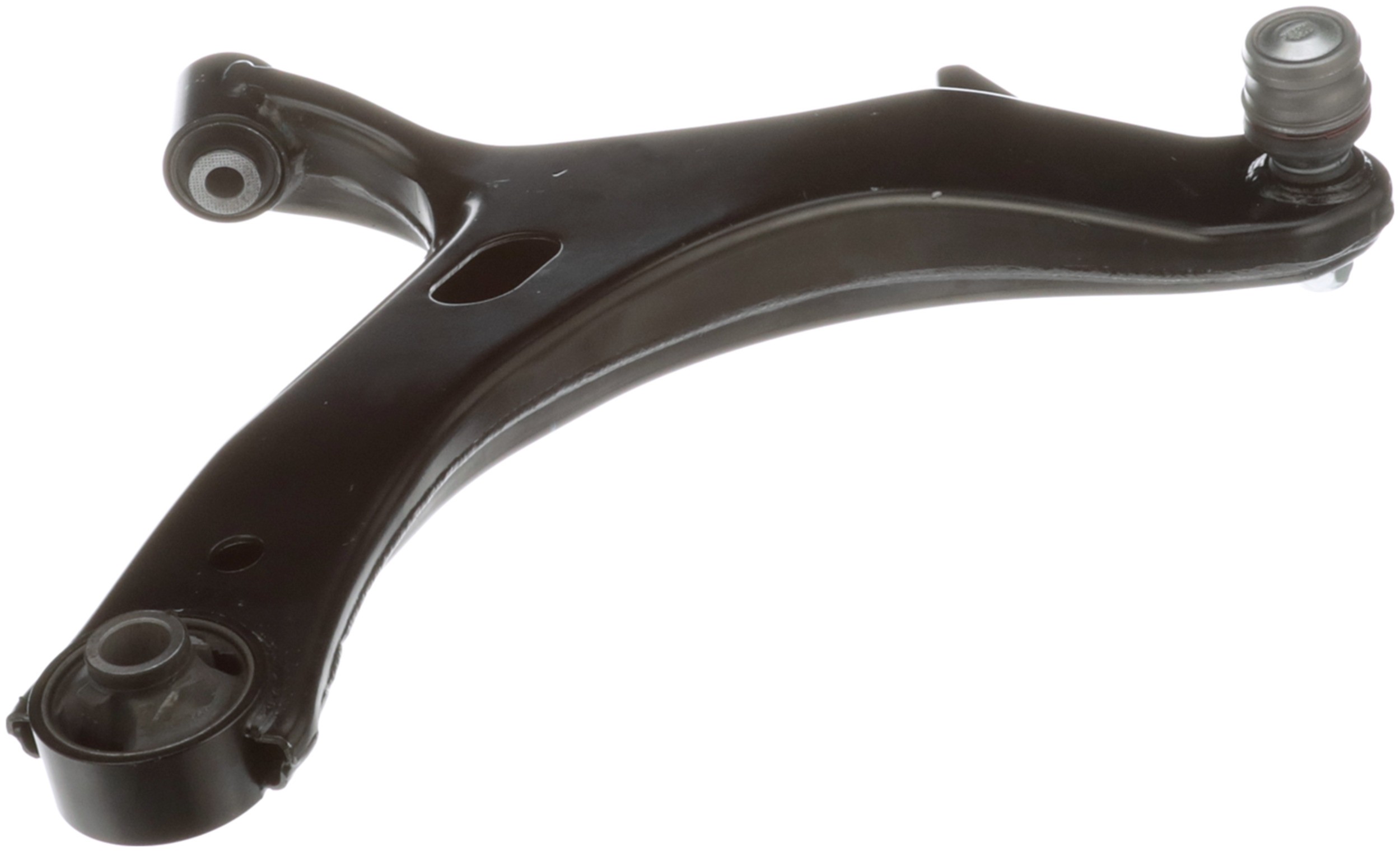

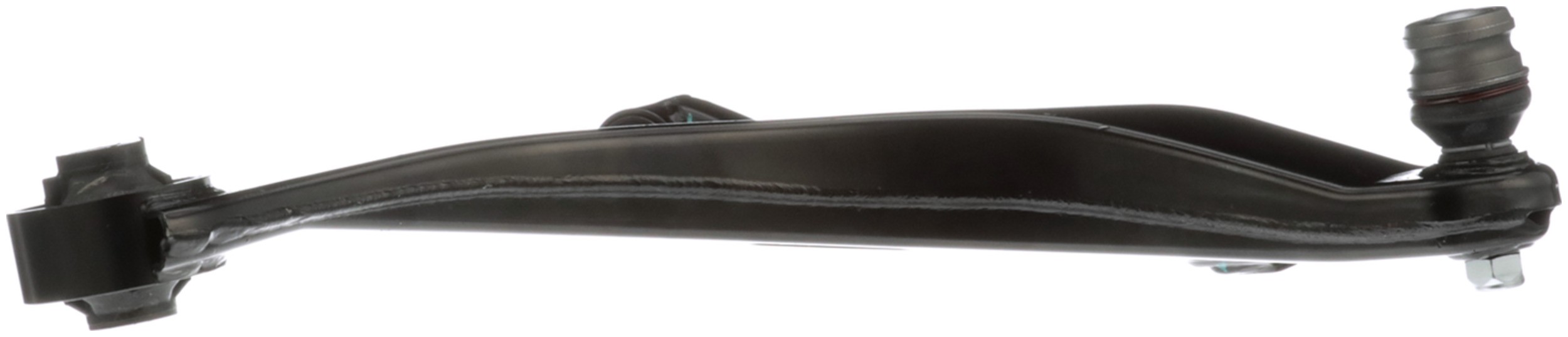

Delphi TC7624 Suspension Control Arm and Ball Joint Assembly

Delphi TC7624 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4890	3.307 IN
Length	416.00 MM
Length	16.378 IN
9090	Chloroprene Rubber (CR)
6529	Power
4241	Yes
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Press In
Dust Boot Included	Yes
Bushings Included	Yes
Pre-greased	Yes
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
2386	Stamped
2384	Yes
Position(s)	Front Right Lower
Mounting Hole Quantity	3
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
4890	84.00 MM
4887	15.551 IN
4887	395.00 MM
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
