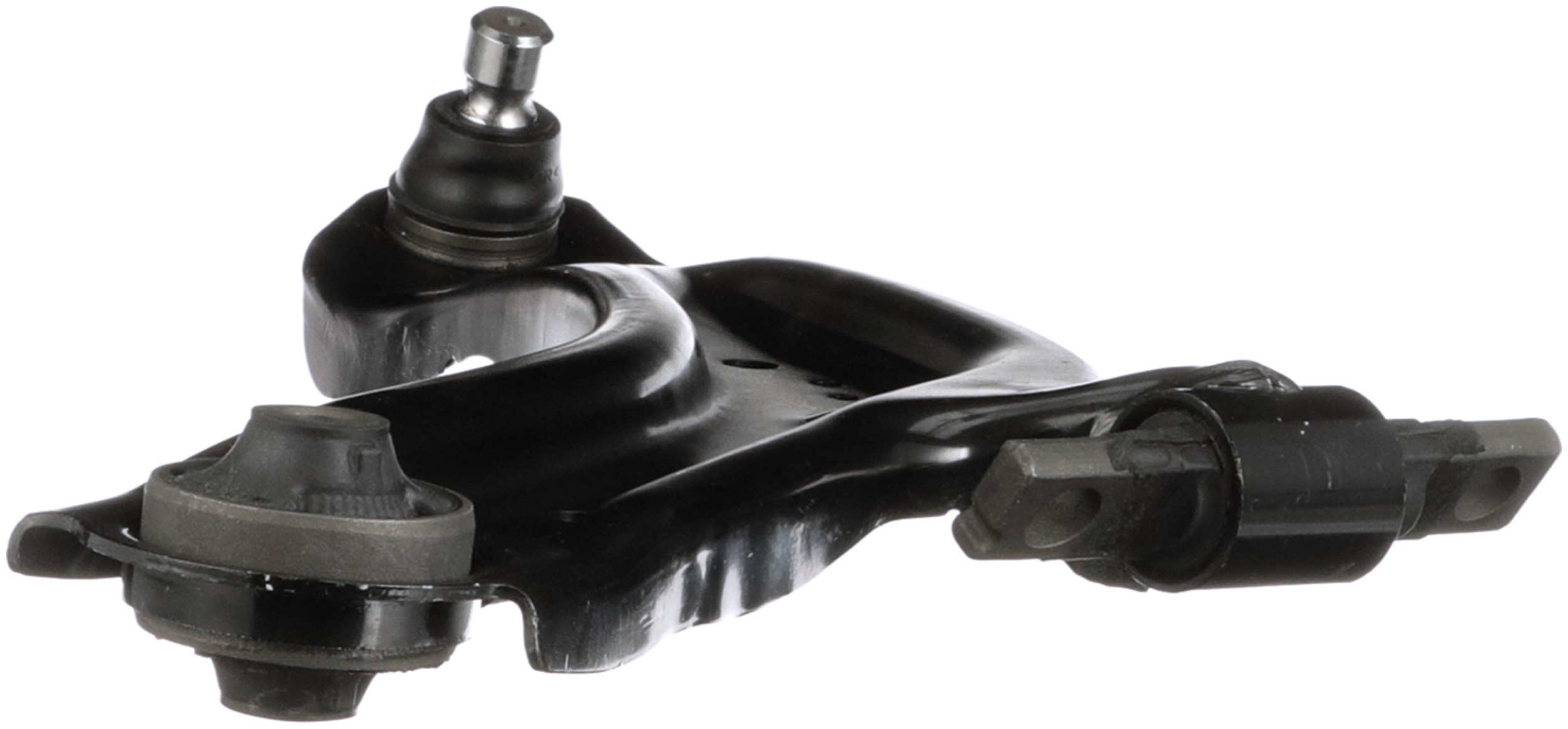

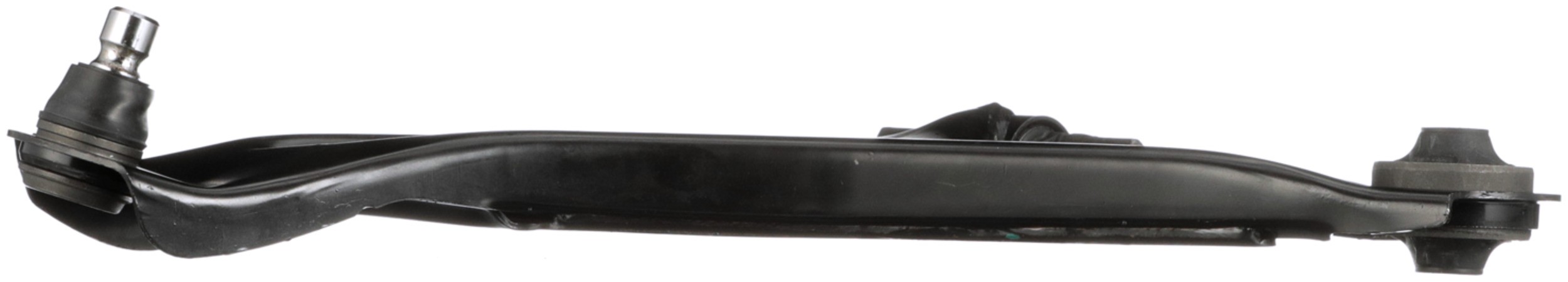

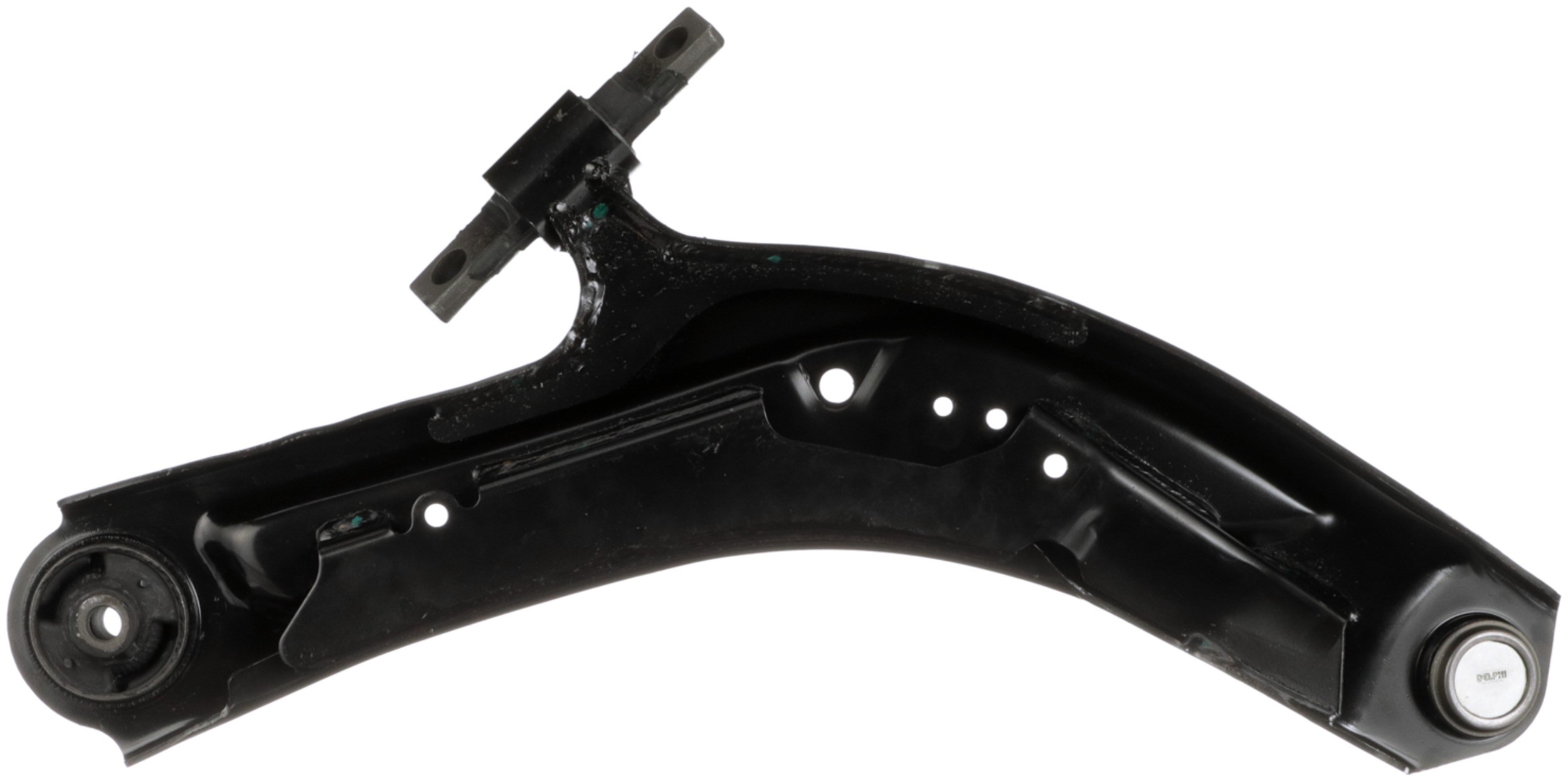

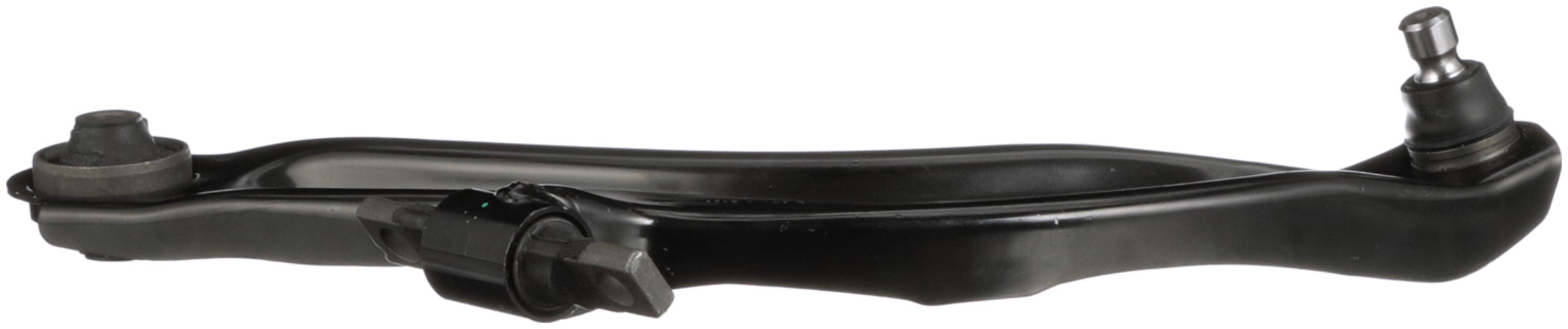

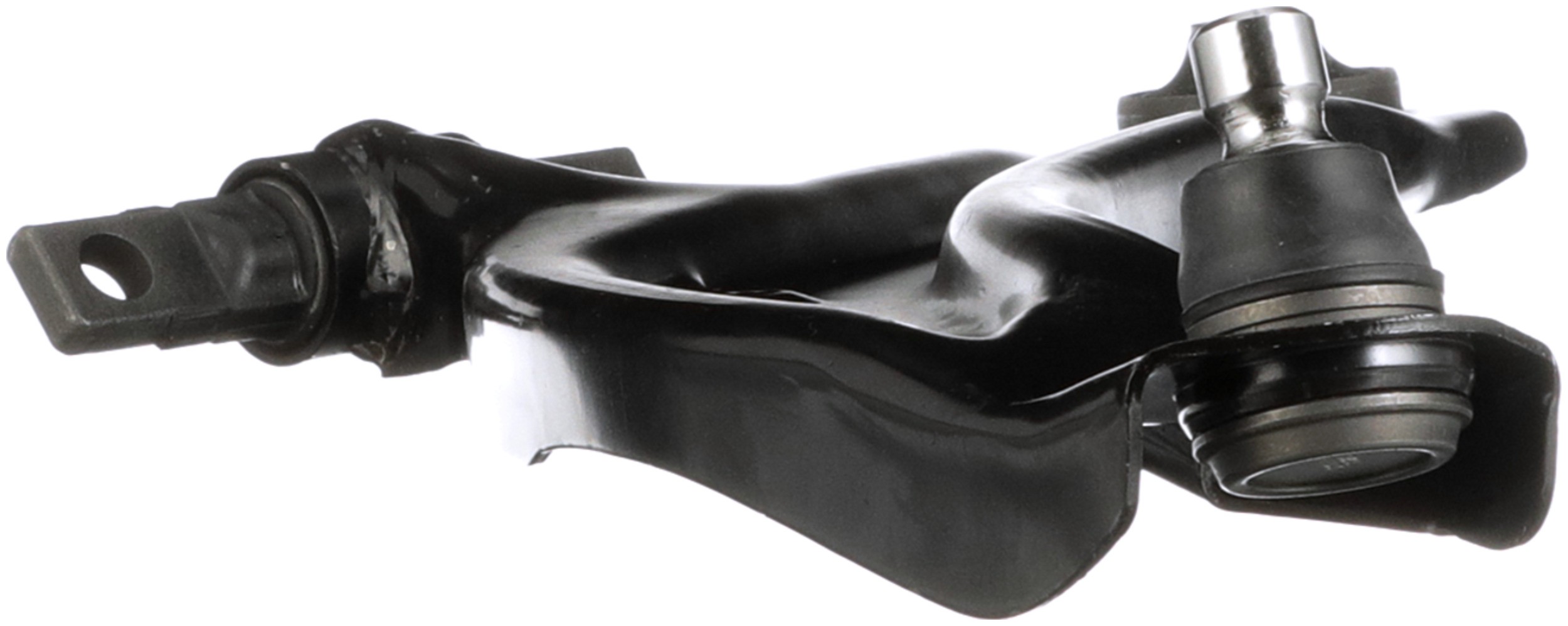

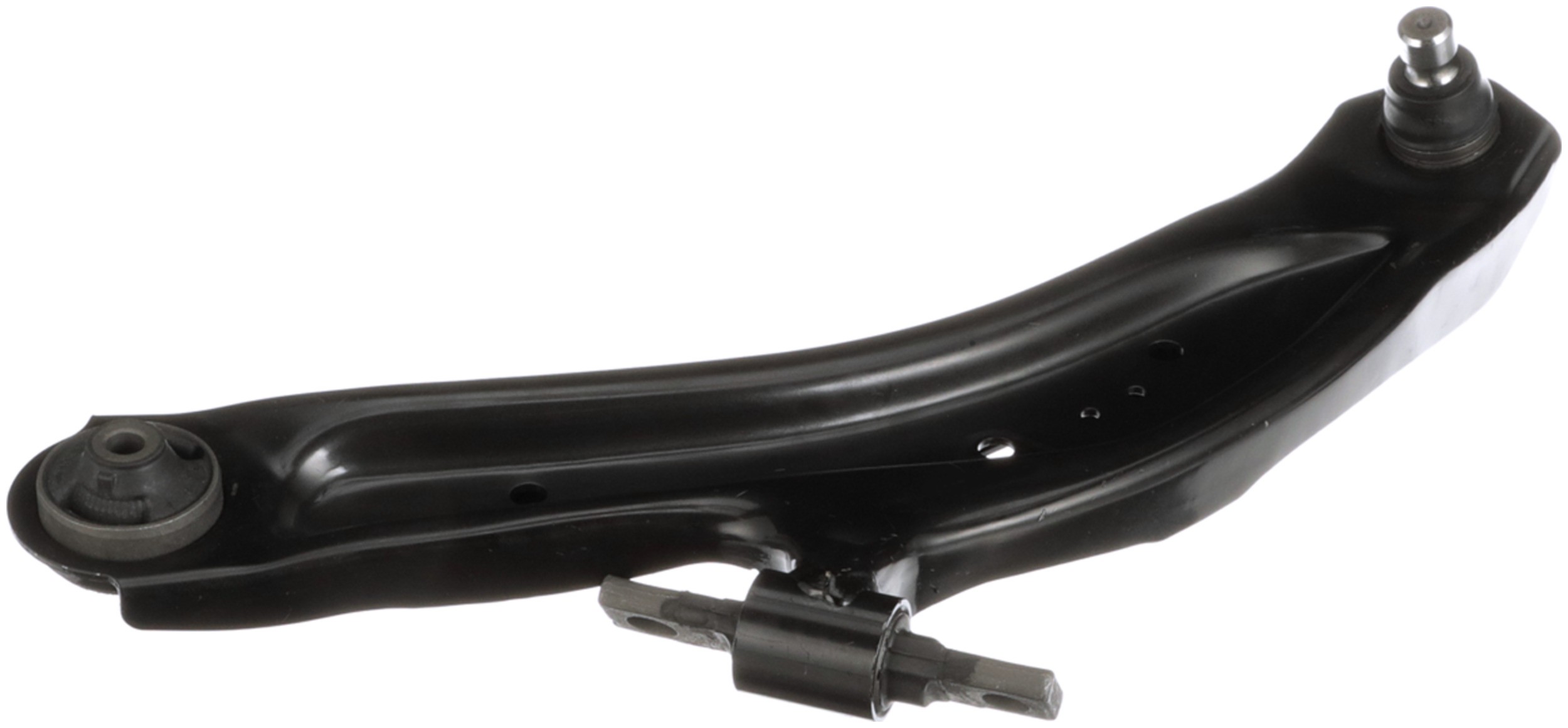

Delphi TC7627 Suspension Control Arm and Ball Joint Assembly

Delphi TC7627 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

4890	65.60 MM
4887	3.622 IN
4887	92.00 MM
Bearing Material	Plastic
Greaseable	No
Bushing Type	Rubber
Mounting Hole Diameter	0.563 IN
Mounting Hole Diameter	0.559 IN
Mounting Hole Diameter	0.476 IN
Finish	Black
Boot Colour	Black
Length	438.00 MM
Length	17.244 IN
Mounting Hole Diameter	12.10 MM
Mounting Hole Diameter	14.20 MM
Mounting Hole Diameter	14.30 MM
Bushing Colour	Black
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Press In
9090	Chloroprene Rubber (CR)
6529	Power
2386	Stamped
2384	Yes
Position(s)	Front Left Lower
Mounting Hardware Included	No
Grade Type	Premium
Material	Steel
Ball Joint Stud Type	Grooved
Mounting Hole Quantity	3
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
4890	2.583 IN
