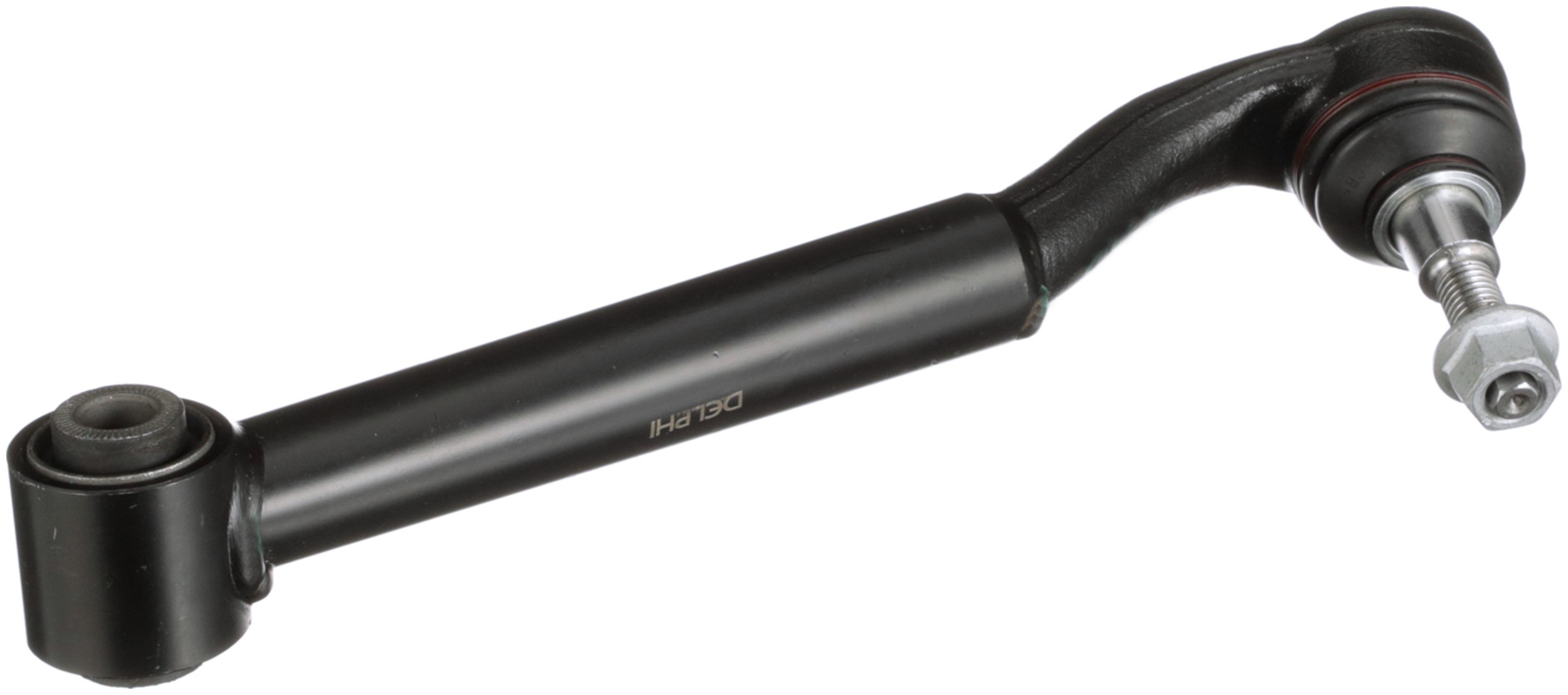

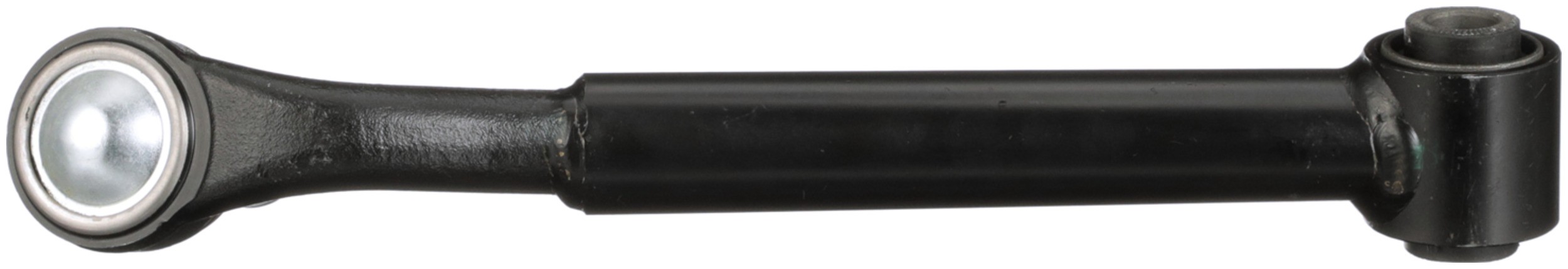

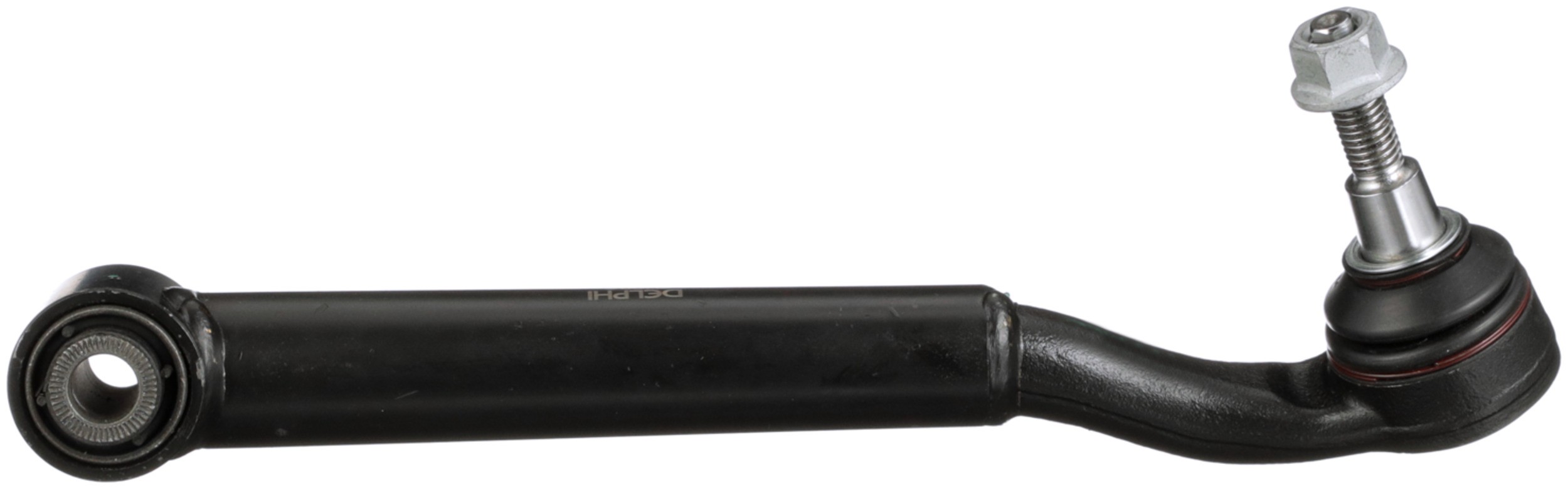

Delphi TC7630 Suspension Control Arm and Ball Joint Assembly

Delphi TC7630 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hole Diameter	16.20 MM
Finish	Painted
Bushing Colour	Black
Thread Direction	Clockwise (Right)
4890	4.350 IN
4890	110.50 MM
4887	10.551 IN
4887	268.00 MM
Length	384.00 MM
Length	15.118 IN
Pre-greased	Yes
Mounting Hole Diameter	0.638 IN
Position(s)	Front Left Lower Rearward
2384	Yes
2386	Casting/Forged
4241	Yes
6529	Power
9090	Chloroprene Rubber (CR)
Bushing Type	Rubber
Bearing Material	Plastic
Boot Colour	Black
Finish	Black
Greaseable	No
Adjustable	No
Boot Material	Chloroprene Rubber (CR)
Mounting Hole Quantity	1
Grade Type	Premium
Mounting Hardware Included	Yes
Material	Steel
Ball Joint Stud Type	Threaded
Attachment Type	Machined
Dust Boot Included	Yes
Bushings Included	Yes
