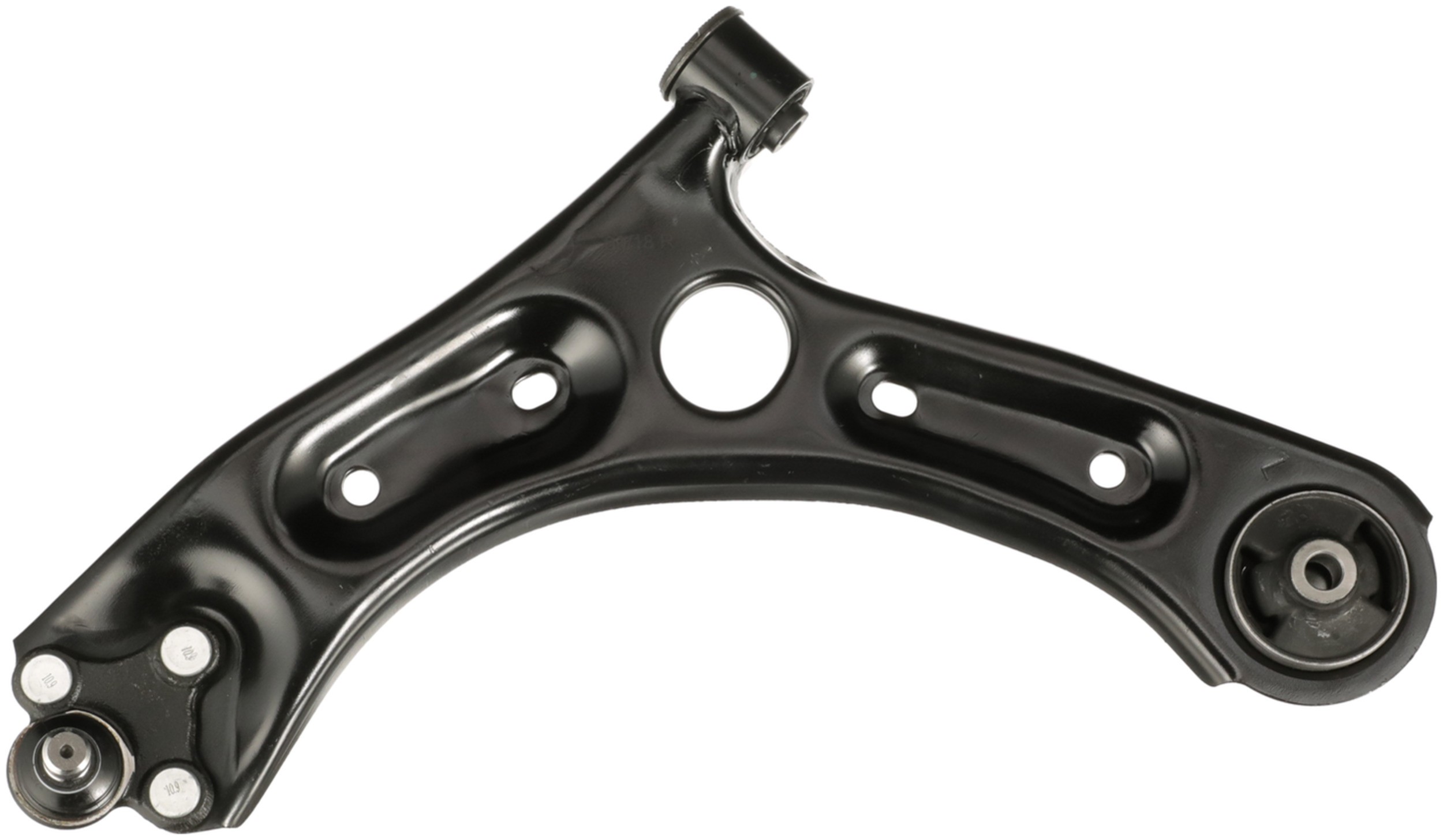

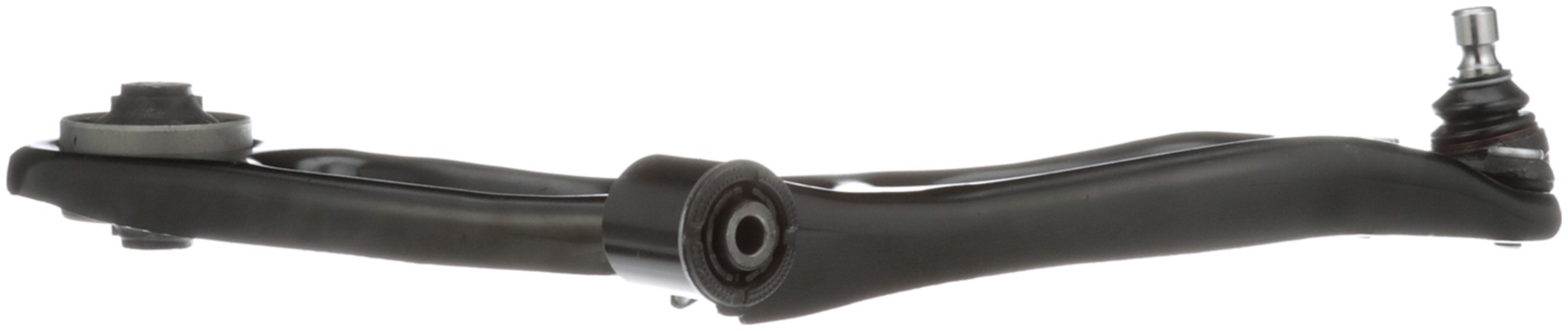

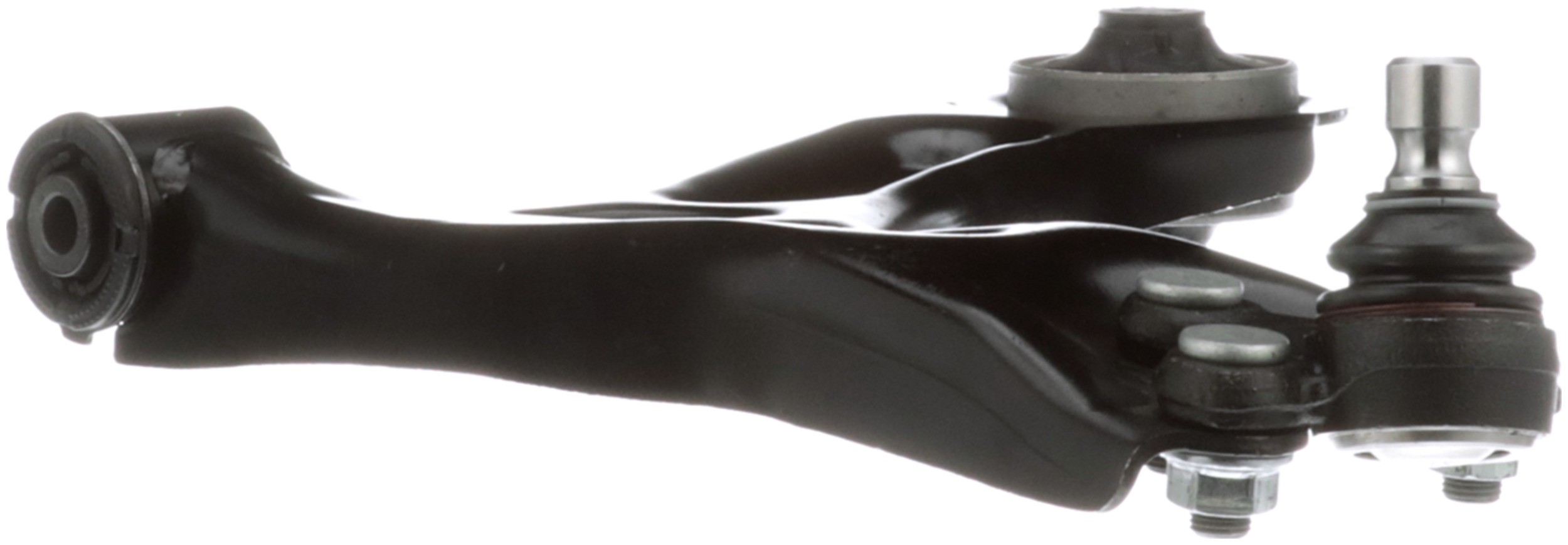

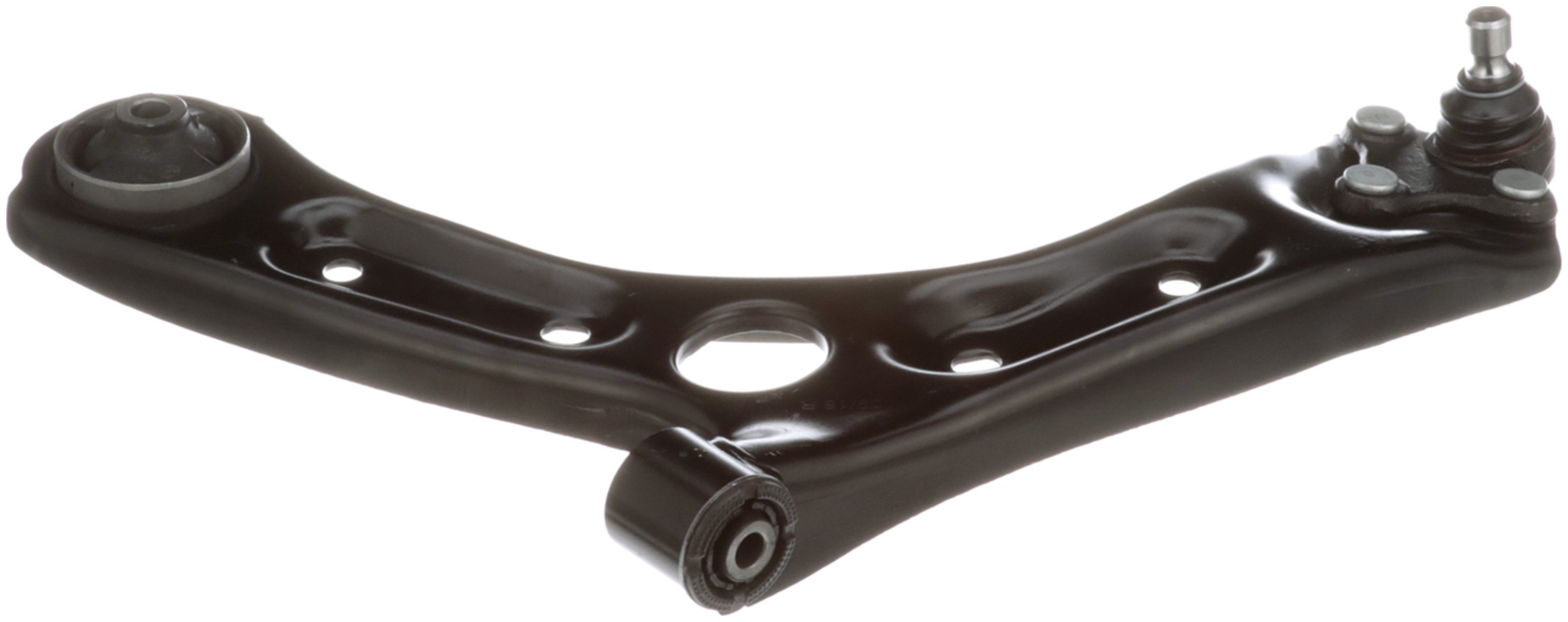

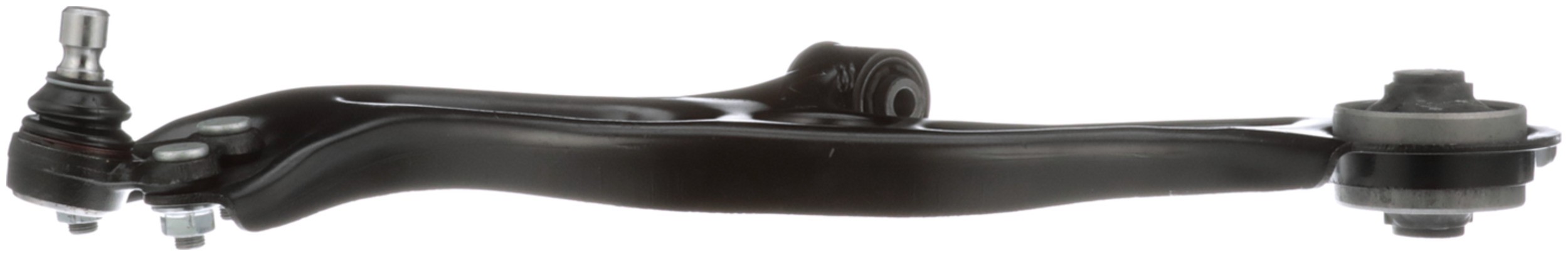

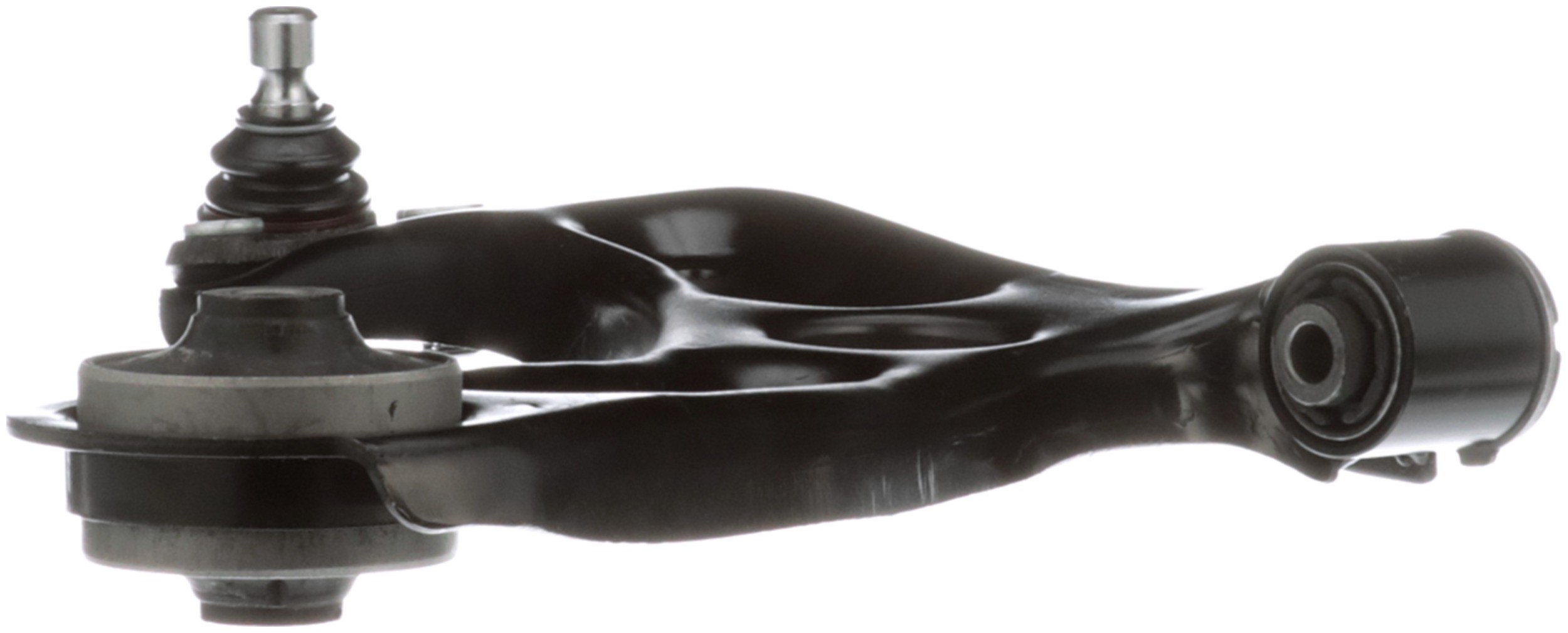

Delphi TC7631 Suspension Control Arm and Ball Joint Assembly

Delphi TC7631 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Control arms utilize robot welding for consistent performance and quality
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Length	60.00 MM
Bushing Length	2.362 IN
Finish	Painted
Pre-greased	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Attachment Type	Bolt In
Ball Joint Stud Type	Grooved
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Mounting Hole Quantity	2
Boot Material	Chloroprene Rubber (CR)
Adjustable	No
Greaseable	No
Finish	Black
Boot Colour	Black
Bearing Material	Plastic
Bushing Type	Rubber
4890	2.224 IN
Bushing Colour	Black
9090	Chloroprene Rubber (CR)
6529	Power
2386	Stamped
9532	330.50 MM
9532	13.012 IN
4890	56.50 MM
4887	14.961 IN
4887	380.00 MM
Length	450.00 MM
Length	17.717 IN
Mounting Hole Diameter	14.30 MM
Mounting Hole Diameter	0.563 IN
2384	Yes
Position(s)	Front Left Lower
Bushing Inside Diameter	14.30 MM
Bushing Inside Diameter	0.563 IN
