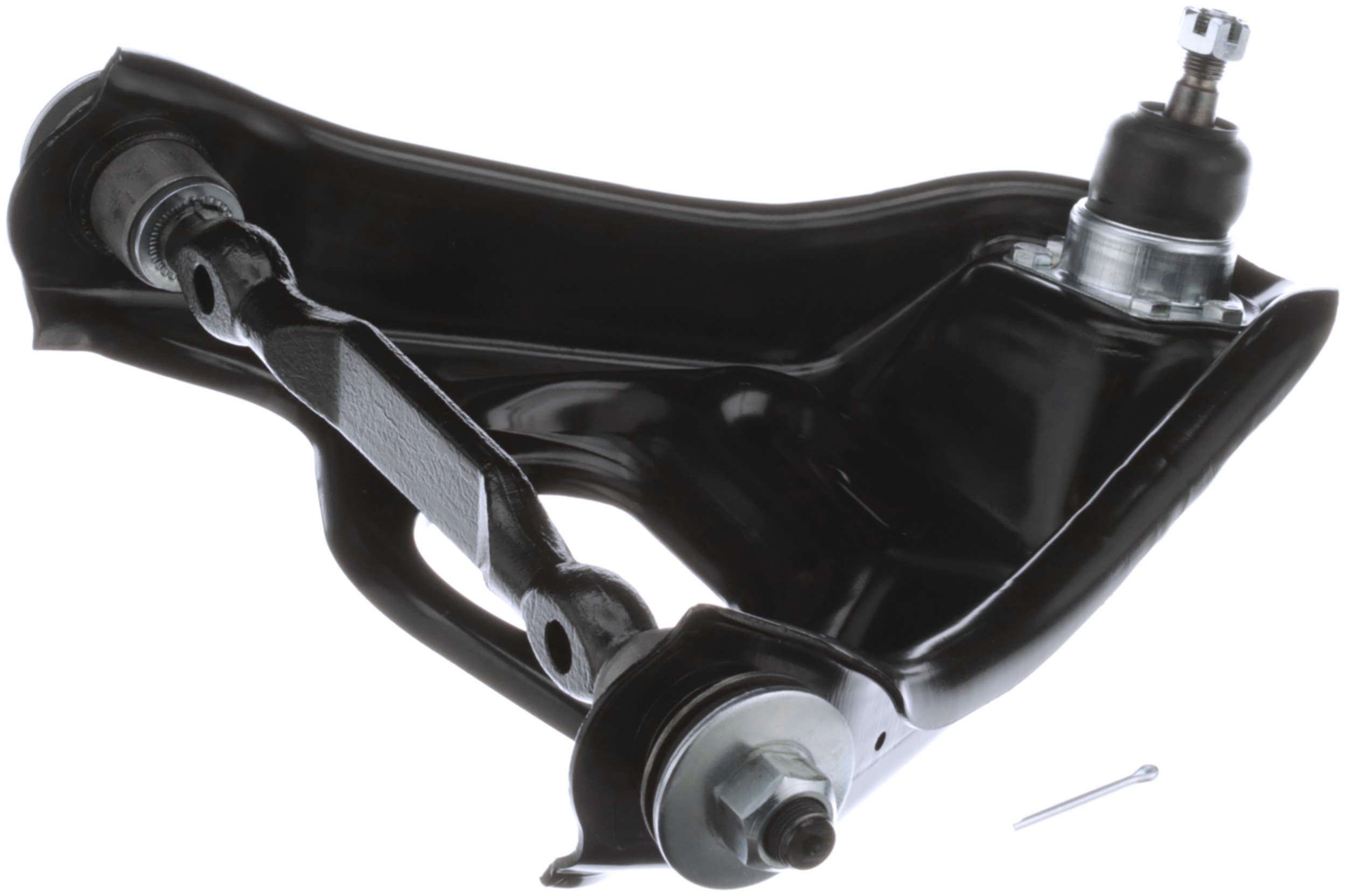

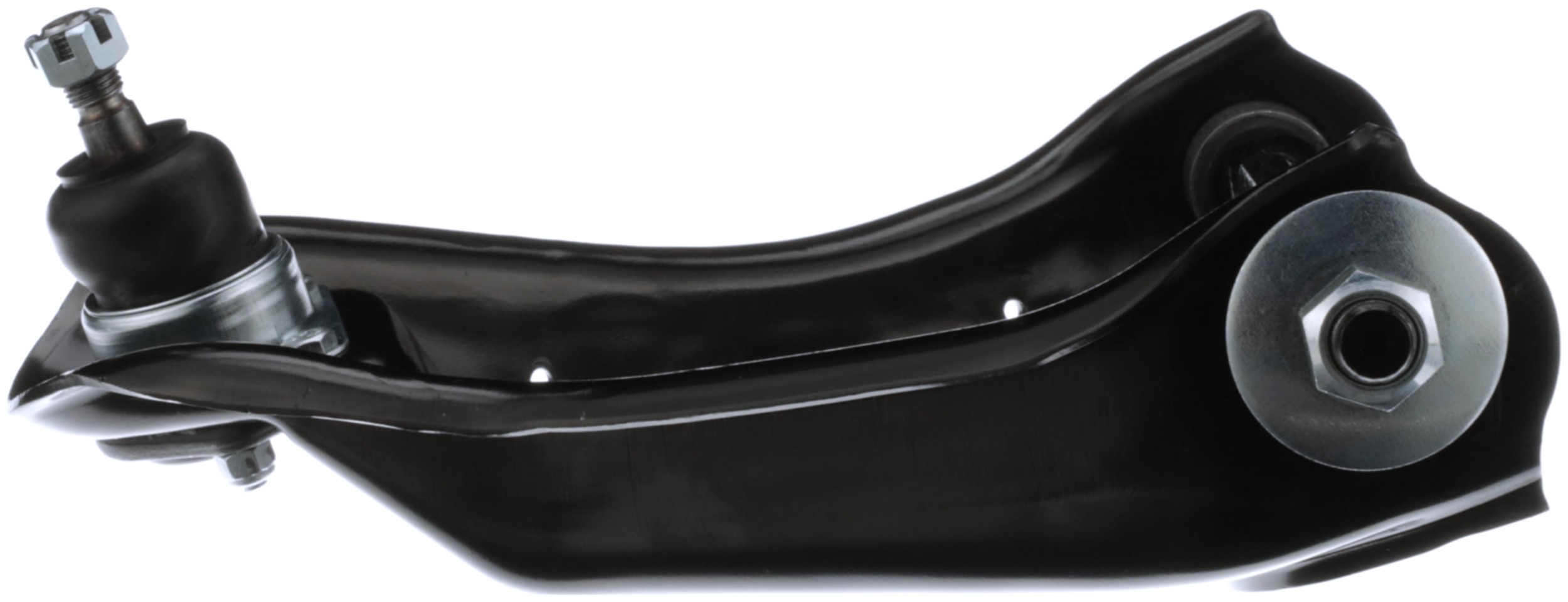

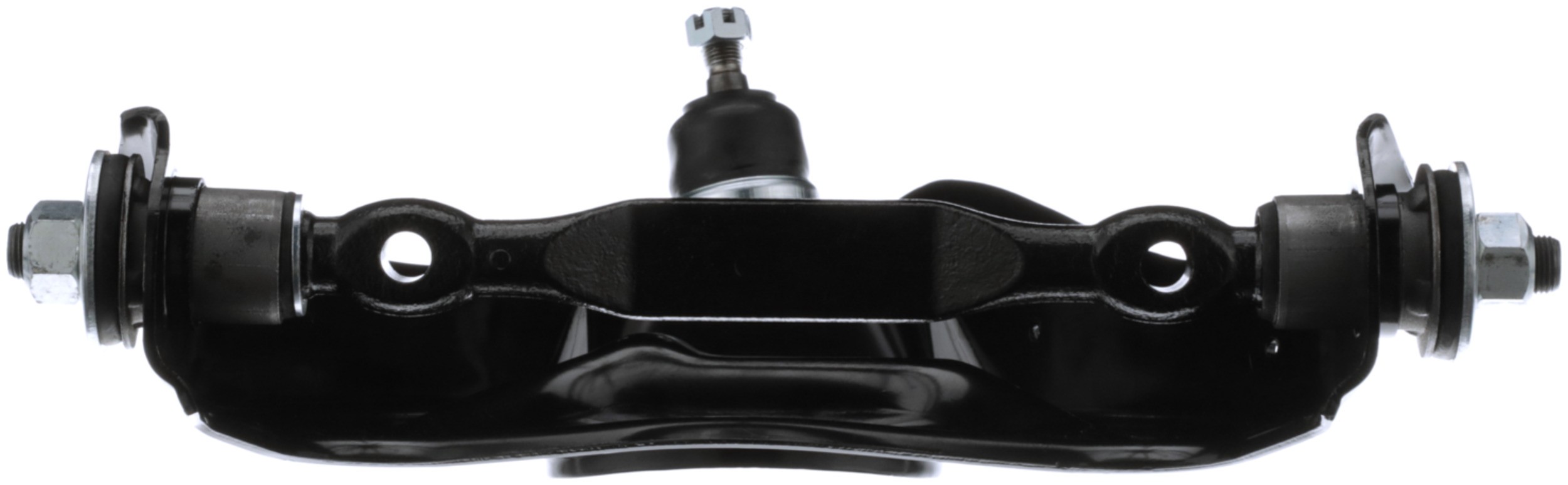

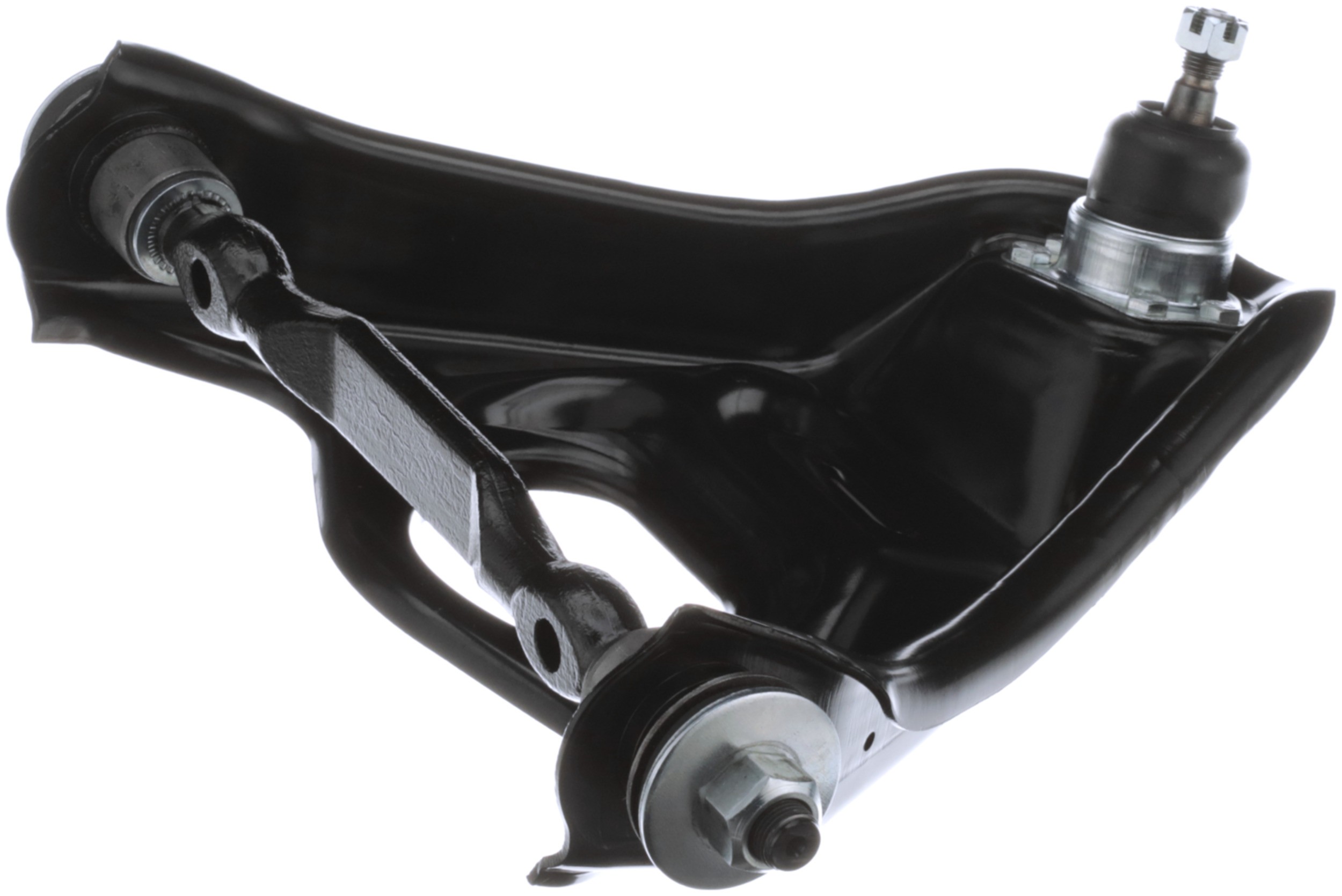

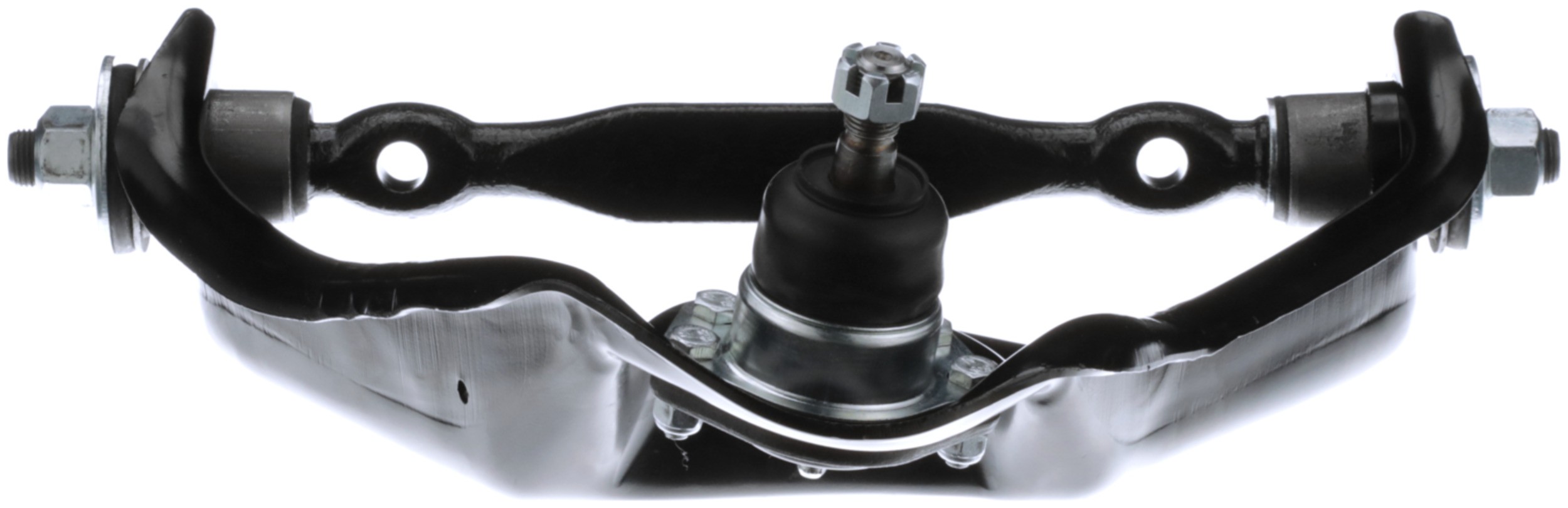

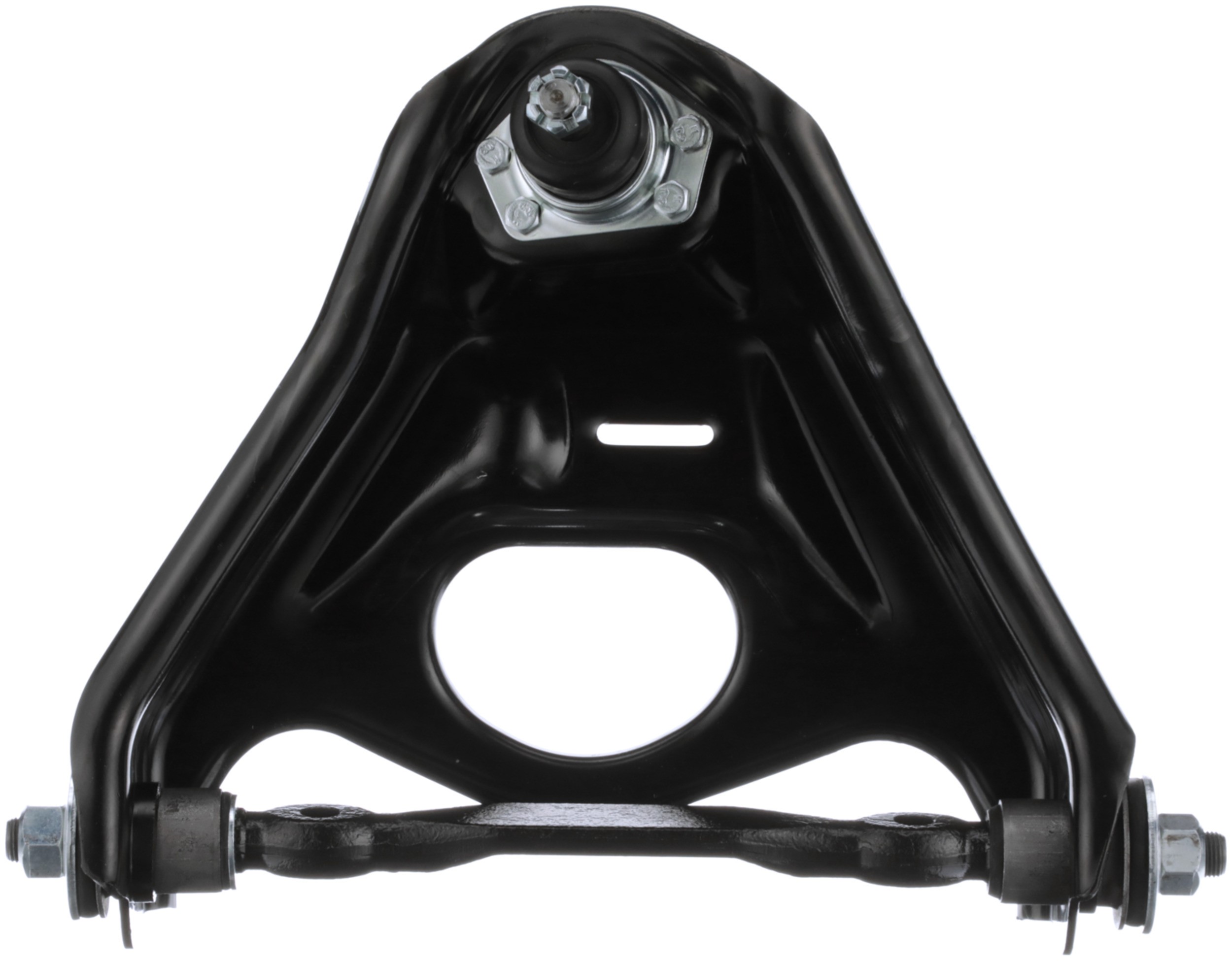

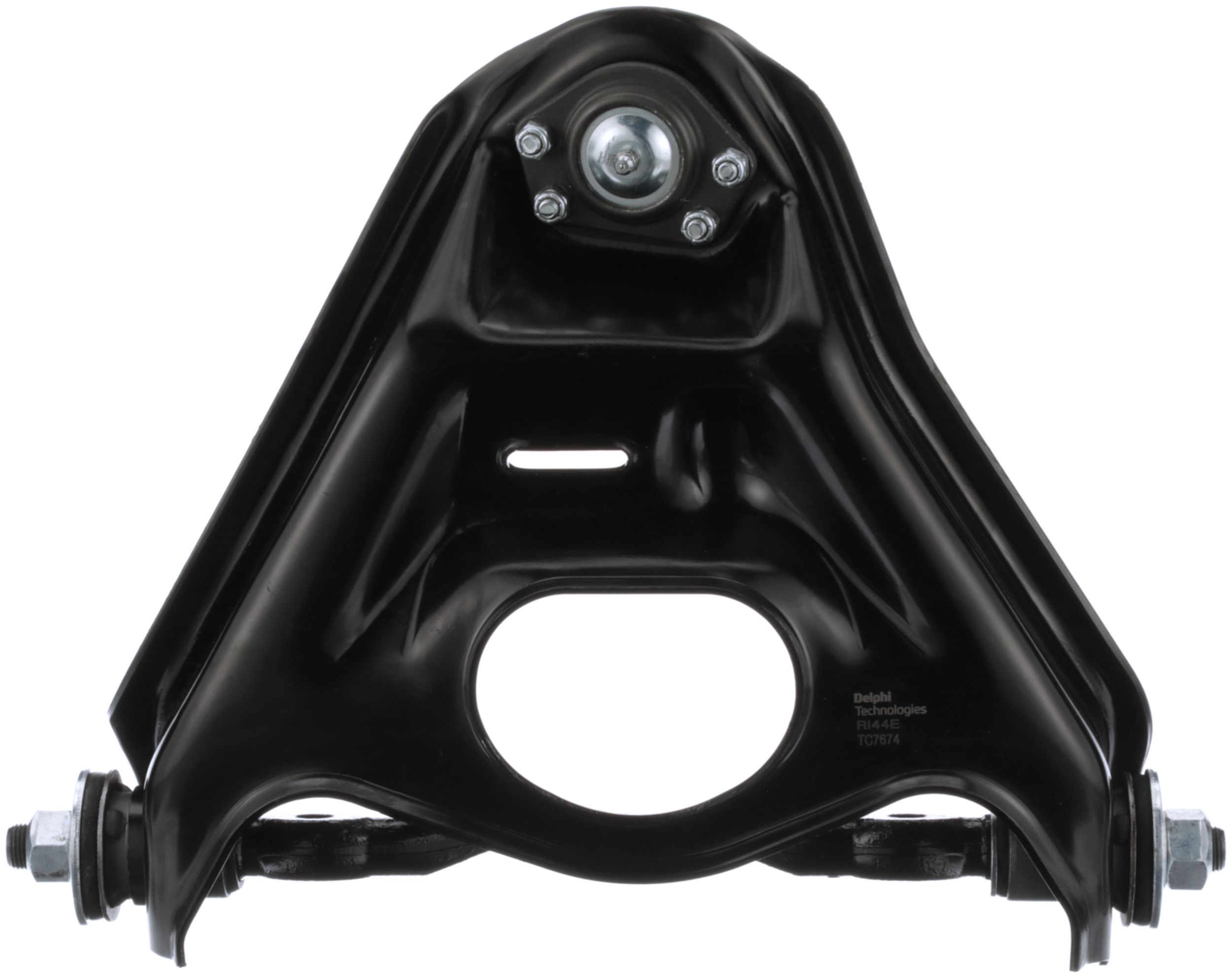

Delphi TC7674 Suspension Control Arm and Ball Joint Assembly

Delphi TC7674 Suspension Control Arm and Ball Joint Assembly

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control arms utilize robot welding for consistent performance and quality

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bushing Type	Rubber
Attachment Type	Bolt In
Dust Boot Included	Yes
Ball Joint Stud Type	Threaded
2386	Tubular
2384	Yes
Bushing Colour	Black
Pre-greased	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Boot Colour	Black
Finish	Black
Position(s)	Front Right Upper
6529	Power
9090	Chloroprene Rubber (CR)
4241	Yes
Thread Direction	Clockwise (Right)
Material	Steel
Mounting Hardware Included	Yes
Grade Type	Premium
Boot Material	Chloroprene Rubber (CR)
Adjustable	No

Vehicle Applications:

Make	Model	Years
Buick	Commercial Chassis	1991 to 1996
Buick	Estate Wagon	1980 to 1983
Buick	LeSabre	1977 to 1990
Buick	Roadmaster	1991 to 1996
Chevrolet	Bel Air	1981 to 1981
Chevrolet	Caprice	1977 to 1996
Chevrolet	Commercial Chassis	1991 to 1994
Chevrolet	Impala	1977 to 1996
Pontiac	Bonneville	1977 to 1981
Pontiac	Grand Safari	1977 to 1978
